Toyota Townace/Liteace

1996-11 → 2004-12 · chassis CR4#,KR4#,SR40 · catalogue 651350 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

78 part groups · 16 illustrations

Illustrations

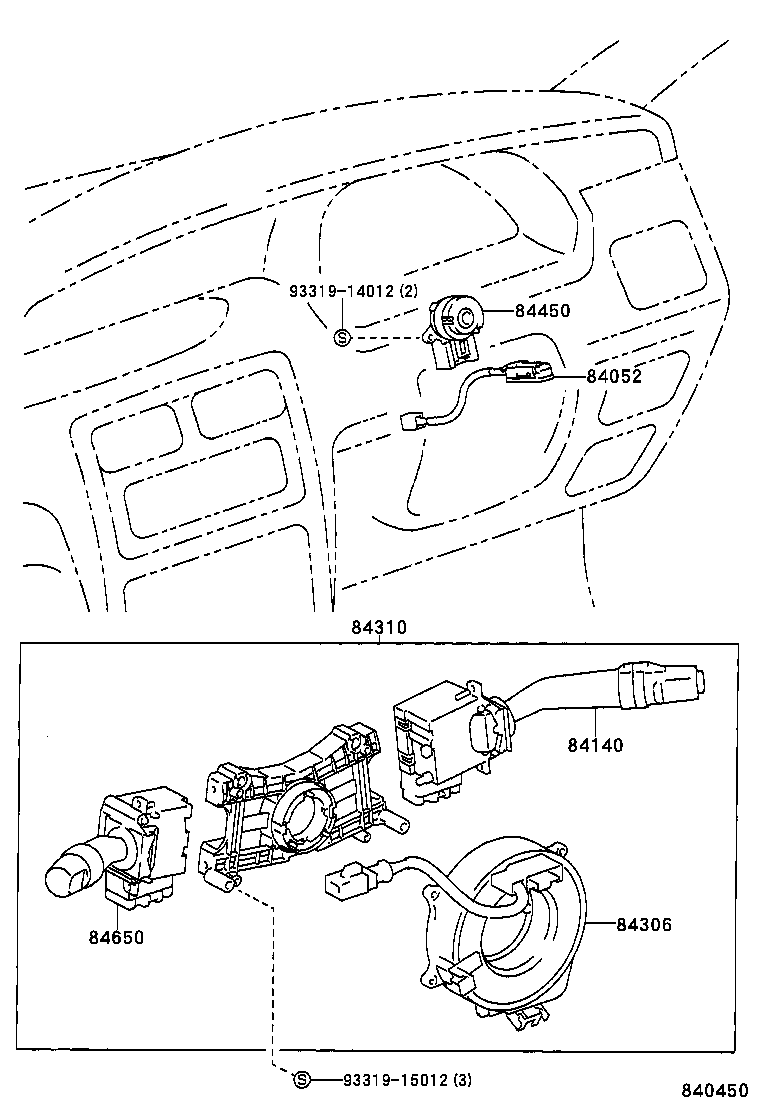

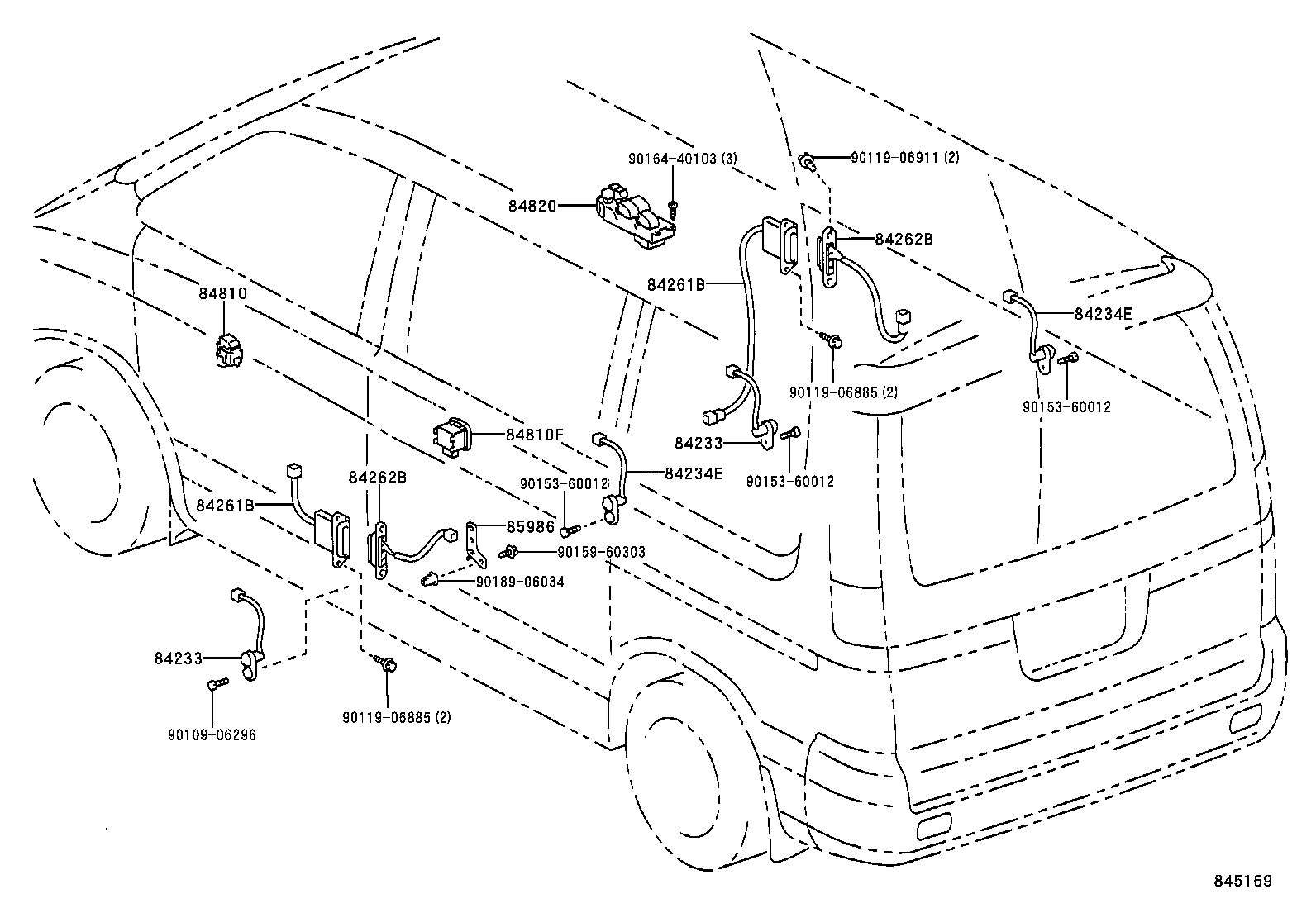

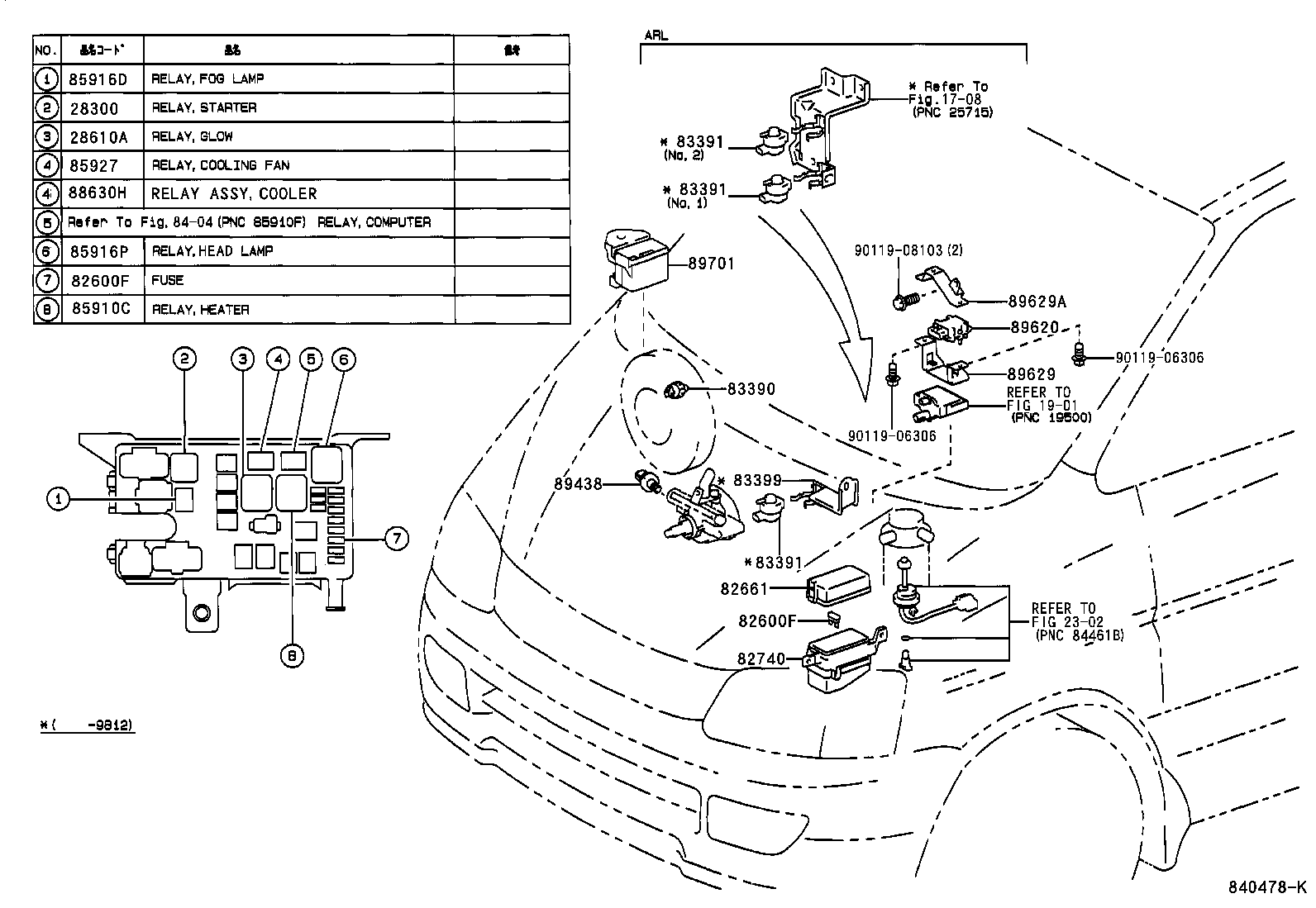

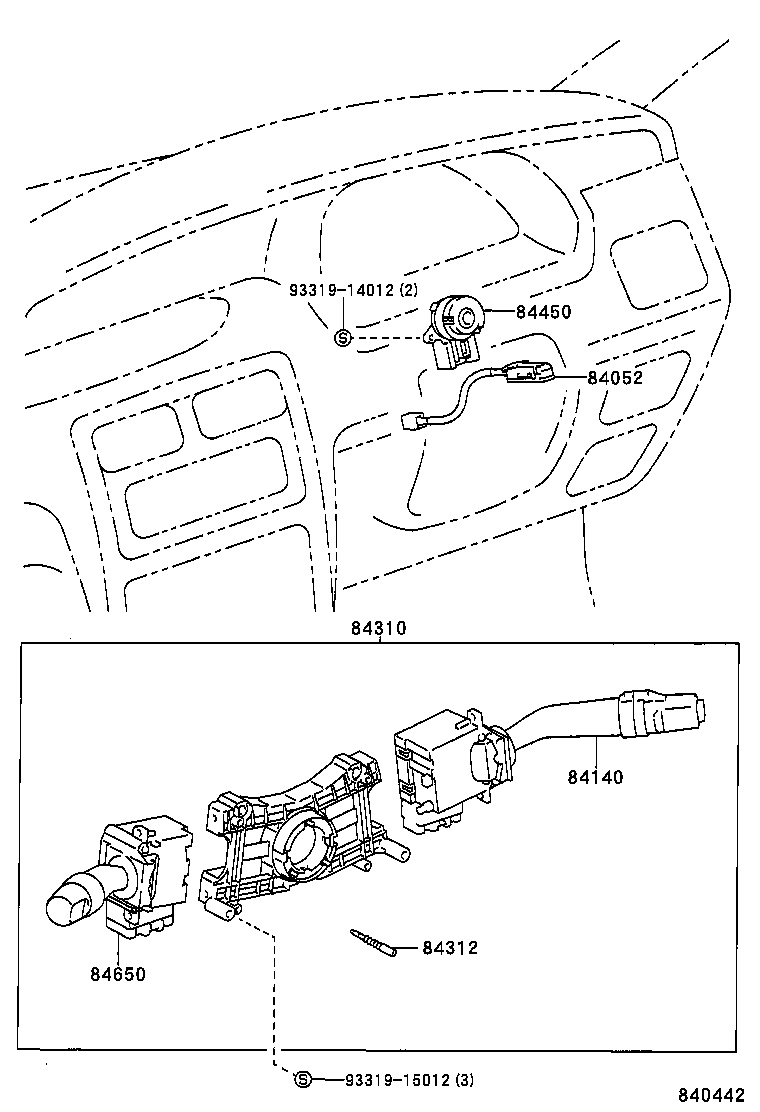

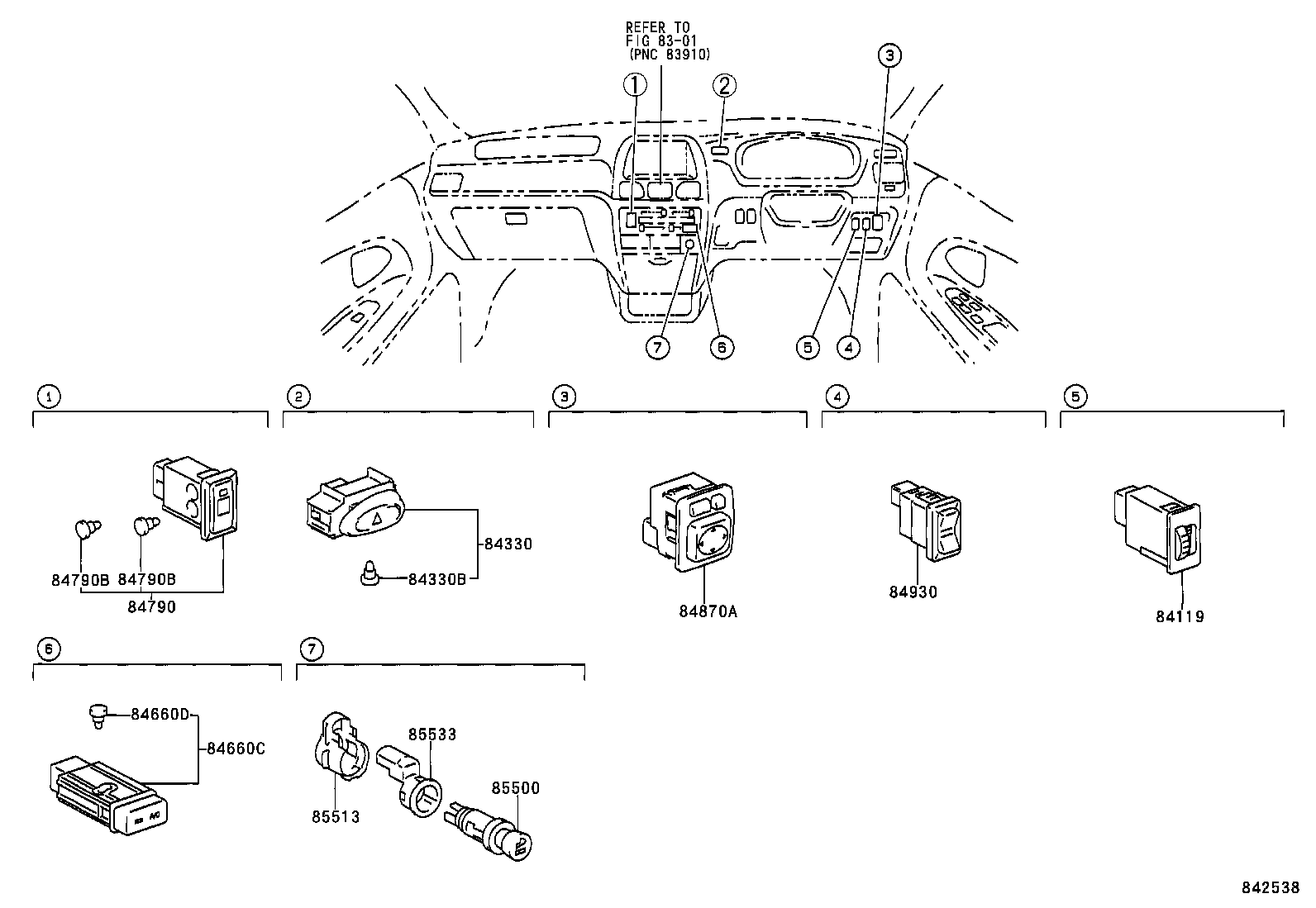

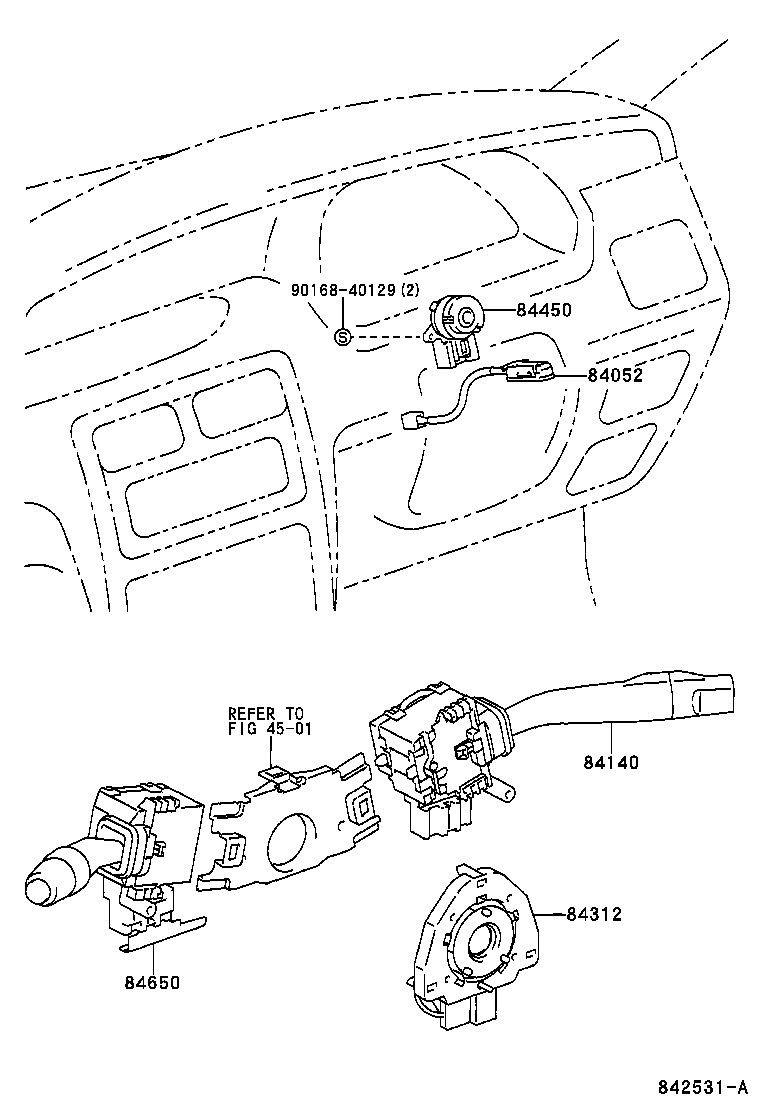

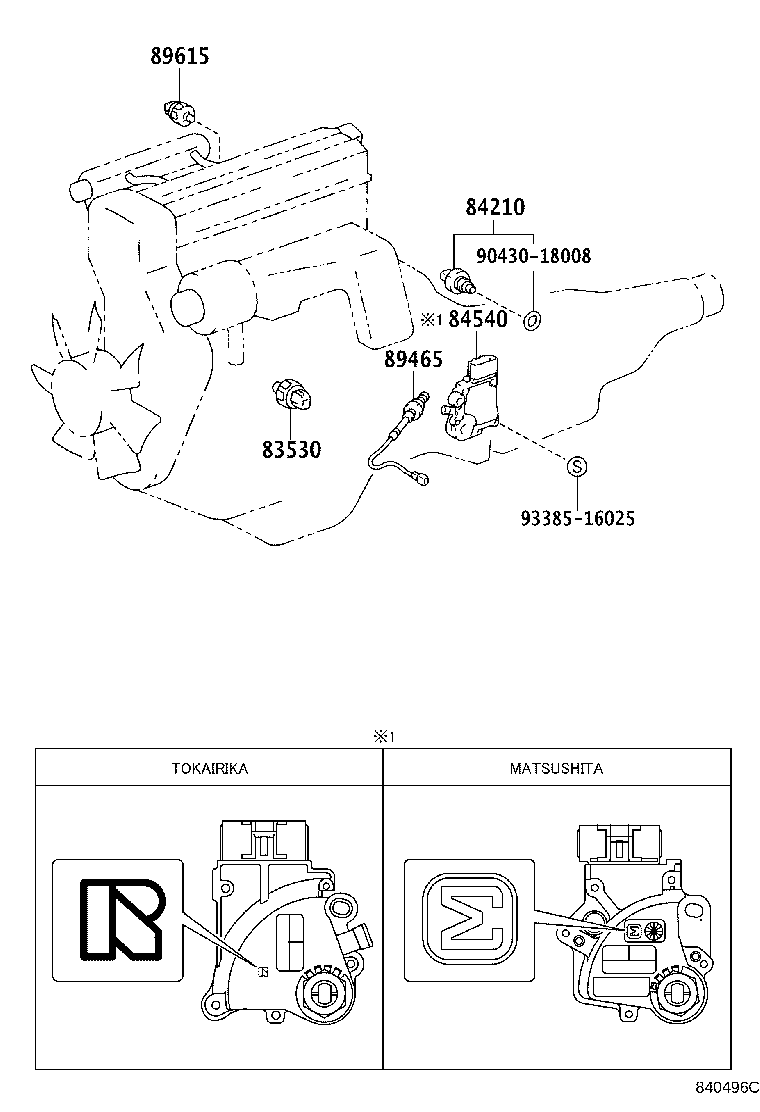

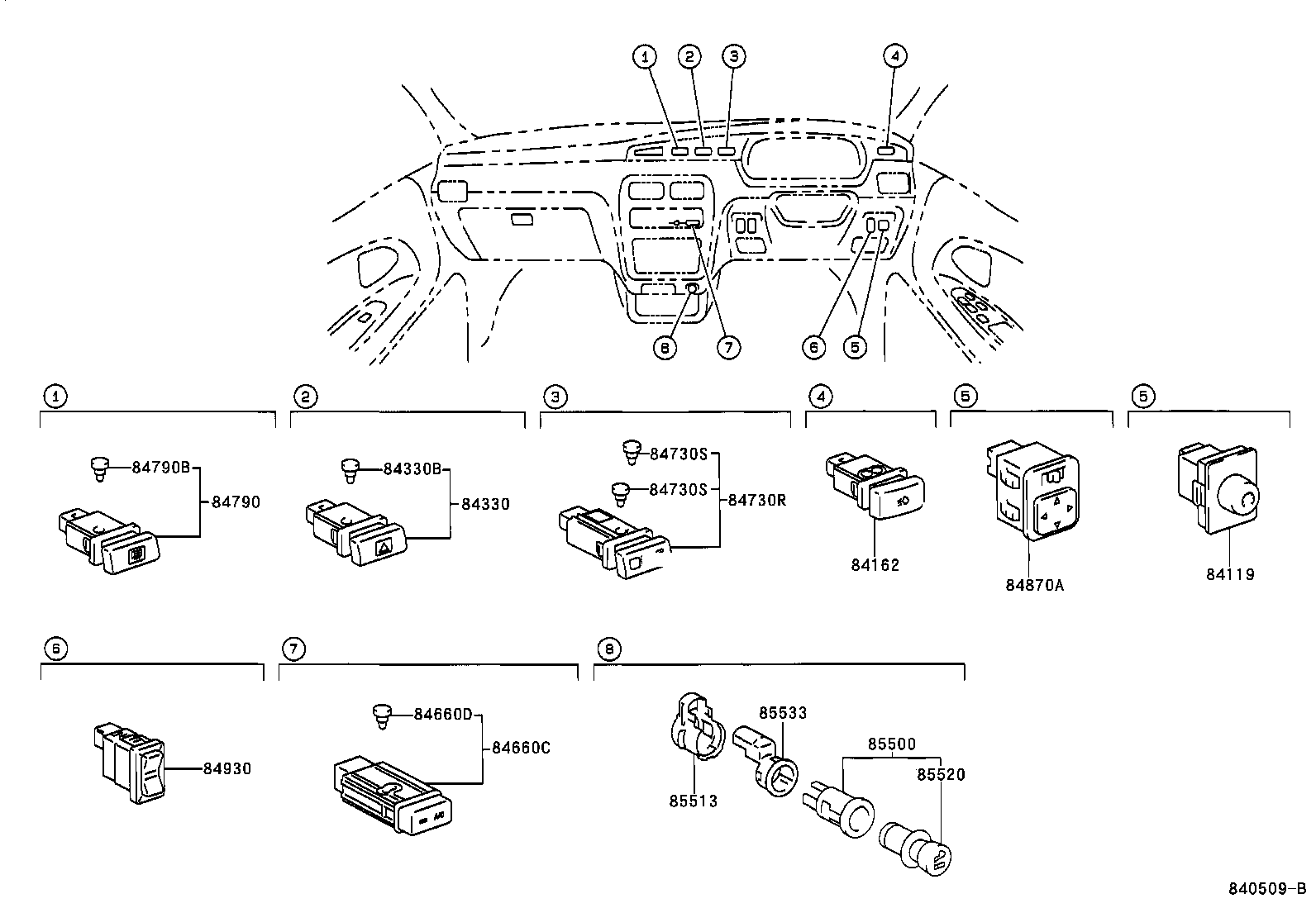

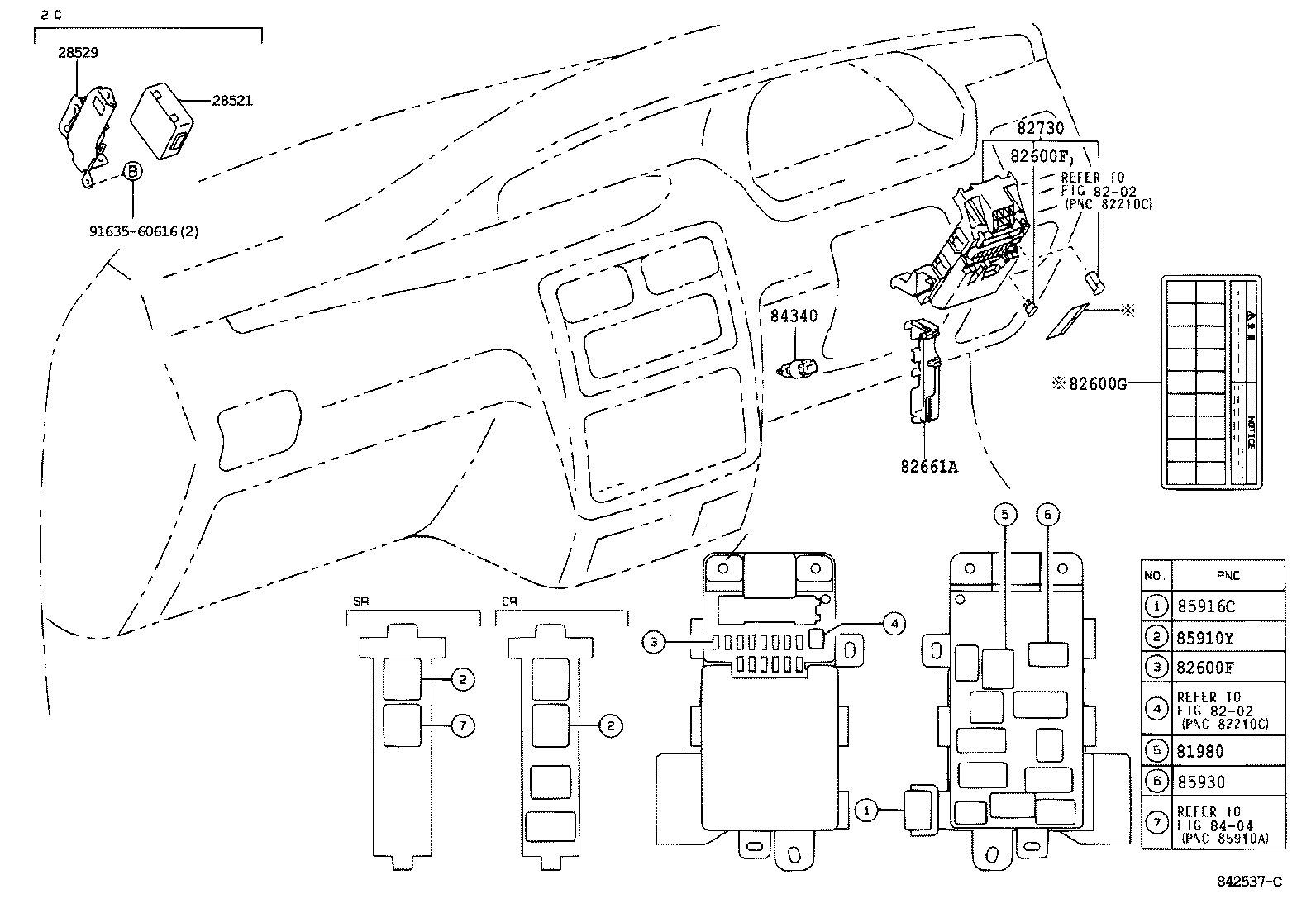

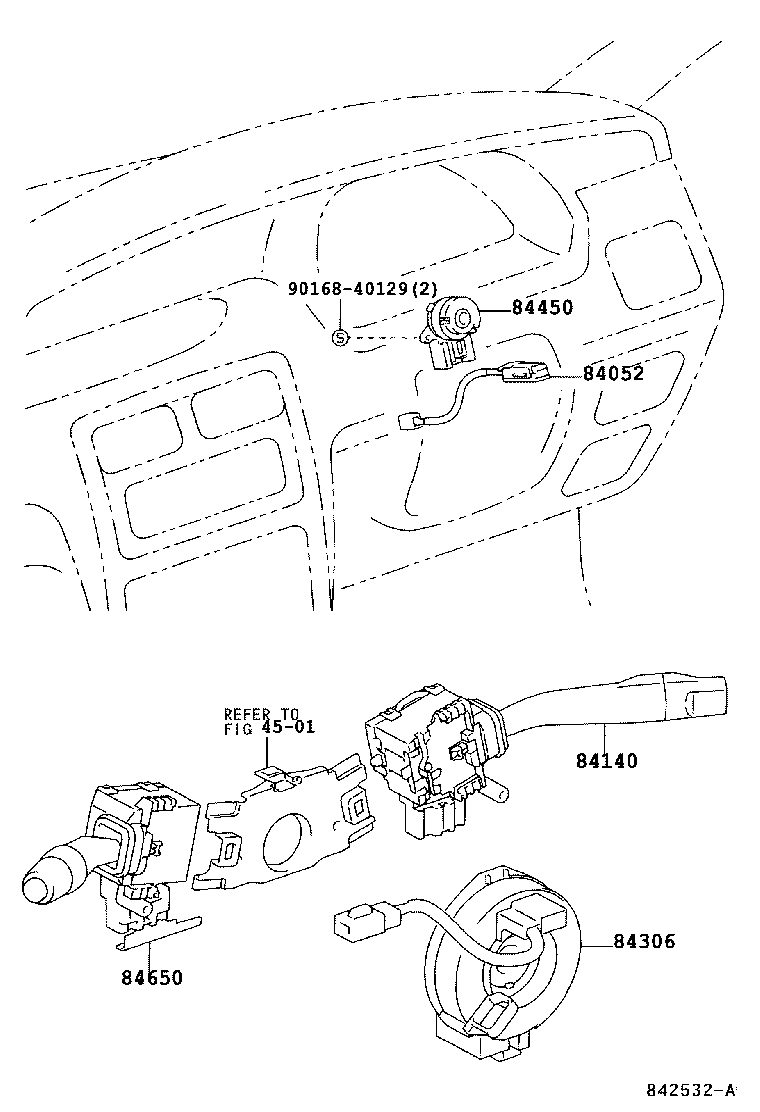

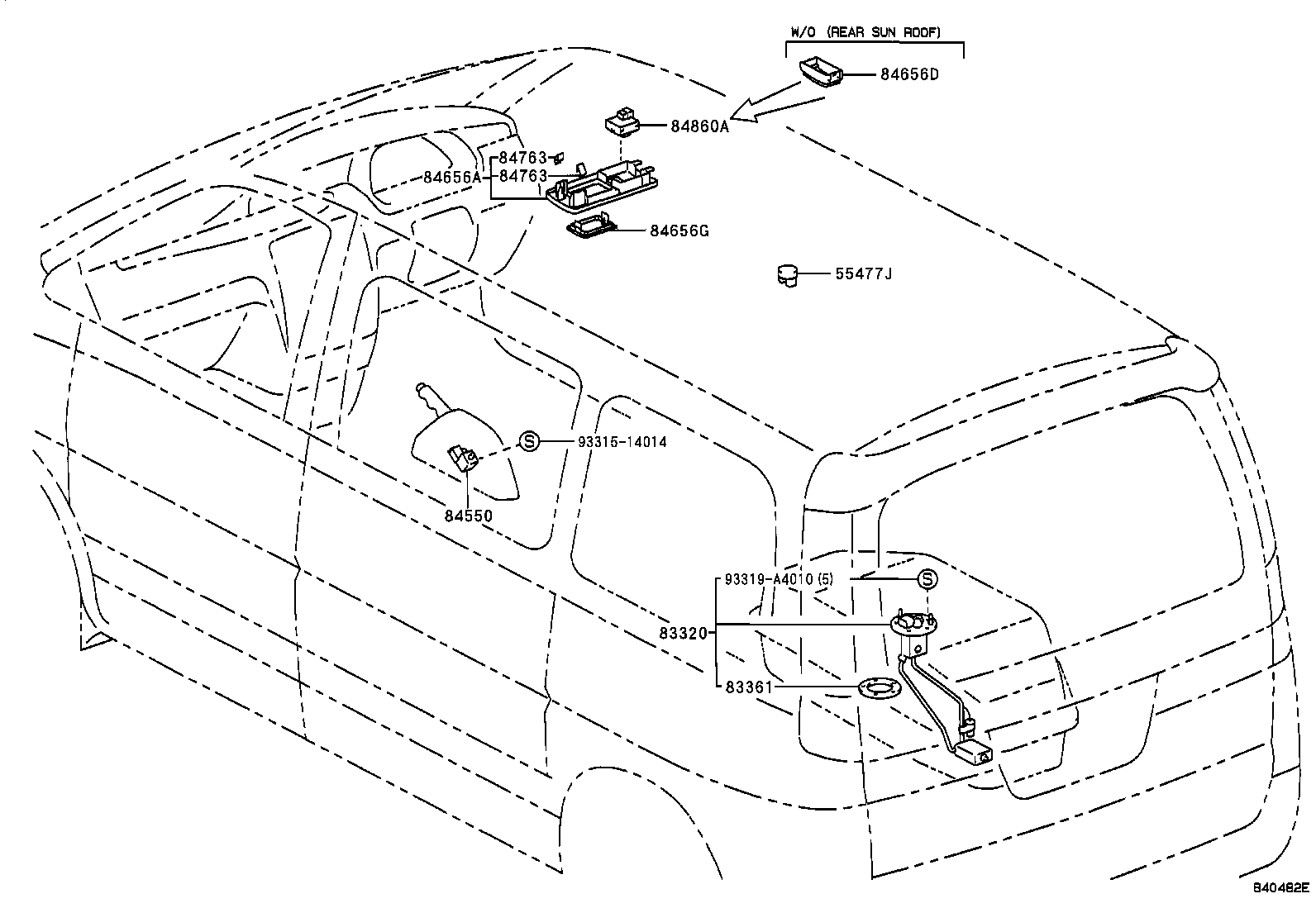

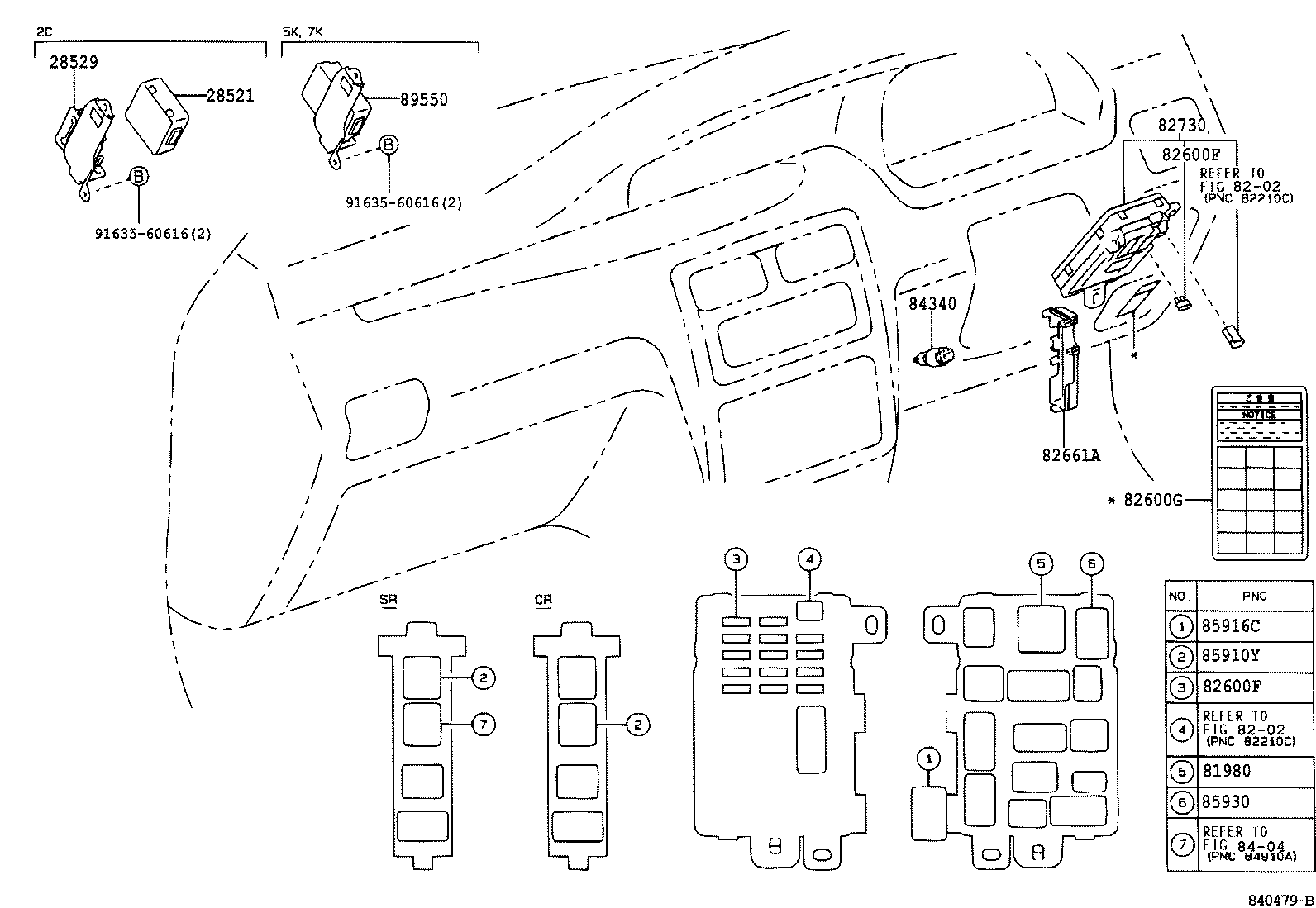

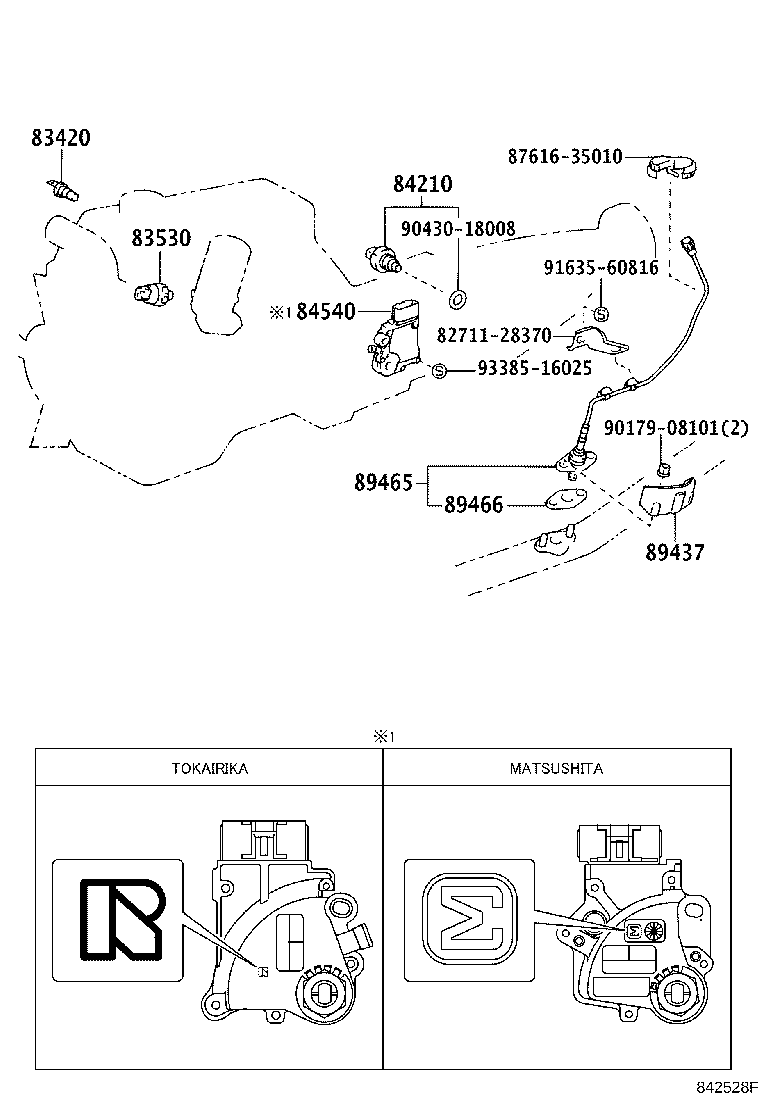

Figure 840476A 840476A 1996-11 → — Figure 840477B 840477B 1996-11 → 1998-12 Figure 842528F 842528F 1998-12 → — Figure 840496C 840496C 1996-11 → — Figure 840478K 840478K 1996-11 → — Figure 840479B 840479B 1996-11 → 1998-12 Figure 842537C 842537C 1998-12 → — Figure 840509B 840509B 1996-11 → 1998-12 Figure 842538 842538 1998-12 → — Figure 840442 840442 1996-11 → 1998-12 Figure 842531A 842531A 1998-12 → — Figure 840450 840450 1996-11 → 1998-12 Figure 842532A 842532A 1998-12 → — Figure 840481E 840481E 1996-11 → 2002-07 Figure 845169 845169 2002-07 → — Figure 840482E 840482E 1996-11 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28521 Timer, Preheating
28529 Bracket, Preheating Timer, NO.1
28610A Relay Assy, Glow Plug(SUB)
55477J Cover, Cigarette Lighter, Hole
81980 Flasher Assy, Turn Signal
82600F Fuse, Fuse Block
82600G Plate, Caution(FOR FUSE)
82661 Cover, Relay Block, NO.1
82661A Cover, Relay Block, NO.2
82730 Block Assy, Instrument Panel Junction
82740 Block Assy, Engine Room Relay
83320 Gage Assy, Fuel Sender
83361 Gasket, Fuel Sender Gage
83390 Switch Assy, Vacuum Warning
83391 Switch, Vacuum
83399 Bracket, Vacuum Switch
83420 Gage Assy, Water Temperature Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84052 Switch Assy, Un-lock Warning
84119 Rheostat, Light Control
84140 Switch Assy, Headlamp Dimmer
84162 Switch, Front Fog Lamp
84210 Switch Assy, Back-up Lamp
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234E Switch, Courtesy Lamp (FOR SLIDE DOOR)
84261B Junction, Slide Door Control,Male
84262B Junction, Slide Door Control, Female
84306 Cable Sub-assy, Spiral
84310 Switch Assy, Turn Signal
84312 Plate, Horn Contact
84330 Switch Assy, Hazard Warning Signal
84330B Bulb, Hazard Warning Signal Switch
84340 Switch Assy, Stop Lamp
84450 Switch Assy, Ignition OR Starter
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper
84656A Bezel, Switch
84656D Cover, Bezel Switch Hole
84656G Cover, Bezel Switch Hole
84660C Switch, Cooler
84660D Bulb(FOR COOLER SWITCH)
84730R Switch Assy, Heater Blower
84730S Bulb, Heater Blower Switch
84763 Plate, Switch
84790 Switch Assy, Rear Window Defogger
84790B Bulb(FOR REAR WINDOW DEFOGGER SWITCH)
84810 Switch Assy, Power Window Regulator
84810F Switch Assy, Slide Door Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84860A Switch Assy, Sliding Roof
84870A Switch Assy, Outer Mirror
84930 Switch Assy, Door Control
85500 Lighter Assy, Cigarette
85513 Cover, Cigarette Lighter
85520 Knob And Element Assy, Cigarette Lighter
85533 Lens, Cigarette Lighter Indicator
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85910Y Relay, Rear Heater
85916C Relay, Back UP Lamp
85916D Relay, Fog Lamp
85916P Relay, Headlamp
85927 Relay, Cooling Fan
85930 Relay Assy, Power Window
85986 Bracket, Relay, NO.2
88630H Relay Assy, Cooler
89422A Sensor, Water Temperature
89437 Cover, Sensor
89438 Switch, Power Steering Oil Pressure
89465 Sensor, Oxygen
89466 Gasket, Oxygen Sensor
89550 Computer Assy, Emission Control
89615 Sensor, Knock Control
89620 Igniter Assy
89629 Bracket, Igniter Assy
89629A Bracket, Igniter, NO.2
89701 Block Sub-assy, Abs Relay
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
