Toyota Townace/Liteace
1996-11 → 2004-12 · chassis CR4#,KR4#,SR40 · catalogue 651350 · General
Discontinued model
Data version 2005-07

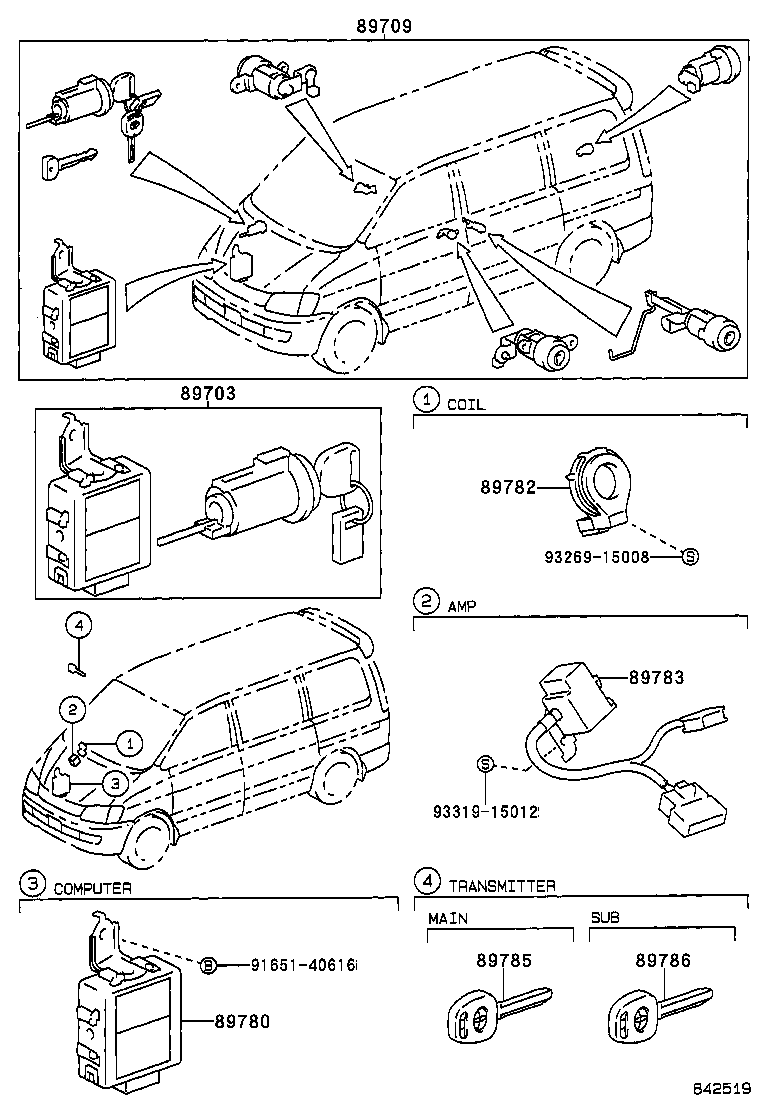

Anti-theft Device
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 89703 | Cylinder & Key Set, Ignition W/Transponder |
| 89709 | Computer Set, Transponder Key |
| 89780 | Computer Assy, Transponder Key |
| 89782 | Coil, Transponder Key |
| 89783 | Amplifier, Transponder Key |
| 89785 | Transmitter, Transponder Key Master |
| 89786 | Transmitter, Transponder Key Sub |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
