Toyota Townace/Liteace
1996-11 → 2004-12 · chassis CR4#,KR4#,SR40 · catalogue 651350 · General
Discontinued model
Data version 2005-07
Heating & Air Conditioning - Heater Unit & Blower
12 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 87103 | Motor Sub-assy, Heater Blower, W/Fan |
| 87107 | Unit Sub-assy, Heater Radiator |
| 87114 | Cover, Heater |
| 87114D | Cover, Boost Ventilator |
| 87130 | Blower Assy, Heater, Front |

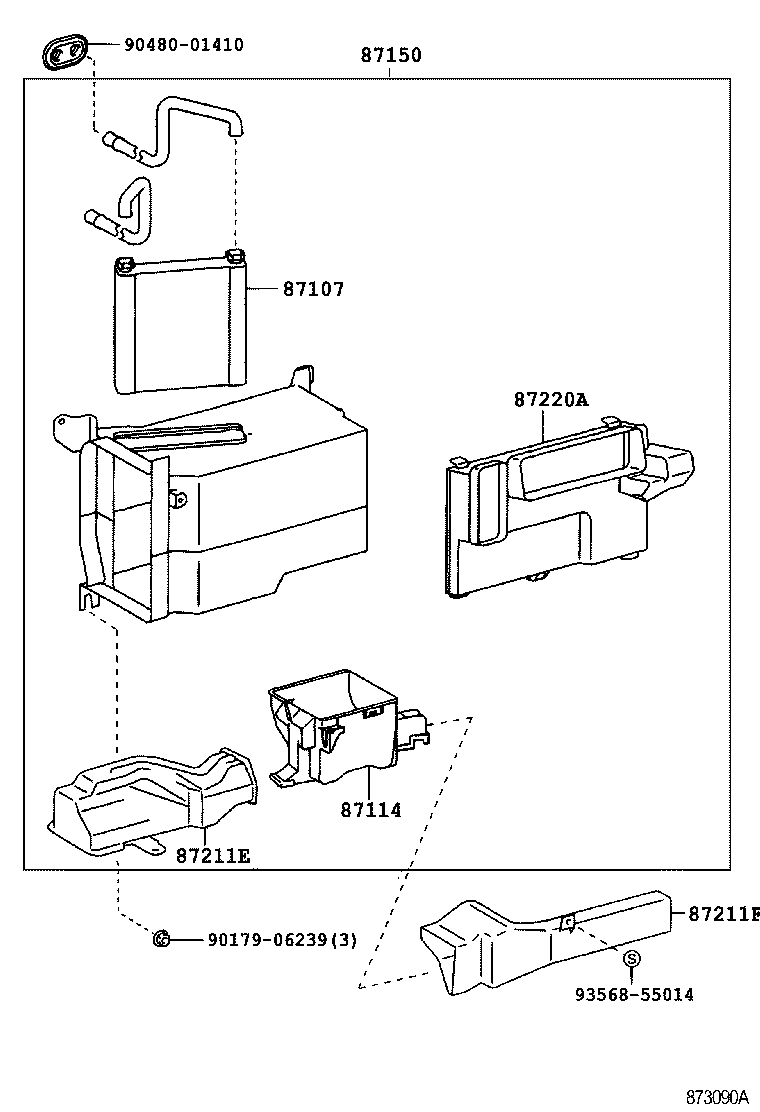

| 87150 | Radiator Assy, Heater |
| 87187A | Wire, Blower Motor Lead |
| 87211E | Duct, Air |
| 87211F | Duct, Air |
| 87220A | Duct Assy, Heater Radiator Air |
| 87220C | Duct Assy, Boost Ventilator |
| 88910 | Ventilator Assy, Boost |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
