Toyota Townace/Liteace

1996-11 → 2004-12 · chassis CR4#,KR4#,SR40 · catalogue 651350 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

4 part groups · 5 illustrations

Illustrations

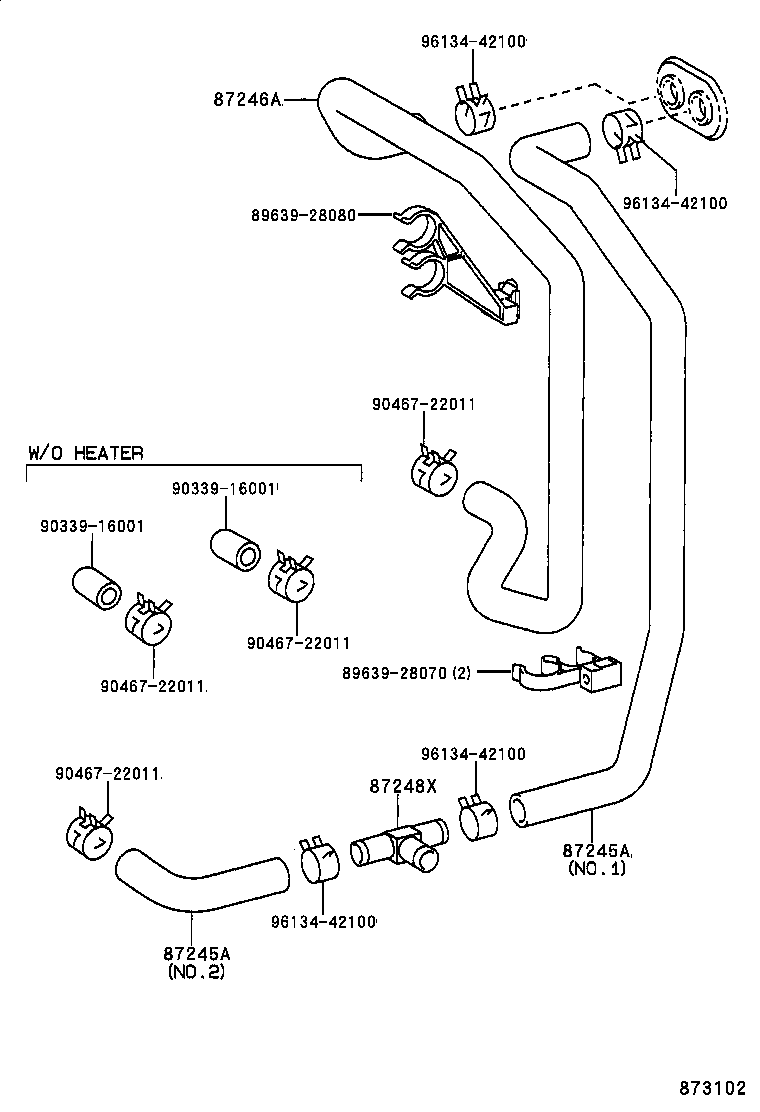

Figure 870588B 870588B 1996-11 → 1998-12 Figure 870758B 870758B 1996-11 → 1998-12 Figure 870589A 870589A 1996-11 → — Figure 873102 873102 1998-12 → — Figure 873103A 873103A 1998-12 → —

Part groups

PNCDescription
87245A Hose, Heater Water, Inlet A
87246A Hose, Heater Water, Outlet A
87248X Pipe, Heater Water
87263 Bracket, Heater Water Pipe, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
