Toyota Townace/Liteace

1996-11 → 2004-12 · chassis CR4#,KR4#,SR40 · catalogue 651350 · General

Discontinued model Data version 2005-07

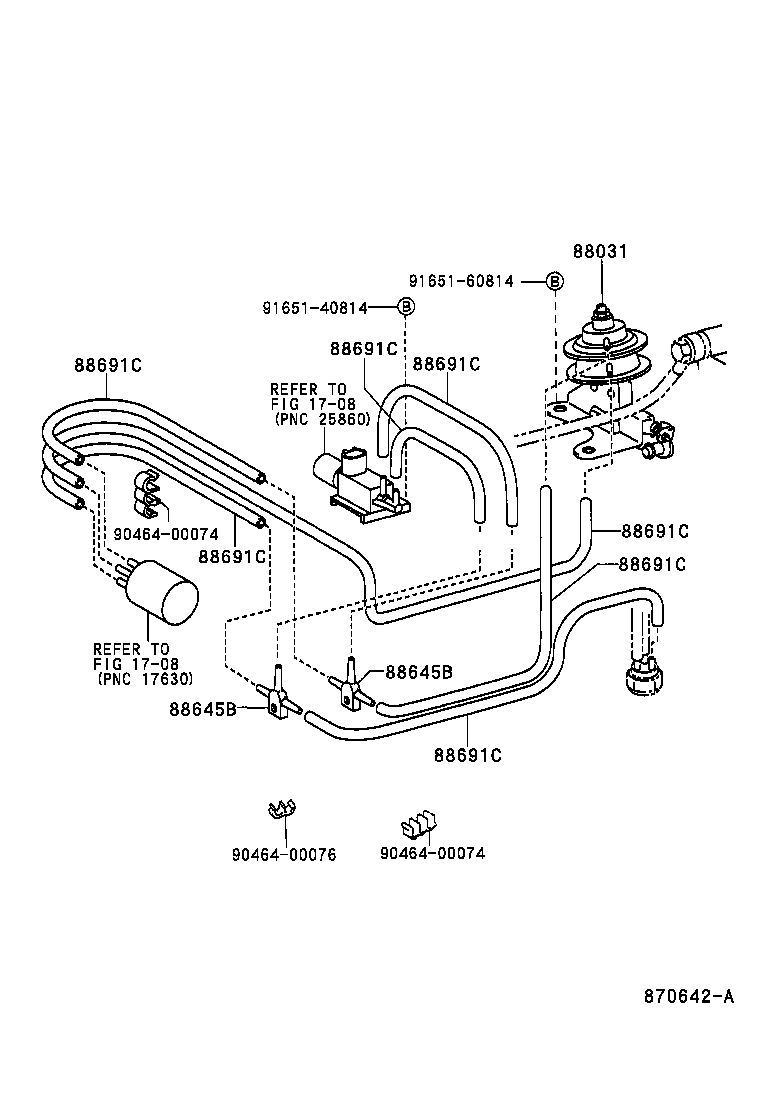

Heating & Air Conditioning - Vacuum Piping

3 part groups · 2 illustrations

PNC	Description
88031	Actuator Set, Idle-up
88645B	Joint, NO.1 (FOR IDLE UP DIVICE)
88691C	Hose, Vacuum (FOR IDLE UP DEVICE), NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
