Toyota Townace/Liteace

1996-11 → 2004-12 · chassis CR4#,KR4#,SR40 · catalogue 651350 · General

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

28 part groups · 8 illustrations

Illustrations

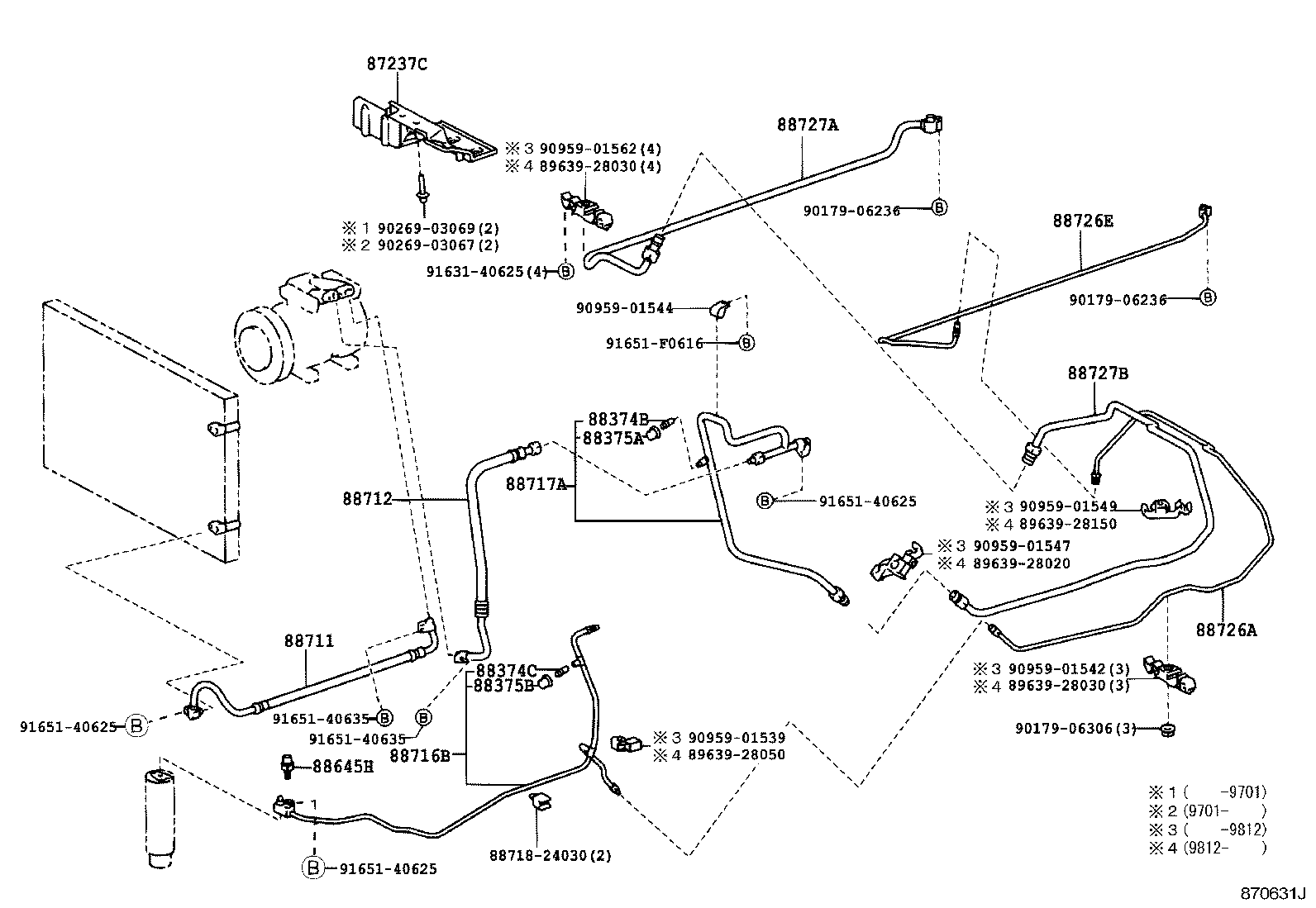

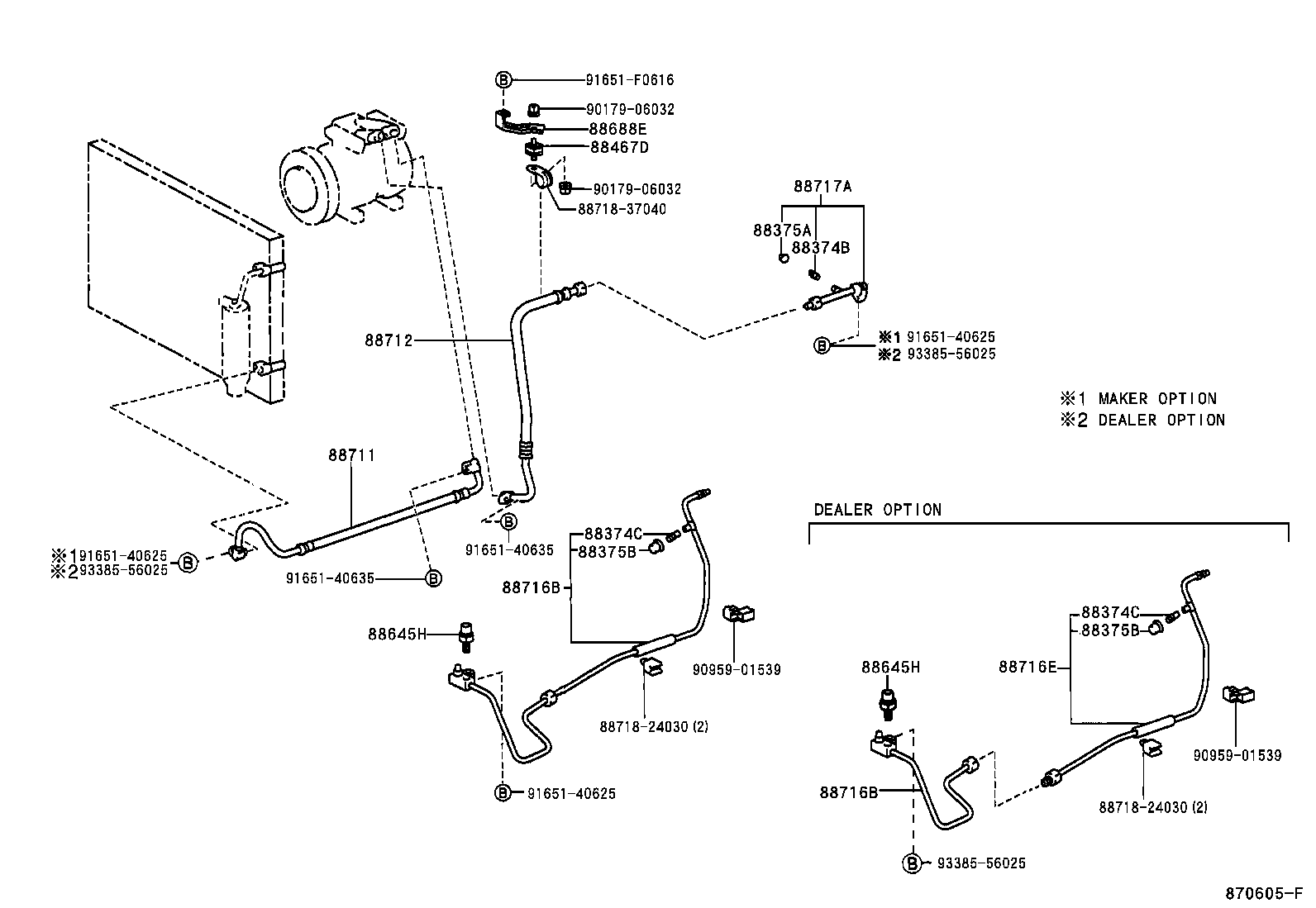

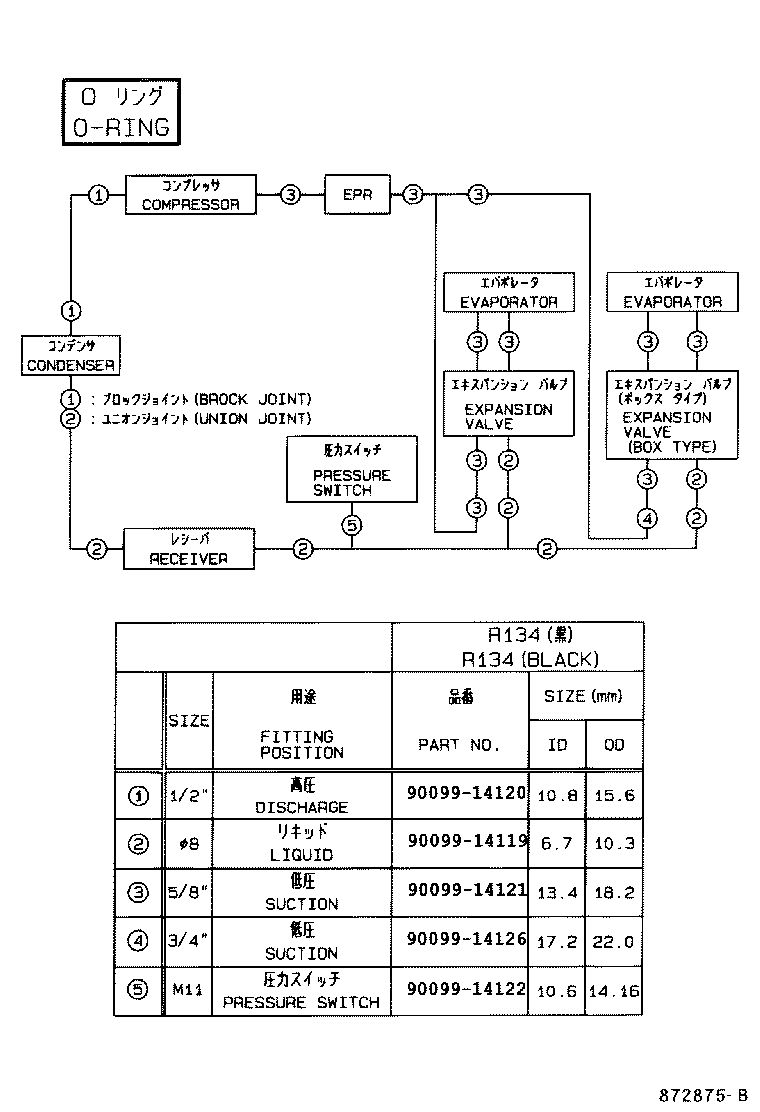

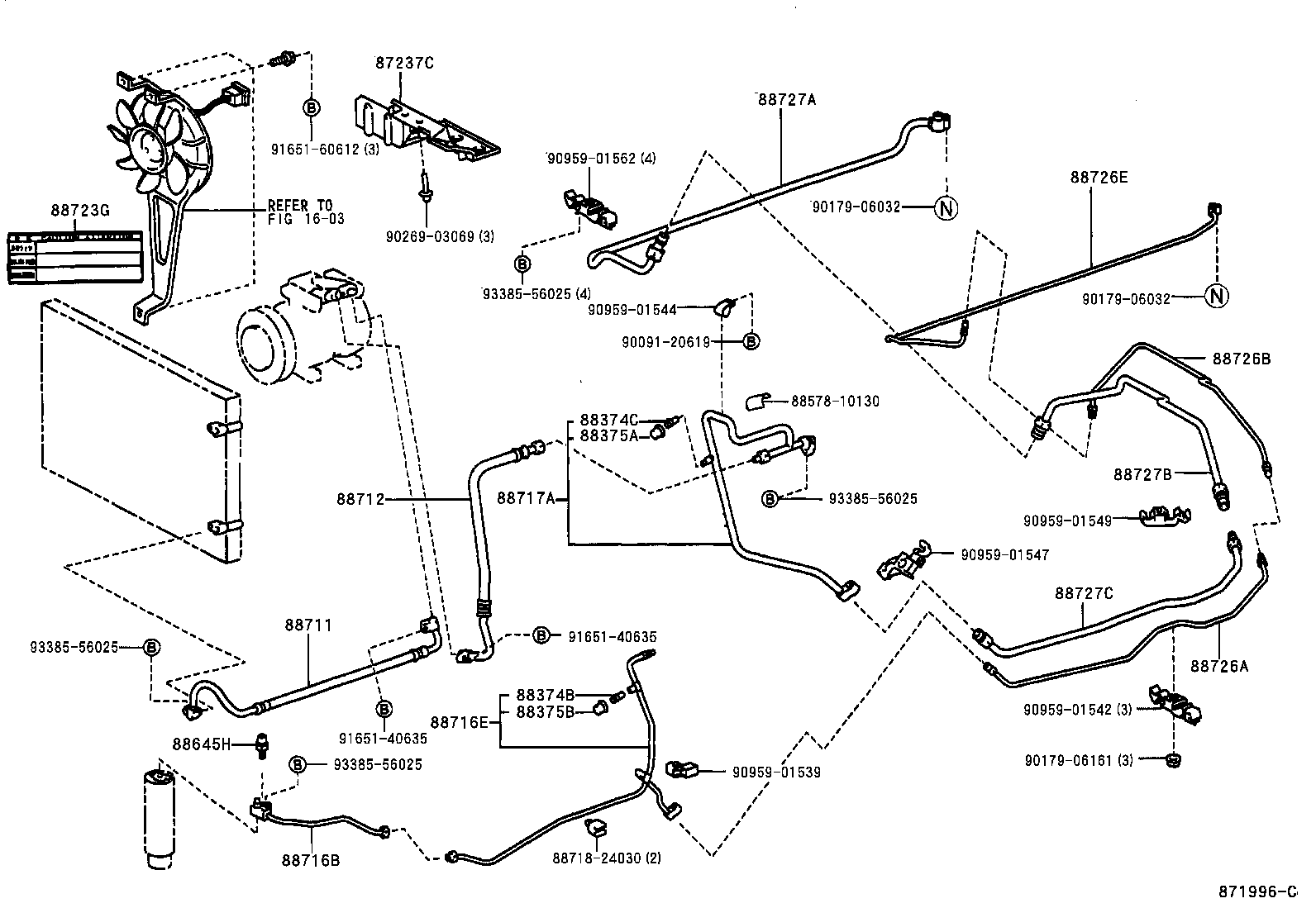

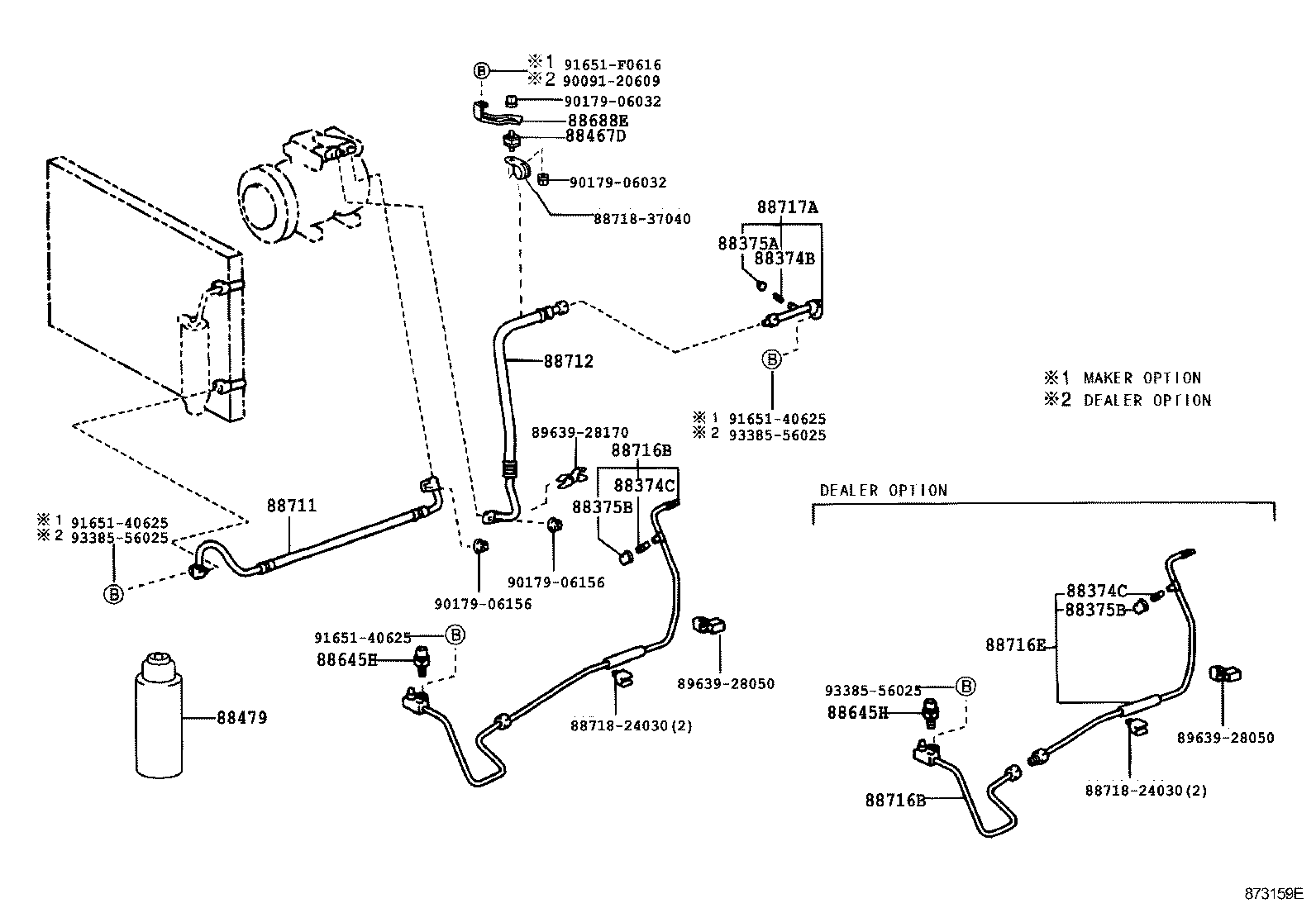

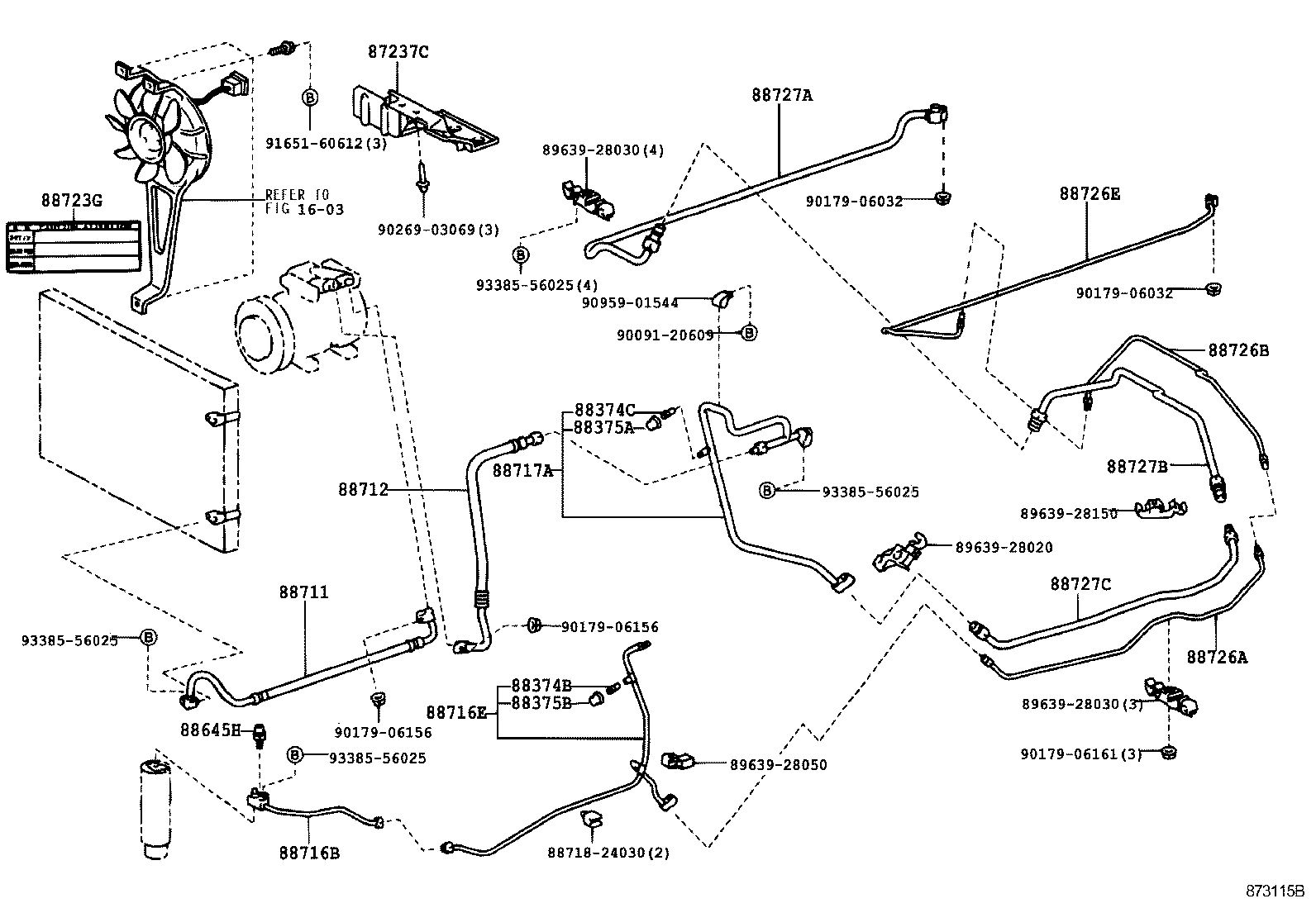

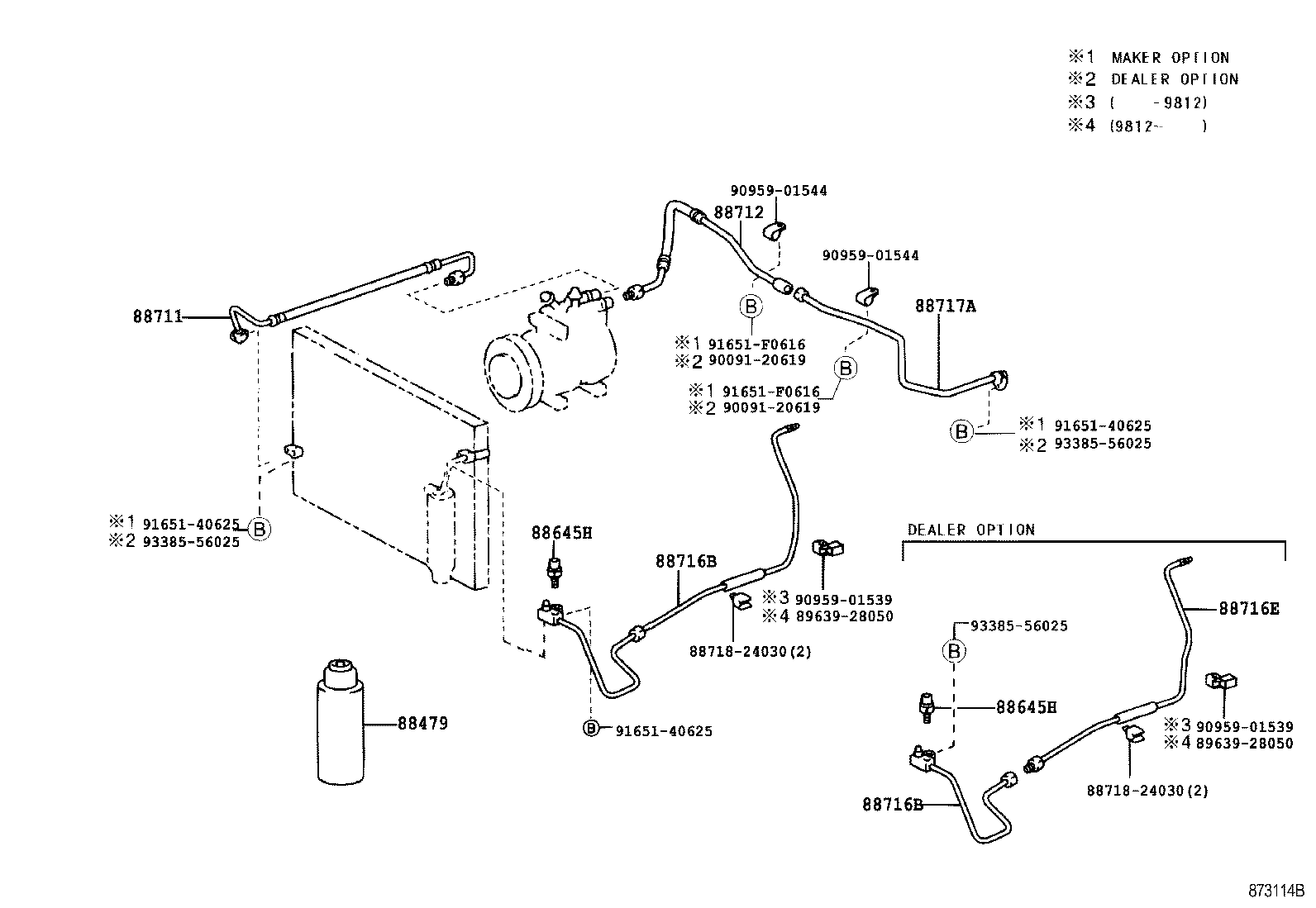

Figure 870640H 870640H 1996-11 → — Figure 873160 873160 1996-11 → 1998-12 Figure 873114B 873114B 1996-11 → — Figure 870631J 870631J 1996-11 → — Figure 871996C 871996C 1997-10 → 1998-12 Figure 873115B 873115B 1998-12 → — Figure 873159E 873159E 1998-12 → — Figure 872875B 872875B 1996-11 → —

Part groups

PNCDescription
87237C Cover, Heater Piping
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375A Cap, Service Valve (FOR COOLER PIPE)
88375B Cap, Service Valve, NO.1
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88463 Bracket, Cooler Condenser, NO.1
88467 Cushion, Cooler Condenser, NO.1
88467D Cushion, Cooler Refrigerant Pipe Clamp
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88645H Switch, Pressure NO.1
88688E Bracket, Cooler Refrigerant Hose, NO.1
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88723G Label, Cooler Service Caution
88726A Pipe, Cooler Refrigerant Liquid, A
88726B Pipe, Cooler Refrigerant Liquid, B
88726E Pipe, Cooler Refrigerant Liquid, E
88727A Pipe, Cooler Refrigerant Suction, A
88727B Pipe, Cooler Refrigerant Suction, B
88727C Pipe, Cooler Refrigerant Suction, C
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
