Toyota Townace/Liteace
1996-11 → 2004-12 · chassis CR4#,KR4#,SR40 · catalogue 651350 · General
Discontinued model
Data version 2005-07
Heating & Air Conditioning - Compressor
27 part groups · 7 illustrations
Part groups

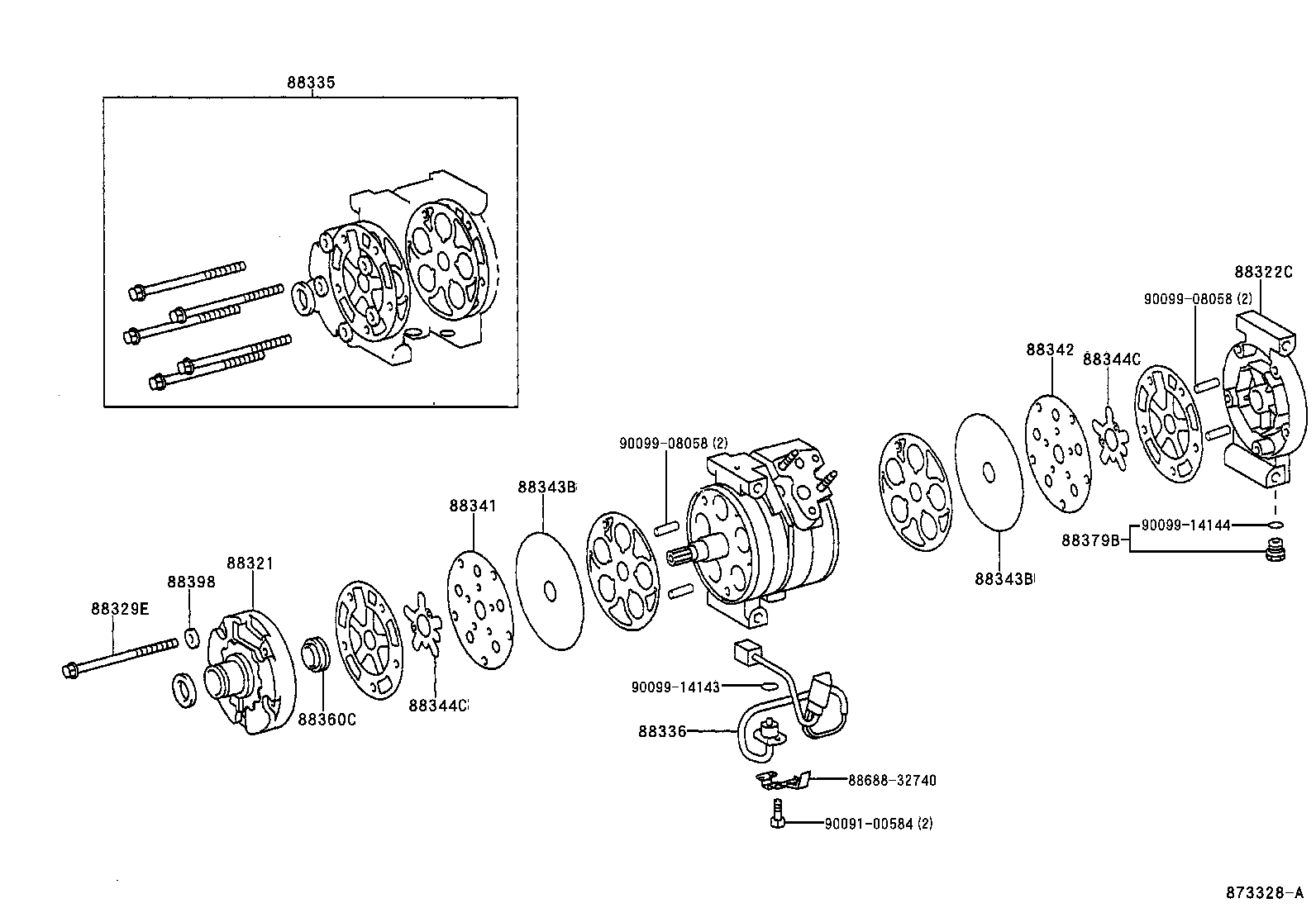

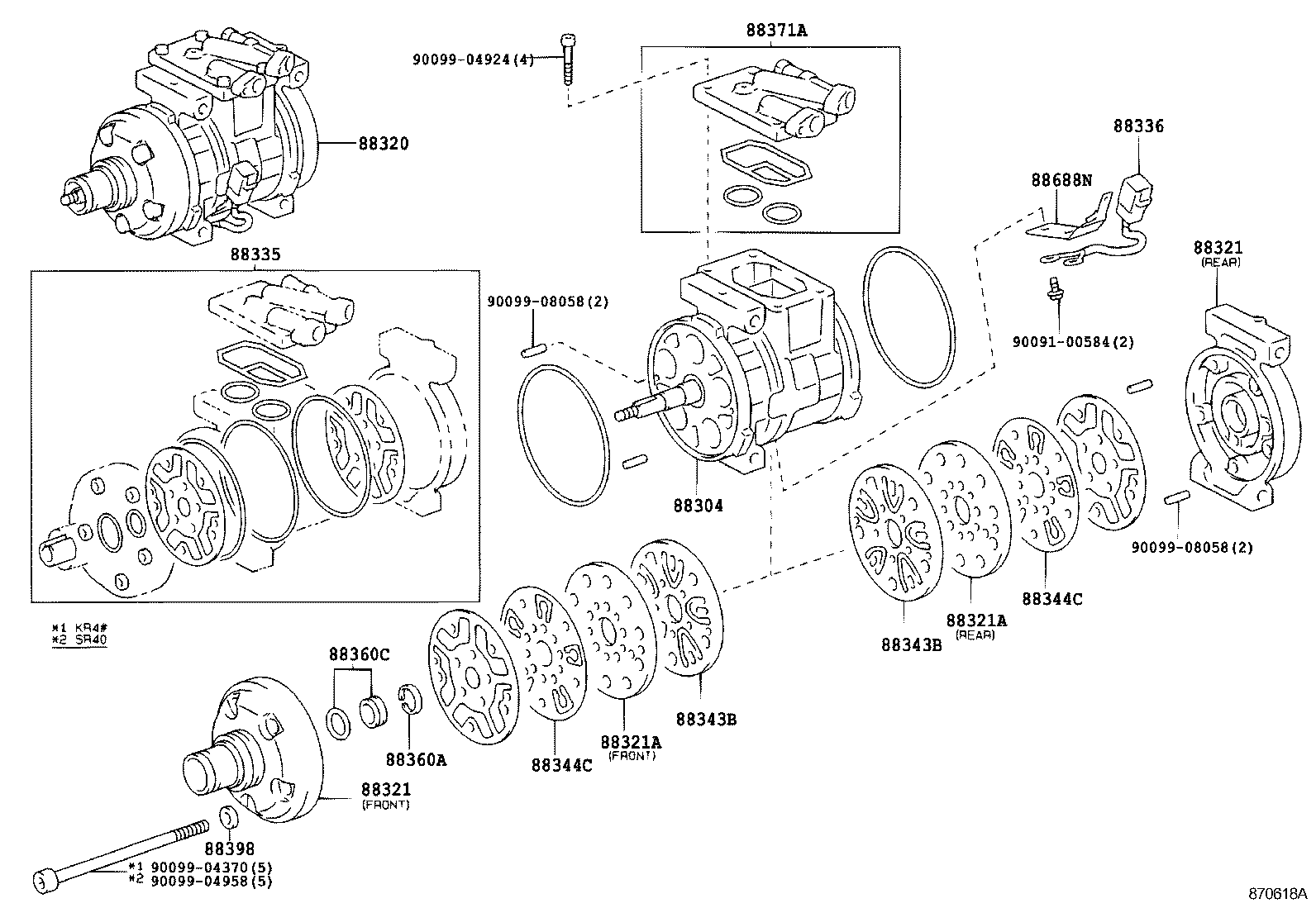

| PNC | Description |
|---|---|
| 88301 | Rotor Sub-assy, Magnet Clutch |
| 88302 | Stator Sub-assy, Magnet Clutch |
| 88304 | Cylinder Sub-assy, Cooler Compressor |
| 88320 | Compressor Assy, Cooler |
| 88321 | Head, Cooler Compressor Cylinder |
| 88321A | Plate Sub-assy, Valve |
| 88322C | Head, Cylinder, Rear |
| 88329E | Bolt, Compressor, NO.1 |
| 88330A | Washer (FOR MAGNET CLUTCH) |
| 88335 | Gasket Kit, Overhaul |
| 88336 | Sensor, Compressor |
| 88341 | Plate, Front Valve |
| 88342 | Plate, Compressor Valve, RR |
| 88343B | Reed, Suction Valve |
| 88344C | Reed, Discharge Valve |
| 88360A | Ring, Compressor Seal Plate Snap |
| 88360C | Seal Assy, Shaft |
| 88371A | Valve, Suction |
| 88379B | Valve, Pressure Relief |
| 88398 | Packing, Compressor |
| 88403 | Hub Sub-assy, Magnet Clutch |
| 88410 | Clutch Assy, Magnet |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88444 | Bracket, Idle Pulley |
| 88595 | Pulley, Cooler Compressor Idle |
| 88688K | Bracket, Cooler Compressor |
| 88688N | Bracket, Cooler |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
