Toyota Noah

2008-08 → 2016-12 · chassis ZRR70 · catalogue 651370 · General

Supported model Data version 2017-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

9 part groups · 2 illustrations

Illustrations

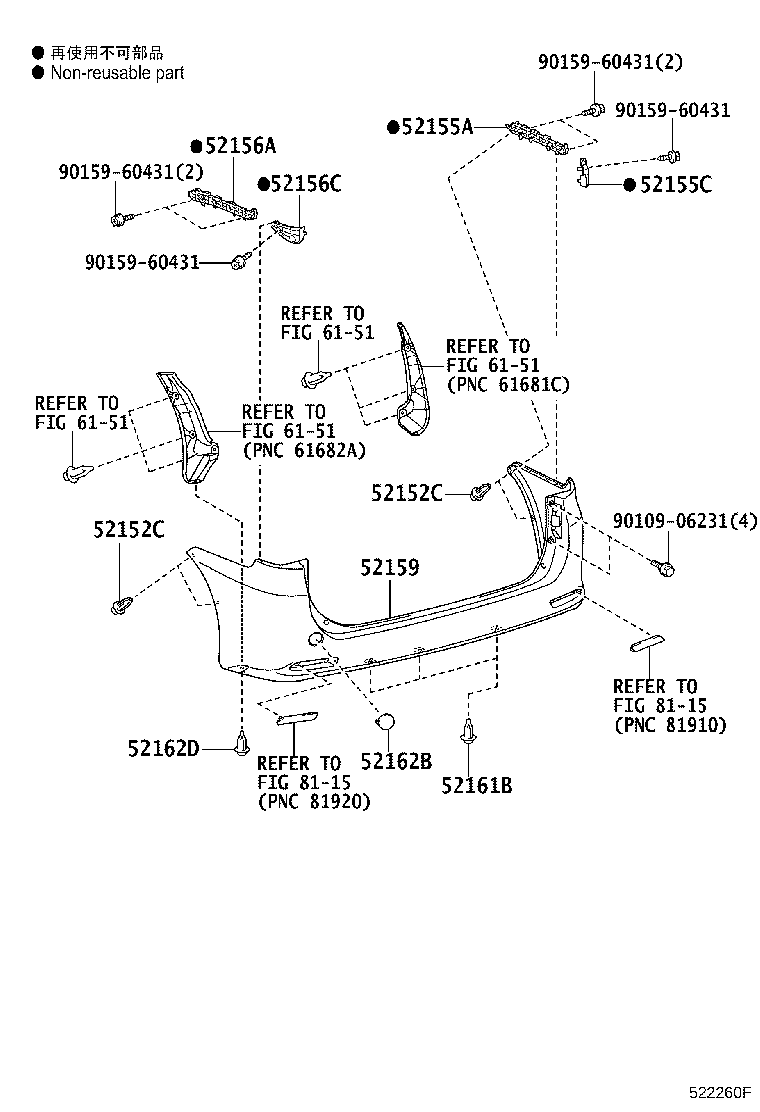

Figure 521992J 521992J 2008-08 → — Figure 522260F 522260F 2010-04 → —

Part groups

PNCDescription
52152C Clip, Rear Bumper Side
52155A Support, Rear Bumper Side, RH
52155C Support, Rear Bumper Side, NO.1 RH
52156A Support, Rear Bumper Side, LH
52156C Support, Rear Bumper Side, NO.1 LH
52159 Cover, Rear Bumper
52161B Piece, Rear Bumper
52162B Plate, Rear Bumper, NO.1
52162D Piece, Rear Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
