Toyota Noah
2008-08 → 2016-12 · chassis ZRR70 · catalogue 651370 · General
Supported model
Data version 2017-06

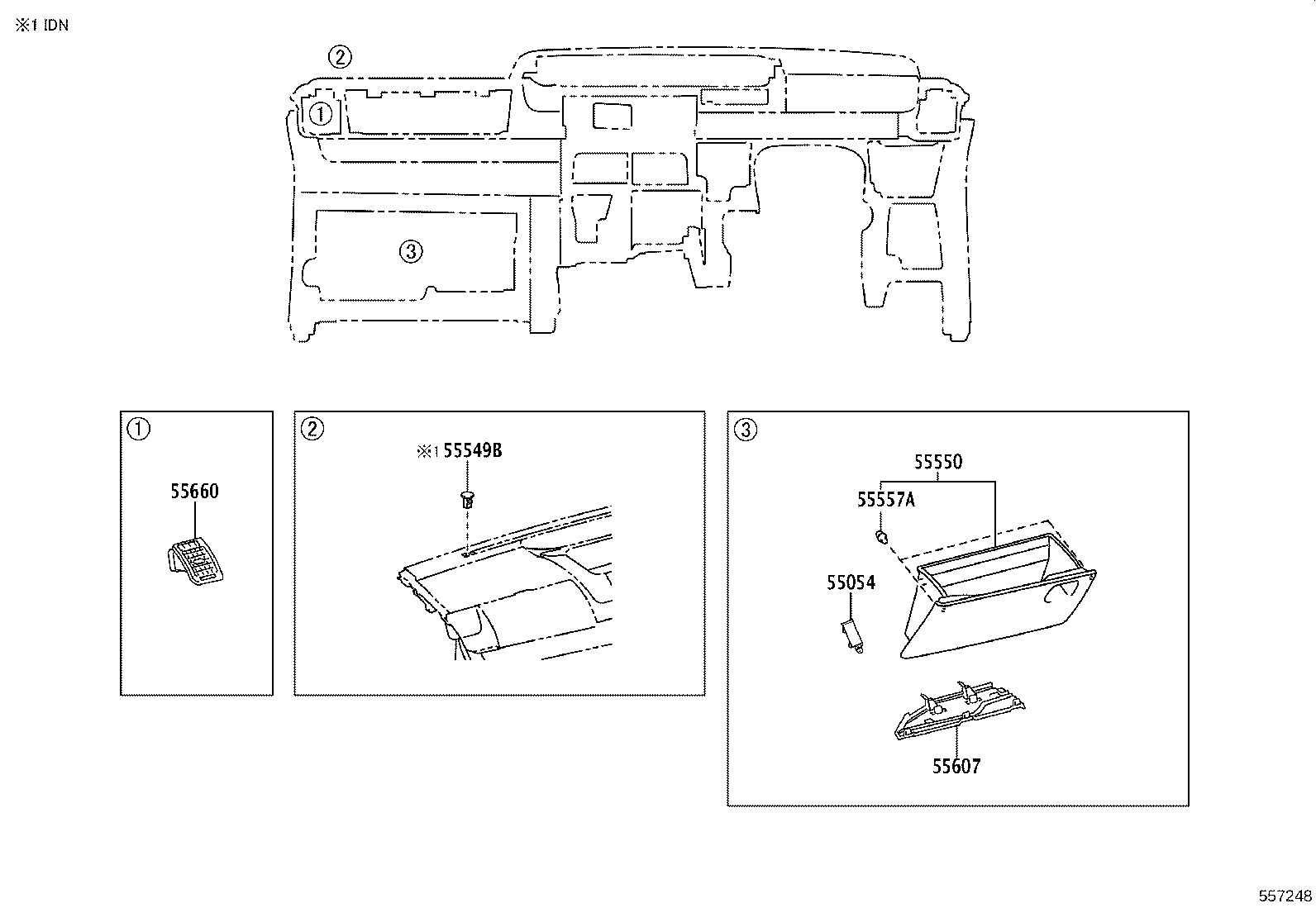

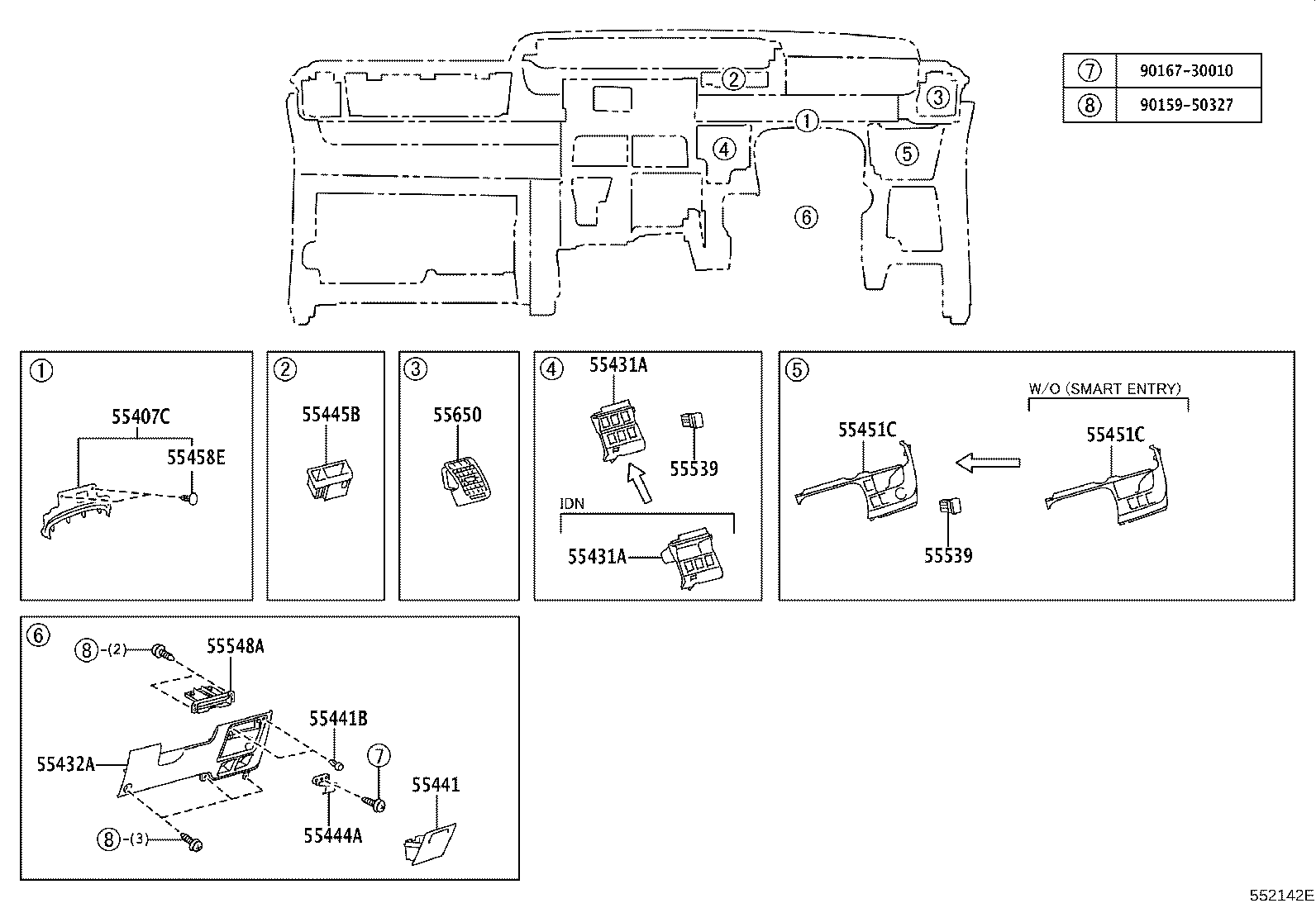

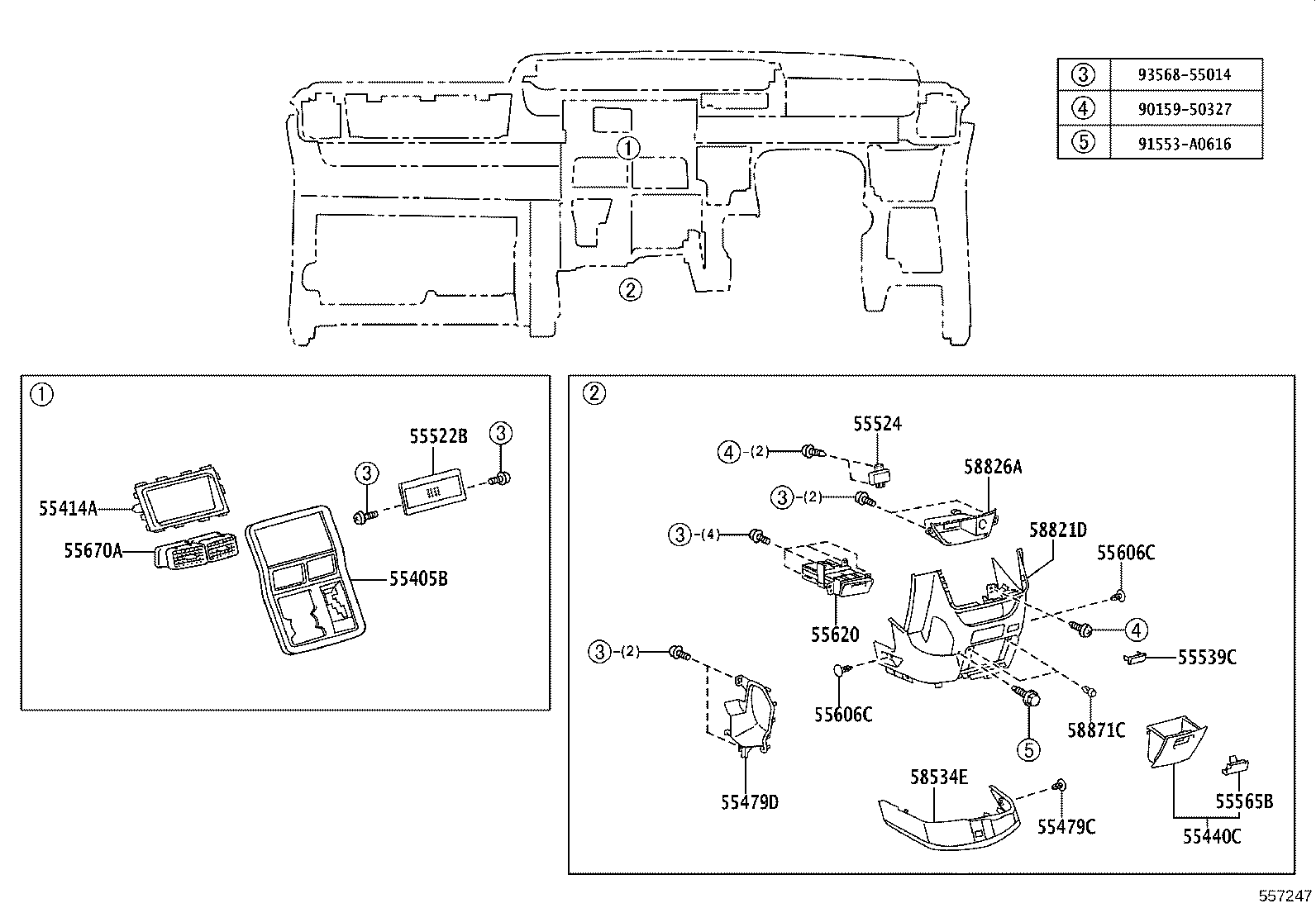

Instrument Panel & Glove Compartment
57 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55041B | Door Sub-assy, Instrument Panel Box, NO.1 |
| 55042B | Door Sub-assy, Instrument Panel Box, NO.2 |
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55302A | Panel Sub-assy, Instrument, Upper |
| 55303B | Panel Sub-assy, Instrument, Lower |
| 55304B | Bracket Sub-assy, Instrument Panel Bracket Mounting |
| 55304C | Bracket Sub-assy, Instrument Panel Bracket Mounting |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55312A | Clip, Instrument Panel |
| 55317A | Panel, Instrument Side, RH |
| 55318C | Panel, Instrument Side, LH |
| 55326A | Stay, Instrument Panel, NO.1 |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55342A | Brace, Instrument Panel TO Cowl, NO.2 |
| 55349A | Cushion, Instrument Panel |
| 55355 | Cushion, Instrument Panel, NO.1 |
| 55400 | Pad Assy, Instrument Panel Safety |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55406D | Clip(FOR PANEL, INSTRUMENT CLUSTER FINISH) |
| 55407C | Cover Sub-assy, Instrument, Lower |
| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55414A | Panel, Instrument Cluster Finish, End |
| 55423D | Plate, Meter Hood Set |
| 55431A | Panel, Instrument Panel Finish |
| 55432A | Panel, Instrument Panel Finish, Lower RH |
| 55440C | Box Assy, Instrument Panel |
| 55441 | Box, Instrument Panel |
| 55441B | Cushion, Instrument Panel Box |
| 55444A | Spring, Instrument Panel Box |
| 55445B | Plate, Instrument Panel Finish |
| 55451C | Box, Instrument Panel, NO.1 |
| 55458E | Clip(FOR INSTRUMENT LOWER COVER) |
| 55479C | Clip(FOR INSTRUMENT LOWER COVER) |
| 55479D | Garnish, Instrument Cluster Finish Panel, Lower |
| 55503B | Cushion(FOR GLOVE COMPARTMENT) |
| 55522B | Cover, Radio Tuner Opening |
| 55524 | Cover, Switch Bace Hole |
| 55539 | Cover, Spare Switch Hole |
| 55539C | Cover, Spare Switch Hole |
| 55548A | Cover, Instrument Panel Hole |
| 55549B | Cover, Instrument Panel Hole, NO.2 |
| 55550 | Door Assy, Glove Compartment |
| 55557A | Cushion, Glove Compartment Door Check |
| 55565B | Knob, Glove Compartment Door Lock |
| 55606C | Clip(FOR INSTRUMENT PANEL UNDER COVER) |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55620 | Holder Assy, Instrument Panel Cup |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670A | Register Assy, Instrument Panel, Center |
| 58534E | Cover, Floor Carpet, Center LH |
| 58821D | Panel, Console, Upper Front |
| 58826A | Pocket, Console Box, Lower |
| 58871C | Cushion, Console Box |
| 58959E | Cushion, Console Compartment Door |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
| 82140 | Wire Assy, Instrument Panel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
