Toyota Noah

2008-08 → 2016-12 · chassis ZRR70 · catalogue 651370 · General

Supported model Data version 2017-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

18 part groups · 2 illustrations

Illustrations

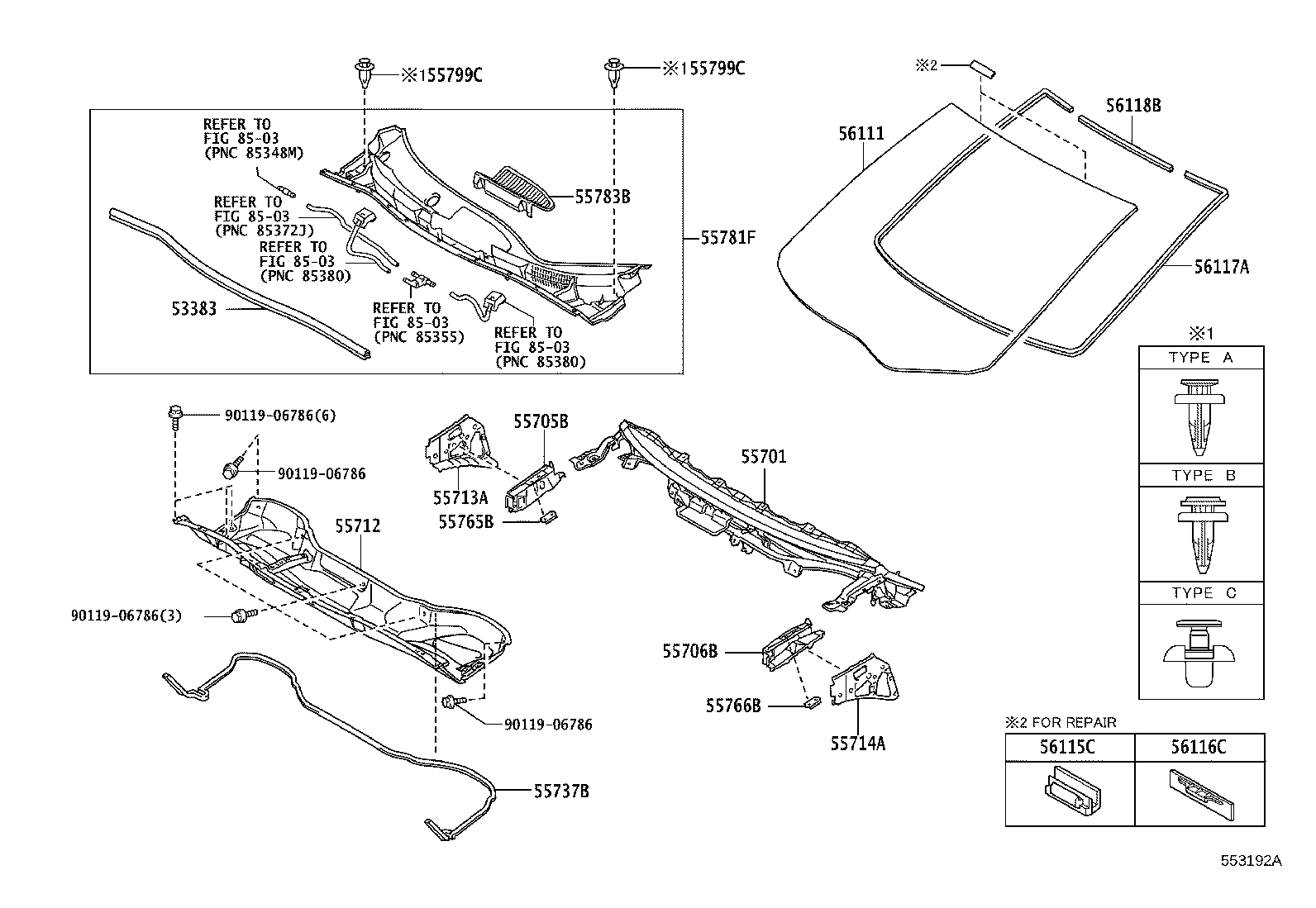

Figure 552140B 552140B 2008-08 → 2013-09 Figure 553192A 553192A 2013-09 → —

Part groups

PNCDescription
53383 Seal, Hood TO Cowl Top
55701 Panel Sub-assy, Cowl
55705B Panel Sub-assy, Cowl Top Side, RH
55706B Panel Sub-assy, Cowl Top Side, LH
55712 Panel, Cowl Top Outside, Front
55713A Panel, Cowl Top Side, RH
55714A Panel, Cowl Top Side, LH
55737B Seal, Heater Air Duct Splash Shield, NO.1
55765B Bracket, Hood Damper Mounting
55766B Bracket, Hood Damper Mounting
55781F Louver, Cowl Top Ventilator
55783B Louver, Cowl Top Ventilator, Center NO.1
55799C Clip, Cowl Top Ventilator Louver
56111 Glass, Windshield
56115C Stopper, Windshield Glass
56116C Stopper, Windshield Glass, NO.2
56117A Dam, Window Glass Adhesive
56118B Dam, Window Glass Adhesive, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
