Toyota Noah

2008-08 → 2016-12 · chassis ZRR70 · catalogue 651370 · General

Supported model Data version 2017-06

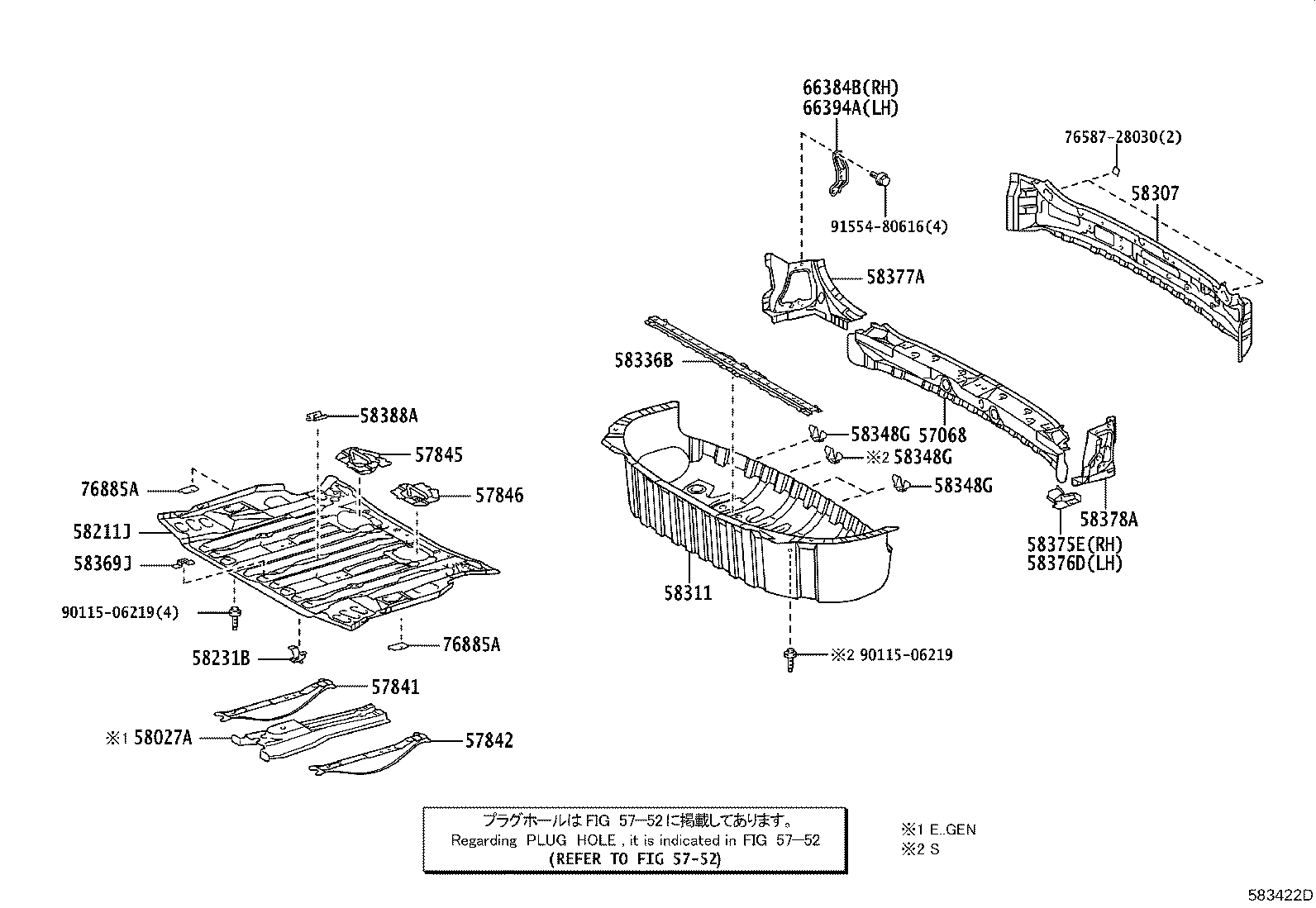

Rear Floor Panel & Rear Floor Member

37 part groups · 3 illustrations

PNC	Description
51730	Step Assy, Rear Floor, RH
51740	Step Assy, Rear Floor, LH
57068	Member Sub-assy, Rear Floor Rear Cross, Inner
57415	Rail, Floor Side, Rear RH
57416	Rail, Floor Side, Rear LH
57601B	Member Sub-assy, Rear Floor Side, Front RH
57602B	Member Sub-assy, Rear Floor Side, Front LH
57603A	Member Sub-assy, Rear Floor Side, Rear RH
57604A	Member Sub-assy, Rear Floor Side, Rear LH
57607A	Member Sub-assy, Rear Floor Cross, NO.3
57608A	Member Sub-assy, Rear Floor Cross, NO.4
57623D	Plate, Rear Floor Side Member, RR RH
57793	Bracket, Rear Suspension Arm, Rear RH NO.1
57794	Bracket, Rear Suspension Arm, Rear LH NO.1
57804	Reinforcement Sub-assy, Rear Floor Side Member, Rear LH
57841	Reinforcement, Rear NO.2 Seat Leg, Front RH
57842	Reinforcement, Rear NO.2 Seat Leg, Front LH
57845	Reinforcement, Rear NO.2 Seat Leg, Rear RH
57846	Reinforcement, Rear NO.2 Seat Leg, Rear LH
58027A	Reinforce Sub-assy, Seat Belt Anchor
58211J	Pan, Center Floor
58231B	Bracket, Center Floor Heat Insulator
58307	Panel Sub-assy, Body Lower Back
58311	Pan, Rear Floor
58336B	Reinforcement, Rear Floor Pan
58348G	Plate, Rear Floor Side, RH
58369J	Bracket, Rear Floor Brace
58375E	Reinforcement, Body Lower Back Panel
58376D	Reinforcement, Body Lower Back, LH
58377A	Panel, Body Lower Back, RH
58378A	Panel, Body Lower Back, LH
58388A	Bracket,Rear Floor Plate
58398K	Cover, Floor Under, NO.1
58706D	Bracket Sub-assy, Jack Carrier, NO.1
66384B	Bracket, Rope Hook, NO.2 RH
66394A	Bracket, Rope Hook, NO.2 LH
76885A	Retainer, Rear Spoiler

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
