Toyota Noah

2008-08 → 2016-12 · chassis ZRR70 · catalogue 651370 · General

Supported model Data version 2017-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

17 part groups · 2 illustrations

Illustrations

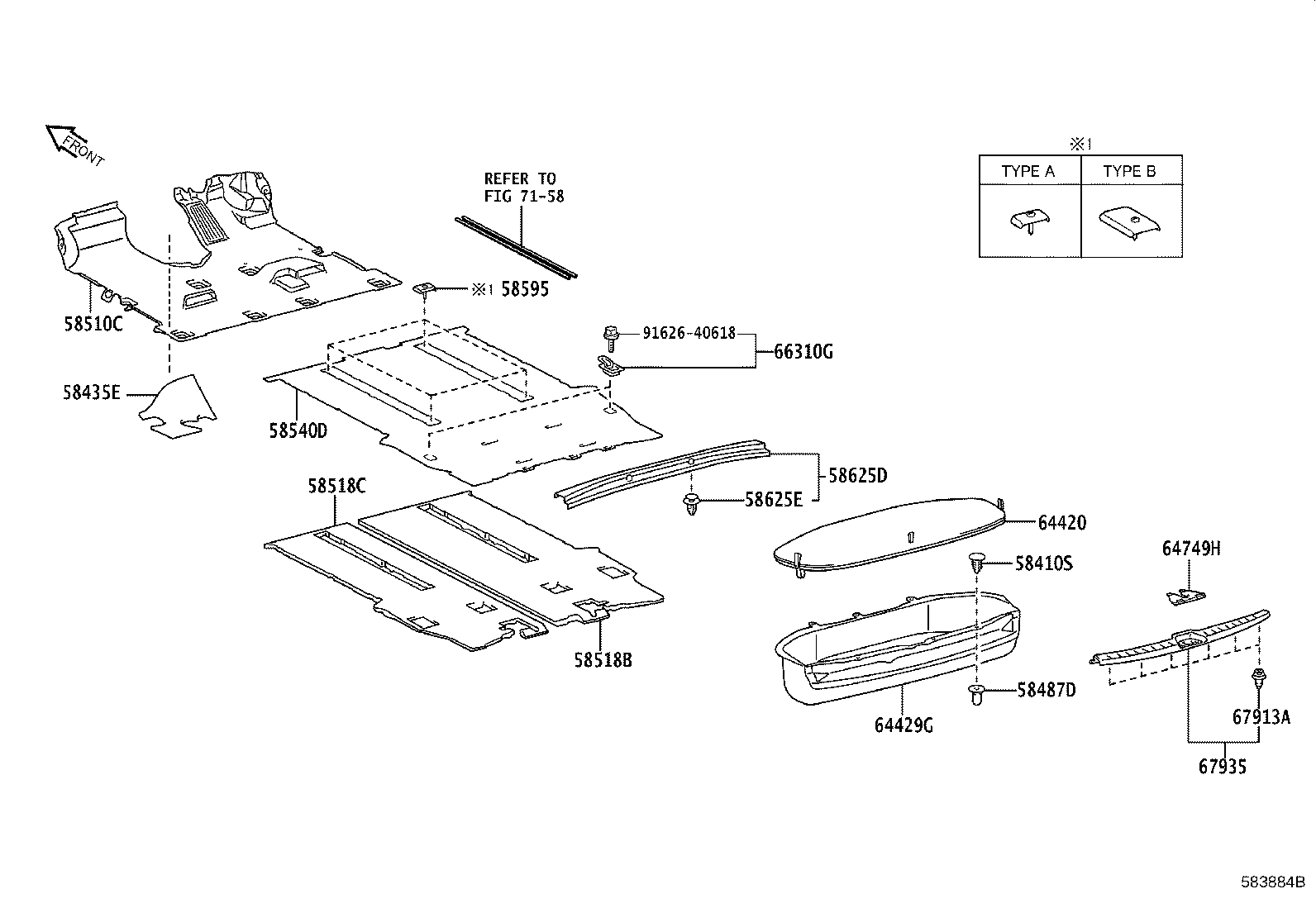

Figure 583418C 583418C 2008-08 → 2010-04 Figure 583884B 583884B 2010-04 → —

Part groups

PNCDescription
58410S Clip, Deck Board
58435E Silencer, Front Floor, Center
58487D Cap, Deck Board Service Hole
58510C Carpet Assy, Front Floor, Front
58518B Mat, Rear Floor, NO.2
58518C Mat, Rear Floor, NO.2
58540D Carpet Assy, Floor, Rear
58540F Clip(FOR REAR FLOOR CARPET)
58595 Moulding, Floor Carpet, NO.3
58625D Plate, Rear Floor Mat, NO.1
58625E Clip(FOR REAR FLOOR MAT PLATE)
64420 Lid, Luggage Room Box
64429G Box, Luggage Compartment Trim
64749H Cover, Back Door Striker
66310G Hook Assy, Rope
67913A Clip(FOR SCUFF PLATE)
67935 Plate, Back Door Scuff
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
