Toyota Noah

2008-08 → 2016-12 · chassis ZRR70 · catalogue 651370 · General

Supported model Data version 2017-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

14 part groups · 2 illustrations

Illustrations

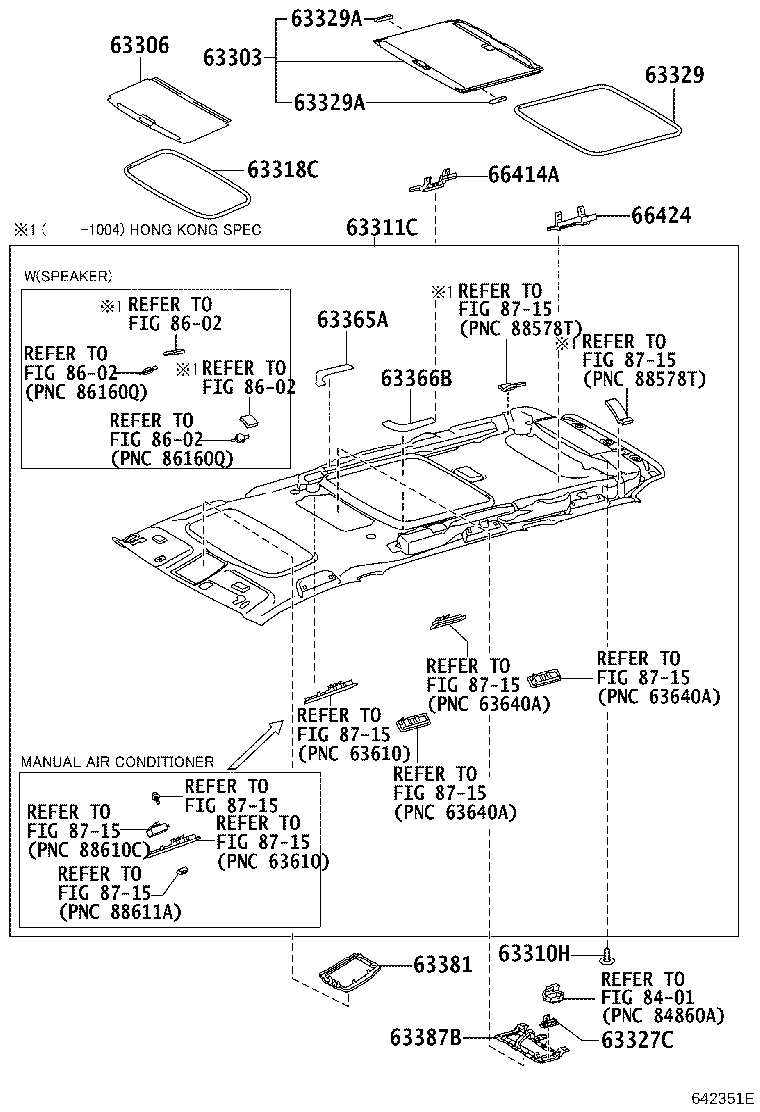

Figure 642352E 642352E 2008-08 → — Figure 642351E 642351E 2008-08 → —

Part groups

PNCDescription
63303 Trim Sub-assy, Sunshade, NO.2
63306 Trim Sub-assy, Sunshade
63310H Clip(FOR ROOF HEADLINING)
63311C Headlining, Roof
63318C Moulding, Sun Roof Opening Trim
63327C Garnish, Sun Roof Switch
63329 Moulding, Sun Roof Opening Trim, NO.2
63329A Stopper, Sunshade Lock
63365A Plate, Roof Headlining Set
63366B Plate, Roof Headlining Set, LH
63381 Retainer, Headlining, Front
63387B Bracket, Roof Headlining Retainer
66414A Spacer, Side Rail, Rear RH
66424 Spacer, Side Rail, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
