Toyota Noah

2008-08 → 2016-12 · chassis ZRR70 · catalogue 651370 · General

Supported model Data version 2017-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

38 part groups · 7 illustrations

Illustrations

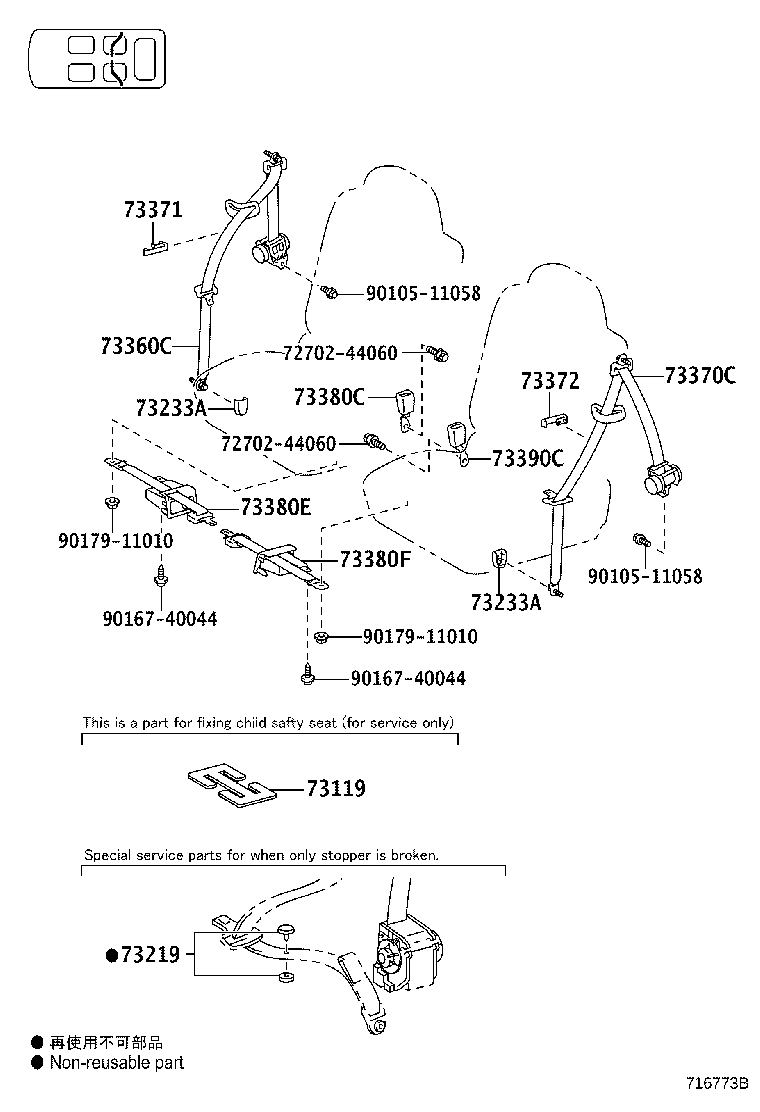

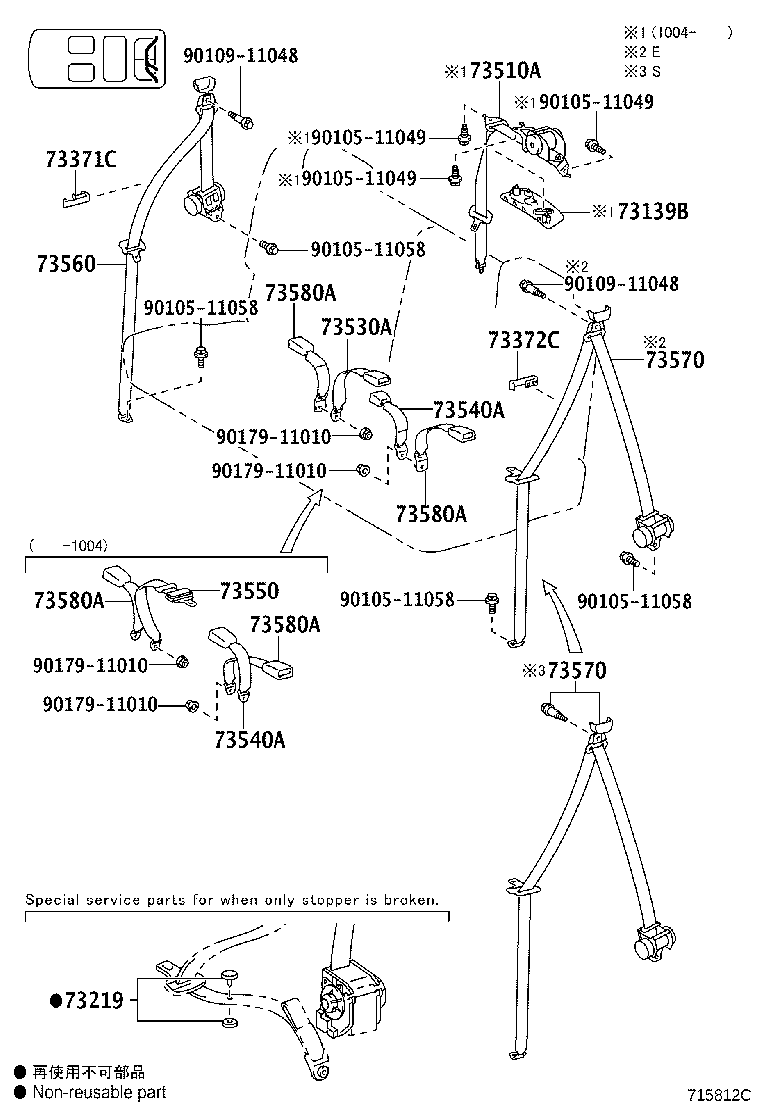

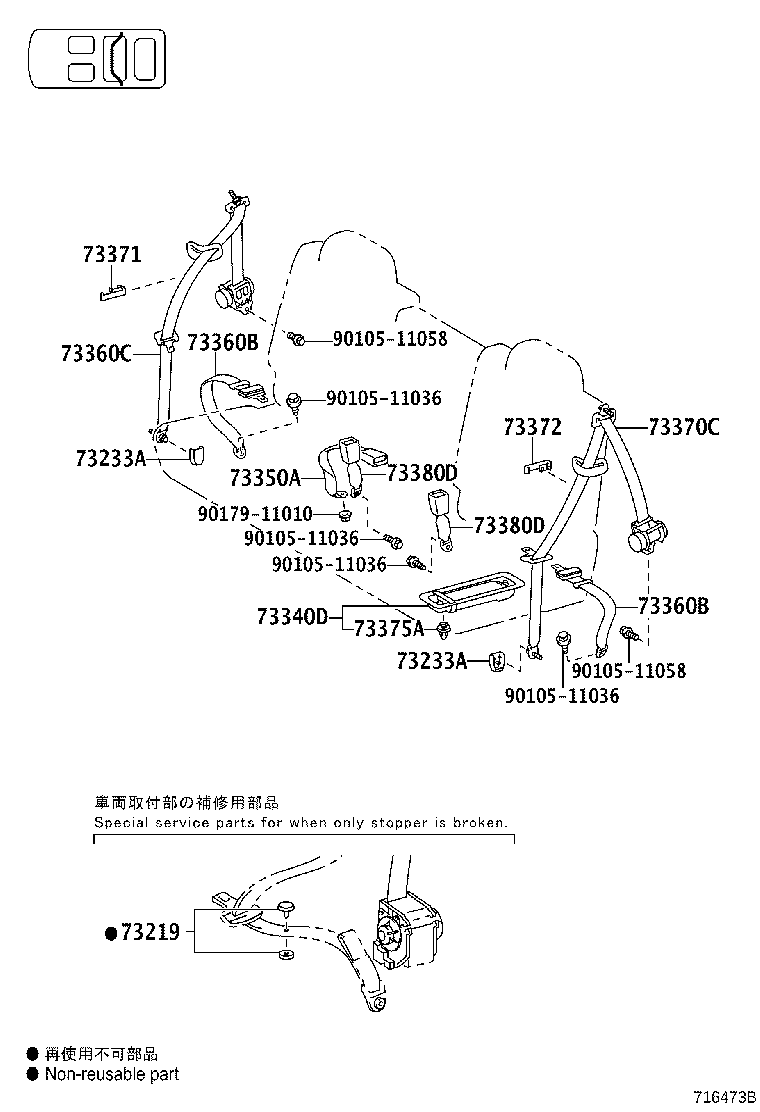

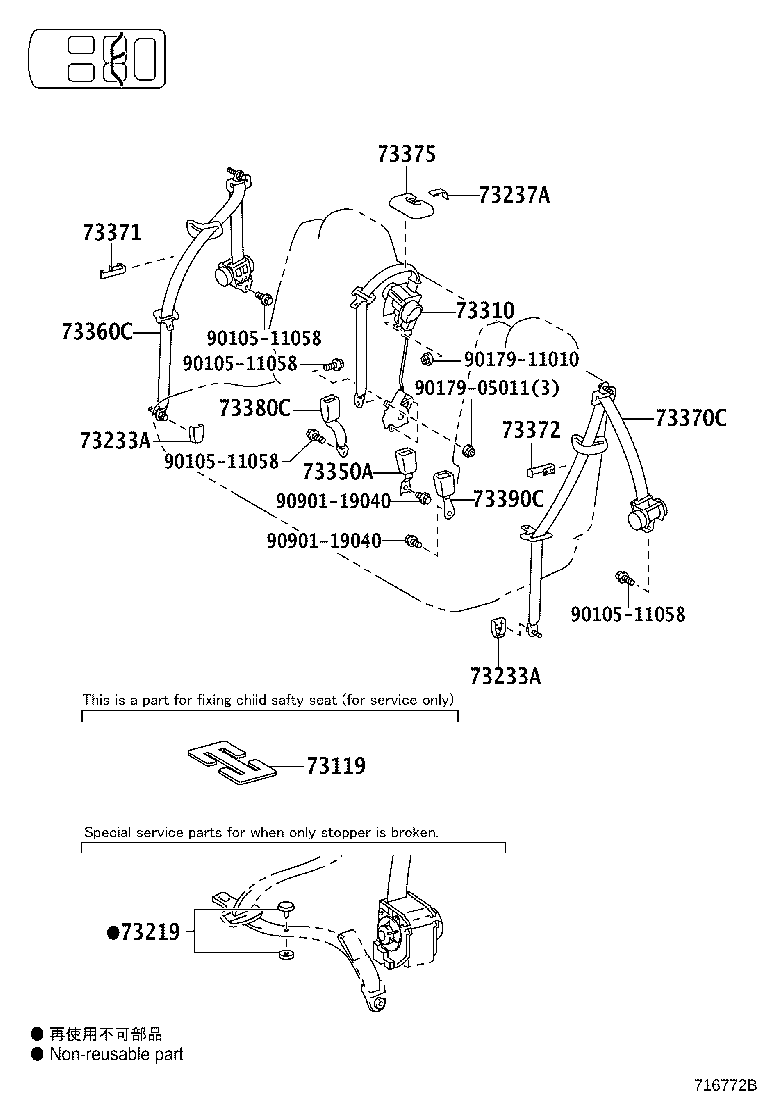

Figure 71C279 71C279 2008-08 → — Figure 715811C 715811C 2008-08 → 2010-04 Figure 716473B 716473B 2008-08 → 2010-04 Figure 716772B 716772B 2010-04 → — Figure 716773B 716773B 2010-04 → — Figure 716773B 716773B 2012-12 → — Figure 715812C 715812C 2008-08 → —

Part groups

PNCDescription
73023 Plate Sub-assy, Front Shoulder Belt Anchor, RH
73024 Plate Sub-assy, Front Shoulder Belt Anchor, LH
73119 Plate, Seat Belt Webbing Clip
73139B Cover, Seat Belt Anchor
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73233A Cover, Lap Belt Outer Anchor, Rear NO.1 Seat
73237A Cover, Shoulder Belt Anchor
73240 Belt Assy, Front Seat Inner, LH
73310 Belt Assy, Rear Seat 3 Point Type, RH
73340D Belt Assy, Rear NO.1 Seat Lap Type, Center LH
73350A Belt Assy, Rear NO.1 Seat Lap Type, Center
73360B Belt Assy, Rear Seat, Outer
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73371 Hanger, Rear Seat Shoulder Belt, RH
73371C Hanger, Rear NO.2 Seat Shoulder Belt, RH
73372 Hanger, Rear Seat Shoulder Belt, LH
73372C Hanger, Rear NO.2 Seat Shoulder Belt, LH
73375 Cover, Rear Seat Shoulder Belt, LH
73375A Clip, Rear Seat Belt Cover
73380C Belt Assy, Rear NO.1 Seat, Inner RH
73380D Belt Assy, Rear Seat, Inner
73380E Belt Assy, RR Seat, Inner
73380F Belt Assy, RR Seat, Inner
73390C Belt Assy, Rear NO.1 Seat, Inner LH
73510A Belt Assy, Rear NO.2 Seat, 3 Point Type
73530A Belt Assy, Rear NO.2 Seat Lap Type, RH
73540A Belt Assy, Rear NO.2 Seat Lap Type, LH
73550 Belt Assy, Rear NO.2 Seat Lap Type, Center
73560 Belt Assy, Rear NO.2 Seat, Outer RH
73570 Belt Assy, Rear NO.2 Seat, Outer LH
73580A Belt Sub Assy, Rear NO.2 Seat, Inner
73709 Bracket Sub-assy, Tether Anchor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
