Toyota Noah

2008-08 → 2016-12 · chassis ZRR70 · catalogue 651370 · General

Supported model Data version 2017-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

205 part groups · 13 illustrations

Illustrations

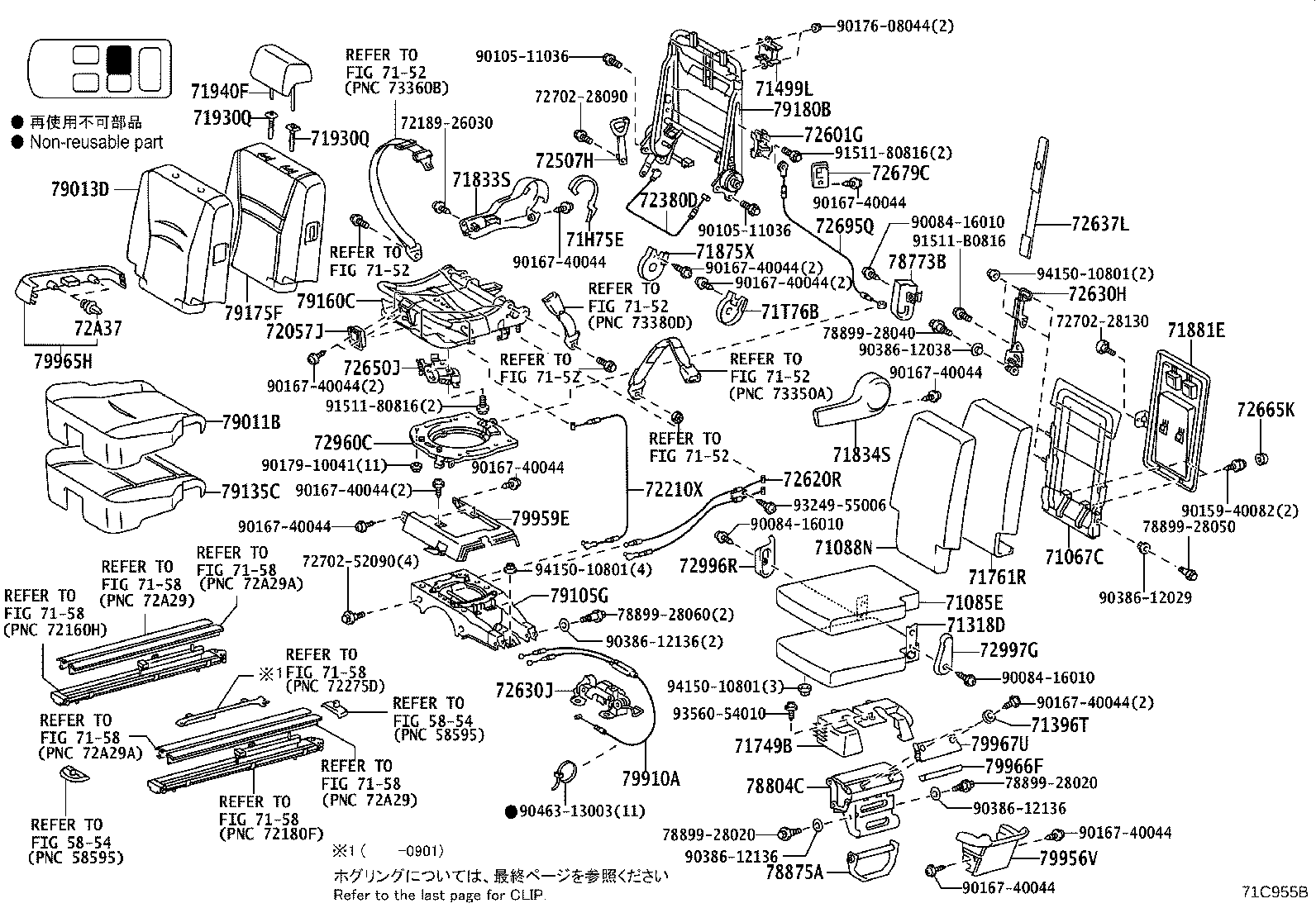

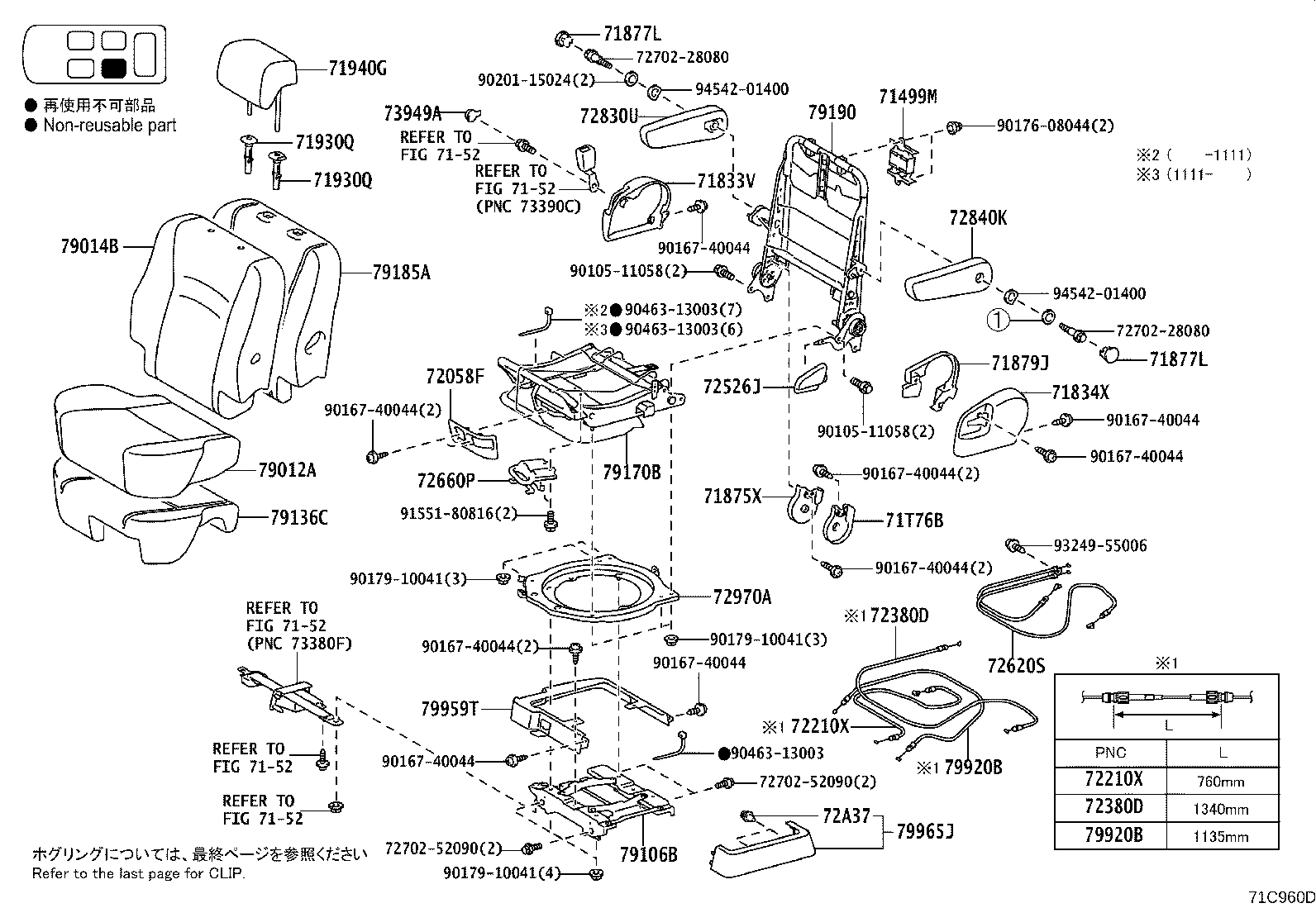

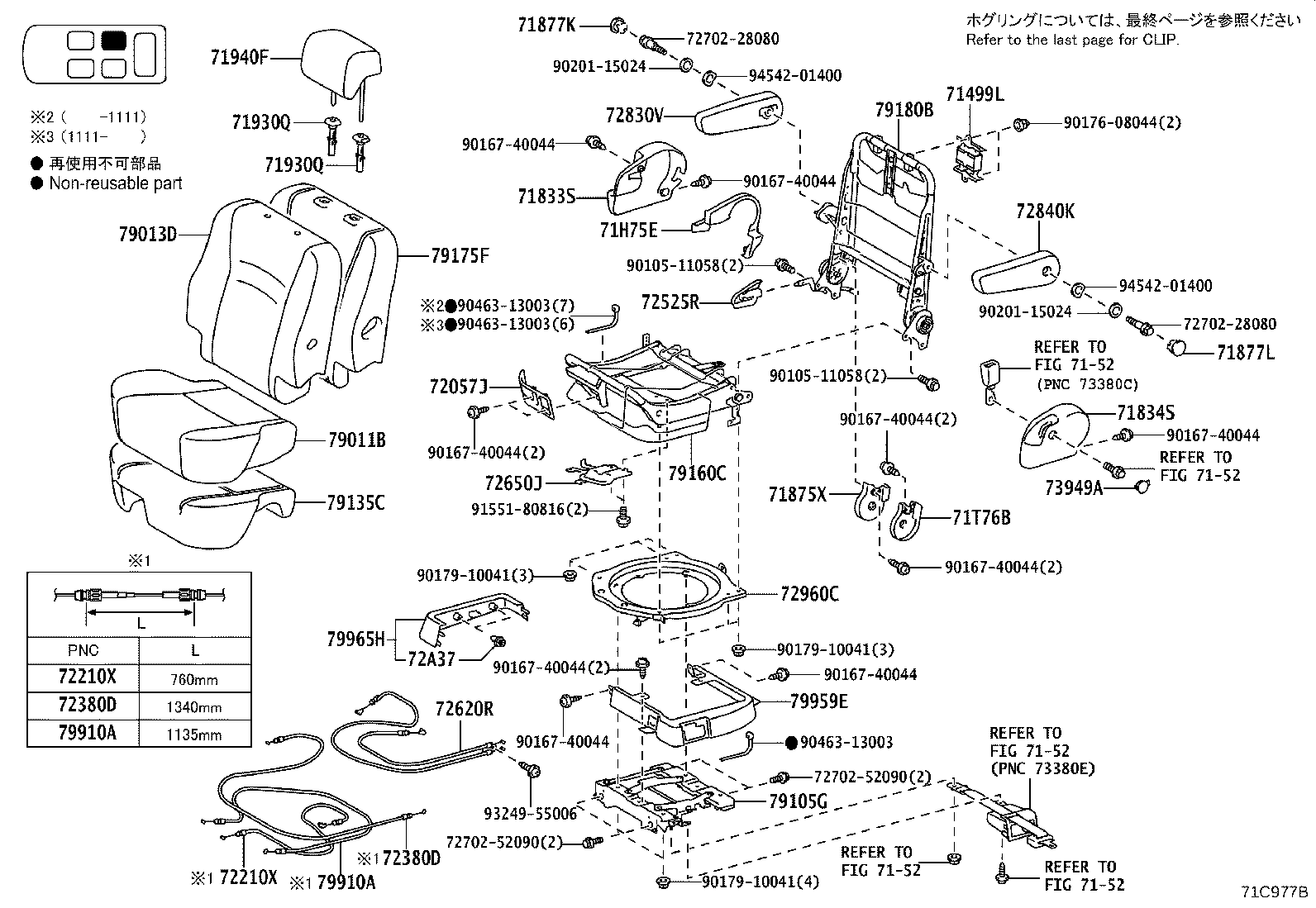

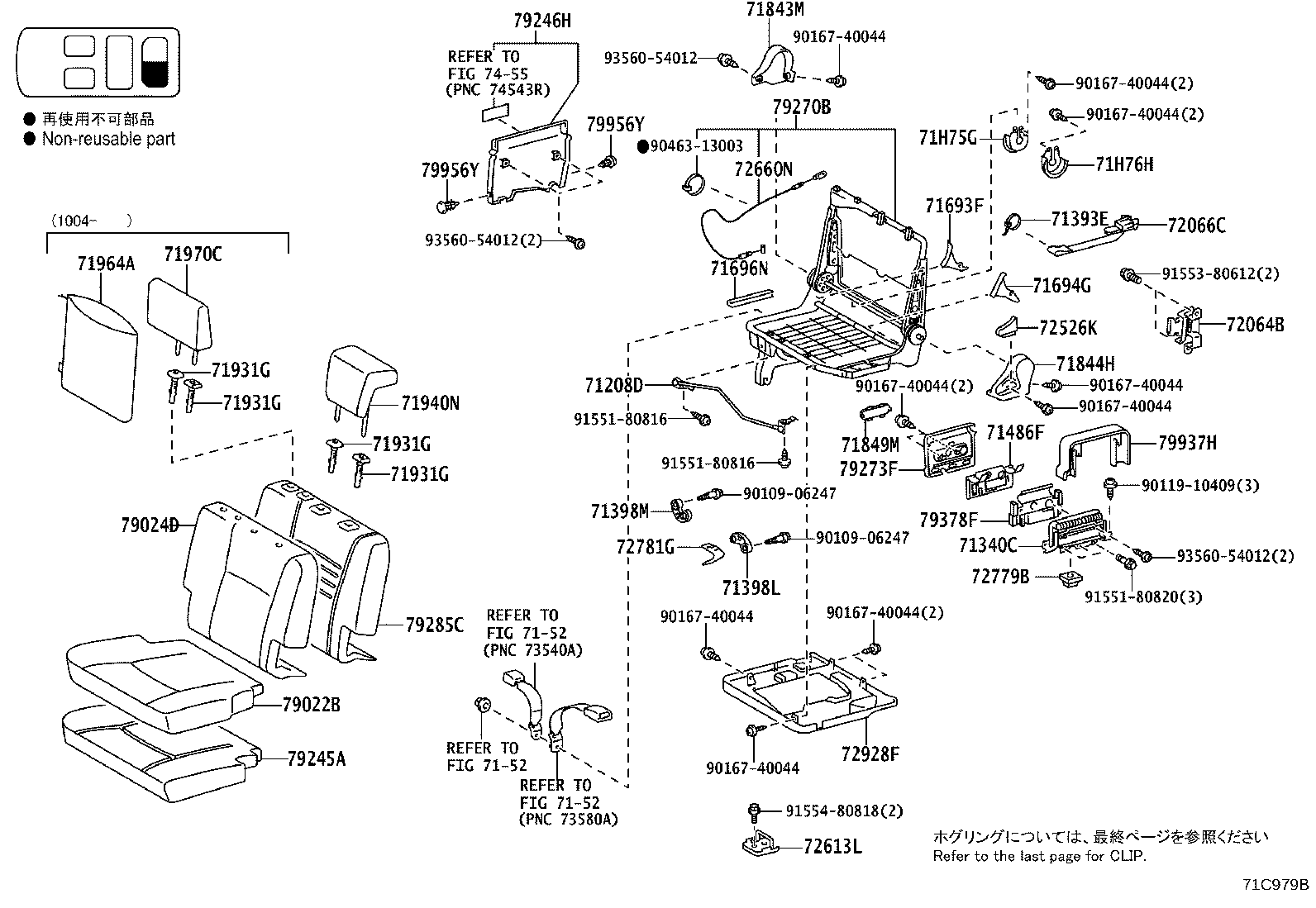

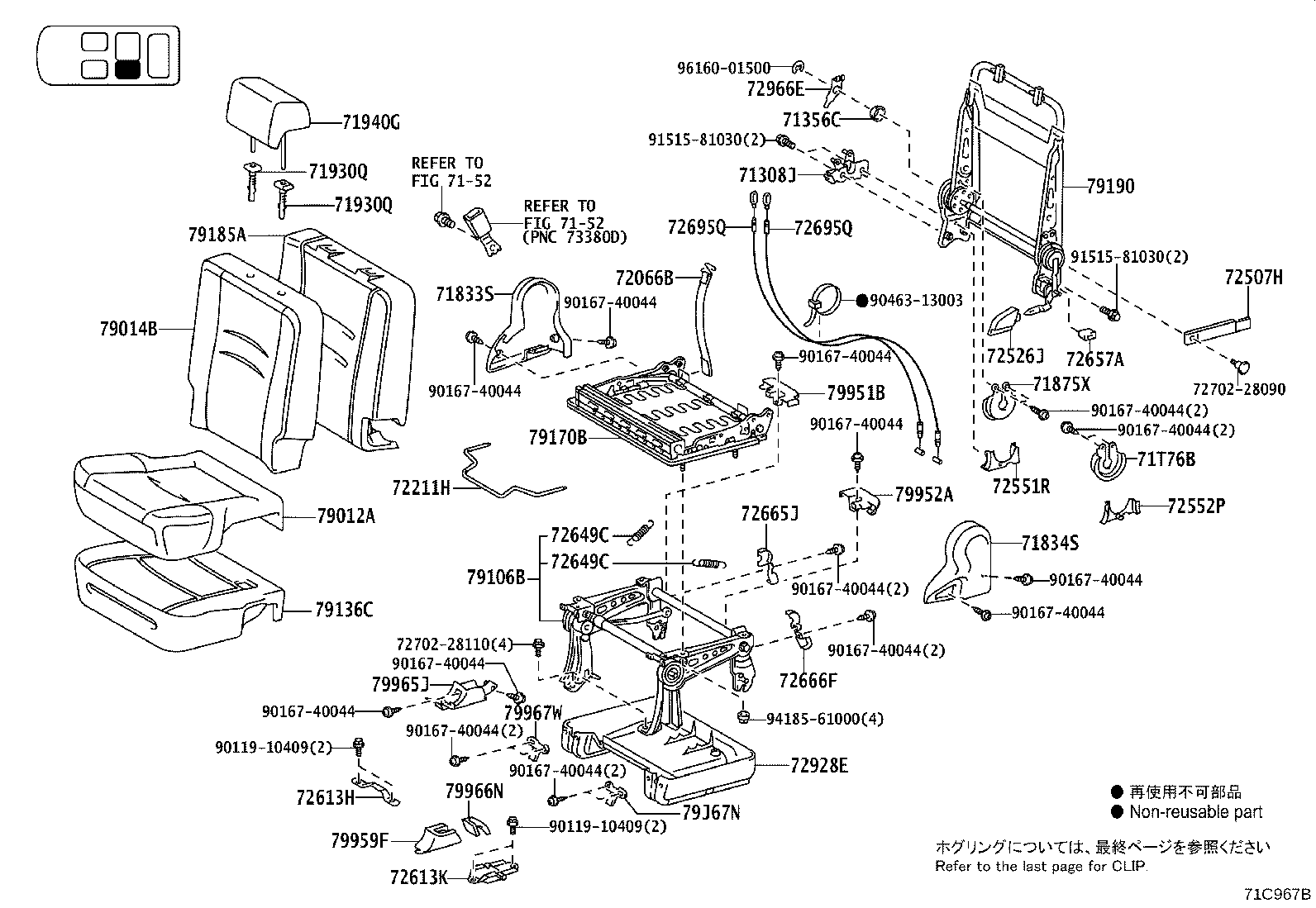

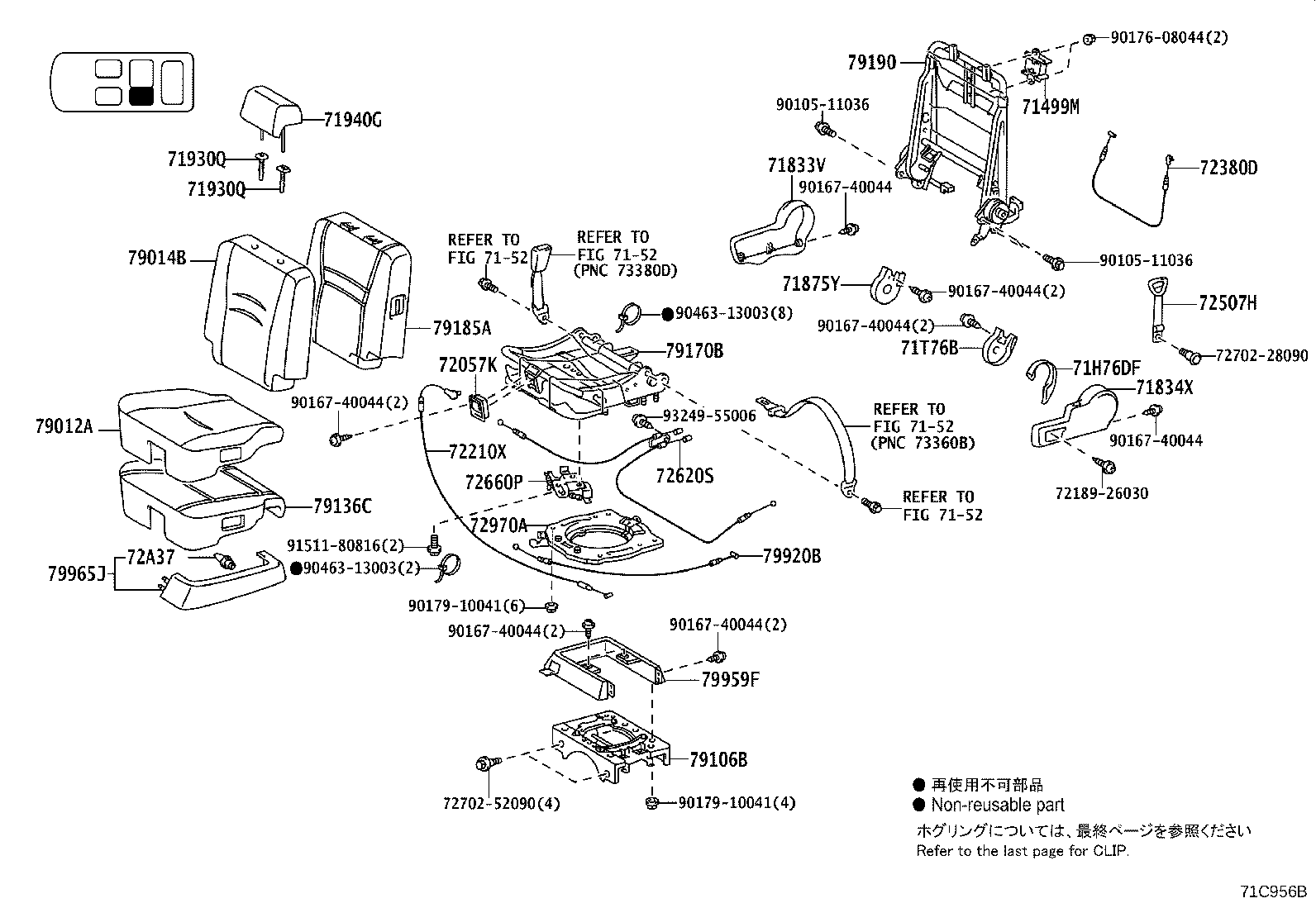

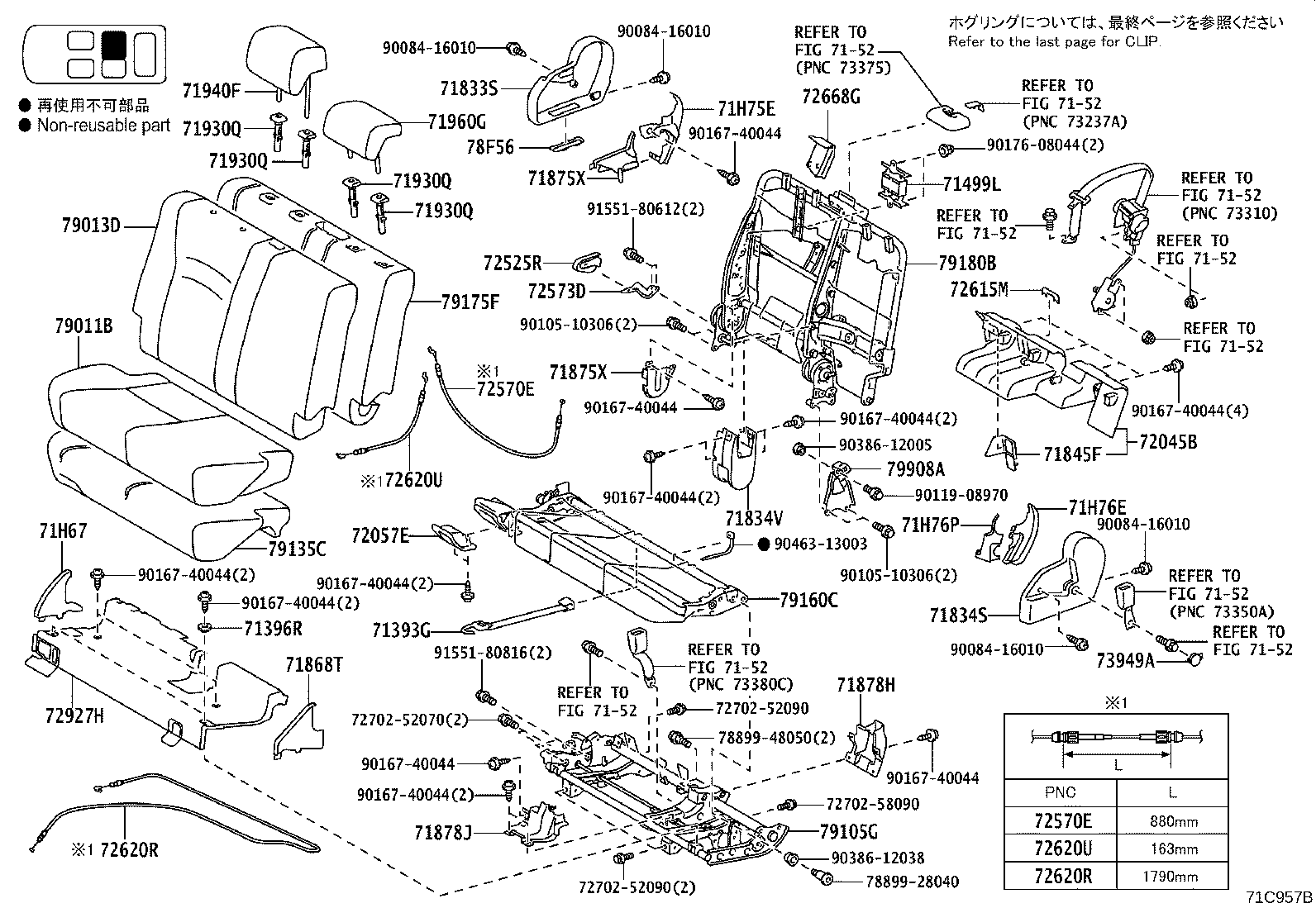

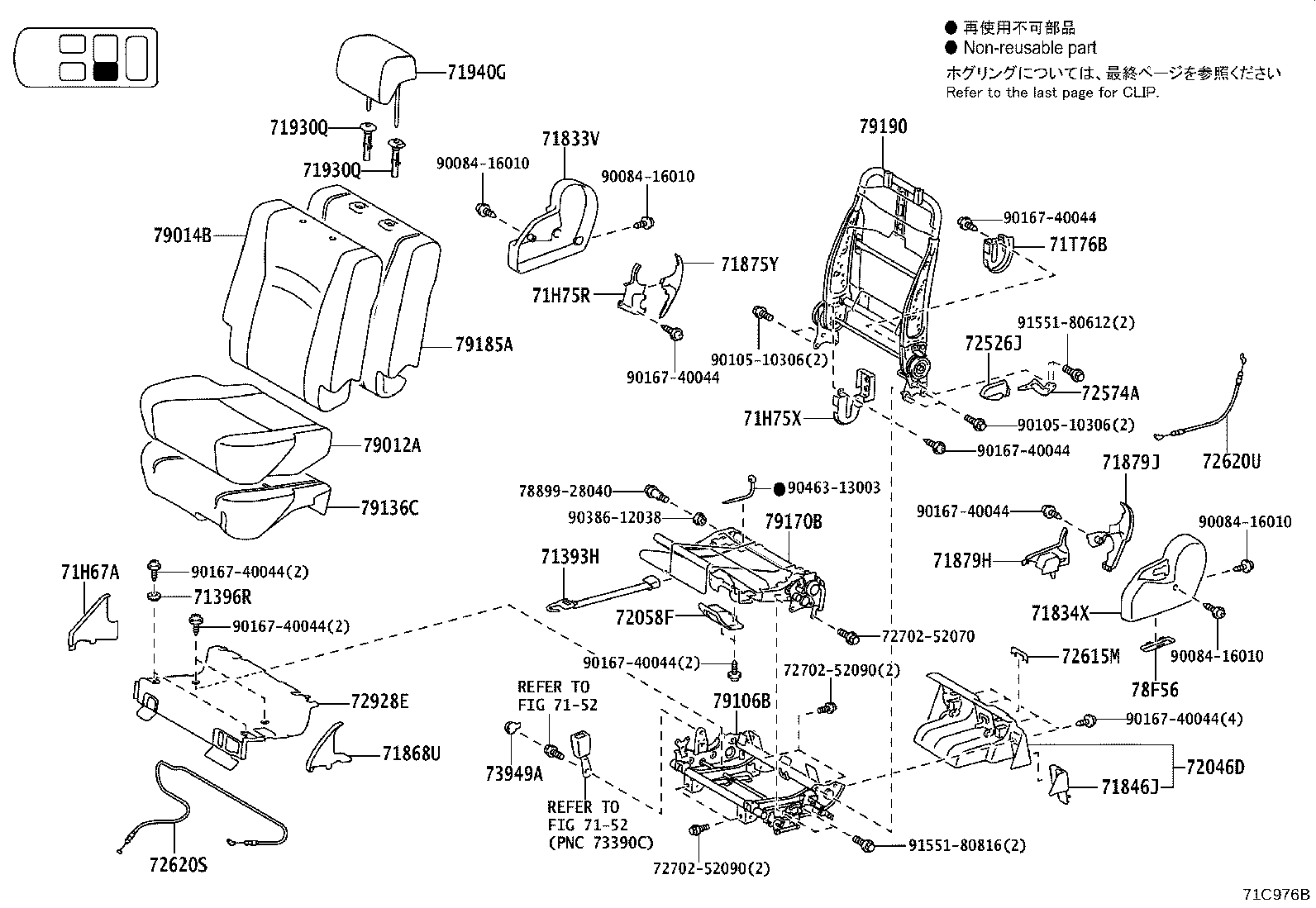

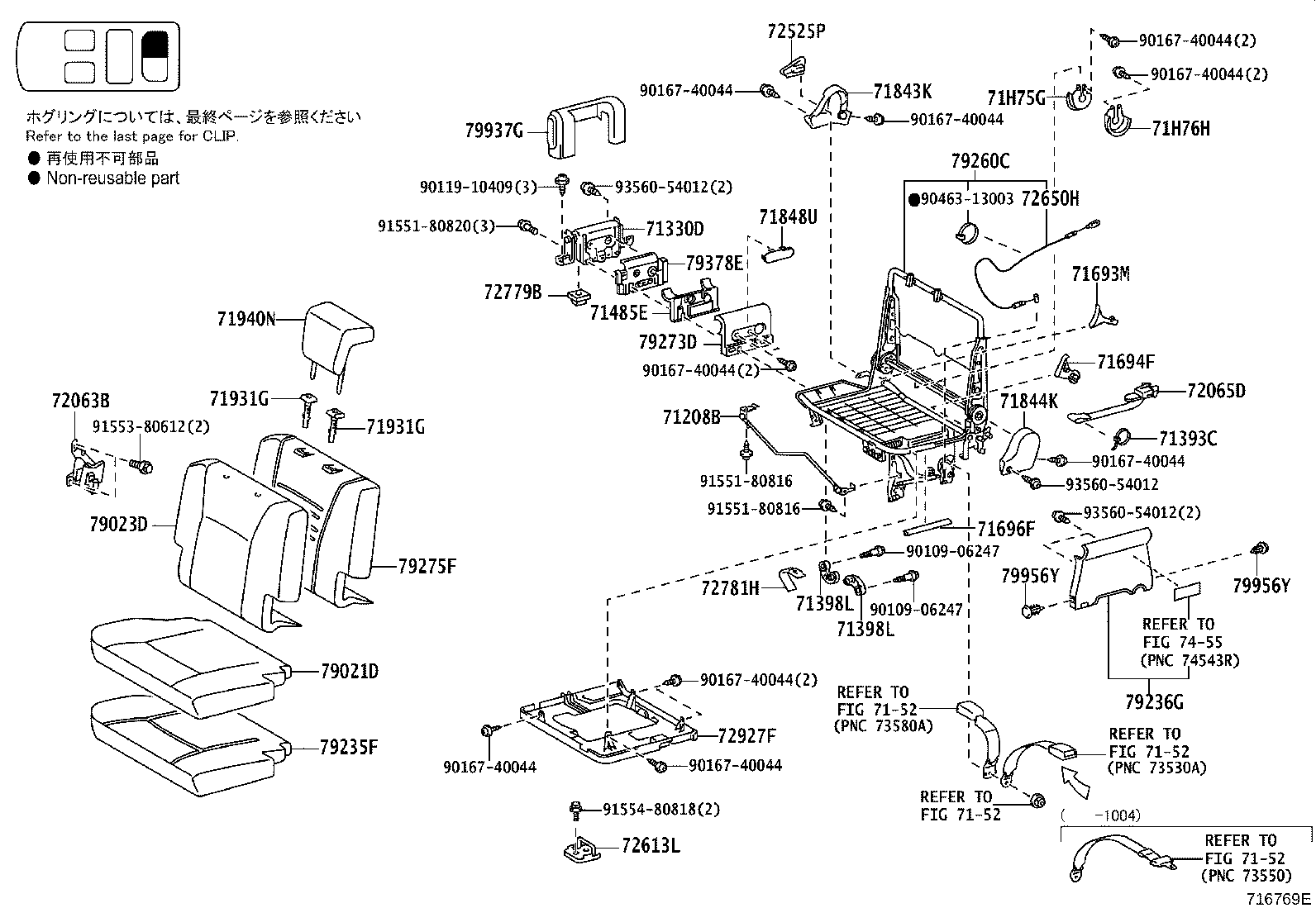

Figure 71C966B 71C966B 2008-08 → 2010-04 Figure 71C967B 71C967B 2008-08 → 2010-04 Figure 71C955B 71C955B 2008-08 → 2010-04 Figure 71C956B 71C956B 2008-08 → 2010-04 Figure 71C957B 71C957B 2010-04 → — Figure 71C976B 71C976B 2010-04 → — Figure 71C977B 71C977B 2010-04 → — Figure 71C977B 71C977B 2012-12 → — Figure 71C960D 71C960D 2010-04 → — Figure 71C960D 71C960D 2012-12 → — Figure 71C978A 71C978A 2008-08 → — Figure 71C979B 71C979B 2008-08 → — Figure 71C980 71C980 2008-08 → —

Part groups

PNCDescription
71033F Leg Sub-assy, Rear Seat Cushion, RH
71067C Frame Sub-assy, Rear Side Seatback, RH
71085E Cover Sub-assy, Rear Side Seat Cushion, RH
71088N Cover Sub-assy, Rear Side Seatback, RH
71208B Wire Sub-assy, NO.2 Seat Cushion, RH NO.1
71208D Wire Sub-assy, NO.2 Seat Cushion, LH NO.1
71307F Bracket Sub-assy, NO.1 Seat Cushion(FOR RH SEAT)
71308J Bracket Sub-assy, Rear Seat Cushion Support, LH
71318D Pad, Center Seat Cushion
71330D Hinge Assy, Rear NO.2 Seat, RH
71340C Hinge Assy, Rear NO.2 Seat, LH
71356B Plate, Rear Seatback Hinge, Inner RH
71356C Plate, Rear Seatback Hinge, Inner LH
71393C Band, NO.2 Seat Cushion, RH NO.1
71393E Band, NO.2 Seat Cushion, LH NO.1
71393G Band, NO.1 Seat Cushion(FOR RH SEAT)
71393H Band, NO.1 Seat Cushion(FOR LH SEAT)
71396R Cushion, NO.2 Seat Support, Rear(FOR RH SEAT)
71396T Cushion, NO.1 Seat Support, Rear
71398L Guide, NO.2 Seat Cushion Support, RH
71398M Guide, NO.2 Seat Cushion Support, LH
71485E Cover, Rear Seat Hinge
71486F Cover, Rear Seat Hinge, LH
71499L Damper, NO.1 Seatback Spring, RH
71499M Damper, NO.1 Seatback Spring, LH
71693F Cover, Rear NO.2 Seat Cushion Hinge, Lower RH NO.1
71693M Cover, Rear Seat Cushion Hinge, Outer RH
71694F Cover, Rear NO.2 Seat Cushion Hinge, Lower RH NO.4
71694G Cover, Rear Seat Cushion Hinge, Inner LH
71695K Protector, NO.1 Seatback, RH
71696F Protector, NO.2 Seatback, RH
71696N Protector, Rear Seat, NO.2
71712N Cover, Side Seat Cushion, Rear
71749B Cover, Side Seat Lower Cushion, RH
71761R Pad, Rear Side Seatback
71833S Cover, Rear Seat Reclining, NO.1 RH
71833V Cover, NO.1 Seat Reclining, NO.2 RH
71833Y Clip, NO.1 Seat Reclining Cover(FOR RH SEAT)
71834S Cover, Rear Seat Reclining, NO.1 LH
71834V Cover, Rear Seat Reclining, NO.3 LH
71834X Cover, Rear Seat Reclining, NO.2 LH
71843K Cover, Rear NO.2 Seat Reclining, NO.2 RH
71843M Cover, Rear Seat Reclining, NO.2 RH
71844H Cover, Rear Seat Reclining, NO.2 LH
71844K Cover, Rear NO.2 Seat Reclining, NO.2 LH
71845F Cap, Rear Seat Cover
71846J Cap, Rear Seatback Board, NO.2
71848U Cap, NO.2 Seat Adjuster Cover, RH
71849M Cap, NO.2 Seat Adjuster Cover, LH
71868T Shield, Rear Seat Cushion, Inner NO.1 LH
71868U Shield, Rear Seat Cushion, Inner NO.1 LH (FOR LH SEAT)
71875X Cover, Reclining Adjuster Inside, RH
71875Y Cover, Reclining Adjuster Inside, RH NO.1(FOR LH SEATBACK)
71877K Cover, Rear Seat Armrest Hole RH
71877L Cover, Rear Seat Armrest Hole LH
71878H Cover, Rear Seat Reclining, Inner RH
71878J Cover, Rear NO.1 Seat Reclining, Inner RH
71879H Cover, Rear Seat Reclining, Inner LH
71879J Cover, Rear NO.1 Seat Reclining, Inner LH
71881E Board, Rear NO.1 Seatback, Center
71930Q Support Assy, Rear Seat Headrest
71931G Support Assy, Rear Seat Headrest
71940F Headrest Assy, NO.1 Seat, RH
71940G Headrest Assy, NO.1 Seat, LH
71940N Headrest Assy, Rear Seat, NO.2
71960G Headrest Assy, Rear NO.1 Seat, Center
71964A Case, Rear Seat Headrest
71970C Headrest Assy, Rear Seat
71H67 Shield, Rear Seat Cushion, Inner NO.1 RH
71H67A Shield, NO.1 Seat Cushion, Inner NO.1 RH(FOR LH SEAT)
71H75E Cover, Reclining Adjuster Inside, RH(FOR REAR NO.1 RH SEAT)
71H75G Cover, Reclining Adjuster Inside, RH(FOR REAR NO.2 RH SEAT)
71H75R Cover, Reclining Adjuster Inside, RH NO.1(FOR LH SEAT)
71H75X Cover, Reclining Adjuster Inside, RH NO.2(FOR LH SEAT)
71H76E Cover, Reclining Adjuster Inside, LH(FOR REAR NO.1 RH SEAT)
71H76F Cover, Reclining Adjuster Inside, LH(FOR REAR NO.1 LH SEAT)
71H76H Cover, Reclining Adjuster Inside, LH(FOR REAR NO.2 LH SEAT)
71H76P Cover, Reclining Adjuster Inside, LH NO.2(FOR LH SEAT)
71T76B Cover, Reclining Adjuster Inside, LH
72045B Cover Sub-assy, NO.1 Seat Track, Outer RH
72046D Cover Sub-assy, Rear Seat Track, Outer LH NO.1
72057E Lever Sub-assy, Rear Seat Lock Control, RH NO.1
72057J Lever Sub-assy, Rear Seat Lock Control(FOR RH SEAT)
72057K Lever Sub-assy, Rear Seat Lock Control(FOR LH SEAT)
72058F Lever Sub-assy, NO.1 Seat Lock Control, LH
72063B Hook Sub-assy, Rear Seat, RH
72064B Hook Sub-assy, Rear Seat, LH
72065D Hook Sub-assy, Rear NO.2 Seat Cushion Lock, RH
72065F Belt Sub-assy, Rear Seat Hook, RH
72066B Belt Sub-assy, Rear Seat Hook, LH
72066C Hook Sub-assy,Rear Seat Cushion Lock,LH
72210X Cable Assy, NO.1 Seat Track Control, RH
72211H Handle, Seat Track Adjusting, RH
72380D Cable Assy, Seat Adjuster Control, NO.2
72507H Handle Sub-assy, Reclining Release, RH
72525P Handle, NO.2 Seat Reclining Adjuster Release, RH
72525R Handle, Reclining Adjuster Release, RH
72526J Handle, NO.1 Seat Reclining Adjuster Release, LH
72526K Handle, NO.2 Seat Reclining Adjuster Release, LH
72551M Cover, Reclining Hinge, RH NO.1(FOR RH SEAT)
72551R Cover, Reclining Hinge, RH NO.1(FOR LH SEAT)
72552K Cover, Reclining Hinge, LH NO.1(FOR RH SEAT)
72552P Cover, Reclining Hinge, LH NO.1(FOR LH SEAT)
72570E Cable Assy, NO.1 Seat Reclining Adjusting, RH
72573D Lever, NO.1 Seat Reclining Control, RH
72574A Lever, Reclining Control, LH
72601G Striker Sub-assy, Rear Seat Lock
72613H Striker, Rear Seat Lock
72613K Striker, Rear Seat Lock, NO.2
72613L Striker, Rear Seat Lock, Rear Outer
72615M Cover, NO.1 Seatback Lock Striker(FOR RH SEAT)
72620R Cable Assy, Rear NO.1 Seat Lock(FOR RH SEAT)
72620S Cable Assy, Rear NO.1 Seat Lock(FOR LH SEAT)
72620U Cable Assy, Rear NO.1 Seat Lock
72630H Lock Assy, NO.1 Seatback
72630J Lock Assy, Rear NO.1 Seat
72637L Handle, Rear Seat Lock
72649C Spring, Rear Seat Cushion Support
72650H Cable Assy, Rear NO.2 Seat Lock, RH
72650J Lock Assy, Rear Seat, RH
72657A Silencer, Rear Seatback Lock Control Rod
72660N Cable Assy, Rear NO.2 Seat Cushion Lock, LH
72660P Lock Assy, Rear Seat, LH
72665J Cover, Rear Seat Lock, RH
72665K Cap(FOR REAR SEATBACK LOCK COVER)
72666F Cover, Rear Seat Lock, LH
72668G Bezel, NO.1 Seatback Lock, Lower(FOR RH SEAT)
72679C Bezel, Rear Seatback Lock Control
72695H Cable, Rear NO.1 Seat Lock Control, RH
72695Q Cable, Rear Seat Lock Control
72779B Guide, Rear Seat Hinge Pawl
72781G Spring, Rear NO.2 Seat Plate, LH
72781H Spring, Rear NO.2 Seat Plate, RH
72830U Armrest Assy, Rear Seat, RH
72830V Armrest Assy, Rear NO.1 Seat, RH
72840K Armrest Assy, Rear NO.1 Seat, LH
72927F Cover, Rear Seat Cushion Under, RH
72927H Cover, Rear NO.1 Seat Cushion Under, RH NO.1
72928E Cover, Rear Seat Cushion Under, LH
72928F Cover, Rear NO.2 Seat Cushion Under, LH
72960C Table Assy, NO.1 Seat Turn, RH
72966D Plate, Rear Seat Turn Lock, NO.1 RH
72966E Plate, Rear Seat Turn Lock, NO.1 LH
72970A Table Assy, NO.1 Seat Turn, LH
72995J Cover, Rear NO.1 Seat Cushion
72996R Cover, Rear NO.1 Seatback, RH
72997G Cover, Rear NO.1 Seatback, LH NO.1
72A37 Clip (FOR SEAT TRACK COVER)
73949A Cap
78773B Cover, Sub Seat Hinge, RH
78804C Leg Sub-assy, Sub Seat Cushion
78875A Striker, Sub Seat Lock
78F56 Cap
79011B Cover Sub-assy, NO.1 Seat Cushion, RH
79012A Cover Sub-assy, NO.1 Seat Cushion, LH
79013D Cover Sub-assy, NO.1 Seatback, RH
79014B Cover Sub-assy, NO.1 Seatback, LH
79021D Cover Sub-assy, NO.2 Seat Cushion, RH
79022B Cover Sub-assy, NO.2 Seat Cushion, LH
79023D Cover Sub-assy, NO.2 Seatback, RH
79024D Cover Sub-assy, NO.2 Seatback, LH
79105G Leg Sub-assy, NO.1 Seat, RH
79106B Leg Sub-assy, NO.1 Seat, LH
79135C Pad, NO.1 Seat Cushion, RH
79136C Pad, NO.1 Seat Cushion, LH
79160C Spring Assy, NO.1 Seat Cushion
79170B Spring Assy, NO.1 Seat Cusuion, LH
79175F Pad, NO.1 Seatback, RH
79180B Spring Assy, NO.1 Seatback, RH
79185A Pad, NO.1 Seatback, LH
79190 Spring Assy, NO.1 Seatback, LH
79235F Pad, NO.2 Seat Cushion, RH
79236G Cover, NO.2 Seat Leg, RH
79245A Pad, NO.2 Seat Cushion, LH
79246H Cover, NO.2 Seat Leg, LH
79260C Spring Assy, NO.2 Seat Cushion, RH
79270B Spring Assy, NO.2 Seat Cushion, LH
79273D Cover, NO.2 Seat Hinge, Rear RH
79273F Cover, NO.2 Seat Hinge, NO.2
79275F Pad, NO.2 Seatback, RH
79285C Pad, NO.2 Seatback, LH
79378E Cover, NO.3 Seat Cushion Hinge, RH
79378F Cover, NO.2 Seat Cushion Hinge, LH
79908A Plate Sub-assy, Seat Hinge, LH
79910A Cable Assy, Rear Seat Turn, NO.1
79920B Cable Assy, Rear Seat Turn, NO.2
79937G Cover, Rear Seat Leg, NO.2
79937H Cover, Rear Seat Leg, NO.2
79951B Cover, NO.1 Seat Cushion, NO.1
79951C Cover, NO.1 Seat Cushion, NO.3
79952A Cover, NO.1 Seat Cushion, NO.2
79956V Cover, Rear Seat Leg Side, RH
79956Y Clip (FOR REAR SEAT LEG BRACKET COVER)
79959E Cover, NO.1 Seat Leg, RH
79959F Cover, NO.1 Seat Leg, LH
79959T Cover, Rear Seat Leg, LH
79965H Cover, NO.1 Seat Leg Side, NO.2(FOR RH SEAT)
79965J Cover, NO.1 Seat Leg Side, NO.2(FOR LH SEAT)
79966F Cover, NO.1 Seat Leg Side, NO.3(FOR RH SEAT)
79966K Cover, Rear Seat Leg, RH(FOR RH SEAT)
79966N Cover, Rear Seat Leg, LH(FOR LH SEAT)
79967U Cover, Rear NO.1 Seat Leg Side, NO.2
79967W Cover, Rear NO.1 Seat Leg Side, NO.4
79J67N Cover, Rear Seat Leg Side, NO.7
82G11 Clamp, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
