Toyota Noah

2008-08 → 2016-12 · chassis ZRR70 · catalogue 651370 · General

Supported model Data version 2017-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Rail

10 part groups · 3 illustrations

Illustrations

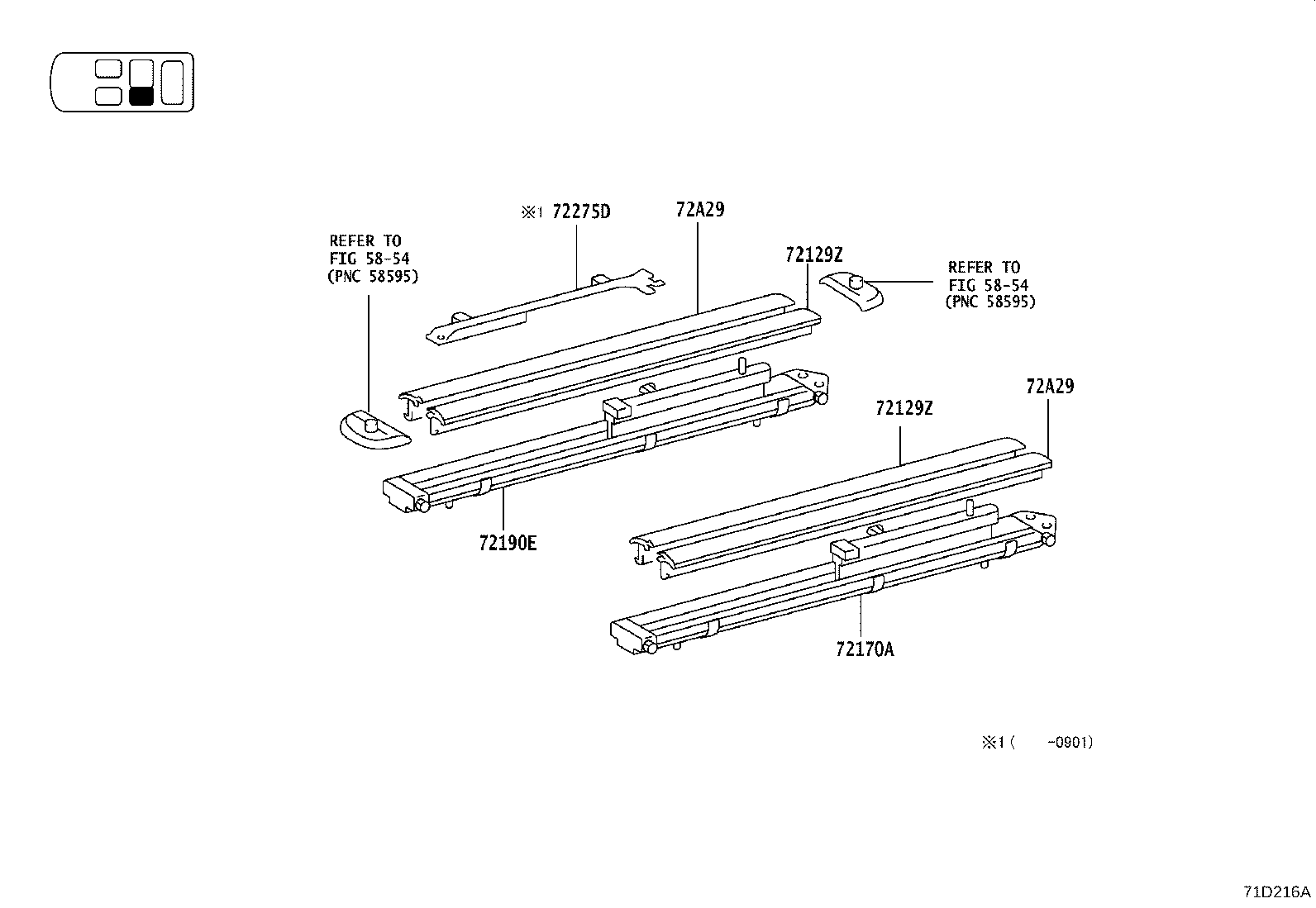

Figure 71D215A 71D215A 2007-06 → 2010-04 Figure 71D216A 71D216A 2008-08 → 2010-04 Figure 71D218 71D218 2010-04 → —

Part groups

PNCDescription
72129Y Protector, Seat Track Lower Rail, NO.3
72129Z Protector, Seat Track Lower Rail
72160H Track Assy, Rear Seat, Outer RH
72170A Track Assy, Rear Seat, Outer LH
72180F Track Assy, Rear Seat, Inner RH
72190E Track Assy, Rear Seat, Inner LH
72275D Stopper, Rear Seat Track Slide, RH NO.1
72A29 Protector, Seat Track Lower Rail, NO.1
72A29A Protector, Seat Track Lower Rail, NO.2
72A29B Protector, Seat Track Lower Rail, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
