Toyota Noah
2008-08 → 2016-12 · chassis ZRR70 · catalogue 651370 · General
Supported model
Data version 2017-06

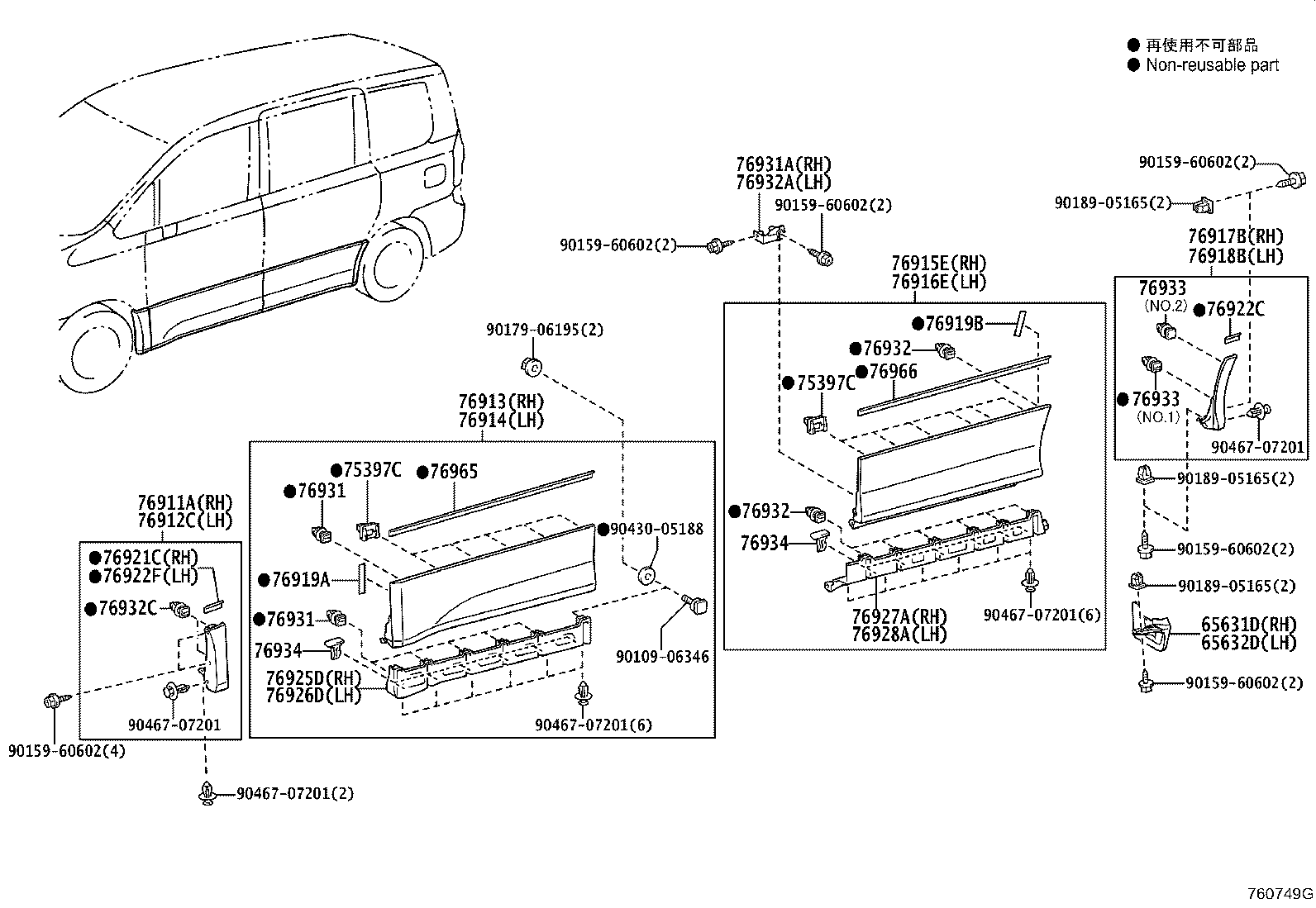

Spoiler & Side Mudguard
31 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 65631D | Plate, Rear Wheel House, Front RH |
| 65632D | Plate, Rear Wheel House, Front LH |
| 75397C | Clip, Outside Moulding, NO.3 |

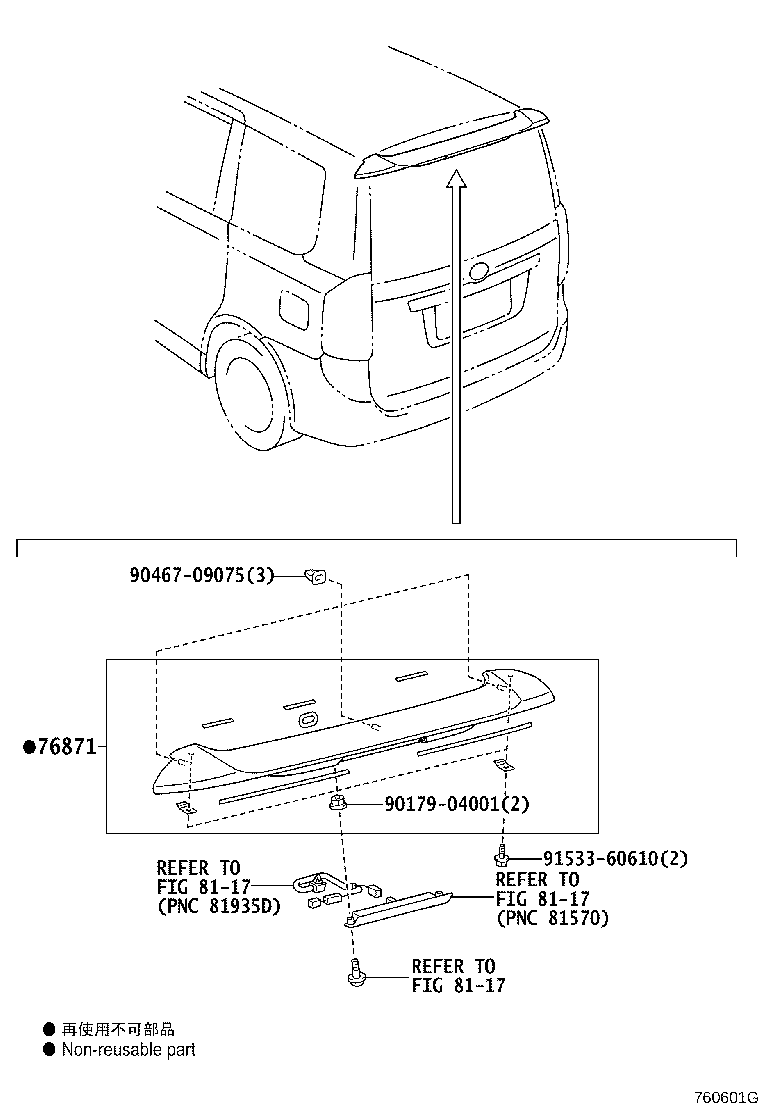

| 76871 | Spoiler, Rear |
| 76911A | Mudguard, Fender Panel, RH |
| 76912C | Mudguard, Fender Panel, LH |
| 76913 | Mudguard, Front Door, RH |
| 76914 | Mudguard, Front Door, LH |
| 76915E | Mudguard, Slide Door, RH |
| 76916E | Mudguard, Slide Door, LH |
| 76917B | Mudguard, Quarter Panel, RH |
| 76918B | Mudguard, Quarter Panel, LH |
| 76919A | Pad, Side Mudguard |
| 76919B | Pad, Side Mudguard |
| 76921A | Protector, Side Mudguard, NO.1 |
| 76921C | Protector, Side Mudguard, RH |
| 76922C | Protector, Side Mudguard, NO.2 |
| 76922F | Protector, Side Mudguard, LH |
| 76925D | Protector, Side Mudguard, RH |
| 76926D | Protector, Side Mudguard, LH |
| 76927A | Protector, Side Mudguard, Rear RH |
| 76928A | Protector, Side Mudguard, Rear LH |
| 76931 | Retainer, Side Mudguard, NO.3 |
| 76931A | Bracket, Side Mudguard, NO.1 RH |
| 76932 | Retainer, Side Mudguard, NO.4 |
| 76932A | Bracket, Side Mudguard, NO.1 LH |
| 76932C | Retainer, Fender Panel Mudguard |
| 76933 | Retainer, Side Mudguard, NO.5 |
| 76934 | Retainer, Side Mudguard, NO.6 |
| 76965 | Protector, Front Door Lower Mudguard |
| 76966 | Protector, Slide Door Lower Mudguard |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
