Heating & Air Conditioning - Cooler Piping

21 part groups · 2 illustrations

Illustrations

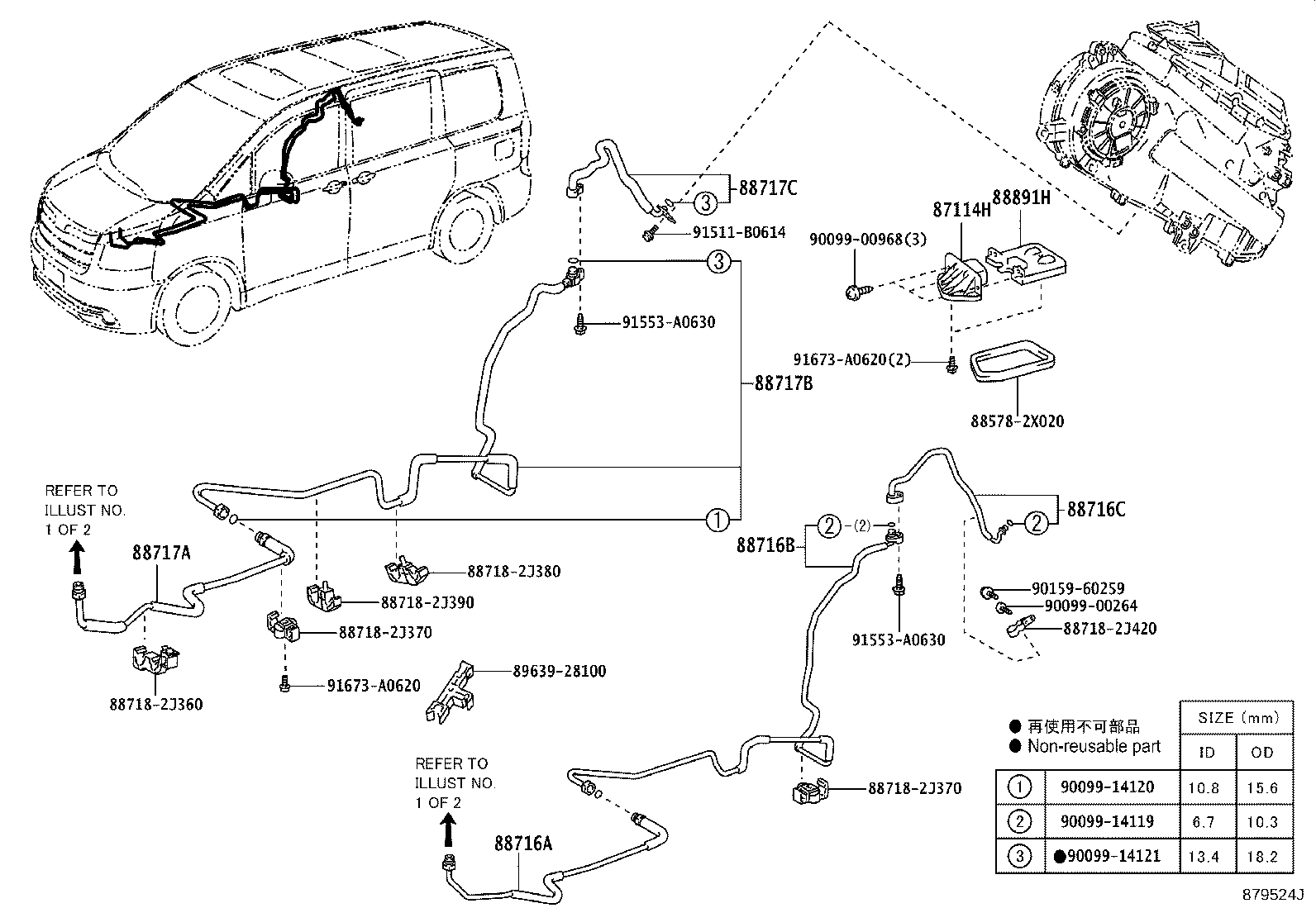

Figure 879523K 879523K 2008-08 → — Figure 879524J 879524J 2008-08 → —

Part groups

PNCDescription
87114H Cover, Heater
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88460C Bracket, Cooler Condenser, NO.2
88467 Cushion, Cooler Condenser, NO.1
88467A Cushion, Cooler Condenser, NO.2
88467H Cushion, Condenser Bracket, NO.1
88474 Dryer, Cooler
88710E Tube & Accessory Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88717C Pipe, Cooler Refrigerant Suction, C
88717U Tube, Suction, NO.1
88719A Sensor, Air Conditioner Pressure
88891H Cover, Cooler, NO.1
89639D Clamp, Airconditioner Tube
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
