Toyota Noah/Voxy
2014-01 → 2021-12 · chassis ZRR80 · catalogue 651380 · General
Supported model
Data version 2023-05

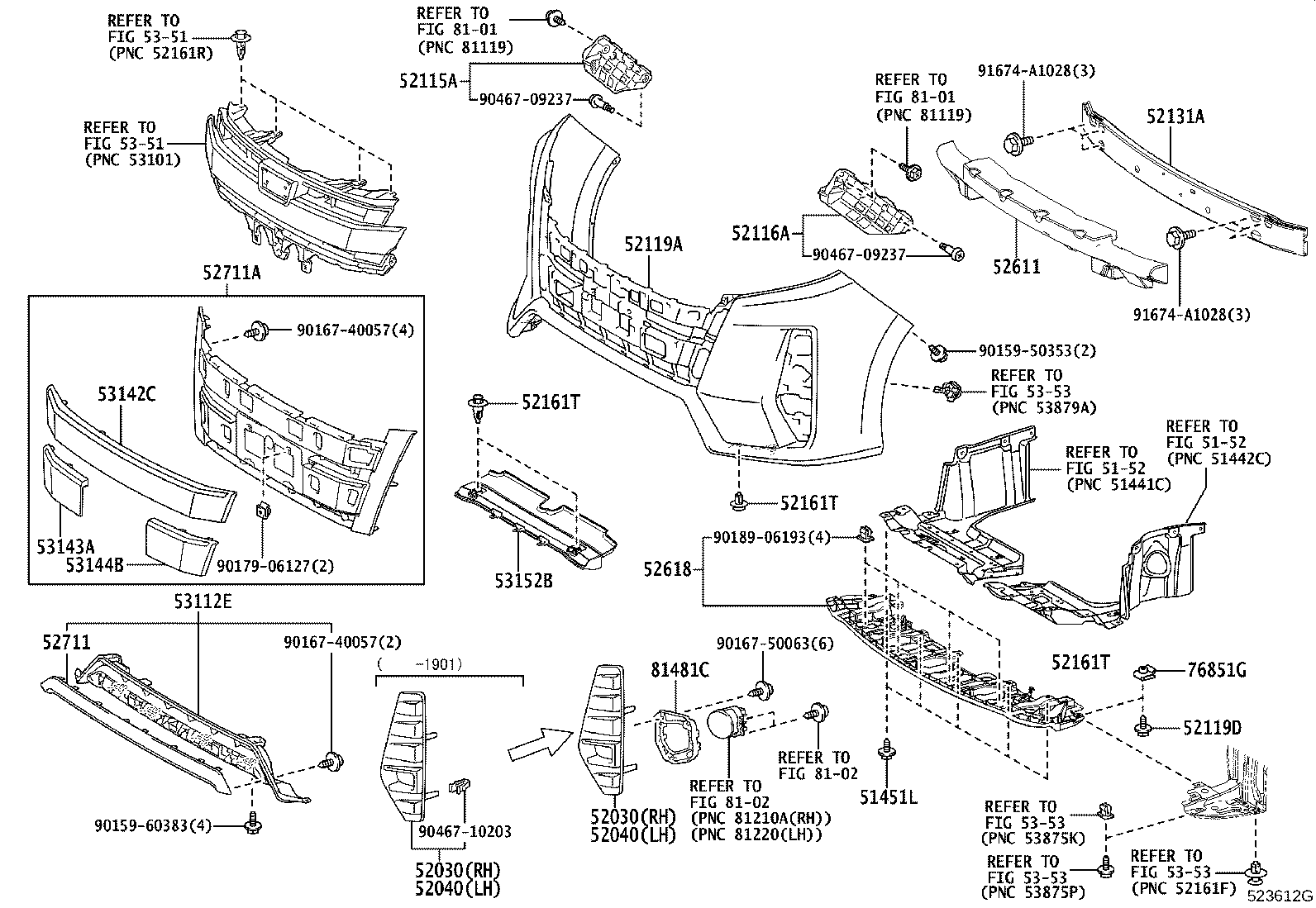

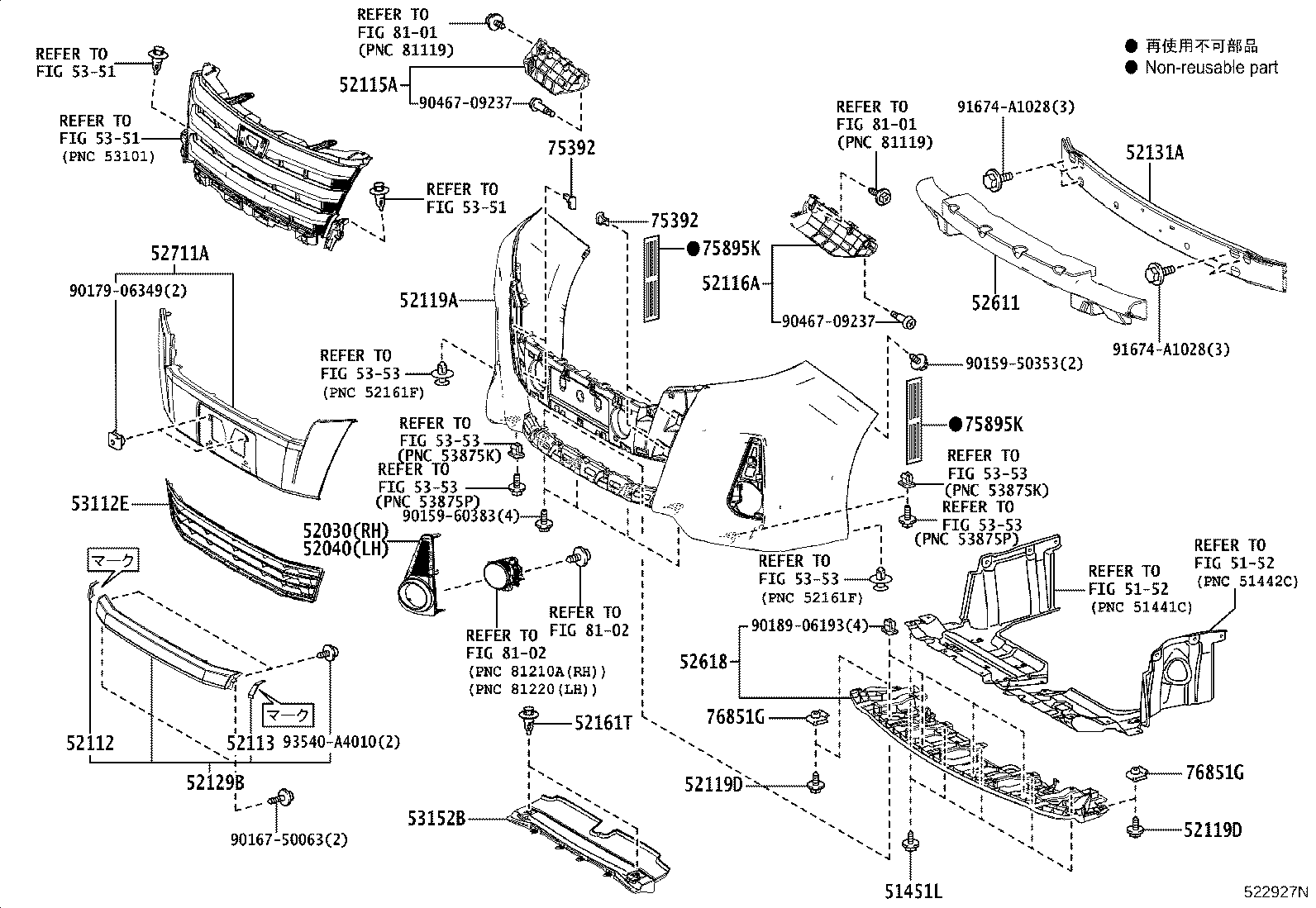

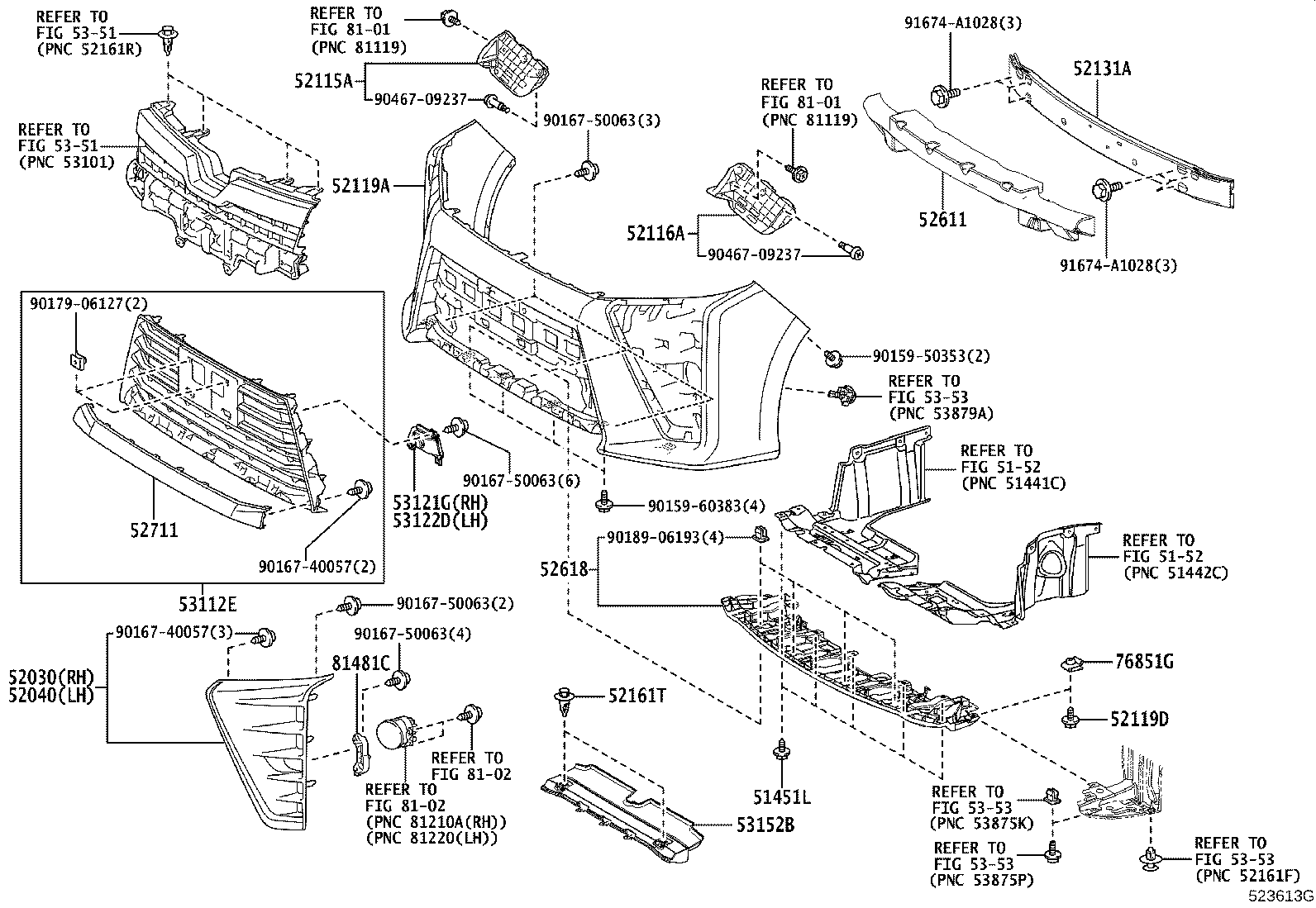

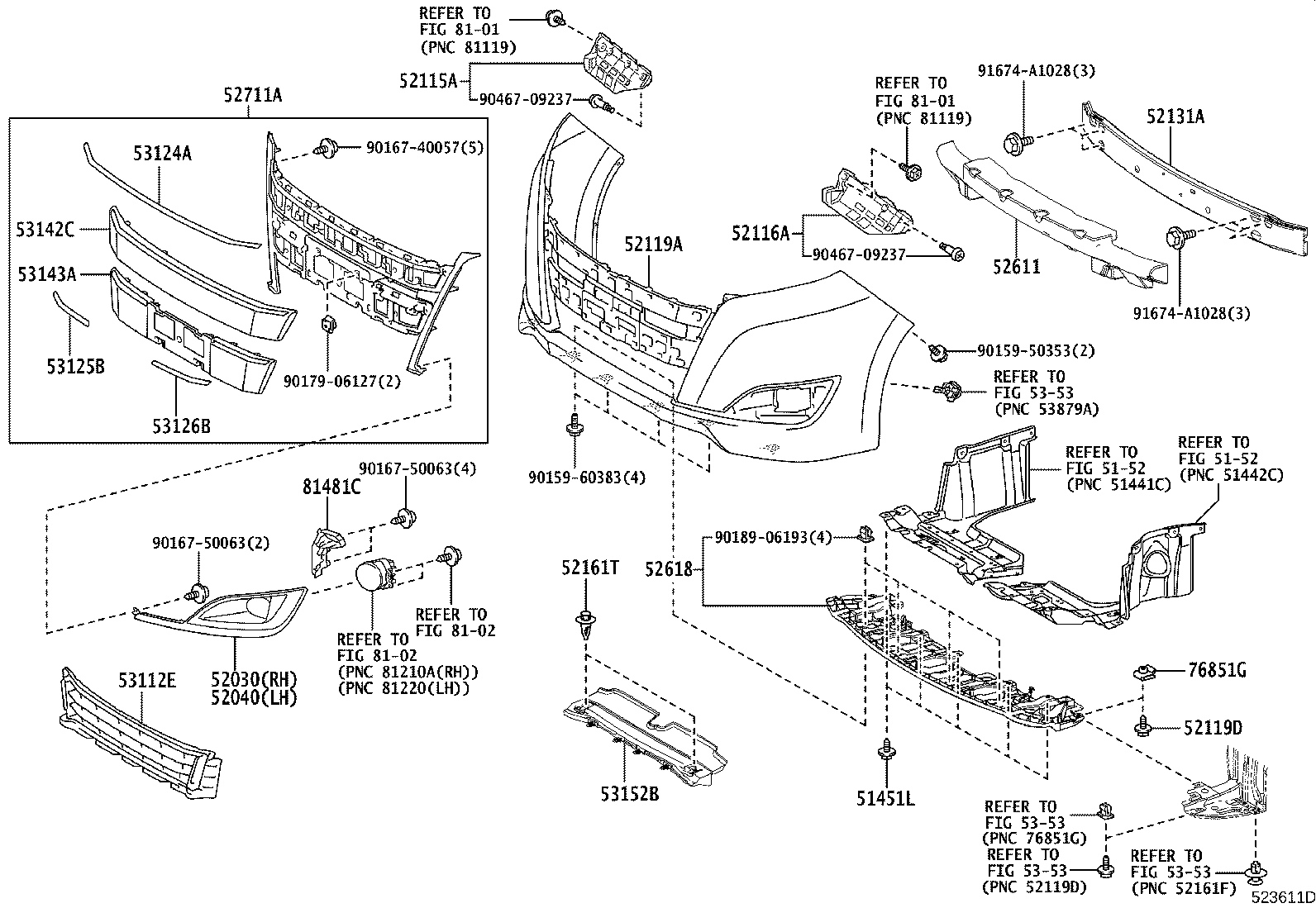

Front Bumper & Bumper Stay
30 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 51451L | Bolt, NO.1 |
| 52030 | Cover Assy, Front Bumper Hole, RH |
| 52040 | Cover Assy, Front Bumper Hole, LH |
| 52112 | Bar, Front Bumper, RH |
| 52113 | Bar, Front Bumper, LH |
| 52115A | Support, Front Bumper Side, RH |
| 52116A | Support, Front Bumper Side, LH |
| 52119A | Cover, Front Bumper |
| 52119D | Screw, NO.1 |
| 52129B | Cover, Front Bumper, Lower |
| 52131A | Reinforcement, Front Bumper |
| 52161T | Piece, Front Bumper |
| 52611 | Absorber, Front Bumper Energy |
| 52618 | Absorber, Front Bumper, Lower |
| 52711 | Moulding, Front Bumper |
| 52711A | Garnish, Front Bumper |
| 53112E | Grille, Radiator, Lower NO.1 |
| 53121G | Plate, Radiator Grille Finish, RH |
| 53122D | Plate, Radiator Grille Finish, LH |
| 53124A | Moulding, Radiator Grille, NO.4 |
| 53125B | Moulding, Radiator Grille, Center RH |
| 53126B | Moulding, Radiator Grille, Center LH |
| 53142C | Garnish, Radiator Grille, NO.2 |
| 53143A | Garnish, Radiator Grille, NO.3 |
| 53144B | Garnish, Radiator Grille, NO.4 |
| 53152B | Guide, Radiator Grille Air |
| 75392 | Retainer, Outside Moulding |
| 75895K | Tape, Moulding, NO.1 |
| 76851G | Grommet, Screw, NO.1 |
| 81481C | Bracket, Fog Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
