Toyota Noah/Voxy

2014-01 → 2021-12 · chassis ZRR80 · catalogue 651380 · General

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

14 part groups · 2 illustrations

Illustrations

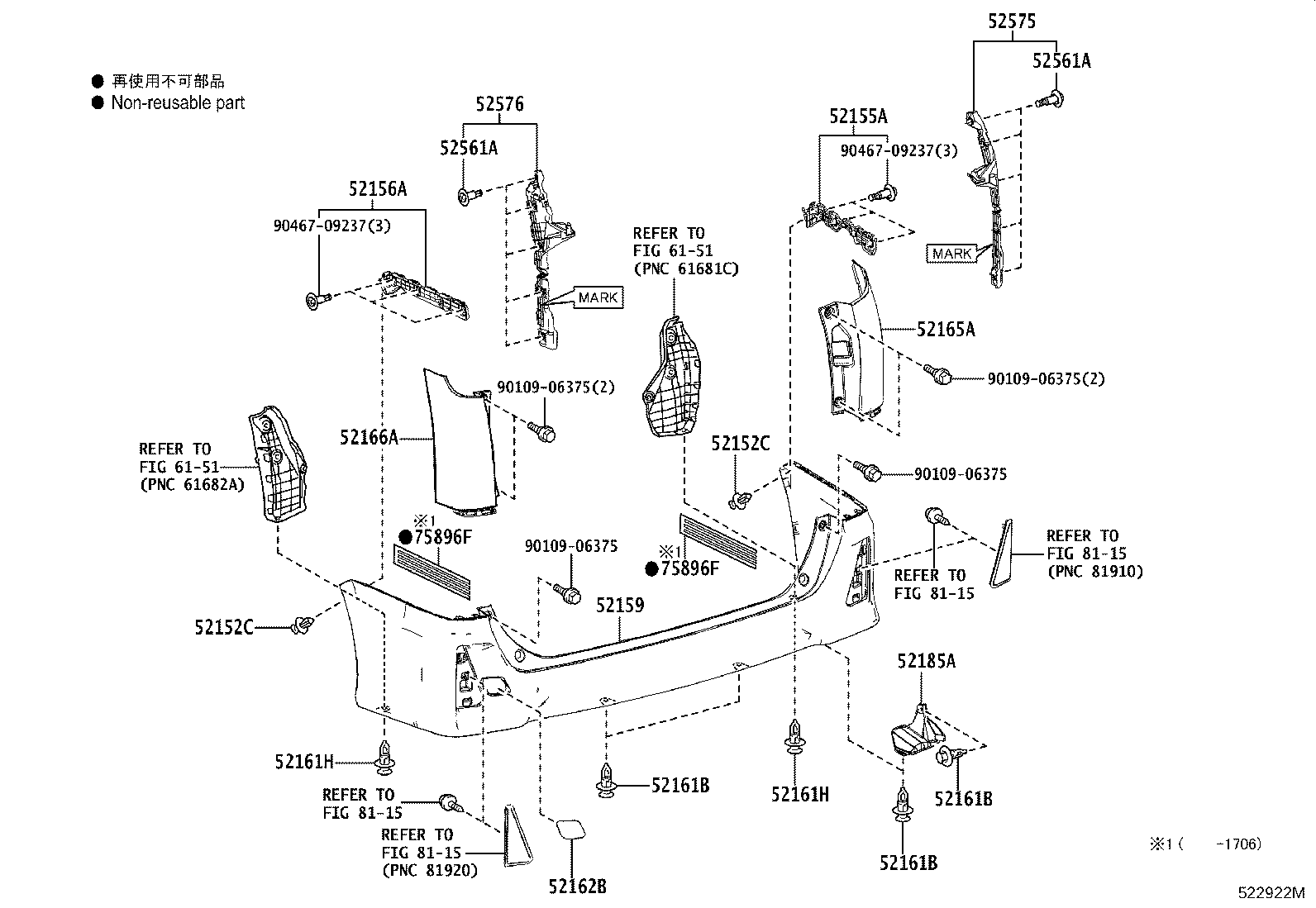

Figure 522921P 522921P 2014-01 → — Figure 522922M 522922M 2014-01 → —

Part groups

PNCDescription
52152C Clip, Rear Bumper Side
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52161B Piece, Rear Bumper
52161H Piece, Rear Bumper
52162B Plate, Rear Bumper, NO.1
52165A Cover, Rear Bumper, Upr RH
52166A Cover, Rear Bumper, Upr LH
52185A Bracket, Rear Bumper Side, RH
52561A Clip(FOR REAR BUMPER RETAINER)
52575 Retainer, Rear Bumper Side, RH
52576 Retainer, Rear Bumper Side, LH
75896F Tape, Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
