Toyota Noah/Voxy
2014-01 → 2021-12 · chassis ZRR80 · catalogue 651380 · General
Supported model
Data version 2023-05

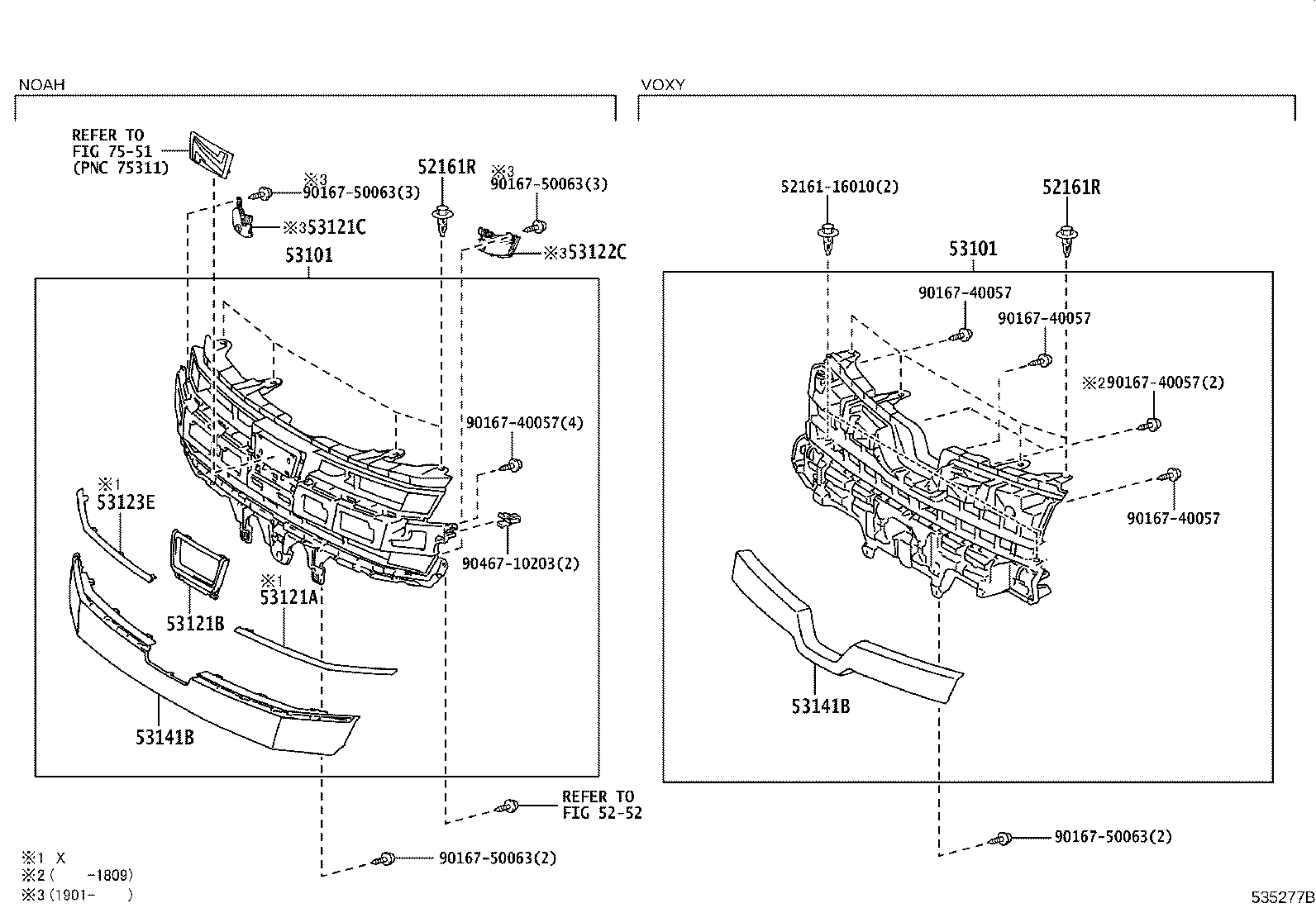

Radiator Grille
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52161R | Piece, Front Bumper |
| 53101 | Grille Sub-assy, Radiator |
| 53121A | Moulding, Radiator Grille |
| 53121B | Moulding, Radiator Grille, Upper |
| 53121C | Plate, Radiator Grille Finish, RH |
| 53121F | Moulding, Radiator Grille, Upper RH |
| 53122C | Plate, Radiator Grille Finish, LH |
| 53123E | Moulding, Radiator Grille, Lower RH |
| 53124C | Moulding, Radiator Grille, Upper LH |
| 53141B | Garnish, Radiator Grille, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
