Toyota Noah/Voxy
2014-01 → 2021-12 · chassis ZRR80 · catalogue 651380 · General
Supported model
Data version 2023-05

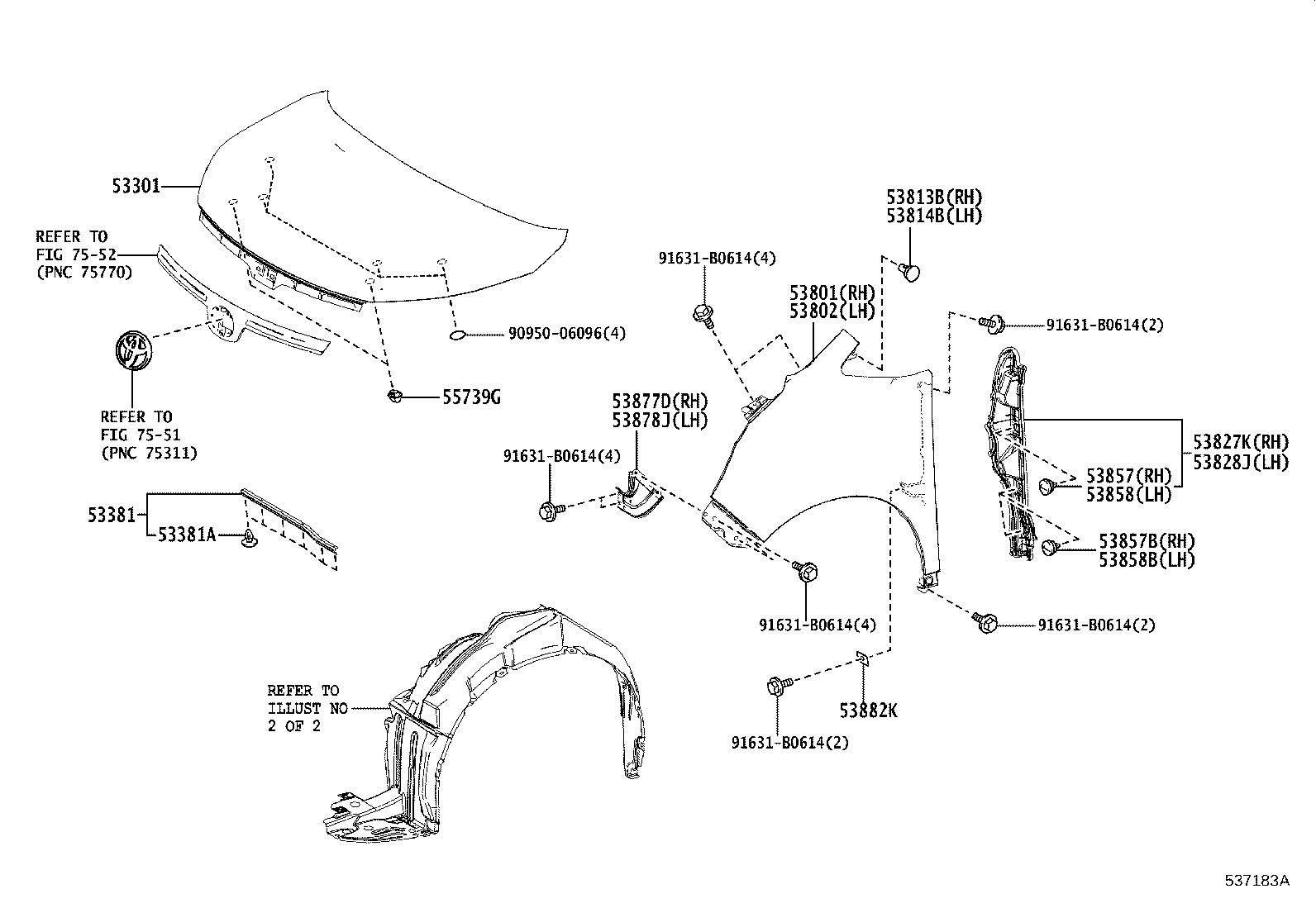

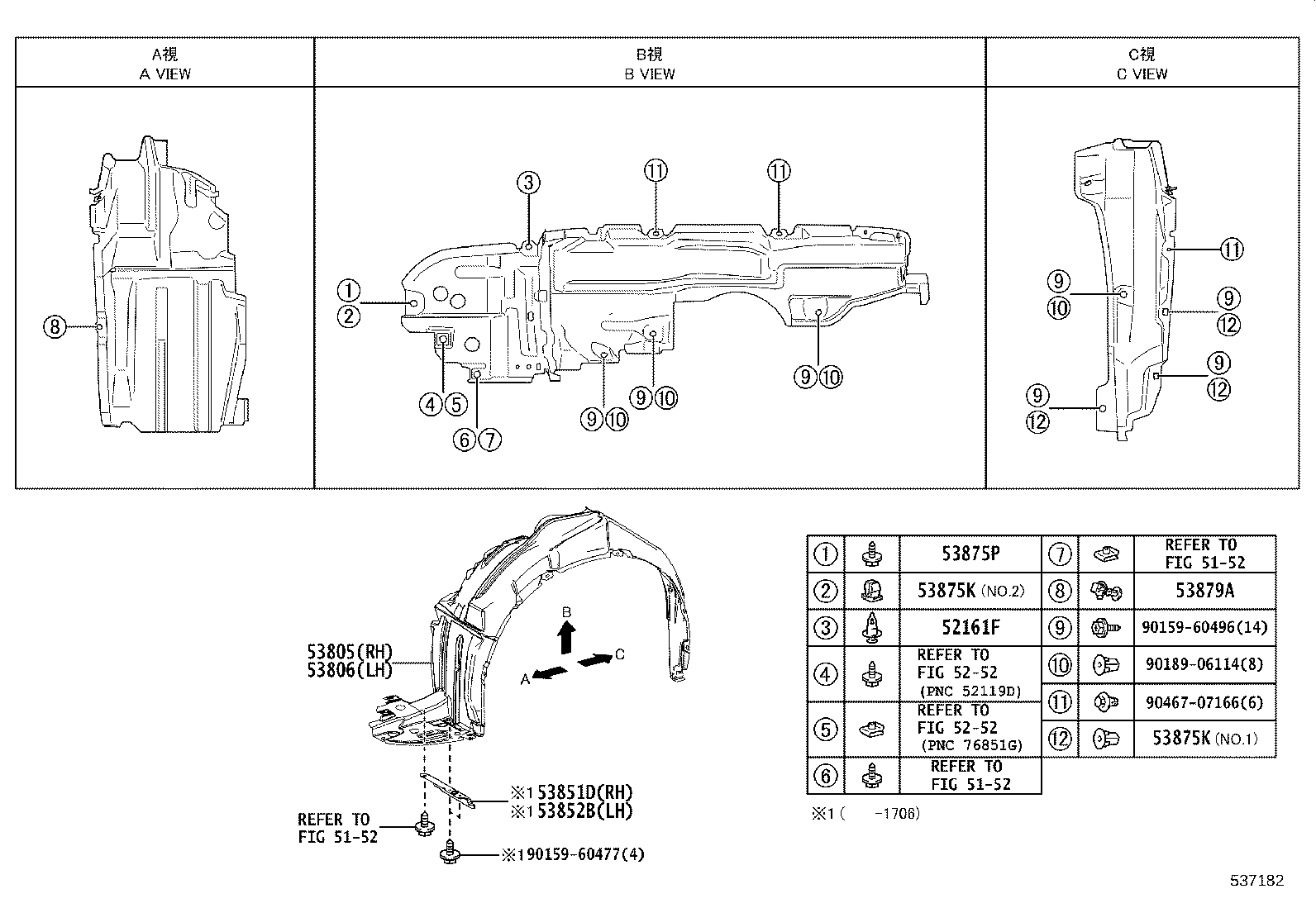

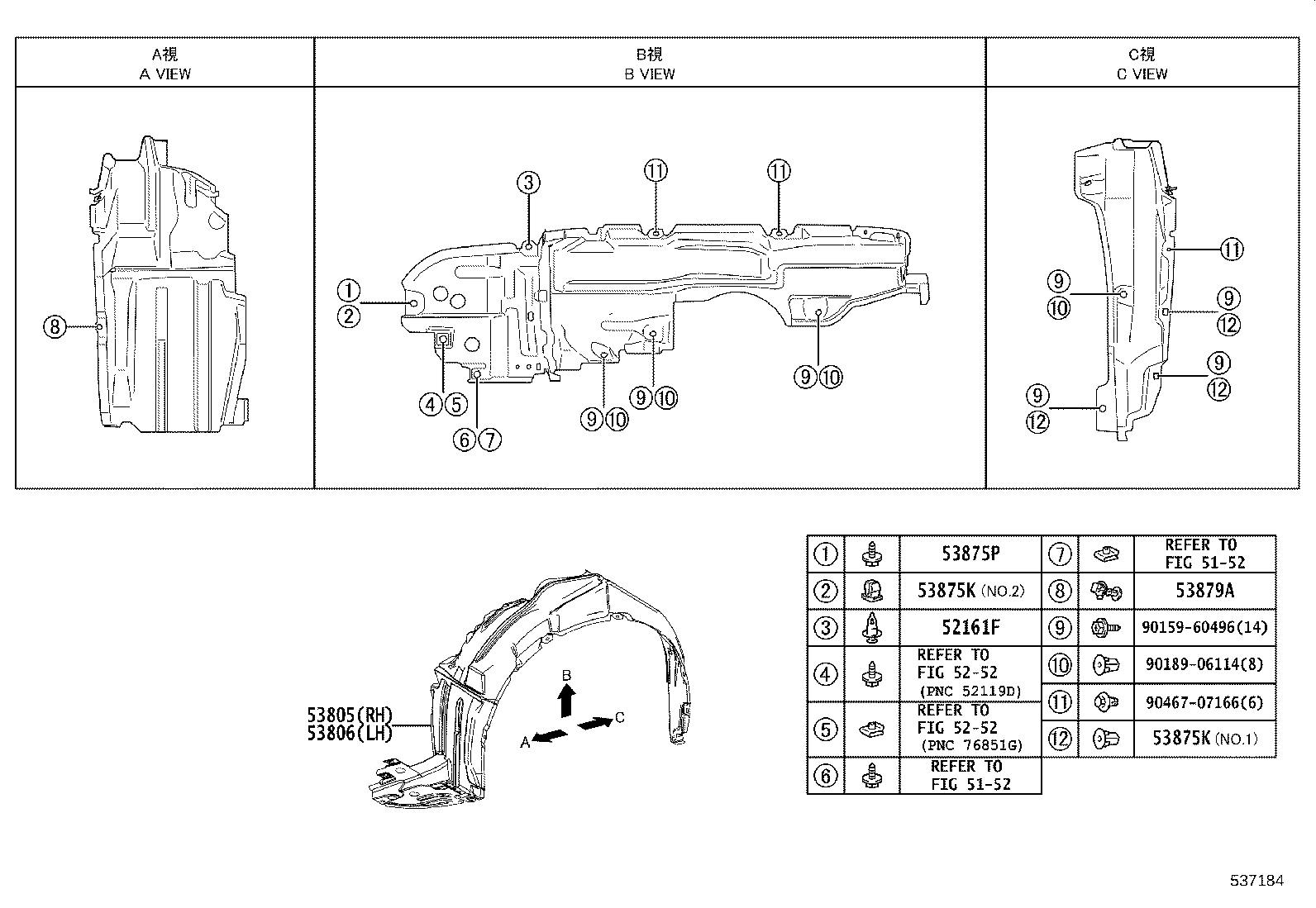

Hood & Front Fender
25 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 52161F | Piece, Front Bumper |
| 53301 | Hood Sub-assy |
| 53381 | Seal, Hood TO Radiator Support |
| 53381A | Clip(FOR HOOD TO RADIATOR SUPPORT SEAL) |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |
| 53805 | Shield Sub-assy, Front Fender Splash, RH |
| 53806 | Shield Sub-assy, Front Fender Splash, LH |
| 53813B | Extension, Front Fender, RH |
| 53814B | Extension, Front Fender, LH |
| 53827K | Protector, Front Fender Side Panel, RH |
| 53828J | Protector, Front Fender Side Panel, LH |
| 53851D | Pad, Front Wheel Opening Extension, RH |
| 53852B | Pad, Front Wheel Opening Extension, LH |
| 53857 | Retainer, Front Wheel Opening Extension, RH |
| 53857B | Retainer, Front Wheel Opening Extension, RH |
| 53858 | Retainer, Front Wheel Opening Extension, LH |
| 53858B | Retainer, Front Wheel Opening Extension, LH |
| 53875K | Grommet, Screw |
| 53875P | Screw, NO.1 |
| 53877D | Bracket, Front Fender Liner, RH |
| 53878J | Bracket, Front Fender Liner, LH |
| 53879A | Retainer, Front Fender Liner |
| 53882K | Seal, Front Fender |
| 55739G | Stopper, Hood |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
