Toyota Noah/Voxy
2014-01 → 2021-12 · chassis ZRR80 · catalogue 651380 · General
Supported model
Data version 2023-05

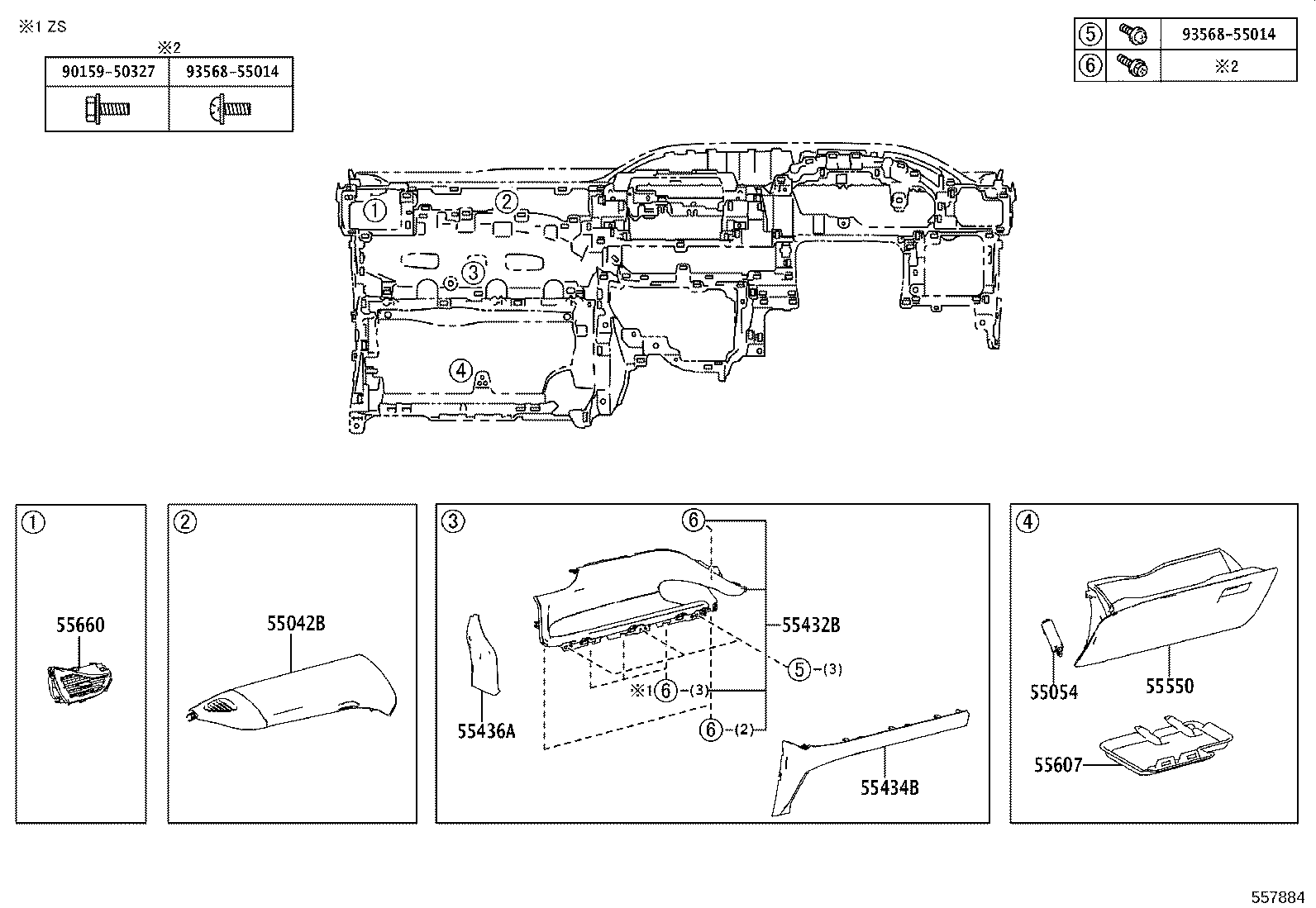

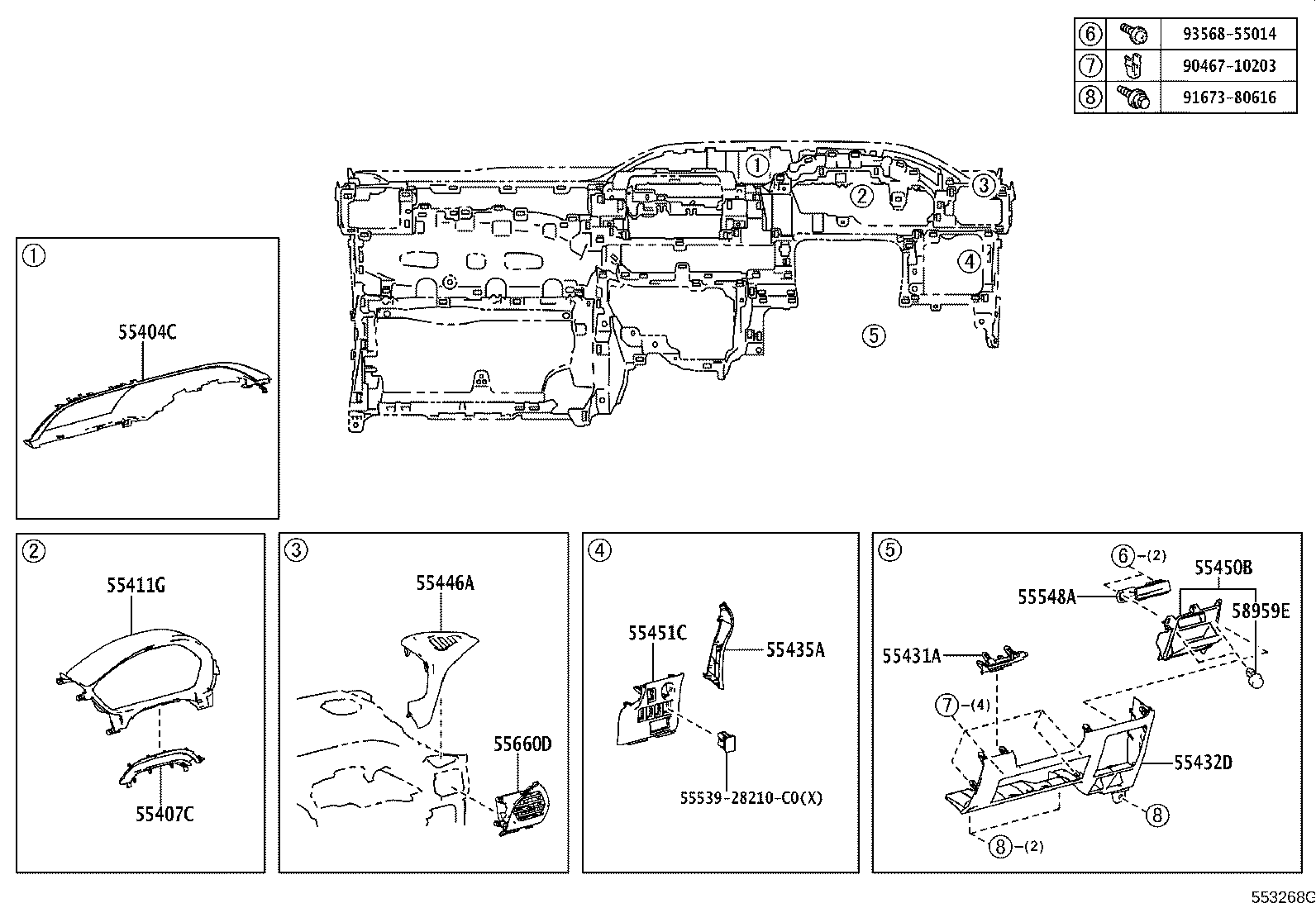

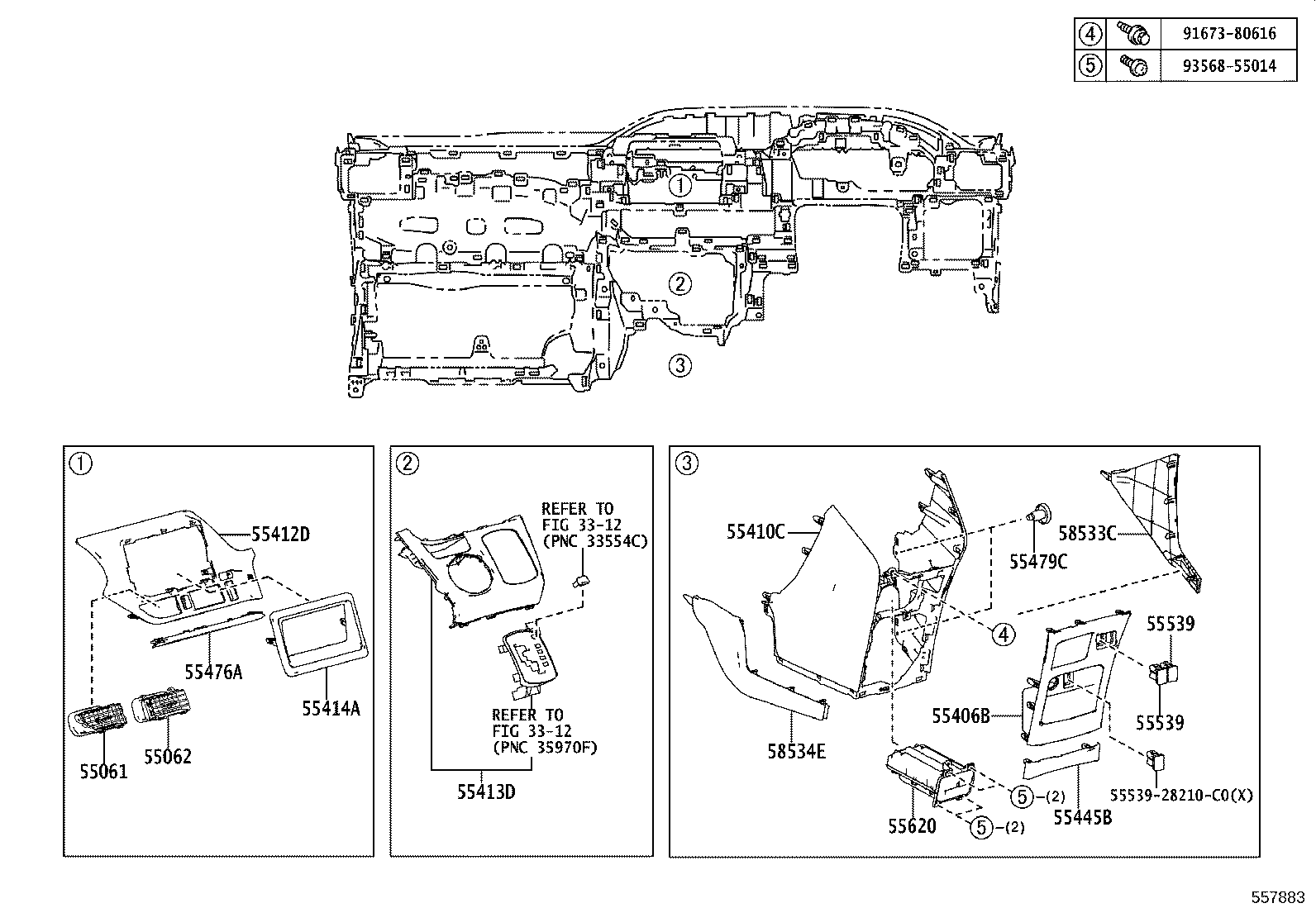

Instrument Panel & Glove Compartment
45 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55042B | Door Sub-assy, Instrument Panel Box, NO.2 |
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55061 | Register Sub-assy, Instrument Panel, NO.1 |
| 55062 | Register Sub-assy, Instrument Panel, N0.2 |
| 55302A | Panel Sub-assy, Instrument, Upper |
| 55303B | Panel Sub-assy, Instrument, Lower |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55349C | Cushion, Instrument Panel |
| 55355A | Plate, Instrument Panel |
| 55362C | Bracket, Parking Brake Mounting |
| 55404C | Panel Sub-assy, Instrument Cluster Finish, NO.2 |
| 55406B | Panel Sub-assy, Instrument Cluster Finish, Lower Center |
| 55407C | Cover Sub-assy, Instrument, Lower |
| 55408F | Panel Sub-assy, Instrument Panel Speaker, NO.1 |
| 55410C | Panel Assy, Instrument Cluster Finish |
| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55412D | Panel, Instrument Cluster Finish, Center |
| 55413D | Panel, Instrument Cluster Finish, Center Lower |
| 55414A | Panel, Instrument Cluster Finish, End |
| 55431A | Panel, Instrument Panel Finish |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55432D | Panel, Instrument Panel Finish, Lower NO.1 |
| 55434B | Panel, Instrument Panel Finish, Lower Center |
| 55435A | Panel, Instrument Panel Finish, End RH |
| 55436A | Panel, Instrument Panel Finish, End LH |
| 55445B | Plate, Instrument Panel Finish |
| 55446A | Base, Switch Hole, NO.1 |
| 55450B | Box Assy, Coin |
| 55451C | Box, Instrument Panel, NO.1 |
| 55476A | Garnish, Instrument Cluster Finish Panel, NO.3 |
| 55479C | Clip(FOR INSTRUMENT LOWER COVER) |
| 55539 | Cover, Spare Switch Hole |
| 55548A | Cover, Instrument Panel Hole |
| 55550 | Door Assy, Glove Compartment |
| 55557A | Cushion, Glove Compartment Door Check |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55620 | Holder Assy, Instrument Panel Cup |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55660D | Register Assy, Instrument Panel, NO.1 |
| 58533C | Cover, Floor Carpet, Center RH |
| 58534E | Cover, Floor Carpet, Center LH |
| 58959E | Cushion, Console Compartment Door |
| 73900 | Airbag Assy, Instrument Panel, Lower NO.1 |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
