Toyota Noah/Voxy
2014-01 → 2021-12 · chassis ZRR80 · catalogue 651380 · General
Supported model
Data version 2023-05

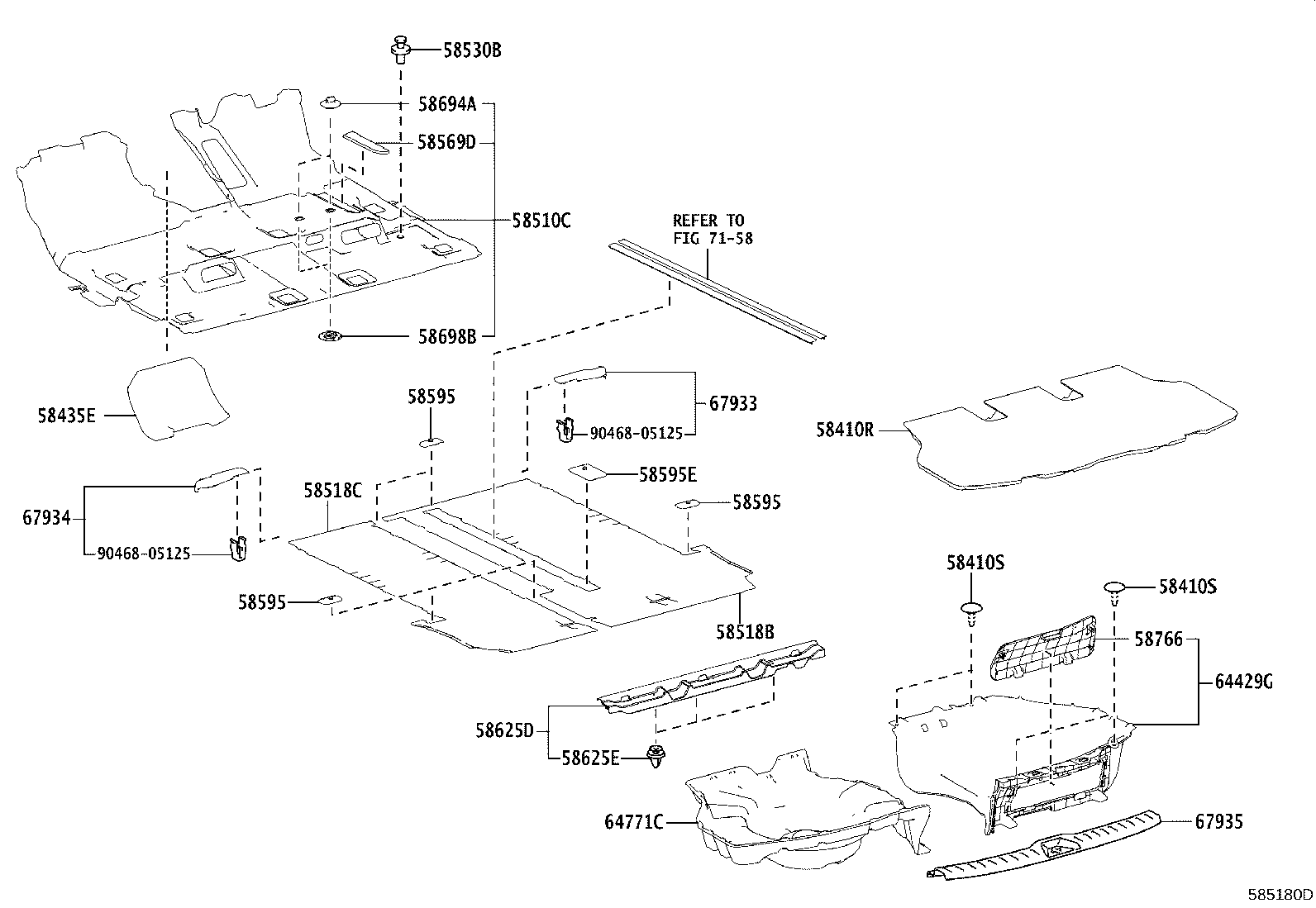

Floor Mat & Silencer Pad
20 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58410R | Board Assy, Deck |
| 58410S | Clip, Deck Board |
| 58435E | Silencer, Front Floor, Center |
| 58510C | Carpet Assy, Front Floor, Front |
| 58518B | Mat, Rear Floor, NO.2 |
| 58518C | Mat, Rear Floor, NO.2 |
| 58530B | Clip(FOR FRONT FLOOR CARPET) |
| 58569D | Cover, Front Floor Caution Plate |
| 58595 | Moulding, Floor Carpet, NO.3 |
| 58595E | Moulding, Floor Carpet, NO.4 |
| 58625D | Plate, Rear Floor Mat, NO.1 |
| 58625E | Clip(FOR REAR FLOOR MAT PLATE) |
| 58694A | Plate, Mat Set, Upper |
| 58698B | Plate, Mat Set, Lower |
| 58766 | Cover, Jack Box Hole |
| 64429G | Box, Luggage Compartment Trim |
| 64771C | Cover, Spare Wheel |
| 67933 | Plate, Quarter Scuff, Inner RH |
| 67934 | Plate, Quarter Scuff, Inside LH |
| 67935 | Plate, Back Door Scuff |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
