Toyota Noah/Voxy

2014-01 → 2021-12 · chassis ZRR80 · catalogue 651380 · General

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

12 part groups · 2 illustrations

Illustrations

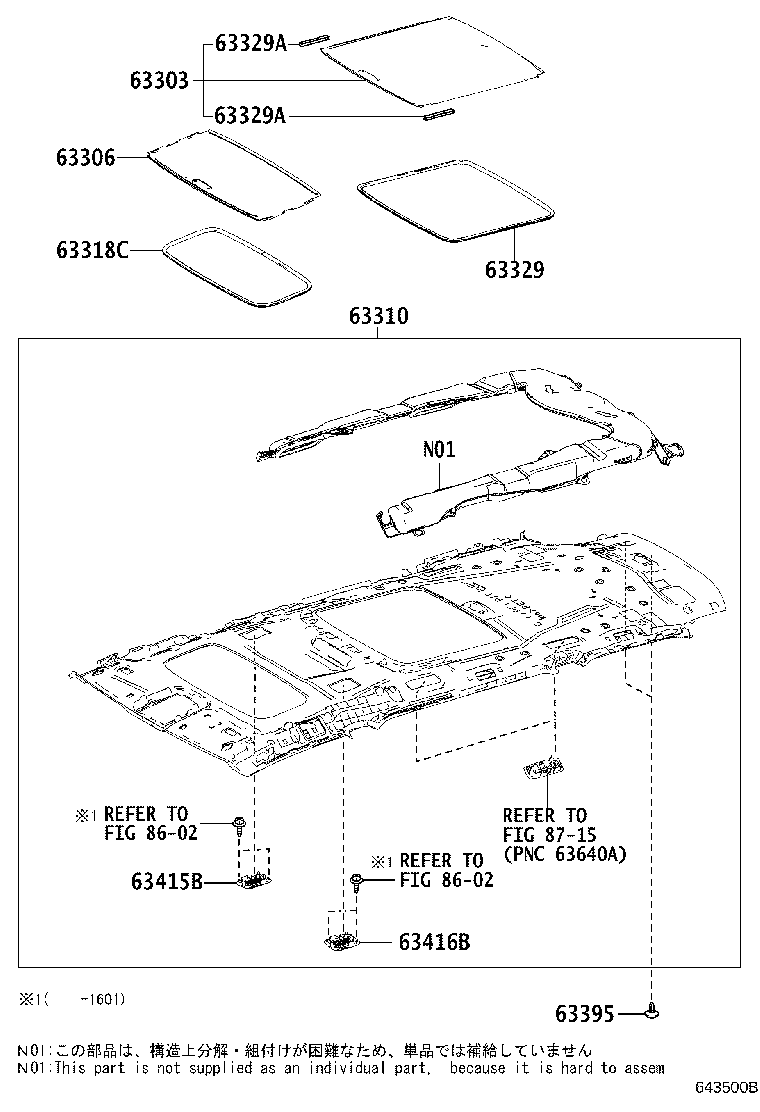

Figure 643499C 643499C 2014-01 → — Figure 643500B 643500B 2014-01 → —

Part groups

PNCDescription
63303 Trim Sub-assy, Sunshade, NO.2
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63318C Moulding, Sun Roof Opening Trim
63327E Fastener, Roof Headlining, NO.1
63329 Moulding, Sun Roof Opening Trim, NO.2
63329A Stopper, Sunshade Lock
63395 Clip, Roof Headlining Trim
63415B Grille, Roof Speaker, RH
63416B Grille, Roof Speaker, LH
66413C Spacer, Side Rail, Front RH
66423A Spacer, Side Rail, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
