Toyota Noah/Voxy
2014-01 → 2021-12 · chassis ZRR80 · catalogue 651380 · General
Supported model
Data version 2023-05

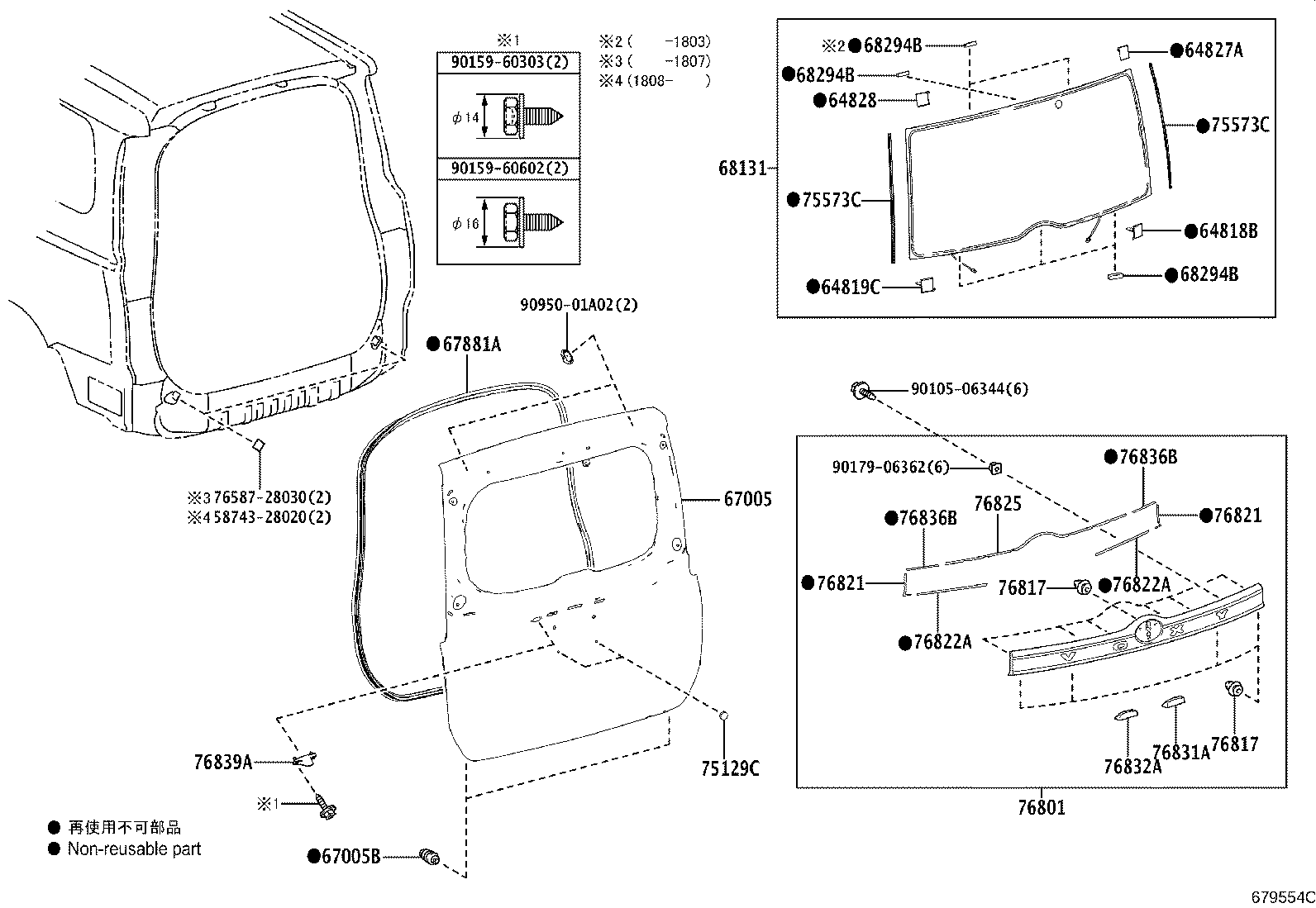

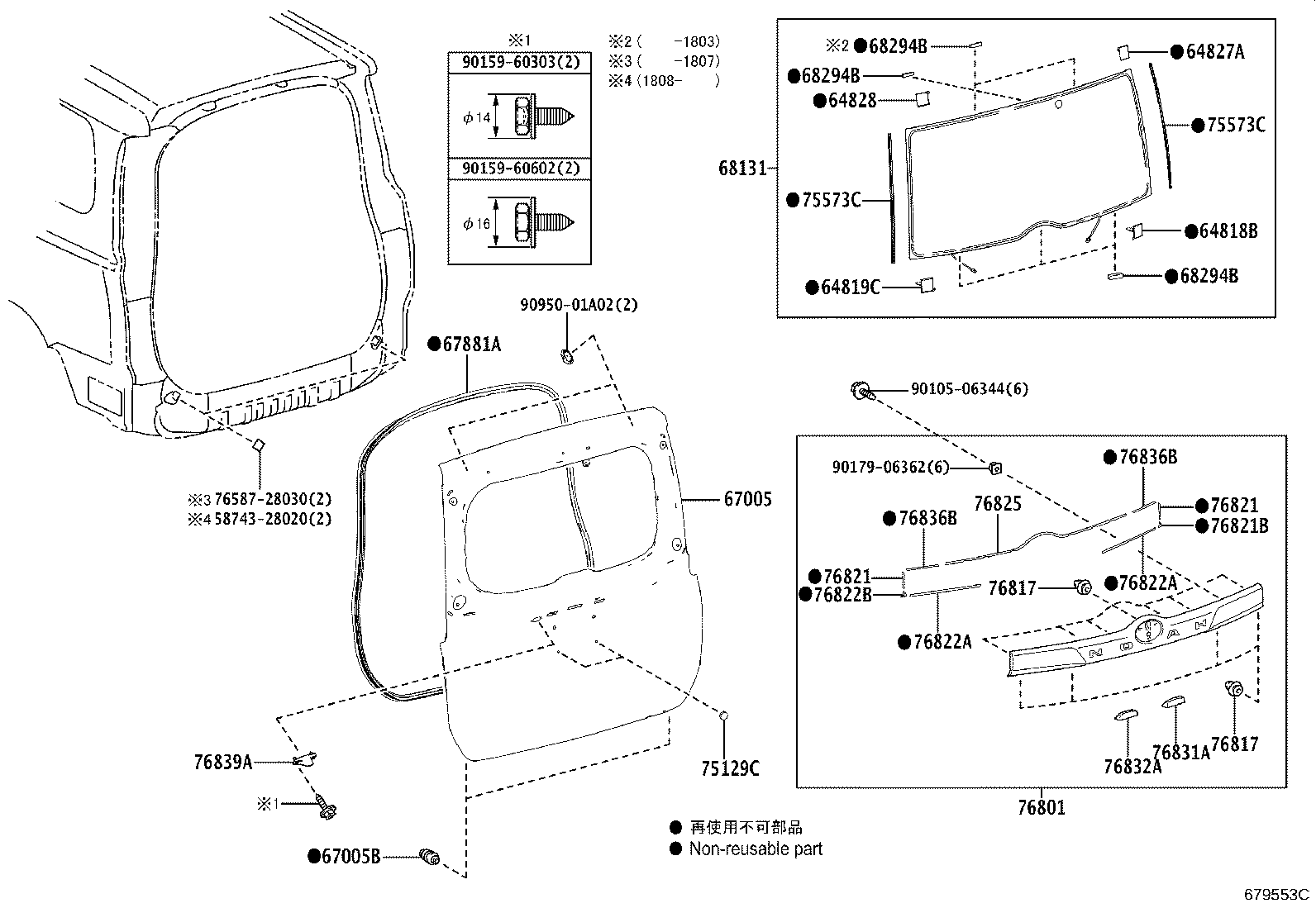

Back Door Panel & Glass
35 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 64818B | Spacer, Back Door Glass, NO.1 |
| 64819C | Spacer, Back Door Glass, NO.2 |
| 64827A | Clip, Back Window Glass, RH |
| 64828 | Clip, Back Window Glass, LH |
| 67005 | Panel Sub-assy, Back Door |
| 67005B | Cushion(FOR BACK DOOR PANEL) |
| 67159 | Retainer, Back Door Trim |
| 67751 | Board, Back Door Trim |
| 67751A | Clip(FOR BACK DOOR TRIM BOARD) |
| 67881A | Weatherstrip, Back Door |
| 67937B | Garnish, Back Door Side, RH |
| 67937C | Clip(FOR BACK DOOR SIDE GARNISH) |
| 67938A | Garnish, Back Door Side, LH |
| 67939B | Garnish, Back Door, Center |
| 67939C | Clip(FOR BACK DOOR CENTER GARNISH) |
| 68131 | Glass, Back Door |
| 68294B | Dam, Back Door Glass Adhesive |
| 69321A | Cover, Back Door Lock |
| 75129C | Cushion, Rear Licence Plate |
| 75573C | Moulding, Back Window, Outside |
| 76801 | Garnish Sub-assy, Back Door, Outside |
| 76817 | Clip, Back Door Outside Garnish |
| 76821 | Protector, Back Door Garnish Moulding, Upper |
| 76821B | Protector, Back Door Garnish Side, RH |
| 76822A | Protector, Back Door Garnish Moulding, Lwr |
| 76822B | Protector, Back Door Garnish Side, LH |
| 76825 | Protector, Back Door Outside Garnish |
| 76825C | Protector, Back Door Outside Garnish |
| 76831A | Cover, Back Door Finish Panel, RH |
| 76832A | Cover, Back Door Finish Panel, LH |
| 76835A | Protector, Back Door Finish Panel, NO.1 |
| 76836B | Protector, Back Door Finish Panel, NO.2 |
| 76839A | Cover, Back Door Garnish |
| 76881B | Protector, Back Door Lower Moulding, RH |
| 76882B | Protector, Back Door Lower Moulding, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
