Toyota Noah/Voxy
2014-01 → 2021-12 · chassis ZRR80 · catalogue 651380 · General
Supported model
Data version 2023-05

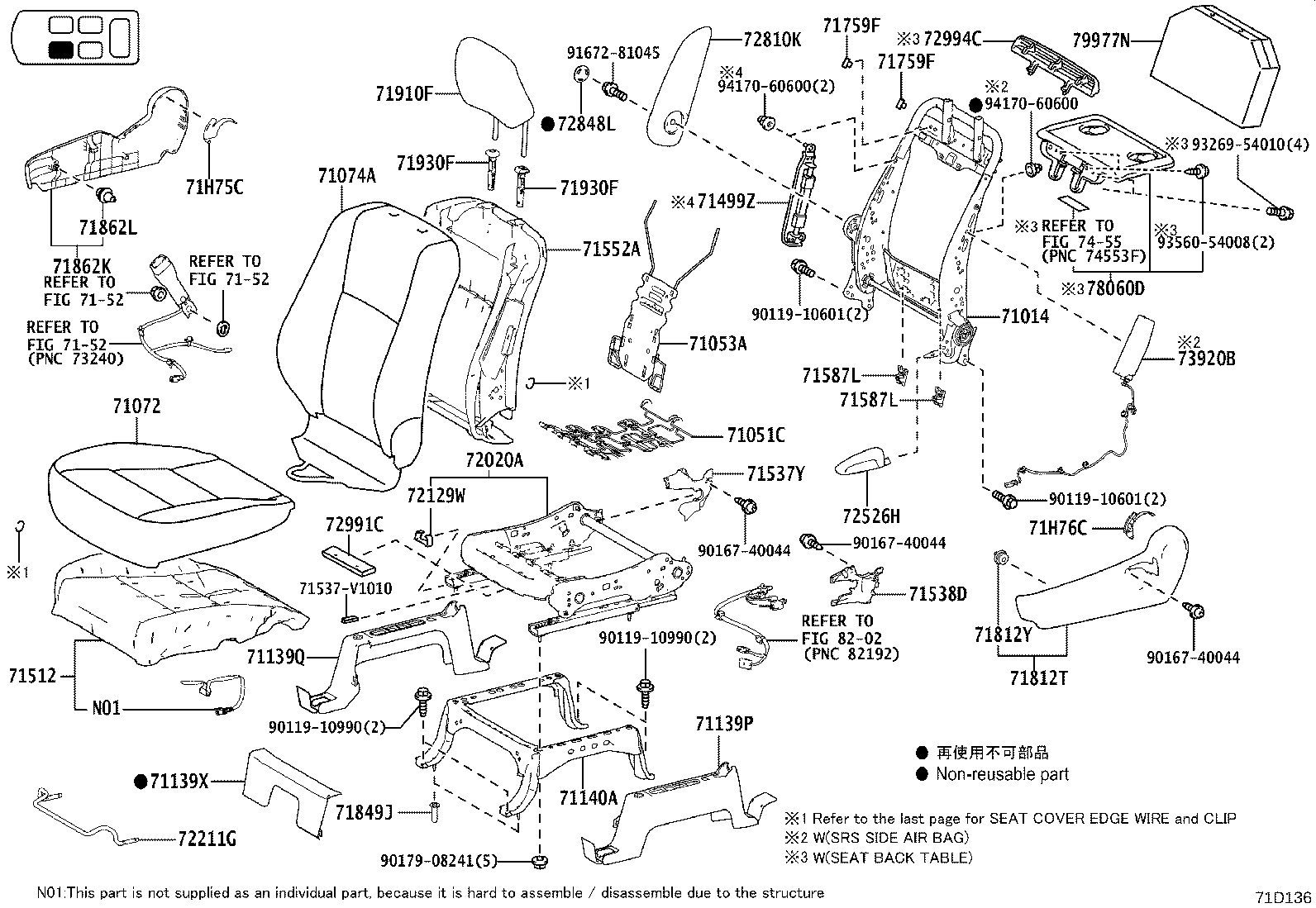

Front Seat & Seat Track
74 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 71013A | Frame Sub-assy, Front Seatback, RH |
| 71014 | Frame Sub-assy, Front Seatback, LH |
| 71051B | Spring Sub-assy, Front Seat Cushion, RH |
| 71051C | Spring Sub-assy, Front Seat Cushion, LH |
| 71053 | Spring Sub-assy, Front Seatback, RH |
| 71053A | Spring Sub-assy, Front Seatback, LH |
| 71071 | Cover Sub-assy, Front Seat Cushion, RH |
| 71072 | Cover Sub-assy, Front Seat Cushion, LH |
| 71073A | Cover Sub-assy, Front Seatback, RH |
| 71074A | Cover Sub-assy, Front Seatback, LH |
| 71121C | Bracket, Front Seat Cushion, RH |
| 71130B | Leg Assy, Front Seat, RH |
| 71139M | Cover, Front Seat Leg, RH Outer |
| 71139N | Cover, Front Seat Leg, RH Inner |
| 71139P | Cover, Front Seat Leg, LH Outer |
| 71139Q | Cover, Front Seat Leg, LH Inner |
| 71139V | Cover, Front Seat Leg NO.1 |
| 71139X | Cover, Front Seat Leg NO.2 |
| 71140A | Leg Assy, Front Seat, LH |
| 71499Y | Damper, Seatback Spring, RH |
| 71499Z | Damper, Seatback Spring, LH |
| 71511A | Pad, Front Seat Cushion, RH |
| 71512 | Pad, Front Seat Cushion, LH |
| 71537X | Protector, Front Seat Cushion Edge, RH(FOR RH SEAT) |
| 71537Y | Protector, Front Seat Cushion Edge, RH(FOR LH SEAT) |
| 71537Z | Protector, Front Seat Cushion |
| 71538C | Protector, Front Seat Cushion Edge, LH(FOR RH SEAT) |
| 71538D | Protector, Front Seat Cushion Edge, LH(FOR LH SEAT) |
| 71551A | Pad, Front Seatback, RH |
| 71552A | Pad, Front Seatback, LH |
| 71587K | Protector, Front Seatback Edge, RH |
| 71587L | Protector, Front Seatback Edge, LH |
| 71759E | Hook, Front Seatback, RH |
| 71759F | Hook, Front Seatback, LH |
| 71759H | Hook, Front Seatback |
| 71811T | Shield, Front Seat Cushion, RH |
| 71811W | Clip, Front Seat Cushion Shield, RH |
| 71812T | Shield, Front Seat Cushion, LH |
| 71812Y | Clip, Front Seat Cushion Shield, LH |
| 71848N | Cap, Front Seat Adjuster Cover, RH NO.1 |
| 71849J | Cap, Front Seat Adjuster Cover, LH NO.3 |
| 71861K | Shield, Front Seat Cushion, Inner RH |
| 71861L | Clip, Front Seat Cushion Shield, RH |
| 71862K | Shield, Front Seat Cushion, Inner LH |
| 71862L | Clip, Front Seat Cushion Shield, LH |
| 71873V | Shield, Front Seat Cushion, Lower RH |
| 71874U | Shield, Front Seat Cushion, Lower LH |
| 71910E | Headrest Assy, Front Seat, RH |
| 71910F | Headrest Assy, Front Seat, LH |
| 71930E | Support Assy, Front Seat Headrest, RH |
| 71930F | Support Assy, Front Seat Headrest, LH |
| 71H75 | Cover, Reclining Adjuster Inside, RH Outer(FOR RH SEAT) |
| 71H75C | Cover, Reclining Adjuster Inside, RH(FOR LH SEAT) |
| 71H76 | Cover, Reclining Adjuster Inside, LH(FOR RH SEAT) |
| 71H76C | Cover, Reclining Adjuster Inside, LH Outer(FOR LH SEAT) |
| 72010A | Adjuster Assy, Front Seat, RH |
| 72020A | Adjuster Assy, Front Seat, LH |
| 72129V | Protector, Seat Track Lower Rail, RH |
| 72129W | Protector, Seat Track Lower Rail, LH |
| 72211F | Handle, Seat Track Adjusting, RH |
| 72211G | Handle, Seat Track Adjusting, LH |
| 72494A | Handle, Front Seat Vertical Adjuster, RH |
| 72525M | Handle, Reclining Adjuster Release, RH |
| 72526H | Handle, Reclining Adjuster Release, LH |
| 72810K | Armrest Assy, Front Seat, RH(FOR LH SEAT) |
| 72820 | Armrest Assy, Front Seat, LH(FOR RH SEAT) |
| 72848K | Cap, Seat Armrest, NO.1(FOR RH SEAT) |
| 72848L | Cap, Seat Armrest, NO.1(FOR LH SEAT) |
| 72991C | Cover, Front Seat |
| 72994C | Cover, Front Seatback, LH |
| 73910B | Airbag Assy, Front Seat, RH |
| 73920B | Airbag Assy, Front Seat, LH |
| 78060D | Table Assy, Front Seatback, LH |
| 79977N | Felt, Seatback |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
