Toyota Noah/Voxy

2014-01 → 2021-12 · chassis ZRR80 · catalogue 651380 · General

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

199 part groups · 7 illustrations

Illustrations

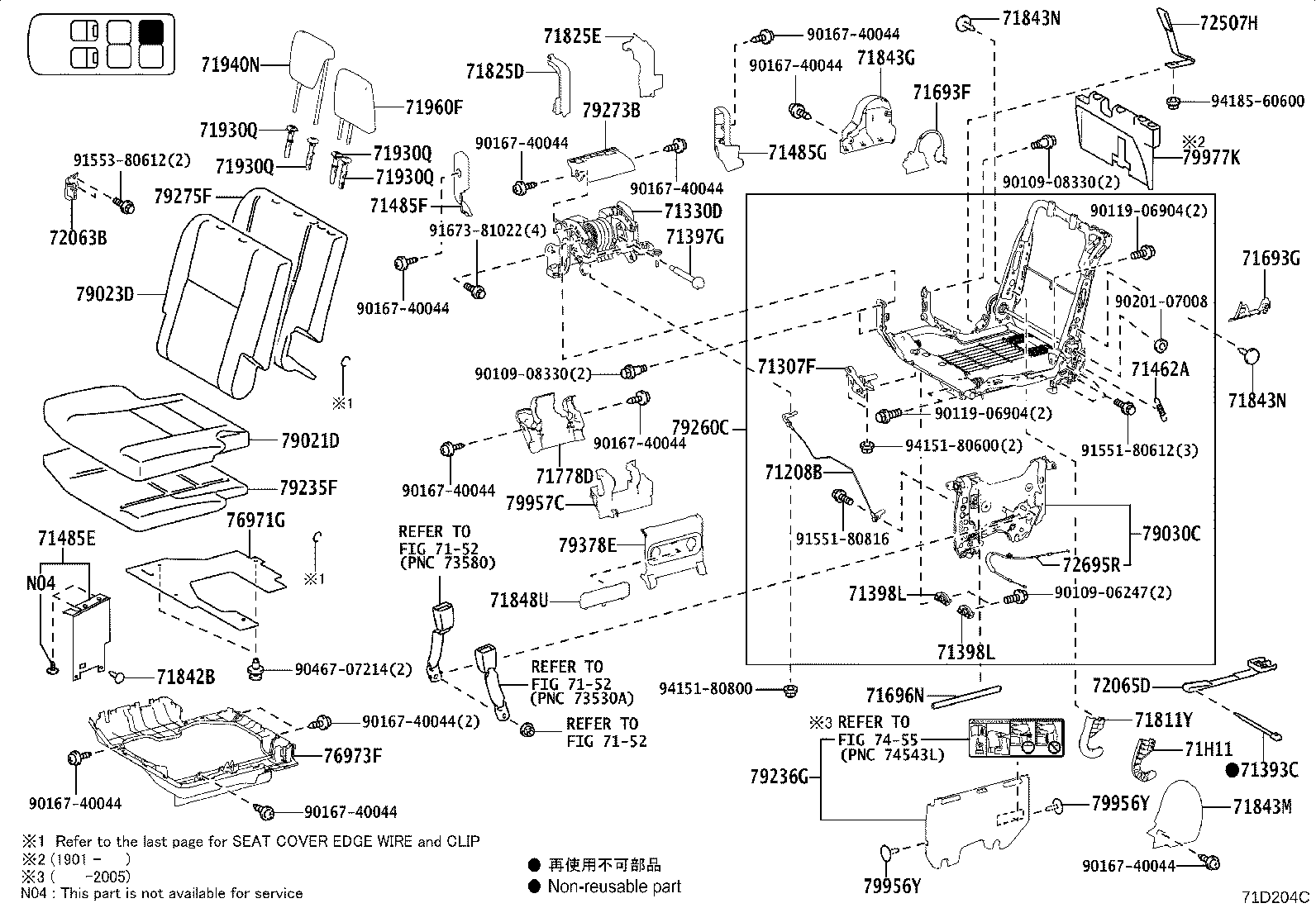

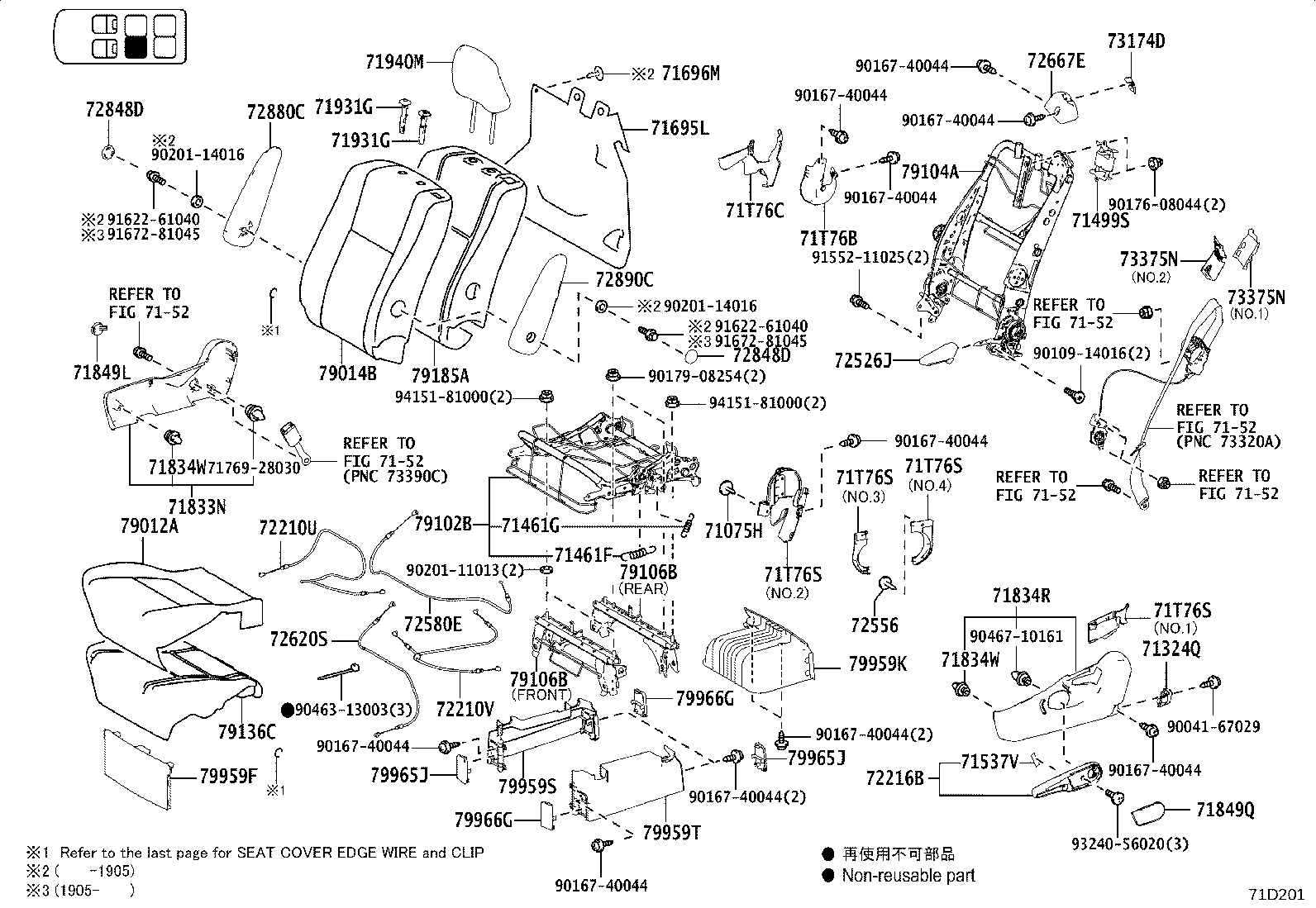

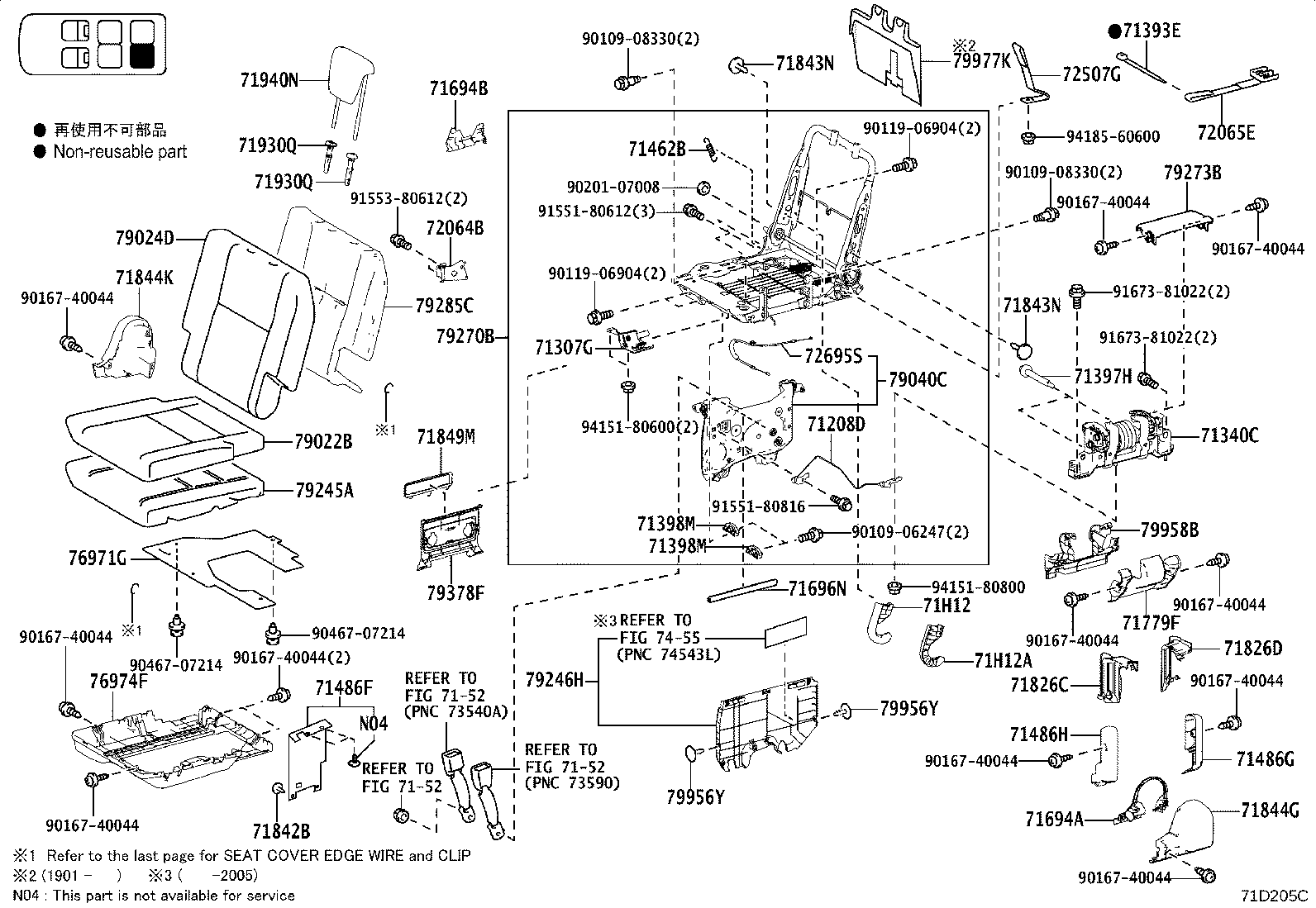

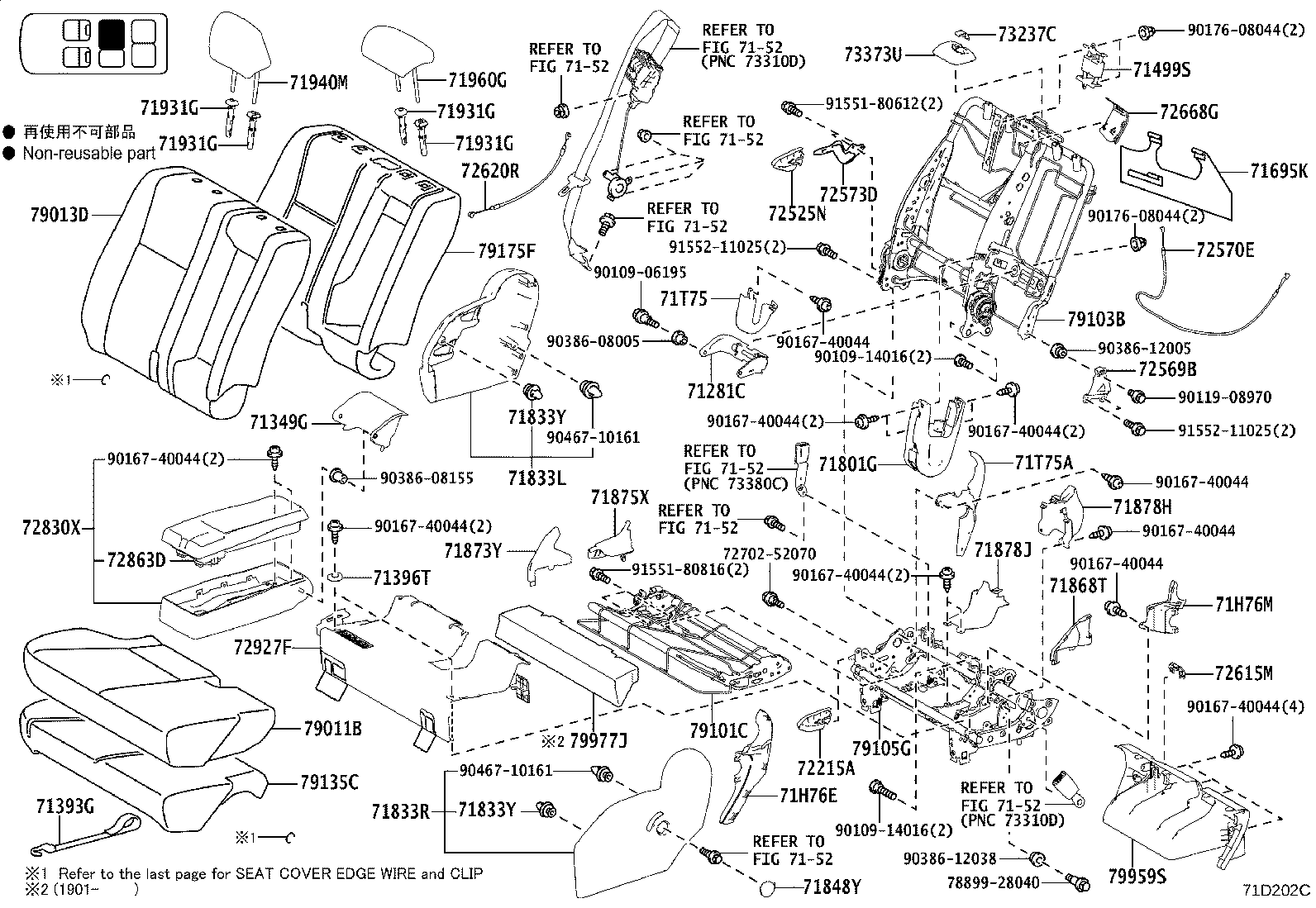

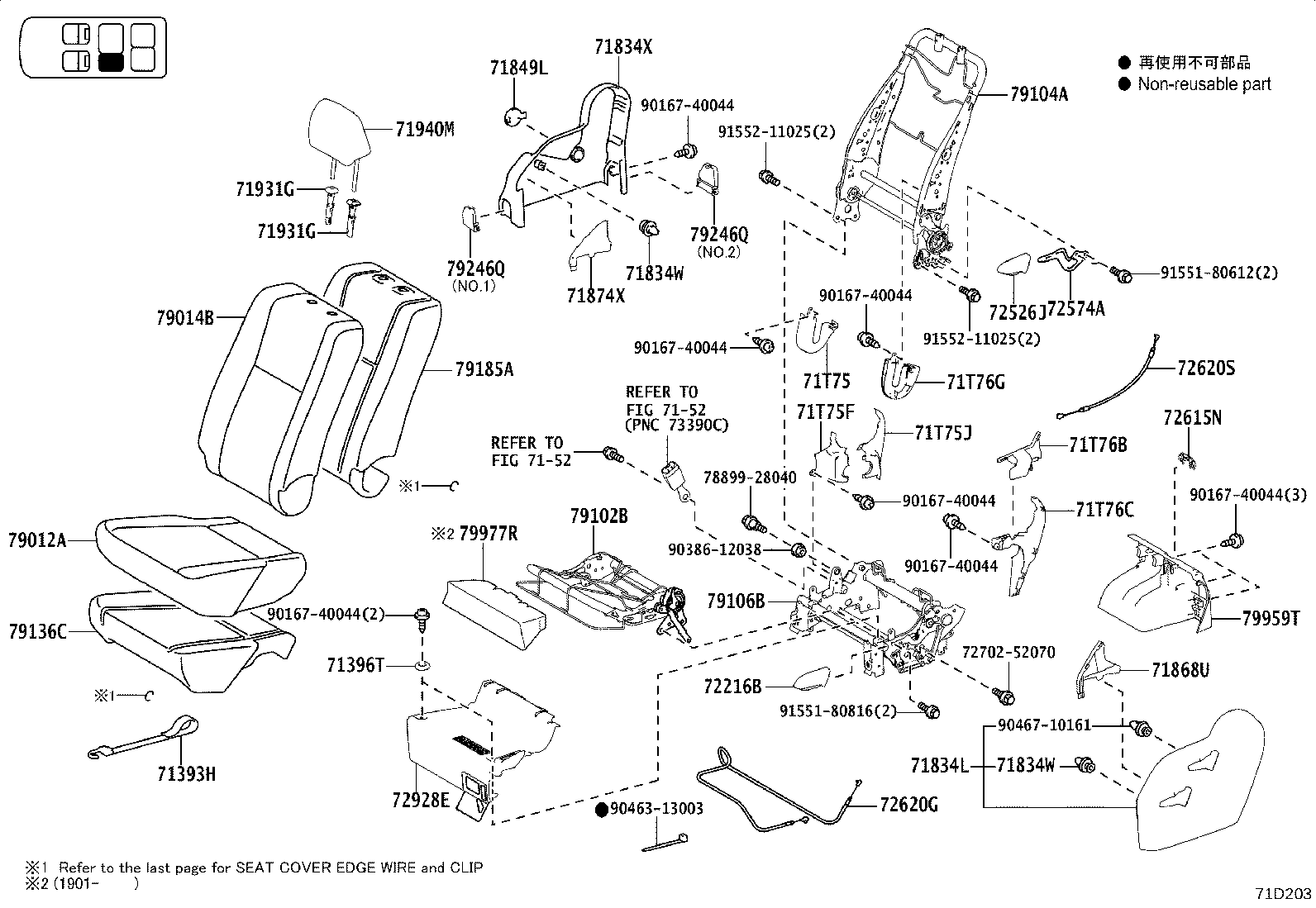

Figure 71D200C 71D200C 2014-01 → — Figure 71D201B 71D201B 2014-01 → — Figure 71D202C 71D202C 2014-01 → — Figure 71D203B 71D203B 2014-01 → — Figure 71D204C 71D204C 2014-01 → — Figure 71D205C 71D205C 2014-01 → — Figure 719024A 719024A 2014-01 → —

Part groups

PNCDescription
71075H Clip(FOR REAR SEAT)
71208B Wire Sub-assy, NO.2 Seat Cushion, RH NO.1
71208D Wire Sub-assy, NO.2 Seat Cushion, LH NO.1
71281C Hinge, NO.1 Seat Center Armrest
71307F Bracket Sub-assy, NO.1 Seat Cushion(FOR RH SEAT)
71307G Bracket Sub-assy, NO.1 Seat Cushion(FOR LH SEAT)
71324P Cushion, NO.1 Seat, RH
71324Q Cushion, NO.1 Seat, LH
71330D Hinge Assy, Rear NO.2 Seat, RH
71340C Hinge Assy, Rear NO.2 Seat, LH
71349G Cover, Rear Seatback Hinge
71370G Cup Holder Assy, Rear Seat Side Table
71393C Band, NO.2 Seat Cushion, RH NO.1
71393E Band, NO.2 Seat Cushion, LH NO.1
71393G Band, NO.1 Seat Cushion(FOR RH SEAT)
71393H Band, NO.1 Seat Cushion(FOR LH SEAT)
71396T Cushion, NO.1 Seat Support, Rear
71397G Stopper, Rear Seat, RH
71397H Stopper, Rear Seat, LH
71398L Guide, NO.2 Seat Cushion Support, RH
71398M Guide, NO.2 Seat Cushion Support, LH
71461D Spring, NO.1 Seat Cushion, NO.1(FOR RH SEAT)
71461E Spring, NO.1 Seat Cushion, NO.2(FOR RH SEAT)
71461F Spring, NO.1 Seat Cushion, NO.1(FOR LH SEAT)
71461G Spring, NO.1 Seat Cushion, NO.2(FOR LH SEAT)
71462A Spring, Rear Seat Cushion, NO.2(FOR RH SEAT)
71462B Spring, Rear Seat Cushion, NO.2(FOR LH SEAT)
71485E Cover, Rear Seat Hinge
71485F Cover, Rear Seat Hinge, NO.1 RH
71485G Cover, Rear Seat Hinge, NO.2 RH
71486F Cover, Rear Seat Hinge, LH
71486G Cover, Rear Seat Hinge, NO.2 LH
71486H Cover, Rear Seat Hinge, NO.1 LH
71499S Damper, Seat Cushion Spring
71537V Protector, Rear Seat Cushion Edge
71693F Cover, Rear NO.2 Seat Cushion Hinge, Lower RH NO.1
71693G Cover, Rear NO.2 Seat Cushion Hinge, Lower RH NO.2
71694A Cover, Rear NO.2 Seat Cushion Hinge, Lower LH NO.1
71694B Cover, Rear NO.2 Seat Cushion Hinge, Lower LH NO.2
71695K Protector, NO.1 Seatback, RH
71695L Protector, NO.1 Seatback, LH
71696M Clip, Rear Seat Protector
71696N Protector, Rear Seat, NO.2
71778D Cover, Rear Seat Side Hinge Male, RH
71779F Cover, Rear Seat Side Hinge Male, LH
71801G Cover Sub-assy, Reclining Adjuster, RH Inner
71811Y Cover, Reclining Adjuster, RH
71825D Moulding, Rear NO.1 Seat Cushion, RH
71825E Moulding, Rear NO.2 Seat Cushion, RH
71826C Moulding, Rear Seat Cushion, LH
71826D Moulding, Rear NO.2 Seat Cushion, LH
71833L Cover, Rear Seat Reclining, RH
71833N Cover, Rear NO.2 Seat Reclining, NO.1 RH(FOR LH SEAT)
71833R Cover, Rear Seat Reclining, RH
71833Y Clip, NO.1 Seat Reclining Cover(FOR RH SEAT)
71834L Cover, Rear Seat Reclining, LH
71834R Cover, Rear Seat Reclining, LH
71834S Cover, Rear Seat Reclining, NO.1 LH
71834W Clip, NO.1 Seat Reclining Cover(FOR LH SEAT)
71834X Cover, Rear Seat Reclining, NO.2 LH
71842B Clip(FOR REAR SEAT)
71843G Cover, NO.2 Seat Reclining, NO.2 RH Outer
71843M Cover, Rear Seat Reclining, NO.2 RH
71843N Clip, Rear Seat Reclining Cover
71844G Cover, NO.2 Seat Reclining, NO.2 LH Outer
71844K Cover, Rear NO.2 Seat Reclining, NO.2 LH
71848T Cap, NO.1 Seat Adjuster Cover, RH
71848U Cap, NO.2 Seat Adjuster Cover, RH
71848Y Cap, Seat Adjuster Cover, RH NO.1(FOR RH SEAT)
71849L Cap, NO.1 Seat Adjuster Cover, LH
71849M Cap, NO.2 Seat Adjuster Cover, LH
71849N Cap, NO.1 Seat Adjuster Cover, LH(FOR RH SEAT)
71849Q Cap, Seat Adjuster Cover, LH NO.1
71868T Shield, Rear Seat Cushion, Inner NO.1 LH
71868U Shield, Rear Seat Cushion, Inner NO.1 LH (FOR LH SEAT)
71873Y Shield, Rear Seat Cushion, Lower
71874X Shield, Rear Seat Cushion, Lower LH
71875X Cover, Reclining Adjuster Inside, RH
71878H Cover, Rear Seat Reclining, Inner RH
71878J Cover, Rear NO.1 Seat Reclining, Inner RH
71930Q Support Assy, Rear Seat Headrest
71931G Support Assy, Rear Seat Headrest
71940M Headrest Assy, Rear Seat
71940N Headrest Assy, Rear Seat, NO.2
71960F Headrest Assy, Rear NO.2 Seat, Center
71960G Headrest Assy, Rear NO.1 Seat, Center
71H11 Cover, Reclining Adjuster, RH
71H12 Cover, Reclining Adjuster, LH
71H12A Cover, Reclining Adjuster, LH
71H75E Cover, Reclining Adjuster Inside, RH(FOR REAR NO.1 RH SEAT)
71H76E Cover, Reclining Adjuster Inside, LH(FOR REAR NO.1 RH SEAT)
71H76M Cover, Reclining Adjuster Inside, LH NO.2(FOR RH SEAT)
71T75 Cover, Reclining Adjuster Inside, RH
71T75A Cover, Reclining Adjuster Inside, RH NO.2
71T75F Cover, Reclining Adjuster Inside, RH
71T75J Cover, Reclining Adjuster Inside, RH NO.3(FOR LH SEAT)
71T76B Cover, Reclining Adjuster Inside, LH
71T76C Cover, Reclining Adjuster Inside, LH NO.2
71T76G Cover, Reclining Adjuster Inside, LH
71T76S Cover, Reclining Adjuster Outside, NO.1 LH
72063B Hook Sub-assy, Rear Seat, RH
72064B Hook Sub-assy, Rear Seat, LH
72065D Hook Sub-assy, Rear NO.2 Seat Cushion Lock, RH
72065E Hook Sub-assy, Rear NO.2 Seat Cushion Lock, LH
72210U Cable Assy, NO.1 Seat Track Control, LH
72210V Cable Assy, NO.1 Seat Track Control, LH NO.1
72210X Cable Assy, NO.1 Seat Track Control, RH
72210Y Cable Assy, NO.1 Seat Track Control, RH NO.1
72215A Lever, NO.1 Seat Track Handle Control, RH
72216B Lever, NO.1 Seat Track Handle Control, LH
72507G Handle Sub-assy, Reclining Release, LH
72507H Handle Sub-assy, Reclining Release, RH
72525N Handle, NO.1 Seat Reclining Adjuster Release, RH
72526J Handle, NO.1 Seat Reclining Adjuster Release, LH
72556 Clip(FOR REAR SEAT)
72569B Plate, Seatback Stopper
72570E Cable Assy, NO.1 Seat Reclining Adjusting, RH
72573D Lever, NO.1 Seat Reclining Control, RH
72574A Lever, Reclining Control, LH
72580E Cable Assy, Reclining Adjusting, LH
72615M Cover, NO.1 Seatback Lock Striker(FOR RH SEAT)
72615N Cover, NO.1 Seatback Lock Striker(FOR LH SEAT)
72620G Cable Assy, Rear Seat Lock, LH
72620R Cable Assy, Rear NO.1 Seat Lock(FOR RH SEAT)
72620S Cable Assy, Rear NO.1 Seat Lock(FOR LH SEAT)
72667E Bezel, Rear Seatback Lock, Upper
72668G Bezel, NO.1 Seatback Lock, Lower(FOR RH SEAT)
72695R Cable, Rear NO.2 Seat Lock Control, RH
72695S Cable, Rear NO.2 Seat Lock Control, LH
72830X Armrest Assy, Rear Seat, Center
72848C Cap, NO.1 Seat Armrest, NO.1 RH
72848D Cap, NO.1 Seat Armrest, NO.1 LH
72863D Box, Rear Seat Center Armrest
72880B Armrest Assy, NO.1 Seat, C RH(FOR RH SEAT)
72880C Armrest Assy, NO.1 Seat, C RH(FOR LH SEAT)
72890B Armrest Assy, NO.1 Seat, C LH(FOR RH SEAT)
72890C Armrest Assy, NO.1 Seat, C LH(FOR LH SEAT)
72927F Cover, Rear Seat Cushion Under, RH
72928E Cover, Rear Seat Cushion Under, LH
73173P Cover, Rear Seat Belt Hole, RH
73174D Cover, Rear Seat Belt Hole, LH
73237C Cover, Shoulder Belt Anchor
73373U Cover, NO.1 Seat Shoulder Belt, RH NO.1
73375N Cover, Rear NO.1 Seat Shoulder Belt, LH NO.1
76971G Cover, Rear Under
76973F Cover, Rear Under Side, RH
76974F Cover, Rear Under Side, LH
78060C Table Assy, NO.1 Seat Side
78631B Table, Rear Seat Side
78632D Cover, Rear Seat Side Table, NO.1
78639B Clip, Rear Seat Side Table
79011B Cover Sub-assy, NO.1 Seat Cushion, RH
79012A Cover Sub-assy, NO.1 Seat Cushion, LH
79013D Cover Sub-assy, NO.1 Seatback, RH
79014B Cover Sub-assy, NO.1 Seatback, LH
79021D Cover Sub-assy, NO.2 Seat Cushion, RH
79022B Cover Sub-assy, NO.2 Seat Cushion, LH
79023D Cover Sub-assy, NO.2 Seatback, RH
79024D Cover Sub-assy, NO.2 Seatback, LH
79030C Leg Assy, Rear NO.2 Seat, RH
79040C Leg Assy, Rear NO.2 Seat, LH
79101C Frame Sub-assy, NO.1 Seat Cushion, RH
79102B Frame Sub-assy, NO.1 Seat Cushion, LH
79103B Frame Sub-assy, NO.1 Seatback, RH
79104A Frame Sub-assy, NO.1 Seatback, LH
79105G Leg Sub-assy, NO.1 Seat, RH
79106B Leg Sub-assy, NO.1 Seat, LH
79135C Pad, NO.1 Seat Cushion, RH
79136C Pad, NO.1 Seat Cushion, LH
79175F Pad, NO.1 Seatback, RH
79185A Pad, NO.1 Seatback, LH
79235F Pad, NO.2 Seat Cushion, RH
79236G Cover, NO.2 Seat Leg, RH
79245A Pad, NO.2 Seat Cushion, LH
79246H Cover, NO.2 Seat Leg, LH
79246Q Cover, Rear Seat Leg, RH (FOR LH SEAT)
79260C Spring Assy, NO.2 Seat Cushion, RH
79270B Spring Assy, NO.2 Seat Cushion, LH
79273B Cover, NO.2 Seat Hinge, NO.3
79275F Pad, NO.2 Seatback, RH
79285C Pad, NO.2 Seatback, LH
79378E Cover, NO.3 Seat Cushion Hinge, RH
79378F Cover, NO.2 Seat Cushion Hinge, LH
79956Y Clip (FOR REAR SEAT LEG BRACKET COVER)
79957C Cover, Rear Seat Rear Bracket, RH
79958B Cover, Rear Seat Rear Bracket, LH
79959E Cover, NO.1 Seat Leg, RH
79959F Cover, NO.1 Seat Leg, LH
79959H Cover, NO.2 Seat Leg, RH NO.2
79959K Cover, NO.2 Seat Leg, LH NO.2
79959S Cover, Rear Seat Leg, RH
79959T Cover, Rear Seat Leg, LH
79965H Cover, NO.1 Seat Leg Side, NO.2(FOR RH SEAT)
79965J Cover, NO.1 Seat Leg Side, NO.2(FOR LH SEAT)
79966F Cover, NO.1 Seat Leg Side, NO.3(FOR RH SEAT)
79966G Cover, NO.1 Seat Leg Side, NO.3(FOR LH SEAT)
79977J Felt, Seatback
79977K Felt, Seatback, NO.2
79977R Felt, Seat Cushion, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
