Toyota Noah/Voxy
2014-01 → 2021-12 · chassis ZRR80 · catalogue 651380 · General
Supported model
Data version 2023-05

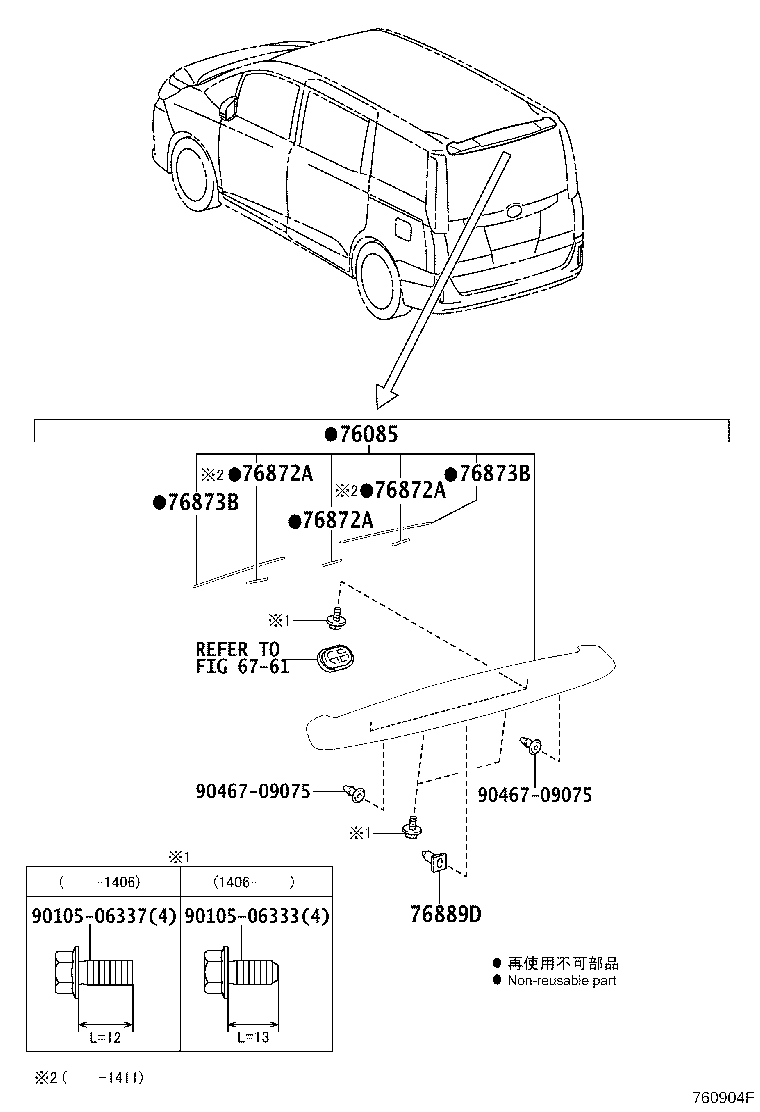

Spoiler & Side Mudguard
30 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52161G | Piece, Rear Bumper |
| 75397C | Clip, Outside Moulding, NO.3 |
| 75867B | Clip, Rocker Panel Moulding |
| 76085 | Spoiler Sub-assy, Rear |
| 76872A | Protector, Rear Spoiler, NO.1 |
| 76873B | Protector, Rear Spoiler, NO.2 |
| 76889D | Clip, Rear Spoiler, NO.2 |
| 76911A | Mudguard, Fender Panel, RH |
| 76912C | Mudguard, Fender Panel, LH |
| 76913 | Mudguard, Front Door, RH |
| 76914 | Mudguard, Front Door, LH |
| 76915E | Mudguard, Slide Door, RH |
| 76916E | Mudguard, Slide Door, LH |
| 76917B | Mudguard, Quarter Panel, RH |
| 76918B | Mudguard, Quarter Panel, LH |
| 76919D | Pad, Side Mudguard |
| 76921A | Protector, Side Mudguard, NO.1 |
| 76921B | Protector, Side Mudguard, NO.1 |
| 76922D | Protector, Side Mudguard, NO.2 |
| 76923 | Retainer, Side Mudguard |
| 76925D | Protector, Side Mudguard, RH |
| 76926D | Protector, Side Mudguard, LH |
| 76927A | Protector, Side Mudguard, Rear RH |
| 76928A | Protector, Side Mudguard, Rear LH |
| 76931A | Bracket, Side Mudguard, NO.1 RH |
| 76932A | Bracket, Side Mudguard, NO.1 LH |
| 76933A | Bracket, Side Mudguard, NO.2 RH |
| 76934A | Bracket, Side Mudguard, NO.2 LH |
| 76965 | Protector, Front Door Lower Mudguard |
| 76966 | Protector, Slide Door Lower Mudguard |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
