Toyota Noah/Voxy

2014-01 → 2021-12 · chassis ZRR80 · catalogue 651380 · General

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

15 part groups · 3 illustrations

Illustrations

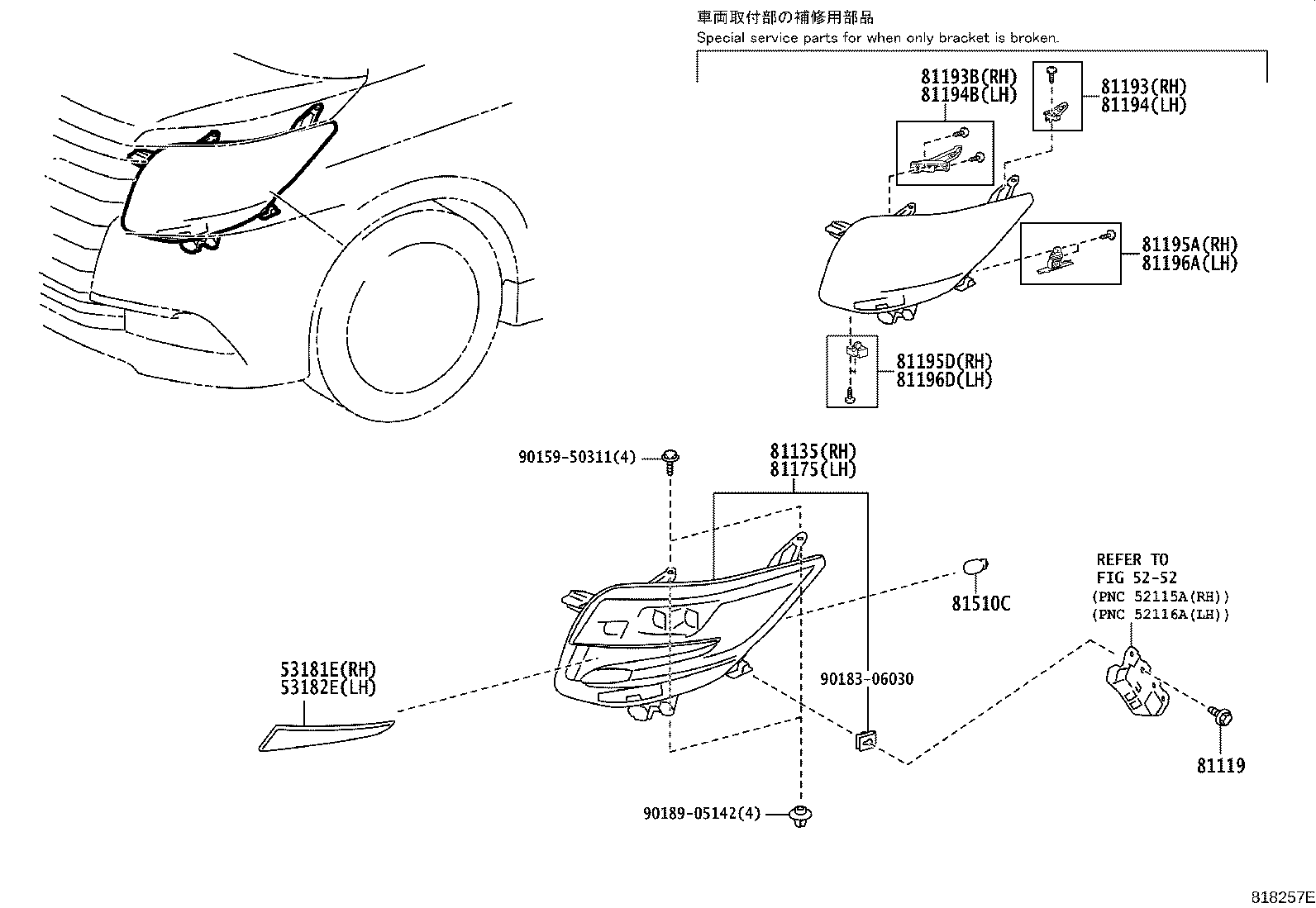

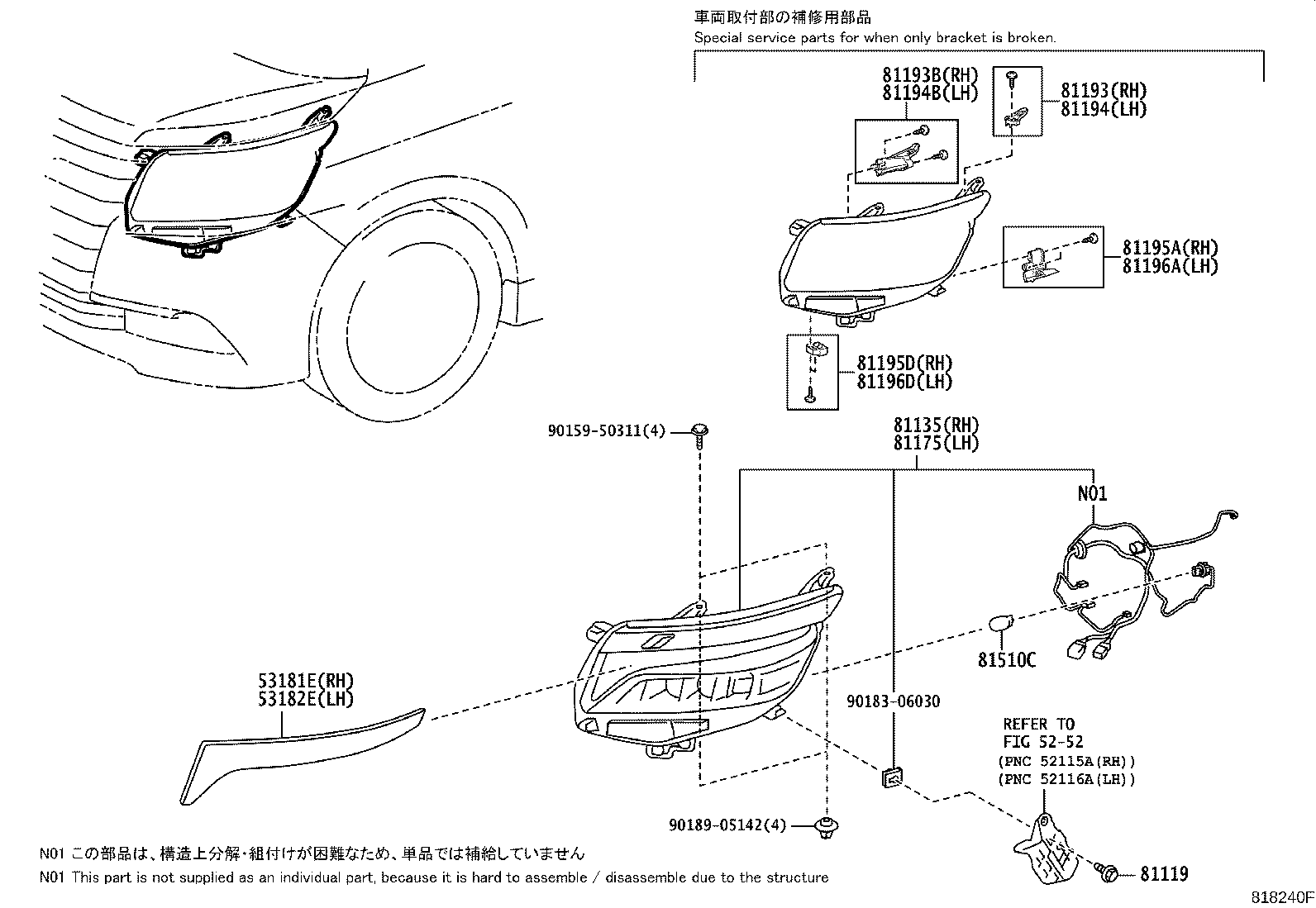

Figure 816839G 816839G 2014-01 → 2017-06 Figure 818257E 818257E 2017-06 → — Figure 818240F 818240F 2017-06 → —

Part groups

PNCDescription
53181E Cover, Headlamp, RH
53182E Cover, Headlamp, LH
81110B Bulb(FOR HEADLAMP, NO.1)
81119 Screw, Headlamp
81135 Unit Assy, Headlamp, RH
81175 Unit Assy, Headlamp, LH
81193 Retainer, Headlamp Protector, Upper RH
81193B Retainer, Headlamp Protector, Upper RH NO.2
81194 Retainer, Headlamp Protector, Upper LH
81194B Retainer, Headlamp Protector, Upper LH NO.2
81195A Retainer, Headlamp Protector, Lower RH
81195D Retainer, Headlamp Protector, Lower RH NO.2
81196A Retainer, Headlamp Protector, Lower LH
81196D Retainer, Headlamp Protector, Lower LH NO.2
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
