Toyota Noah/Voxy

2014-01 → 2021-12 · chassis ZRR80 · catalogue 651380 · General

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

14 part groups · 3 illustrations

Illustrations

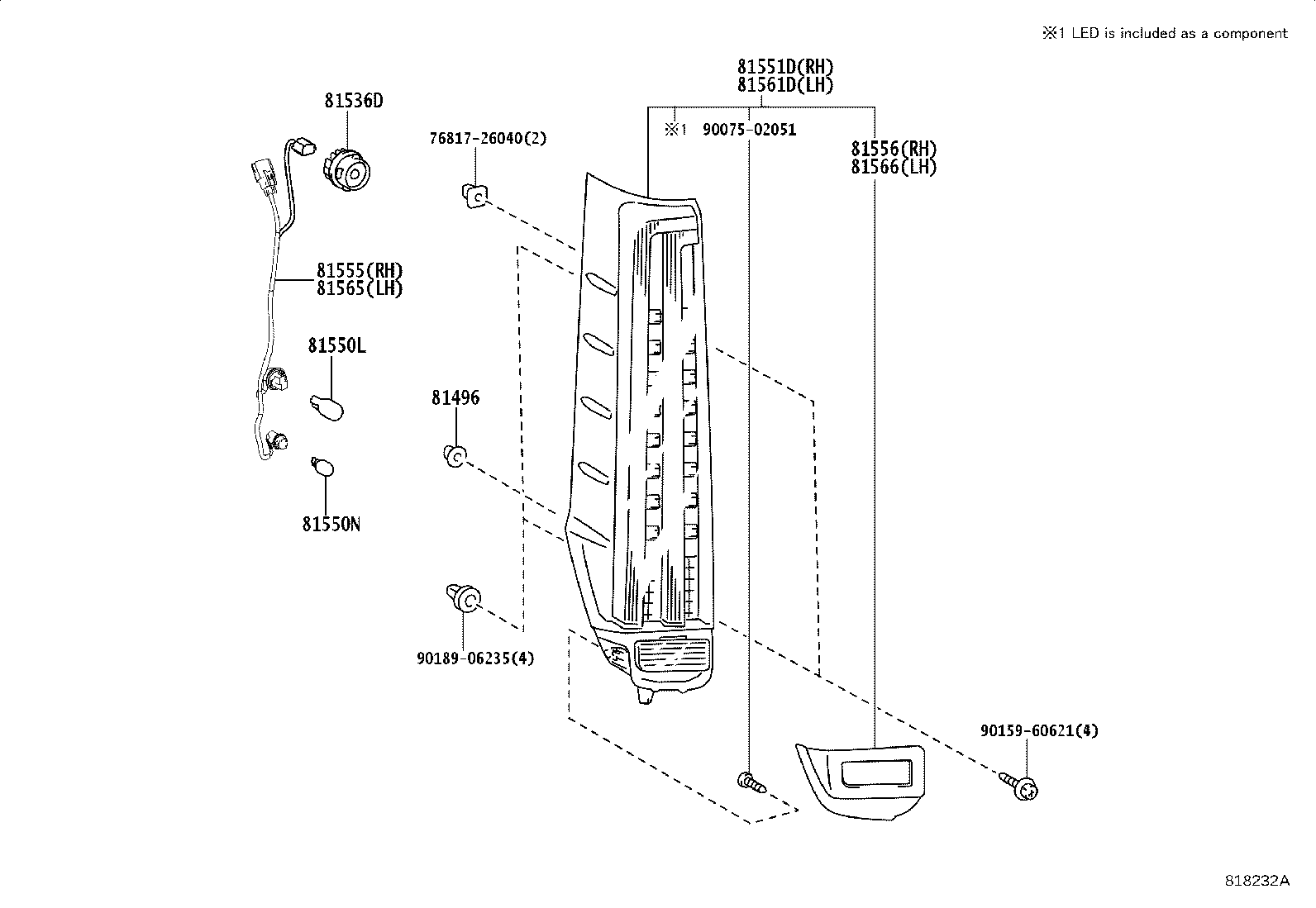

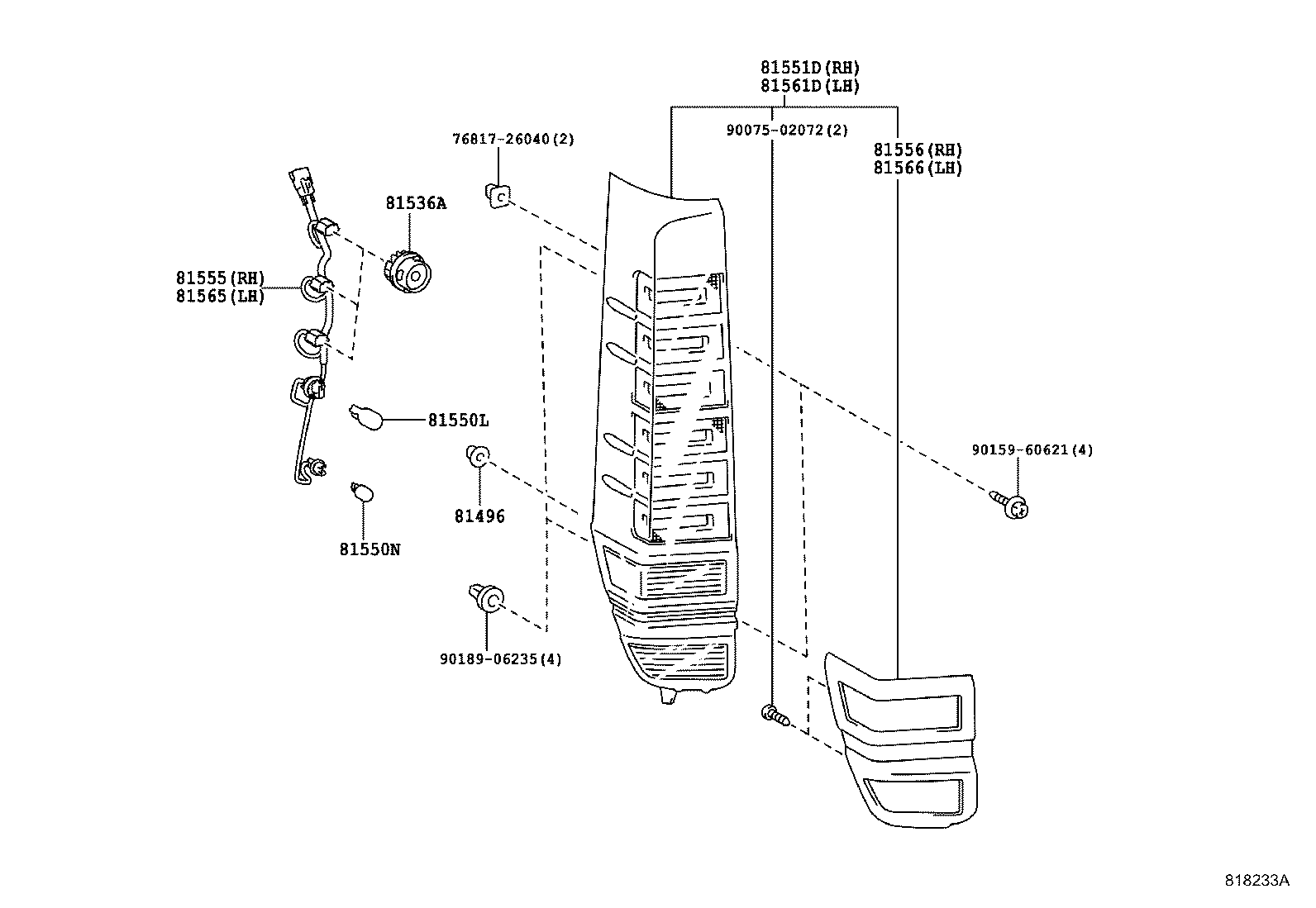

Figure 816838A 816838A 2014-01 → 2017-06 Figure 818232A 818232A 2017-06 → — Figure 818233A 818233A 2017-06 → —

Part groups

PNCDescription
81496 Guide, Rear Combination Lamp
81536A Led, Rear Combination Lamp
81536D Led, Taillamp
81550F Bulb, Taillamp
81550L Bulb, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81551D Lens & Body, Rear Combination Lamp, RH
81554 Gasket, Rear Combination Lamp Body, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81556 Rim, Rear Combination Lamp, RH
81561D Lens & Body, Rear Combination Lamp, LH
81564 Gasket, Rear Combination Lamp Body, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81566 Rim, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
