Toyota Noah/Voxy
2014-01 → 2021-12 · chassis ZRR80 · catalogue 651380 · General
Supported model
Data version 2023-05

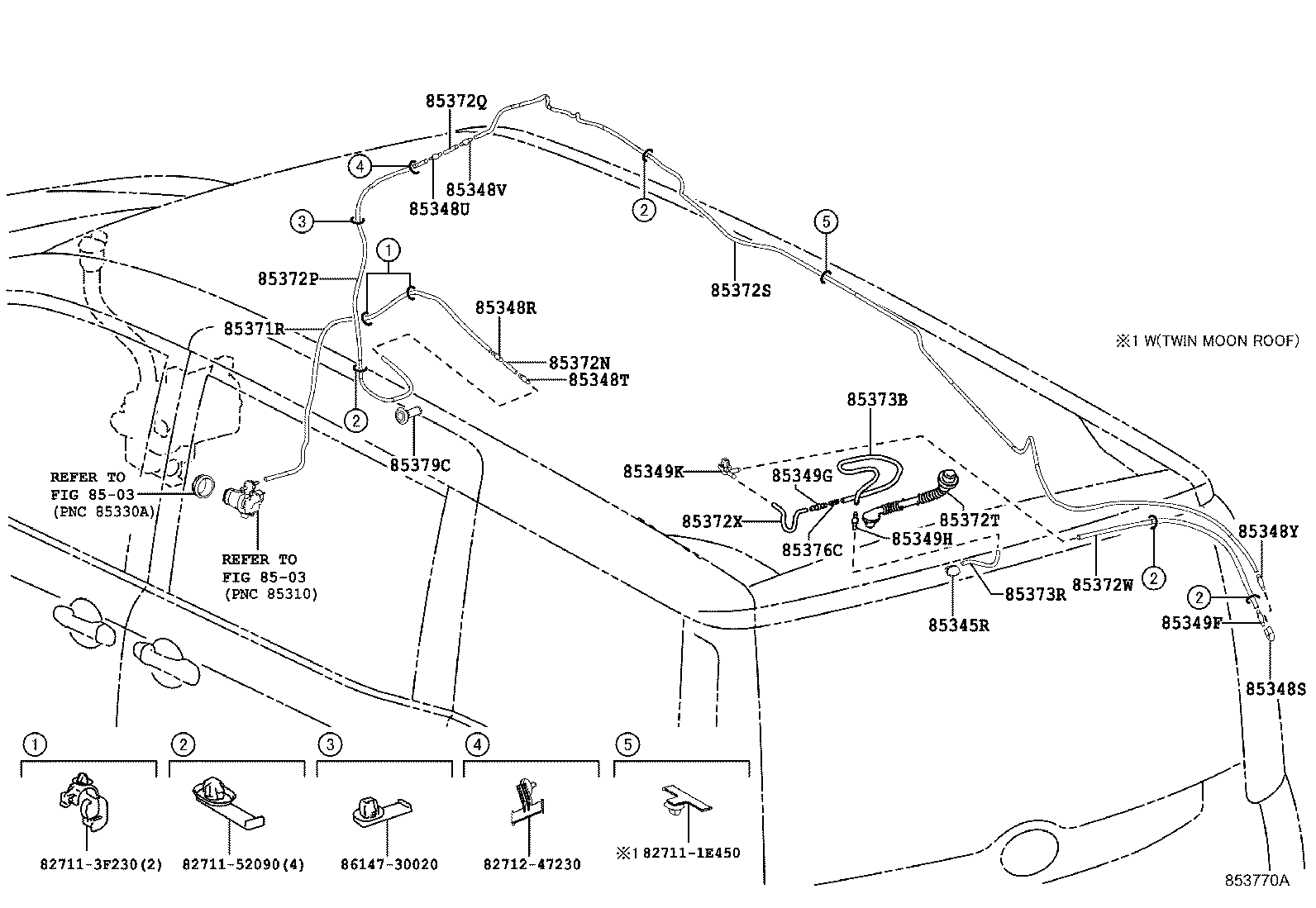

Rear Washer
24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85345R | Nozzle, Rear Washer |
| 85348R | Joint, Rear Washer Hose, NO.1 |
| 85348S | Joint, Rear Washer Elbow, NO.1 |
| 85348T | Joint, Rear Washer Hose, NO.2 |
| 85348U | Joint, Rear Washer Hose, NO.3 |
| 85348V | Joint, Rear Washer Hose, NO.4 |
| 85348Y | Joint, Rear Washer Hose, NO.5 |
| 85349F | Joint, Rear Washer Hose, NO.1 |
| 85349G | Joint, Rear Washer Hose, NO.2 |
| 85349H | Joint, Rear Washer Hose, NO.3 |
| 85349K | Joint, Rear Washer Elbow, NO.2 |
| 85370D | Hose Assy, Rear Washer, NO.1 |
| 85371R | Hose, Rear Washer (FROM MOTOR TO JOINT) |
| 85372N | Hose, Rear Washer (FROM JOINT TO JOINT), NO.1 |
| 85372P | Hose, Rear Washer (FROM JOINT TO JOINT), NO.2 |
| 85372Q | Hose, Rear Washer (FROM JOINT TO JOINT), NO.3 |
| 85372S | Hose, Rear Washer (FROM JOINT TO JOINT), NO.4 |
| 85372T | Grommet, Washer |
| 85372W | Hose, Rear Washer (FROM JOINT TO JOINT), NO.5 |
| 85372X | Hose, Rear Washer (FROM JOINT TO JOINT), NO.6 |
| 85373B | Hose, Rear Washer(FROM JOINT TO JOINT), NO.7 |
| 85373R | Hose, Rear Washer (FROM JOINT TO NOZZLE) |
| 85376C | Spring, Washer Hose |
| 85379C | Grommet, Rear Washer Hose NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
