Toyota Noah/Voxy

2014-01 → 2021-12 · chassis ZRR80 · catalogue 651380 · General

Supported model Data version 2023-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

20 part groups · 3 illustrations

Illustrations

Figure 87E084D

87E084D 2014-01 → —

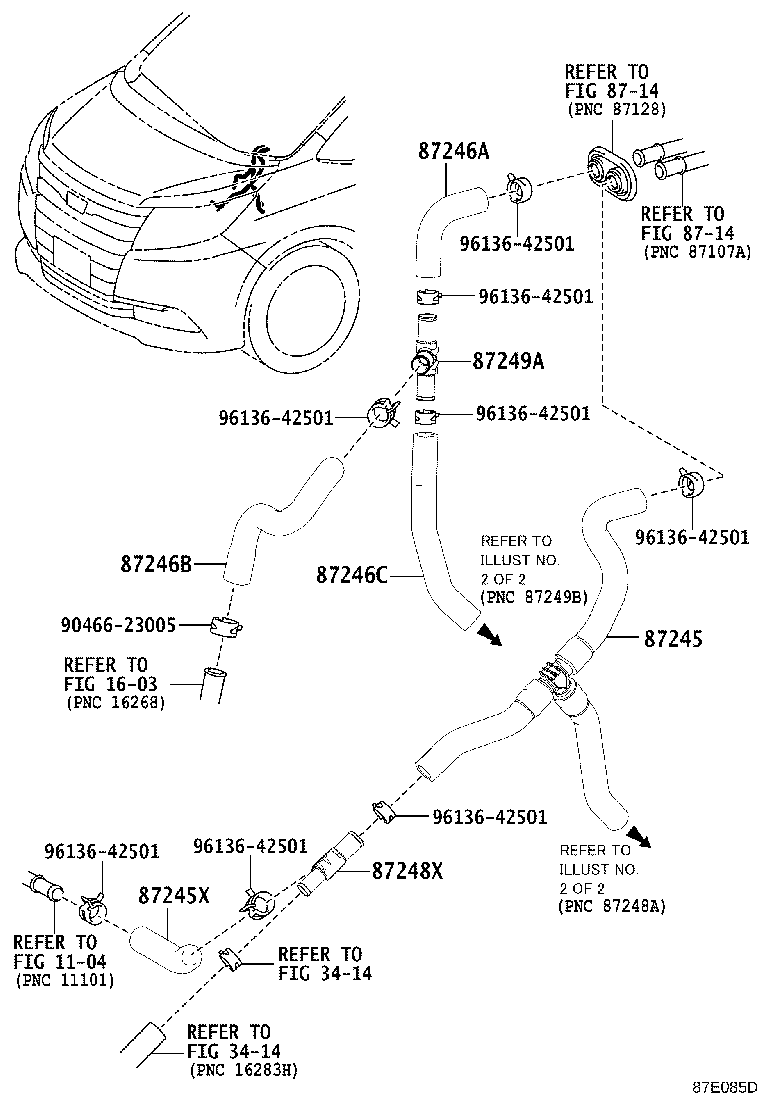

Figure 87E085D

87E085D 2017-06 → —

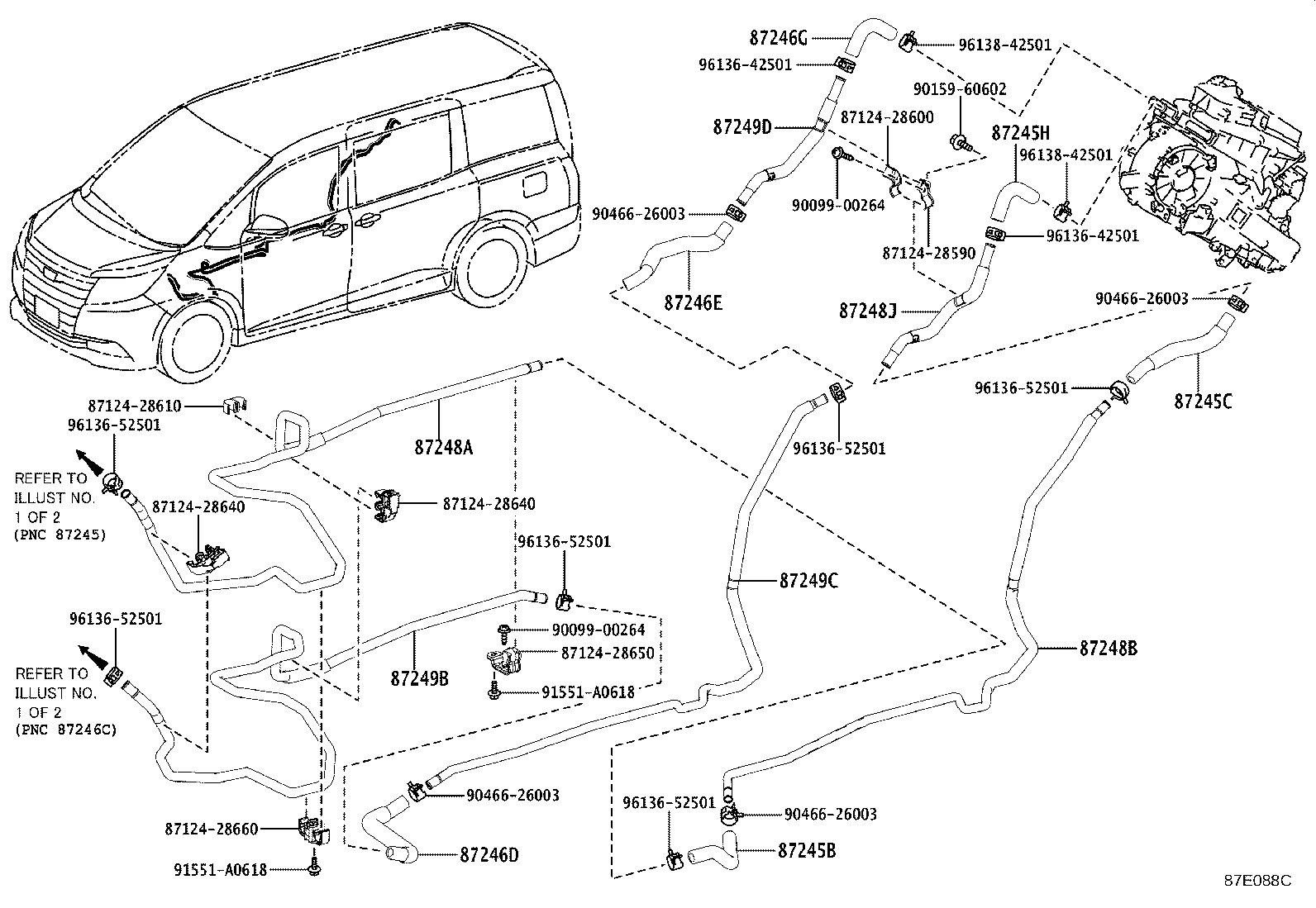

Figure 87E088C

87E088C 2017-06 → —

Part groups

PNC	Description
87245	Hose, Heater Water, Inlet
87245B	Hose, Heater Water, Inlet B
87245C	Hose, Heater Water ,Inlet C
87245H	Hose, Heater Water, Inlet H
87245X	Hose, Heater Water
87246	Hose, Heater Water, Outlet
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B
87246C	Hose, Heater Water, Outlet C
87246D	Hose, Heater Water, Outlet D
87246E	Hose, Heater Water, Outlet E
87246G	Hose, Heater Water, Outlet G
87248A	Pipe, Heater Water Inlet, A
87248B	Pipe, Heater Water Inlet, B
87248J	Pipe, Heater Water Inlet, J
87248X	Pipe, Heater Water
87249A	Pipe, Heater Water Outlet, A
87249B	Pipe, Heater Water Outlet, B
87249C	Pipe, Heater Water Outlet, C
87249D	Pipe, Heater Water Outlet, D

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
