Toyota Noah/Voxy

2014-01 → 2021-12 · chassis ZRR80 · catalogue 651380 · General

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

25 part groups · 3 illustrations

Illustrations

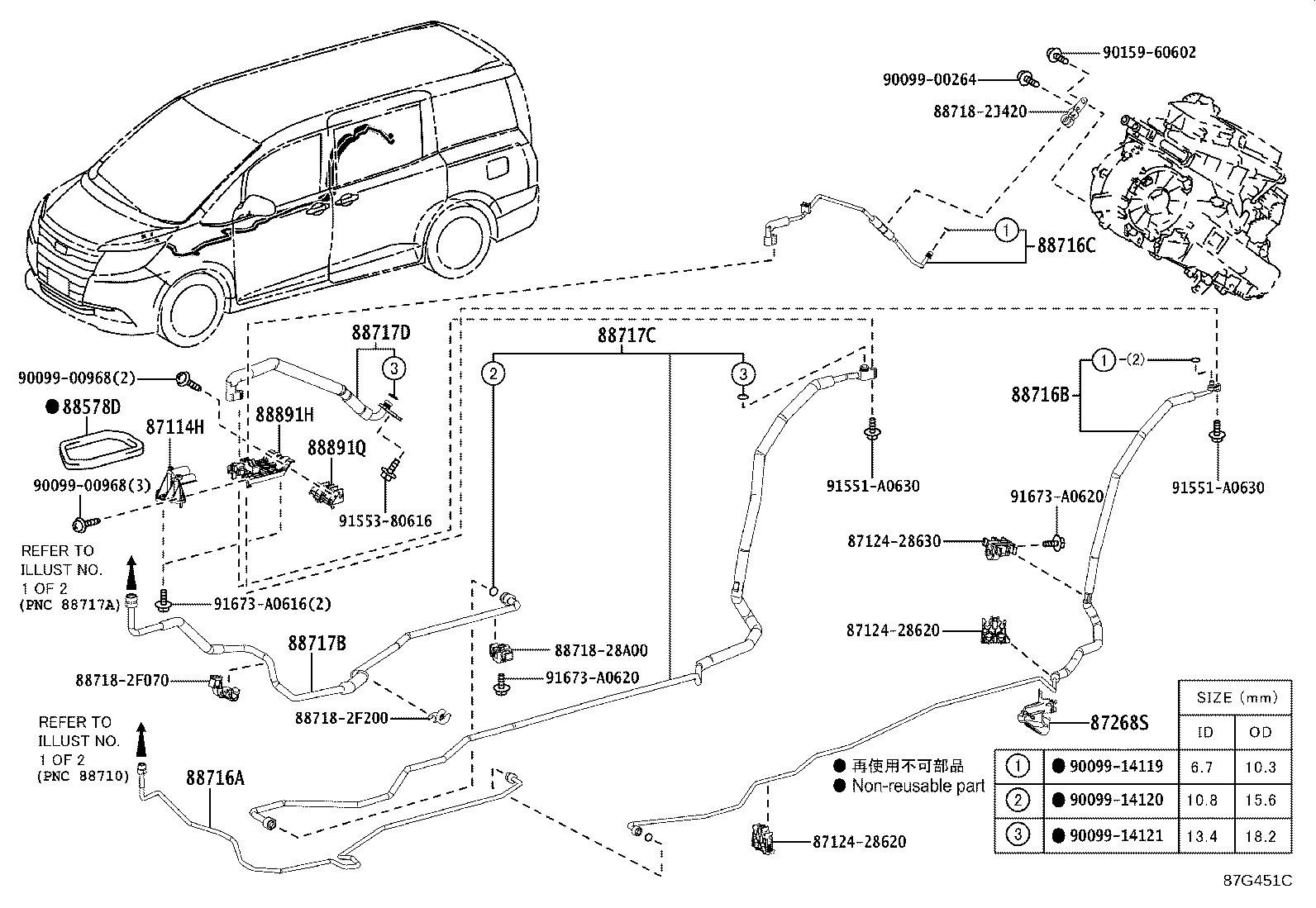

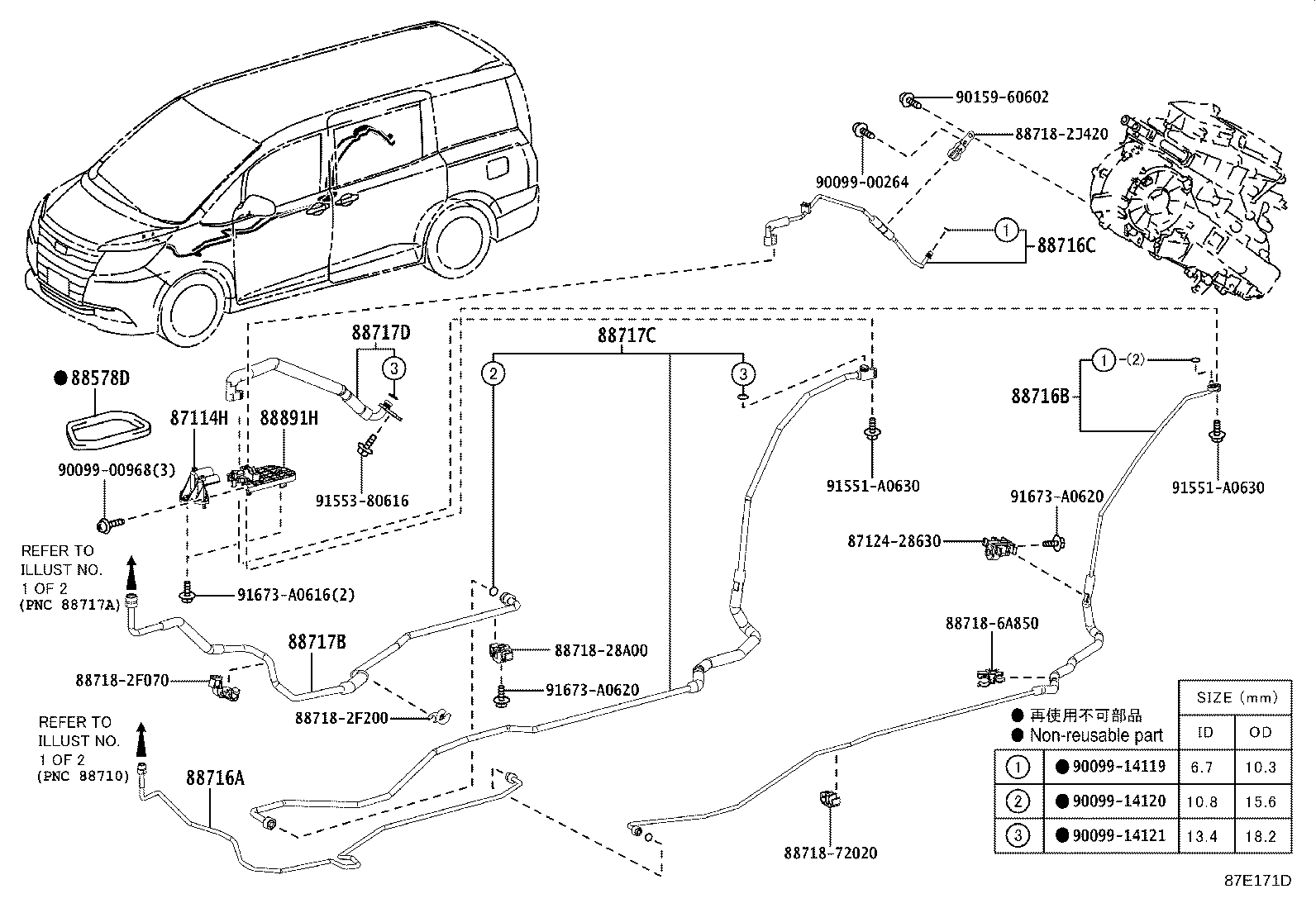

Figure 87E146F 87E146F 2014-01 → — Figure 87E171D 87E171D 2014-01 → — Figure 87G451C 87G451C 2017-06 → —

Part groups

PNCDescription
87114H Cover, Heater
87268S Protector, Cooler Tube
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88578D Packing, Cooler Pipe, NO.1
88688E Bracket, Cooler Refrigerant Hose, NO.1
88710 Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88717C Pipe, Cooler Refrigerant Suction, C
88717D Pipe, Cooler Refrigerant Suction, D
88718G Clamp, NO.2(FOR COOLER REFRIGERANT HOSE)
88718L Clamp, Piping
88719A Sensor, Air Conditioner Pressure
88891H Cover, Cooler, NO.1
88891Q Cover, Cooler, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
