Toyota Previa

1990-05 → 1999-12 · chassis TCR1#,2# · catalogue 652240 · General

Discontinued model Data version 2000-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

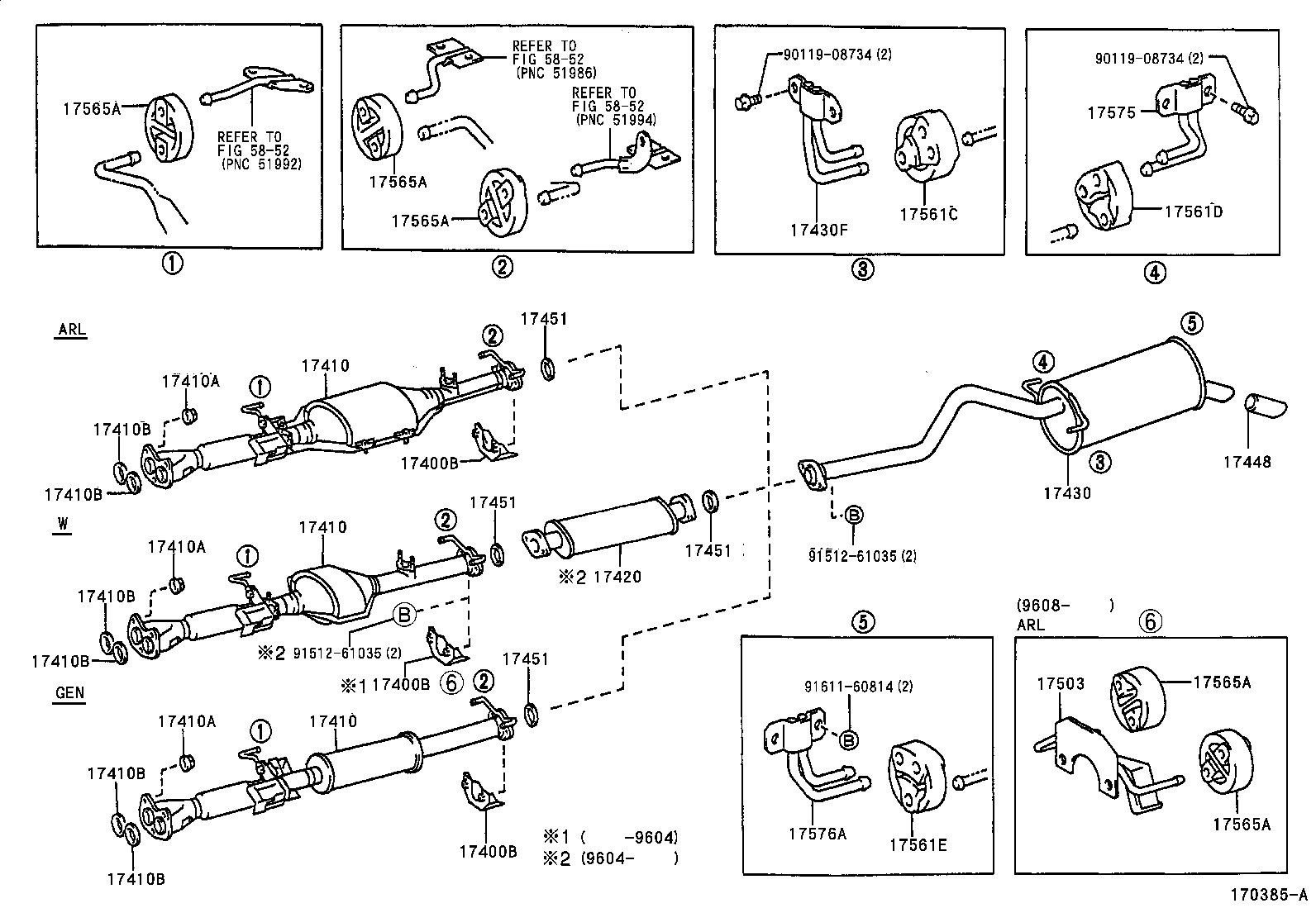

Exploded illustration 170385A 9011908734 — not listed in this catalogue 9011908734 — not listed in this catalogue 5852 — not listed in this catalogue 5852 — not listed in this catalogue 17565A — SUPPORT, EXHAUST PIPE, NO.4 (6 parts) 17575 — BRACKET, EXHAUST PIPE SUPPORT, NO.5 (2 parts) 5852 — not listed in this catalogue 17565A — SUPPORT, EXHAUST PIPE, NO.4 (6 parts) 17561D — SUPPORT, EXHAUST PIPE, NO.1 (1 parts) 17561C — SUPPORT, EXHAUST PIPE, NO.1 (1 parts) 17565A — SUPPORT, EXHAUST PIPE, NO.4 (6 parts) 17430F — BRACKET, EXHAUST TAILPIPE(FOR CENTER) (4 parts) 17451 — GASKET, EXHAUST PIPE (4 parts) 17410 — PIPE ASSY, EXHAUST, FRONT (22 parts) 17410A — NUT, EXHAUST PIPE SET STUD BOLT (1 parts) 17410B — GASKET, EXHAUST PIPE (1 parts) 17448 — BAFFLE, TAILPIPE (1 parts) 17400B — RETAINER, EXHAUST PIPE (6 parts) 17430 — PIPE ASSY, EXHAUST, TAIL (29 parts) 17410B — GASKET, EXHAUST PIPE (1 parts) 17451 — GASKET, EXHAUST PIPE (4 parts) 17410 — PIPE ASSY, EXHAUST, FRONT (22 parts) 17410A — NUT, EXHAUST PIPE SET STUD BOLT (1 parts) 17451 — GASKET, EXHAUST PIPE (4 parts) 9151261035 — not listed in this catalogue 17420 — PIPE ASSY, EXHAUST, CENTER (2 parts) 17410B — GASKET, EXHAUST PIPE (1 parts) 9151261035 — not listed in this catalogue 17451 — GASKET, EXHAUST PIPE (4 parts) 17410B — GASKET, EXHAUST PIPE (1 parts) 17565A — SUPPORT, EXHAUST PIPE, NO.4 (6 parts) 17503 — BRACKET SUB-ASSY, CATALYTIC CONVERTER, REAR (4 parts) 17400B — RETAINER, EXHAUST PIPE (6 parts) 9161160814 — not listed in this catalogue 17410A — NUT, EXHAUST PIPE SET STUD BOLT (1 parts) 17410 — PIPE ASSY, EXHAUST, FRONT (22 parts) 17410B — GASKET, EXHAUST PIPE (1 parts) 17565A — SUPPORT, EXHAUST PIPE, NO.4 (6 parts) 17576A — BRACKET, EXHAUST PIPE SUPPORT, NO.6 (2 parts) 17561E — SUPPORT, EXHAUST PIPE, NO.1 (1 parts) 17400B — RETAINER, EXHAUST PIPE (6 parts) 17410B — GASKET, EXHAUST PIPE (1 parts)
170385A · 34 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
87 parts on this figure
Part number Description Fitment Price
17400B — Retainer, Exhaust Pipe
17518-76010 Retainer, Exhaust Pipe
1996-08 → 1999-12 ended
2TZFE TCR1# ARL —
17582-70030 Retainer, Exhaust Pipe
1994-01 → 1996-08 ended
2TZFE TCR1# ARL —
18495-76010 Retainer, Exhaust Pipe
1994-01 → 1996-04 ended
2TZFE TCR1#,2# GEN,V,W —
18495-76010 note Retainer, Exhaust Pipe
1994-01 → 1996-08 ended
2TZFE TCR1#,2# LHD W —
18495-76010 Retainer, Exhaust Pipe
1996-04 → 1999-12 ended
2TZFE TCR10 LHD ATM;2TZFE +3 —
18495-76010 Retainer, Exhaust Pipe
1990-05 → 1994-01 ended
2TZFE TCR1#,2# LHD W —
17410 — Pipe Assy, Exhaust, Front
17410-76020 Pipe Assy, Exhaust, Front
1990-05 → 1994-01 ended
2TZFE TCR1#,2# W —
17410-76030 note Pipe Assy, Exhaust, Front
1990-05 → 1994-01 ended
2TZFE TCR1#,2# LHD W —
17410-76051 Pipe Assy, Exhaust, Front
1990-05 → 1994-01 ended
2TZFE TCR1#,2# ARL —
17410-76140 Pipe Assy, Exhaust, Front
1993-08 → 1994-01 ended
2TZFE TCR10 GEN —
17410-76140 note Pipe Assy, Exhaust, Front
1993-08 → 1994-01 ended
2TZFE TCR11 RHD MTM —
17410-76150 Pipe Assy, Exhaust, Front
1994-01 → 1994-12 ended
2TZFE TCR1#,2# W —
17410-76151 Pipe Assy, Exhaust, Front
1994-12 → 1996-07 ended
2TZFE TCR1#,2# W —
17410-76152 Pipe Assy, Exhaust, Front
1996-07 → 1996-08 ended
2TZFE TCR1#,2# W —
17410-76160 Pipe Assy, Exhaust, Front
1994-01 → 1996-07 ended
2TZFE TCR1# ARL —
17410-76161 Pipe Assy, Exhaust, Front
1996-07 → 1996-08 ended
2TZFE TCR1# ARL —
17410-76170 note Pipe Assy, Exhaust, Front
1994-01 → 1996-07 ended
2TZFE TCR11 RHD MTM —
17410-76170 Pipe Assy, Exhaust, Front
1994-01 → 1996-07 ended
2TZFE TCR10 LHD ATM —
17410-76171 Pipe Assy, Exhaust, Front
1996-07 → 1998-01 ended
2TZFE TCR10 LHD ATM —
17410-76171 note Pipe Assy, Exhaust, Front
1996-07 → 1998-01 ended
2TZFE TCR11 RHD MTM —
17410-76172 Pipe Assy, Exhaust, Front
1998-01 → 1999-12 ended
2TZFE TCR10 LHD ATM —
17410-76172 note Pipe Assy, Exhaust, Front
1998-01 → 1999-12 ended
2TZFE TCR11 RHD MTM —
17410-76201 Pipe Assy, Exhaust, Front
1996-08 → 1998-01 ended
2TZFE TCR1#,2# W —
17410-76202 Pipe Assy, Exhaust, Front
1998-01 → 1999-12 ended
2TZFE TCR1#,2# W —
17410-76202 note Pipe Assy, Exhaust, Front
1998-10 → 1999-12 ended
2TZFE TCR11 ARL —
17410-76221 Pipe Assy, Exhaust, Front
1996-08 → 1998-01 ended
2TZFE TCR1# ARL —
17410-76222 Pipe Assy, Exhaust, Front
1998-01 → 1999-12 ended
2TZFE TCR1# ARL —
17410-76230 note Pipe Assy, Exhaust, Front
1998-10 → 1999-12 ended
2TZFE TCR1# ARL —
17410A — Nut, Exhaust Pipe Set Stud Bolt
90179-10070 Nut, Exhaust Pipe Set Stud Bolt
1990-05 → 1999-12 ended
2TZFE TCR1#,2# —
17410B — Gasket, Exhaust Pipe
90917-06039 Gasket, Exhaust Pipe
1990-05 → 1999-12 ended
2TZFE TCR1#,2# —
17420 — Pipe Assy, Exhaust, Center
17420-76011 Pipe Assy, Exhaust, Center
1996-04 → 1996-08 ended
2TZFE TCR1#,2# W —
17420-76011 Pipe Assy, Exhaust, Center
1996-08 → 1998-05 ended
2TZFE TCR1# W —
17430 — Pipe Assy, Exhaust, Tail
17405-76070 Pipe Assy, Exhaust, Tail
1996-04 → 1996-08 ended
2TZFE TCR1#,2# W —
17405-76071 Pipe Assy, Exhaust, Tail
1996-08 → 1998-01 ended
2TZFE TCR1#,2# W —
17405-76072 note Pipe Assy, Exhaust, Tail
1998-10 → 1999-12 ended
2TZFE TCR11 ARL —
17405-76072 Pipe Assy, Exhaust, Tail
1998-01 → 1999-12 ended
2TZFE TCR1#,2# W —
17430-76012 Pipe Assy, Exhaust, Tail
1993-08 → 1994-01 ended
2TZFE TCR10 GEN —
17430-76012 note Pipe Assy, Exhaust, Tail
1993-08 → 1994-01 ended
2TZFE TCR11 RHD MTM —
17430-76030 Pipe Assy, Exhaust, Tail
1990-05 → 1990-12 ended
2TZFE TCR1#,2# ARL —
17430-76031 Pipe Assy, Exhaust, Tail
1990-12 → 1991-08 ended
2TZFE TCR1#,2# ARL —
17430-76032 Pipe Assy, Exhaust, Tail
1991-08 → 1993-08 ended
2TZFE TCR1#,21 ARL —
17430-76033 Pipe Assy, Exhaust, Tail
1993-08 → 1994-01 ended
2TZFE TCR1# ARL —
17430-76060 Pipe Assy, Exhaust, Tail
1990-05 → 1993-08 ended
2TZFE TCR1#,2# W —
17430-76060 note Pipe Assy, Exhaust, Tail
1990-05 → 1993-08 ended
2TZFE TCR11 LHD MTM —
17430-76061 Pipe Assy, Exhaust, Tail
1993-08 → 1994-01 ended
2TZFE TCR1#,2# W —
17430-76061 note Pipe Assy, Exhaust, Tail
1993-08 → 1994-01 ended
2TZFE TCR11 LHD MTM —
17430-76070 note Pipe Assy, Exhaust, Tail
1990-05 → 1993-08 ended
2TZFE TCR1#,2# LHD —
17430-76071 note Pipe Assy, Exhaust, Tail
1993-08 → 1994-01 ended
2TZFE TCR1#,2# LHD W —
17430-76110 Pipe Assy, Exhaust, Tail
1994-01 → 1996-04 ended
2TZFE TCR1#,2# W —
17430-76120 note Pipe Assy, Exhaust, Tail
1994-01 → 1996-04 ended
2TZFE TCR1#,2# LHD W —
17430-76130 Pipe Assy, Exhaust, Tail
1994-01 → 1998-01 ended
2TZFE TCR1# ARL —
17430-76131 Pipe Assy, Exhaust, Tail
1998-01 → 1999-12 ended
2TZFE TCR1# ARL —
17430-76141 note Pipe Assy, Exhaust, Tail
1994-01 → 1996-12 ended
2TZFE TCR11 RHD MTM —
17430-76141 Pipe Assy, Exhaust, Tail
1994-01 → 1996-12 ended
2TZFE TCR10 LHD ATM —
17430-76142 note Pipe Assy, Exhaust, Tail
1996-12 → 1998-01 ended
2TZFE TCR11 RHD MTM —
17430-76142 Pipe Assy, Exhaust, Tail
1996-12 → 1998-01 ended
2TZFE TCR10 LHD ATM —
17430-76143 Pipe Assy, Exhaust, Tail
1998-01 → 1999-12 ended
2TZFE TCR10 LHD ATM —
17430-76143 note Pipe Assy, Exhaust, Tail
1998-01 → 1999-12 ended
2TZFE TCR11 RHD MTM —
17430-76150 note Pipe Assy, Exhaust, Tail
1994-08 → 1998-01 ended
2TZFE TCR11 ARL —
17430-76151 note Pipe Assy, Exhaust, Tail
1998-01 → 1999-12 ended
2TZFE TCR11 ARL —
17430-76170 note Pipe Assy, Exhaust, Tail
1998-10 → 1999-12 ended
2TZFE TCR1# ARL —
17430F — Bracket, Exhaust Tailpipe(FOR CENTER)
17574-76020 Bracket, Exhaust Tailpipe(FOR CENTER)
1990-05 → 1996-04 ended
2TZFE TCR10,20 —
17574-76020 Bracket, Exhaust Tailpipe(FOR CENTER)
1996-04 → 1999-12 ended
2TZFE TCR10 ARL,GEN,V —
17574-76030 Bracket, Exhaust Tailpipe(FOR CENTER)
1990-05 → 1996-04 ended
2TZFE TCR11,21 —
17574-76030 Bracket, Exhaust Tailpipe(FOR CENTER)
1996-04 → 1999-12 ended
2TZFE TCR11 ARL;2TZFE TCR11 +2 —
17448 — Baffle, Tailpipe
17448-76010 Baffle, Tailpipe
1994-08 → 1999-12 ended
2TZFE TCR11 ARL —
17451 — Gasket, Exhaust Pipe
90917-06043 note Gasket, Exhaust Pipe
1990-05 → 1996-08 ended
2TZFE TCR1#,2# LHD W —
90917-06057 note Gasket, Exhaust Pipe
1990-05 → 1996-08 ended
2TZFE TCR1#,2# LHD W —
90917-06057 Gasket, Exhaust Pipe
1996-04 → 1999-12 ended
2TZFE TCR1#,2# —
90917-06057 Gasket, Exhaust Pipe
1990-05 → 1996-04 ended
2TZFE TCR1#,2# —
17503 — Bracket Sub-assy, Catalytic Converter, Rear
17503-76010 Bracket Sub-assy, Catalytic Converter, Rear
1990-05 → 1991-08 ended
2TZFE TCR1#,2# —
17503-76010 Bracket Sub-assy, Catalytic Converter, Rear
1991-08 → 1994-01 ended
2TZFE TCR1#,2# W —
17503-76020 Bracket Sub-assy, Catalytic Converter, Rear
1991-08 → 1994-01 ended
2TZFE TCR1#,21 ARL,GEN —
17503-76031 Bracket Sub-assy, Catalytic Converter, Rear
1996-08 → 1999-12 ended
2TZFE TCR1# ARL —
17561C — Support, Exhaust Pipe, NO.1
17561-74110 Support, Exhaust Pipe, NO.1
1990-05 → 1999-12 ended
2TZFE TCR1#,2# —
17561D — Support, Exhaust Pipe, NO.1
17561-74110 Support, Exhaust Pipe, NO.1
1990-05 → 1999-12 ended
2TZFE TCR1#,2# —
17561E — Support, Exhaust Pipe, NO.1
17561-74110 Support, Exhaust Pipe, NO.1
1990-05 → 1999-12 ended
2TZFE TCR1#,2# —
17565A — Support, Exhaust Pipe, NO.4
17565-11160 Support, Exhaust Pipe, NO.4
1994-01 → 1999-12 ended
2TZFE TCR1#,2# —
17565-11160 Support, Exhaust Pipe, NO.4
1993-08 → 1994-01 ended
2TZFE TCR1#,2# MTM —
17565-11160 Support, Exhaust Pipe, NO.4
1993-08 → 1994-01 ended
2TZFE TCR1# ATM —
17565-76030 Support, Exhaust Pipe, NO.4
1990-05 → 1991-12 ended
2TZFE TCR1#,2# —
17565-76030 Support, Exhaust Pipe, NO.4
1991-12 → 1993-08 ended
2TZFE TCR1#,2# MTM —
17565-76030 Support, Exhaust Pipe, NO.4
1991-12 → 1993-08 ended
2TZFE TCR1#,21 ATM —
17575 — Bracket, Exhaust Pipe Support, NO.5
17575-76020 Bracket, Exhaust Pipe Support, NO.5
1990-05 → 1996-04 ended
2TZFE TCR1#,2# —
17575-76020 Bracket, Exhaust Pipe Support, NO.5
1996-04 → 1999-12 ended
2TZFE TCR11 RHD MTM;2TZFE +2 —
17576A — Bracket, Exhaust Pipe Support, NO.6
17576-76030 Bracket, Exhaust Pipe Support, NO.6
1990-05 → 1996-04 ended
2TZFE TCR1#,2# —
17576-76030 Bracket, Exhaust Pipe Support, NO.6
1996-04 → 1999-12 ended
2TZFE TCR11 RHD MTM;2TZFE +2 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
