Toyota Previa
1990-05 → 1999-12 · chassis TCR1#,2# · catalogue 652240 · General
Discontinued model
Data version 2000-07

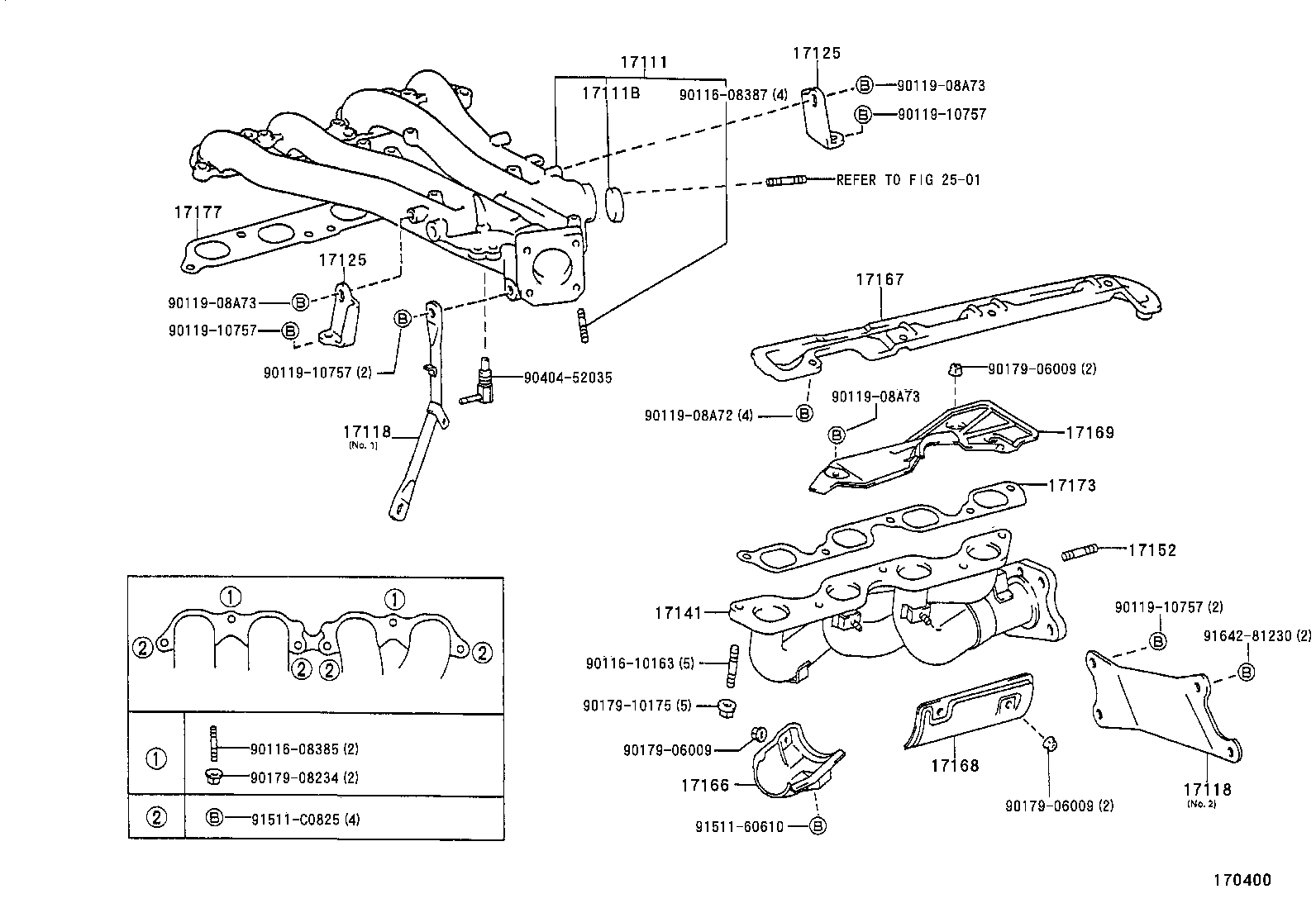

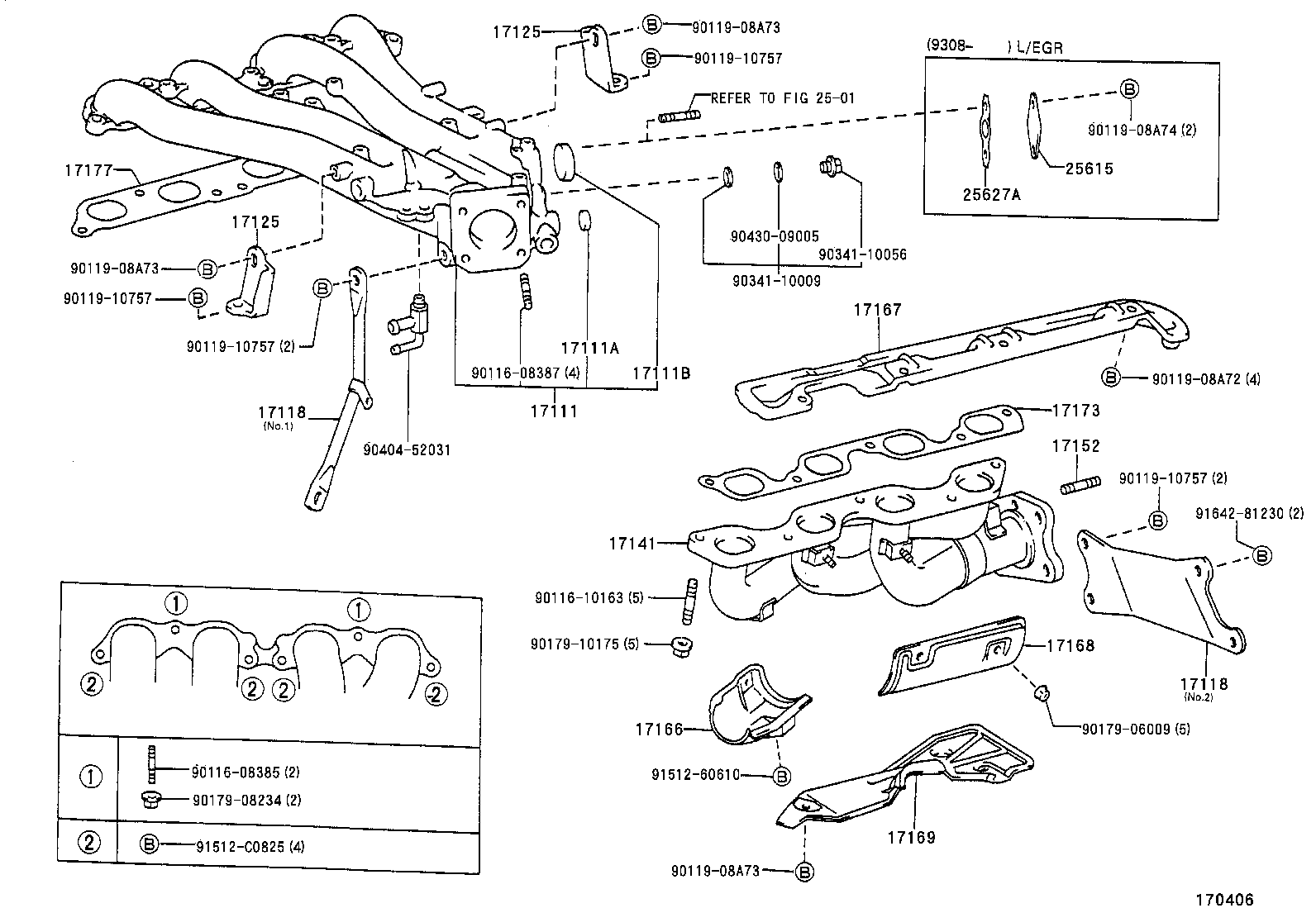

Manifold
15 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 17111 | Manifold, Intake |
| 17111A | Plug, NO.1 |
| 17111B | Plug, NO.2 |
| 17118 | Stay, Manifold |
| 17125 | Stay, Surge Tank, NO.1 |
| 17141 | Manifold, Exhaust |
| 17152 | Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE) |
| 17166 | Insulator, Exhaust Manifold Heat,NO.4 |
| 17167 | Insulator, Exhaust Manifold Heat, NO.1 |
| 17168 | Insulator, Exhaust Manifold Heat, NO.2 |
| 17169 | Insulator, Exhaust Manifold Heat, NO.3 |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |
| 25615 | Plate, Egr Hole Cover, NO.1 |
| 25627A | Gasket, Egr Hole Cover Plate, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
