Toyota Previa

1990-05 → 1999-12 · chassis TCR1#,2# · catalogue 652240 · General

Discontinued model Data version 2000-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

11 part groups · 2 illustrations

Illustrations

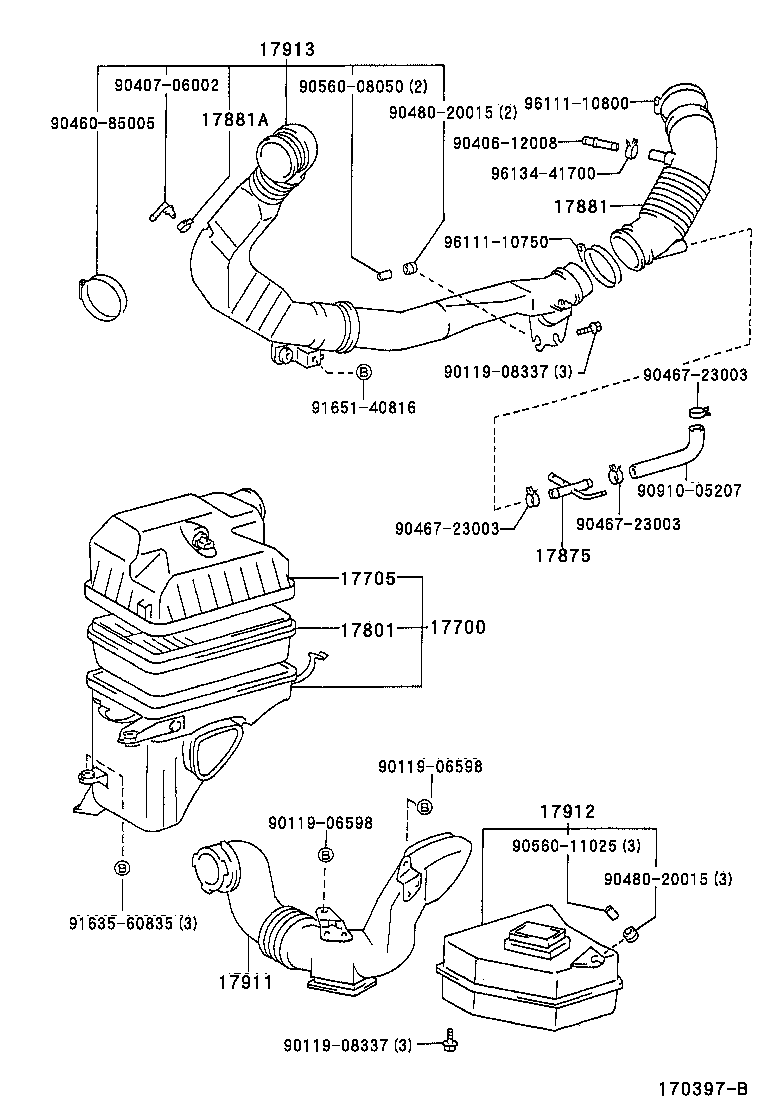

Figure 170407A 170407A 1990-05 → 1996-08 Figure 170397B 170397B 1996-08 → —

Part groups

PNCDescription
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17875 Pipe, Intake Air Connector
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17911 Duct, Cool Air Intake, NO.1
17912 Duct, Cool Air Intake, NO.2
17913 Duct, Cool Air Intake, NO.3
22250 Meter Assy, Intake Air Flow
22275 Gasket, Air Flow Meter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
