Toyota Previa
1990-05 → 1999-12 · chassis TCR1#,2# · catalogue 652240 · General
Discontinued model
Data version 2000-07

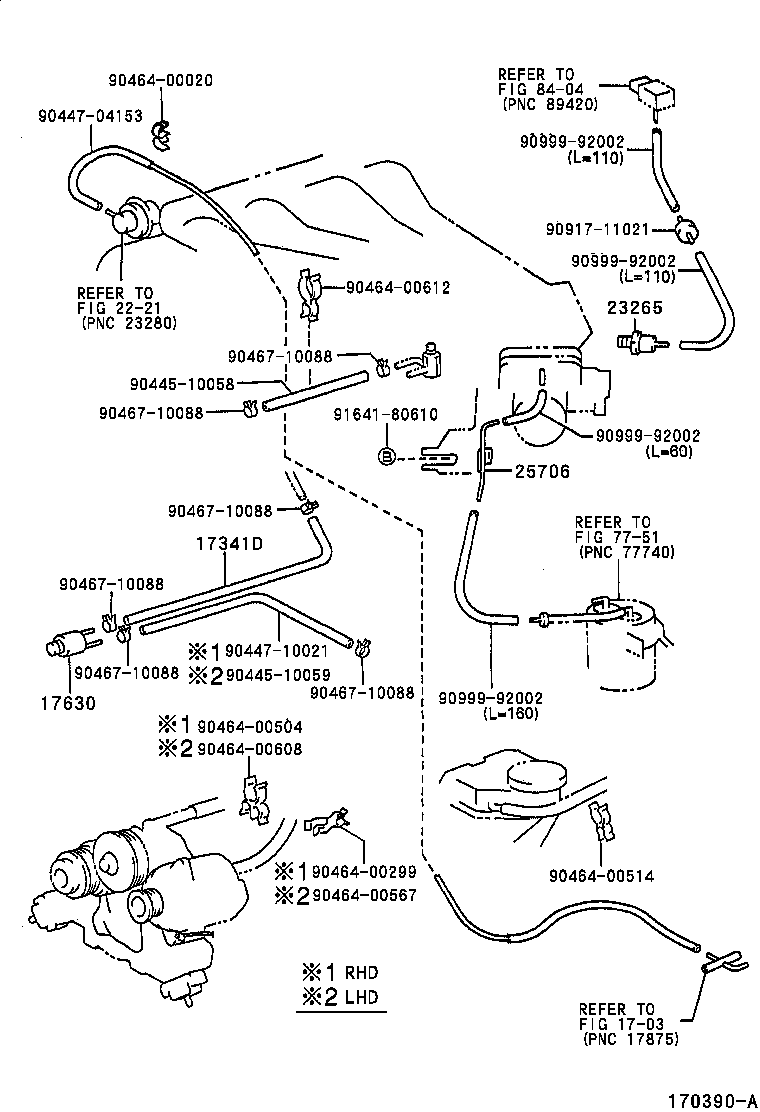

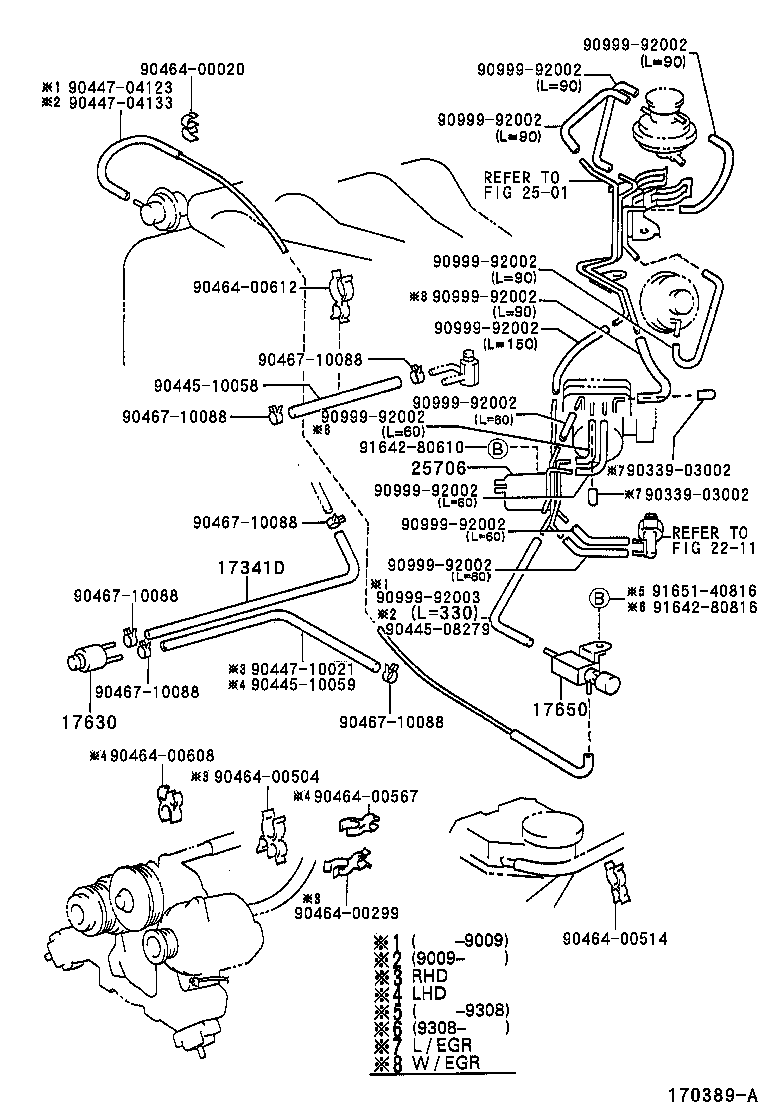

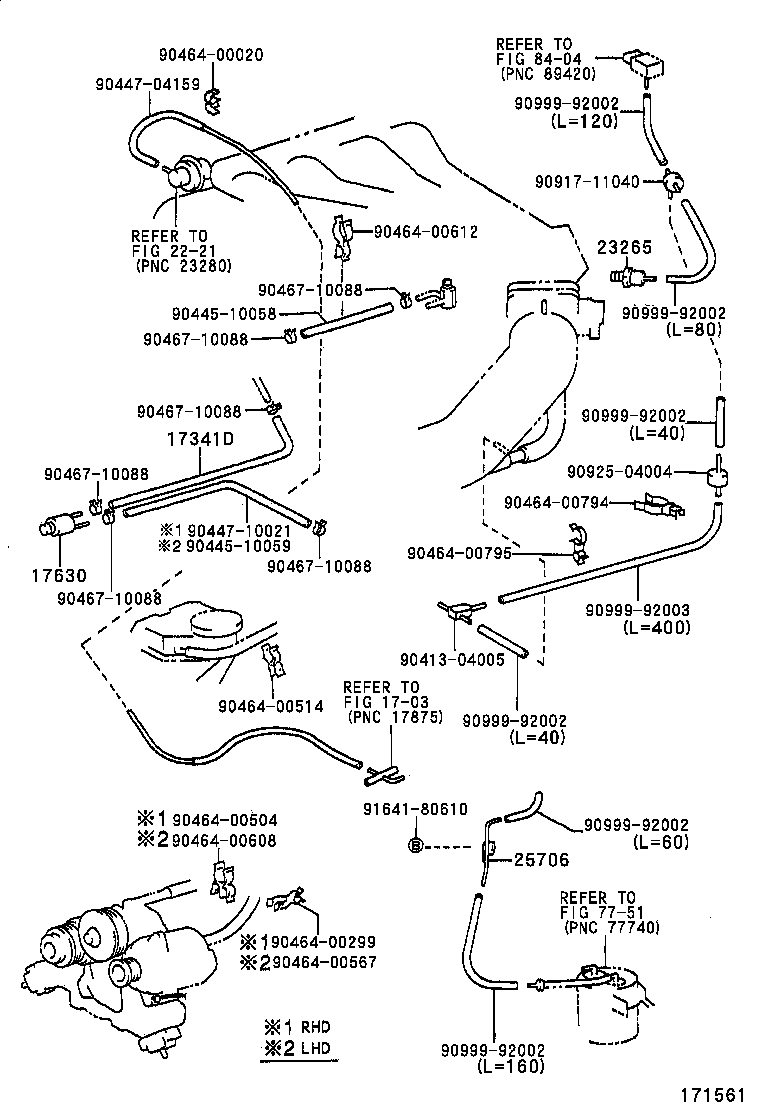

Vacuum Piping
5 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17341D | Hose, NO.1(FOR IDLE-UP) |
| 17630 | Valve Assy, Air Control |
| 17650 | Valve Assy, Vacuum Switching |
| 23265 | Filter, Gas, NO.1 |
| 25706 | Pipe Sub-assy, Vacuum Transmitting, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
