Toyota Previa

1990-05 → 1999-12 · chassis TCR1#,2# · catalogue 652240 · General

Discontinued model Data version 2000-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

35 part groups · 2 illustrations

Illustrations

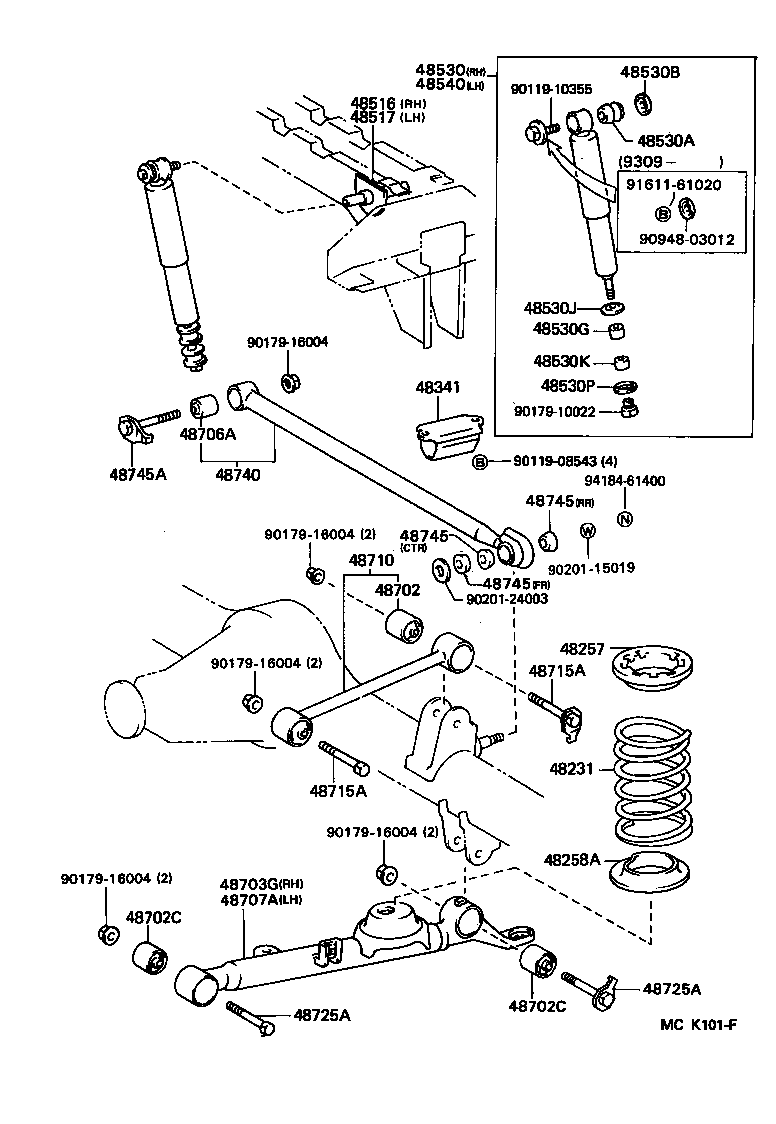

Figure 480137 480137 1990-05 → — Figure MCK101F MCK101F 1990-05 → —

Part groups

PNCDescription
42304 Carrier Sub-assy, Rear Axle, RH
42305 Carrier Sub-assy, Rear Axle, LH
48190R Cam Assy, Camber Adjust
48198R Cam, Rear Suspension Camber Adjust, NO.2
48231 Spring, Coil, Rear
48257 Insulator, Rear Coil Spring
48258A Insulator, Rear Coil Spring, Lower
48306 Bumper Sub-assy, Rear Spring
48341 Bumper, Rear Spring
48409 Cam Sub-assy, Rear Suspension Toe Adjust
48516 Bracket, Rear Shock Absorber, Upper RH
48517 Bracket, Rear Shock Absorber, Upper LH
48530 Absorber Assy, Shock, Rear RH
48530A Bush(FOR REAR SHOCK ABSORBER)
48530B Washer, Rear Shock Absorber Cushion, NO.1
48530G Cushion, Rear Shock Absorber, NO.1
48530J Retainer, Cushion, NO.1(FOR REAR SHOCK ABSORBER)
48530K Cushion, Rear Shock Absorber, NO.2
48530P Retainer, Cushion, NO.2(FOR REAR SHOCK ABSORBER)
48540 Absorber Assy, Shock, Rear LH
48702 Bush Sub-assy, Upper Control Arm
48702C Bush Sub-assy, Lower Control Arm
48703G Arm Sub-assy, Lower Control, RH
48706A Bush Sub-assy, Rear Lateral Control Rod
48707A Arm Sub-assy, Lwr Control, LH
48710 Arm Assy, Upper Control
48715A Bolt, Hexagon(FOR UPPER CONTROL ARM)
48720 Arm Assy, Lower Control, RH
48725A Bolt(FOR LOWER CONTROL ARM)
48730 Arm Assy, Lower Control, LH
48740 Rod Assy, Rear Lateral Control
48745 Bush, Lateral Control Rod
48745A Bolt, Hexagon(FOR LATERAL CONTROL ROD)
48770A Arm Assy, Upper Control, Rear RH
48790 Arm Assy, Upper Control, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
