Toyota Previa

1990-05 → 1999-12 · chassis TCR1#,2# · catalogue 652240 · General

Discontinued model Data version 2000-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

26 part groups · 6 illustrations

Illustrations

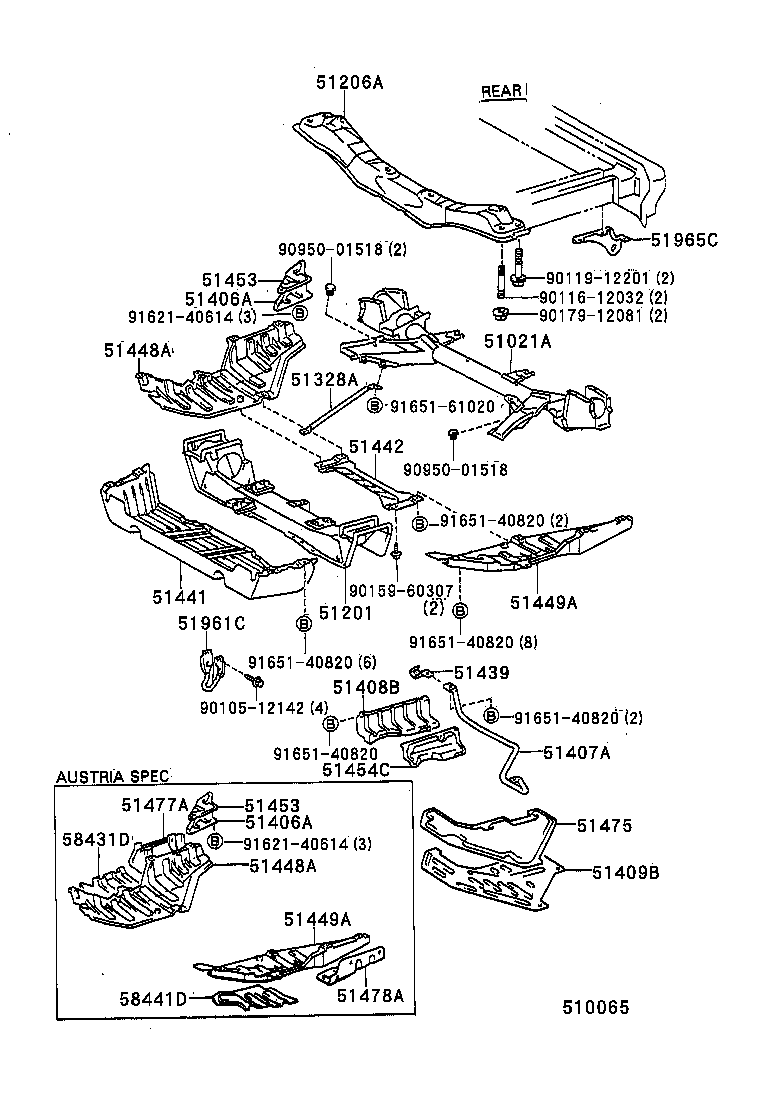

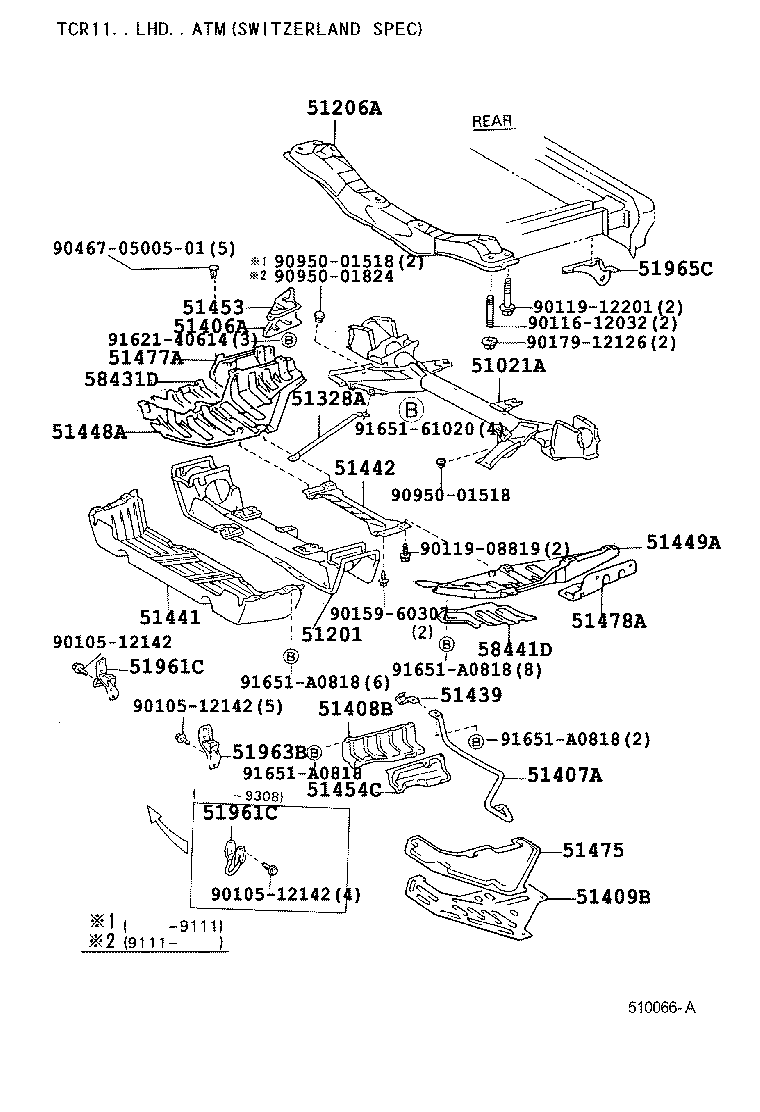

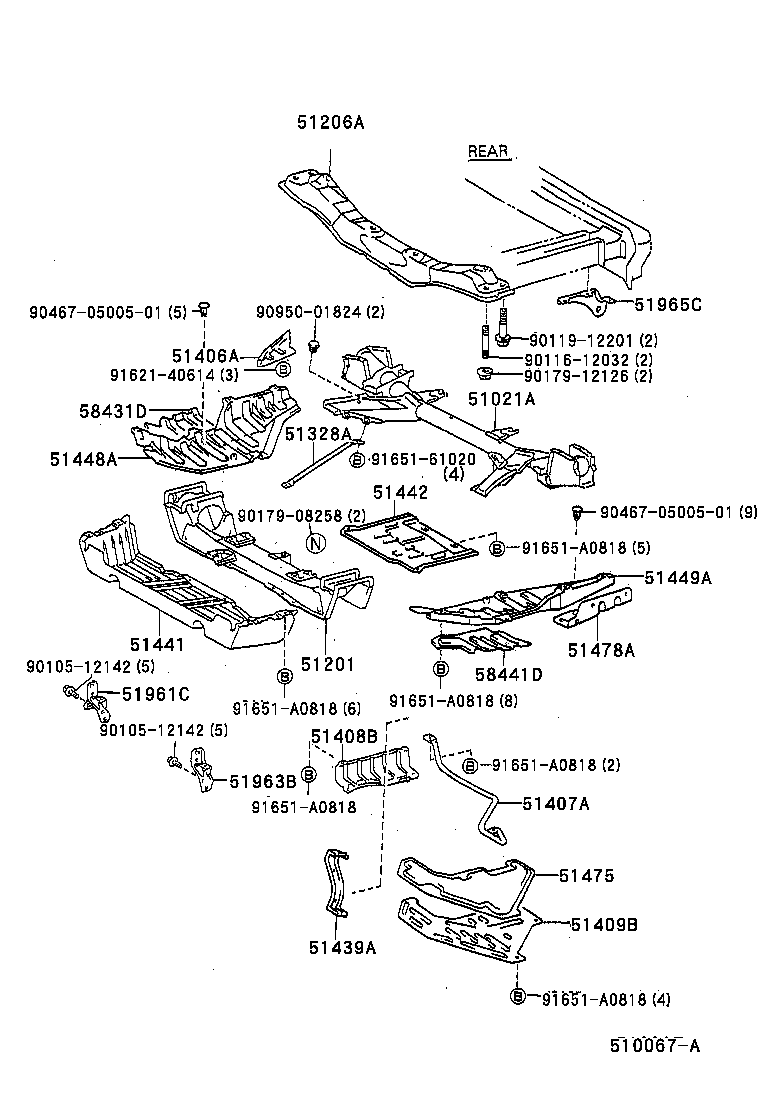

Figure 510064A 510064A 1990-05 → 1991-08 Figure 510064A 510064A 1991-08 → — Figure 510065 510065 1990-05 → 1991-08 Figure 510066A 510066A 1990-05 → 1996-04 Figure 510066A 510066A 1991-08 → 1996-08 Figure 510067A 510067A 1996-08 → —

Part groups

PNCDescription
51021A Member Sub-assy, Engine Front Support
51201 Crossmember Sub-assy, Front Suspension
51206A Member Sub-assy, Rear Suspension
51328A Support, Front Suspension Member, Front
51405A Cover Sub-assy, Engine Under, NO.1
51406A Cover Sub-assy, Engine Under, NO.2
51407A Cover Sub-assy, Engine Under, NO.3
51408B Cover Sub-assy, Engine Under, RH
51409B Cover Sub-assy, Engine Under, LH
51439 Plate, Engine Rear Side Shutter
51439A Bracket, Engine Side Cover, NO.2 LH
51441 Cover, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51447D Cover, Engine Under, NO.4 Center
51448A Cover, Engine Side Under, RH
51449A Cover, Engine Side Under, LH
51453 Silencer, Engine Under Cover, Front
51454C Silencer, Engine Under Cover, Rear
51475 Silencer, Engine Under Cover, NO.5
51477A Silencer, Engine Under Cover, RH
51478A Silencer, Engine Under Cover, LH
51961C Hook, Front
51963B Hook, Transport, Front RH
51965C Hook, Rear
58431D Silencer, Engine Room Side, Front RH
58441D Silencer, Enging Room Side, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
