Toyota Previa
1990-05 → 1999-12 · chassis TCR1#,2# · catalogue 652240 · General
Discontinued model
Data version 2000-07

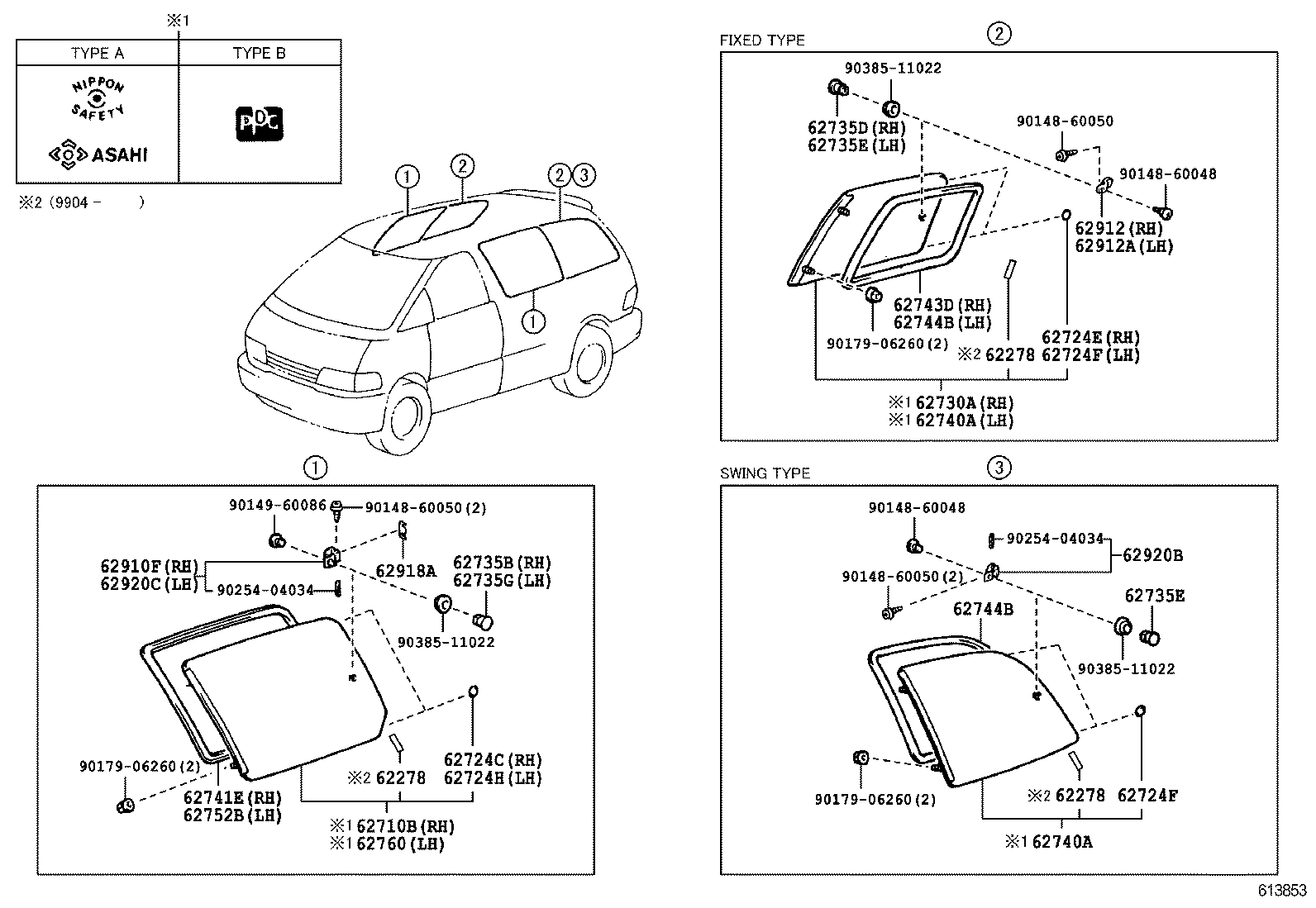

Side Window
24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62278 | Protector, Side Window |
| 62710B | Window Assy, Side, Front RH |
| 62724C | Stop, Side Front Window Glass, RH |
| 62724E | Stop, Side Rear Window Glass, RH |
| 62724F | Stop, Side Rear Window Glass, LH |
| 62724H | Stop, Slide Door Window Glass, LH |
| 62730A | Window Assy, Side, Rear RH |
| 62735B | Retainer, Side Front Window Hinge, RH |
| 62735D | Retainer, Side Rear Window Hinge, RH |
| 62735E | Retainer, Side Rear Window Hinge, LH |
| 62735G | Retainer, Slide Door Window Hinge, LH |
| 62740A | Window Assy, Side, Rear LH |
| 62741E | Weatherstrip, Side Front Window, RH |
| 62743D | Weatherstrip, Side Rear Window, RH |
| 62744B | Weatherstrip, Side Rear Window, LH |
| 62752B | Weatherstrip, Slide Door Window, LH |
| 62760 | Window Assy, Slide Door, LH |
| 62910F | Lock Assy, Side Front Window, RH |
| 62910G | Lock Assy, Side Rear Window, RH |
| 62912 | Base, Side Window Lock Hook, RH |
| 62912A | Base, Side Window Lock Hook, LH |
| 62918A | Spacer, Side Window Frame |
| 62920B | Lock Assy, Side Rear Window, LH |
| 62920C | Lock Assy, Slide Door Window, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
