Toyota Previa
1990-05 → 1999-12 · chassis TCR1#,2# · catalogue 652240 · General
Discontinued model
Data version 2000-07

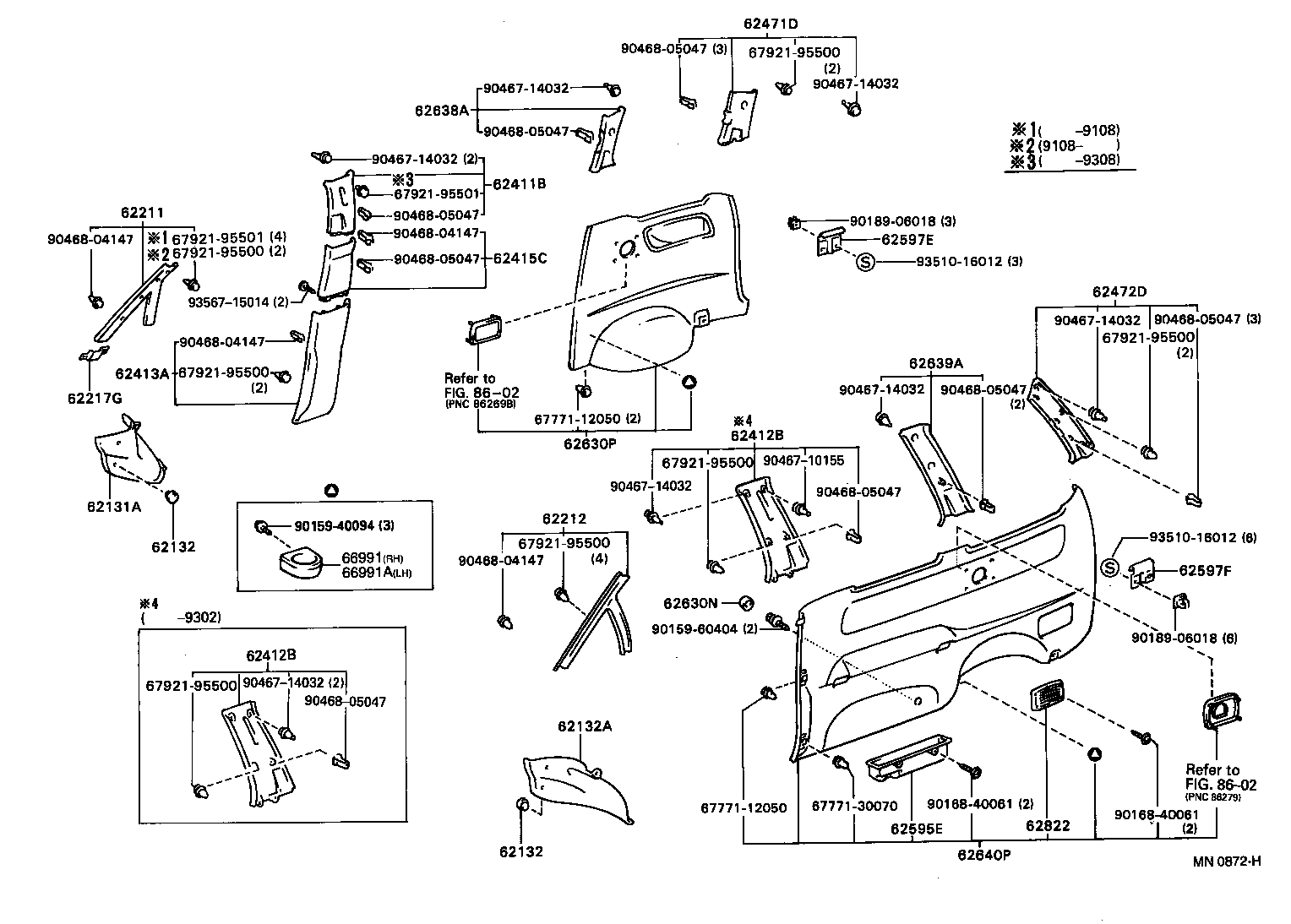

Inside Trim Board
27 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62131A | Carpet, Cowl Side, RH |
| 62132 | Clip(FOR COWL SIDE CARPET) |
| 62132A | Carpet, Cowl Side, LH |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62217G | Clip, Front Pillar Garnish |
| 62411B | Garnish, Center Pillar, Upper RH |
| 62412B | Garnish, Center Pillar, Upper LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62415C | Board, Center Pillar Garnish, RH |
| 62416C | Board, Center Pillar Garnish, LH |
| 62471D | Garnish, Rear Pillar, Upper RH |
| 62472D | Garnish, Rear Pillar, Upper LH |
| 62594E | Pocket, Quarter Trim, RH |
| 62595E | Pocket, Quarter Trim, LH |
| 62597E | Clamp, Quarter Trim, RH |
| 62597F | Clamp, Quarter Trim, LH |
| 62630M | Cap(FOR QUARTER TRIM, RH) |
| 62630N | Cap(FOR QUARTER TRIM, LH) |
| 62630P | Panel Assy, Quarter Trim, Rear RH |
| 62638A | Garnish, Quarter Pillar, RH |
| 62639A | Garnish, Quarter Pillar, LH |
| 62640P | Panel Assy, Quarter Trim, Rear LH |
| 62822 | Grille, Room Ventilation, LH |
| 66991 | Holder, Quarter Trim Cup, RH |
| 66991A | Holder, Quarter Trim Cup, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
