Toyota Previa/Tarago

2000-02 → 2006-01 · chassis ACR30,CLR30 · catalogue 652250 · General

Discontinued model Data version 2006-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

14 part groups · 2 illustrations

Illustrations

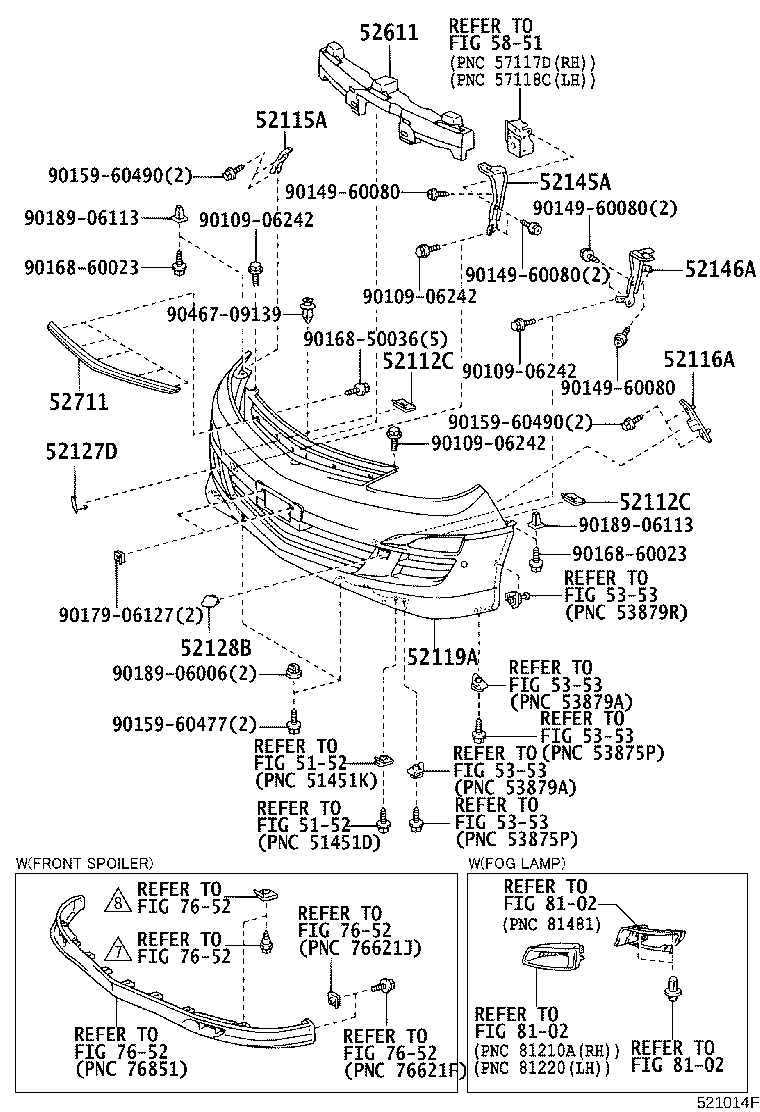

Figure 520605I 520605I 2000-02 → 2003-04 Figure 521014F 521014F 2003-04 → —

Part groups

PNCDescription
52112C Extension, Front Bumper
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52145A Stay, Front Bumper, NO.2 RH
52146A Stay, Front Bumper, NO.2 LH
52611 Absorber, Front Bumper Energy
52711 Moulding, Front Bumper
53112C Grille, Radiator, Lower RH
53113C Grille, Radiator, Lower LH
53127A Grille, Radiator, Lower RH
53128A Grille, Radiator, Lower LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
