Toyota Previa/Tarago

2000-02 → 2006-01 · chassis ACR30,CLR30 · catalogue 652250 · General

Discontinued model Data version 2006-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

9 part groups · 3 illustrations

Illustrations

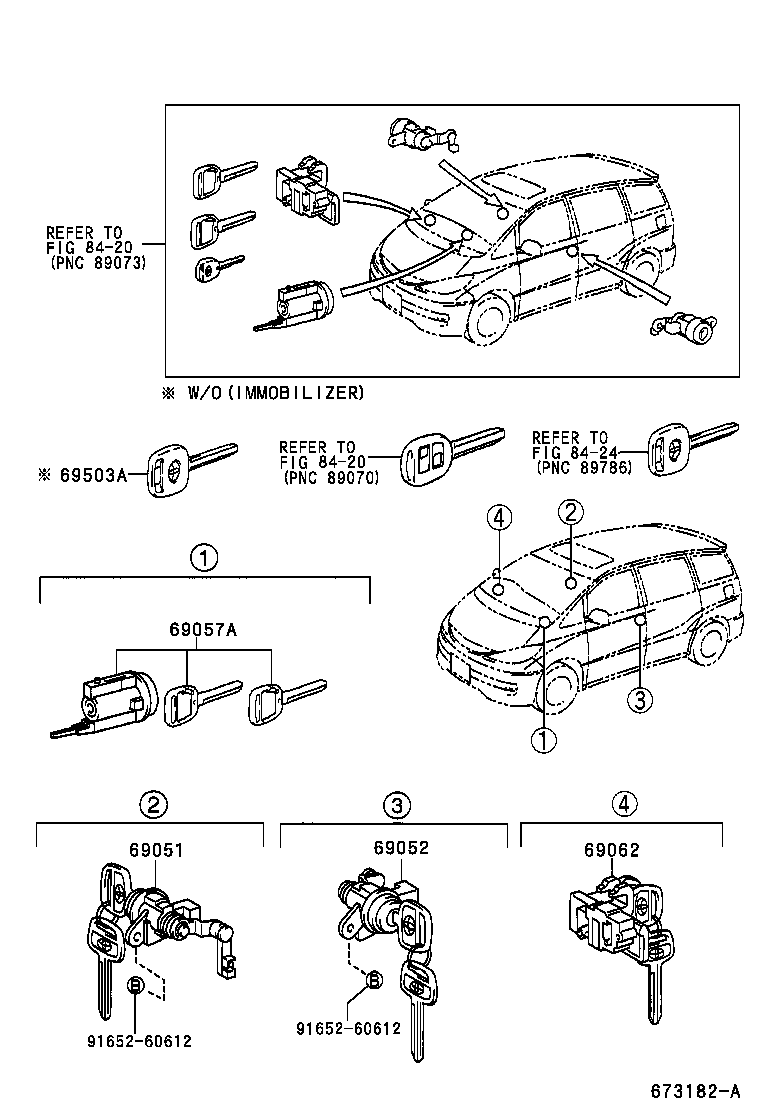

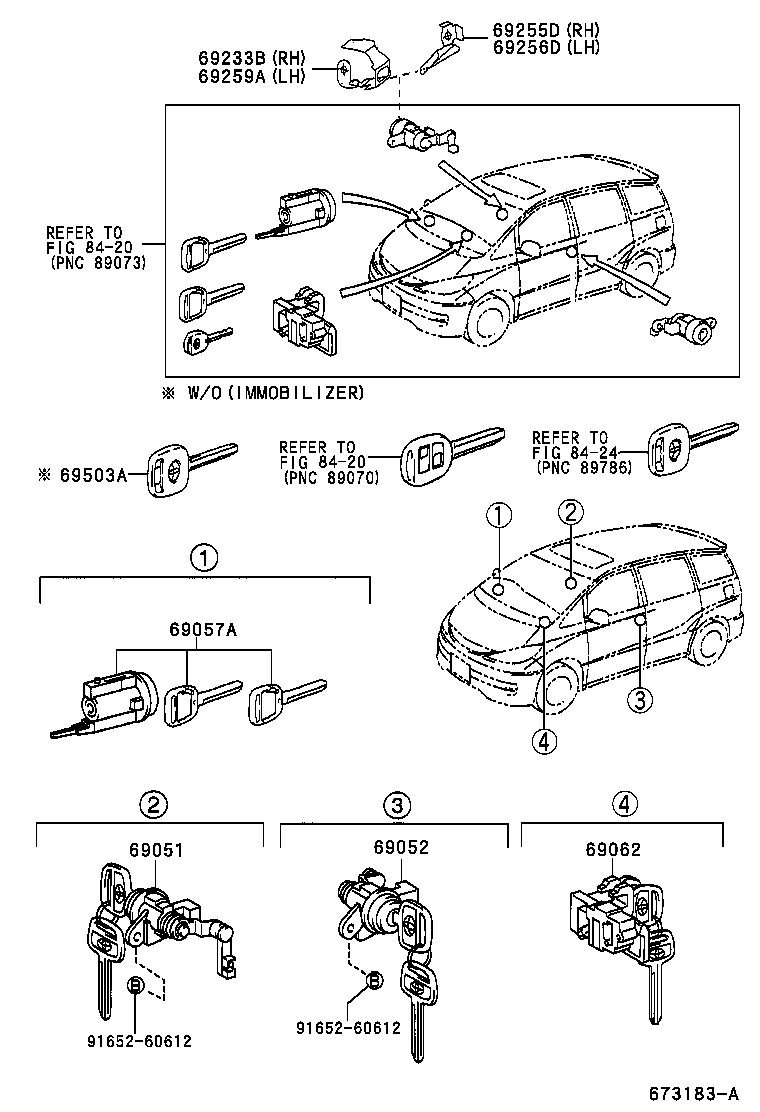

Figure 671923B 671923B 2000-02 → 2003-04 Figure 673182A 673182A 2003-04 → — Figure 673183A 673183A 2003-04 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69057A Cylinder & Key Set, Ignition Switch Lock
69062 Cylinder & Key Set, Glove Compartment Lock
69233B Retainer, Door Outside Handle, RH
69255D Protector, Door Outside Handle
69256D Protector, Door Outside Handle, RH
69259A Retainer, Door Outside Handle, LH
69503A Key, Blank
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
