Toyota Previa/Tarago
2000-02 → 2006-01 · chassis ACR30,CLR30 · catalogue 652250 · General
Discontinued model
Data version 2006-09

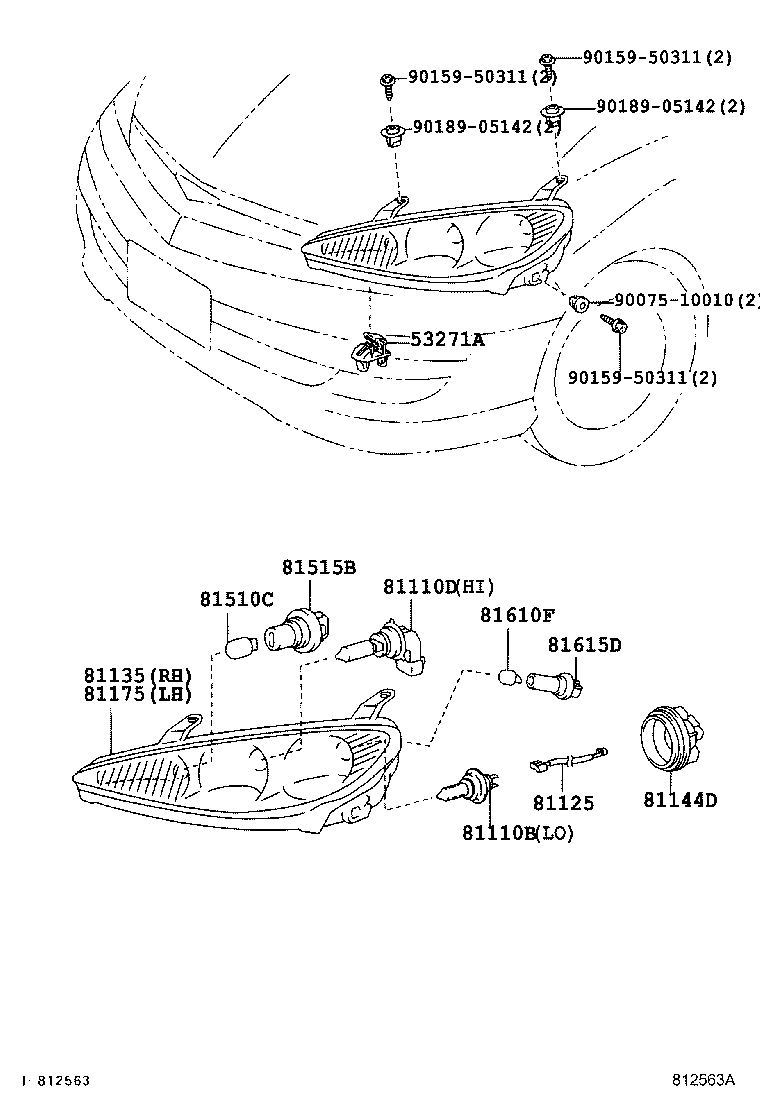

Headlamp
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53271A | Bracket, Headlamp Mounting |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81110D | Bulb(FOR HEADLAMP, NO.2) |
| 81125 | Cord, Headlamp |
| 81135 | Unit Assy, Headlamp, RH |
| 81144C | Cover, Headlamp Socket |
| 81144D | Cap, Headlamp Locking |
| 81175 | Unit Assy, Headlamp, LH |
| 81210D | Bulb, Fog Lamp |
| 81510C | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81515B | Socket, Front Turn Signal Lamp |
| 81610F | Bulb(FOR CLEARANCE LAMP) |
| 81615D | Socket, Clearance Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
