Toyota Previa/Tarago

2000-02 → 2006-01 · chassis ACR30,CLR30 · catalogue 652250 · General

Discontinued model Data version 2006-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

112 part groups · 17 illustrations

Illustrations

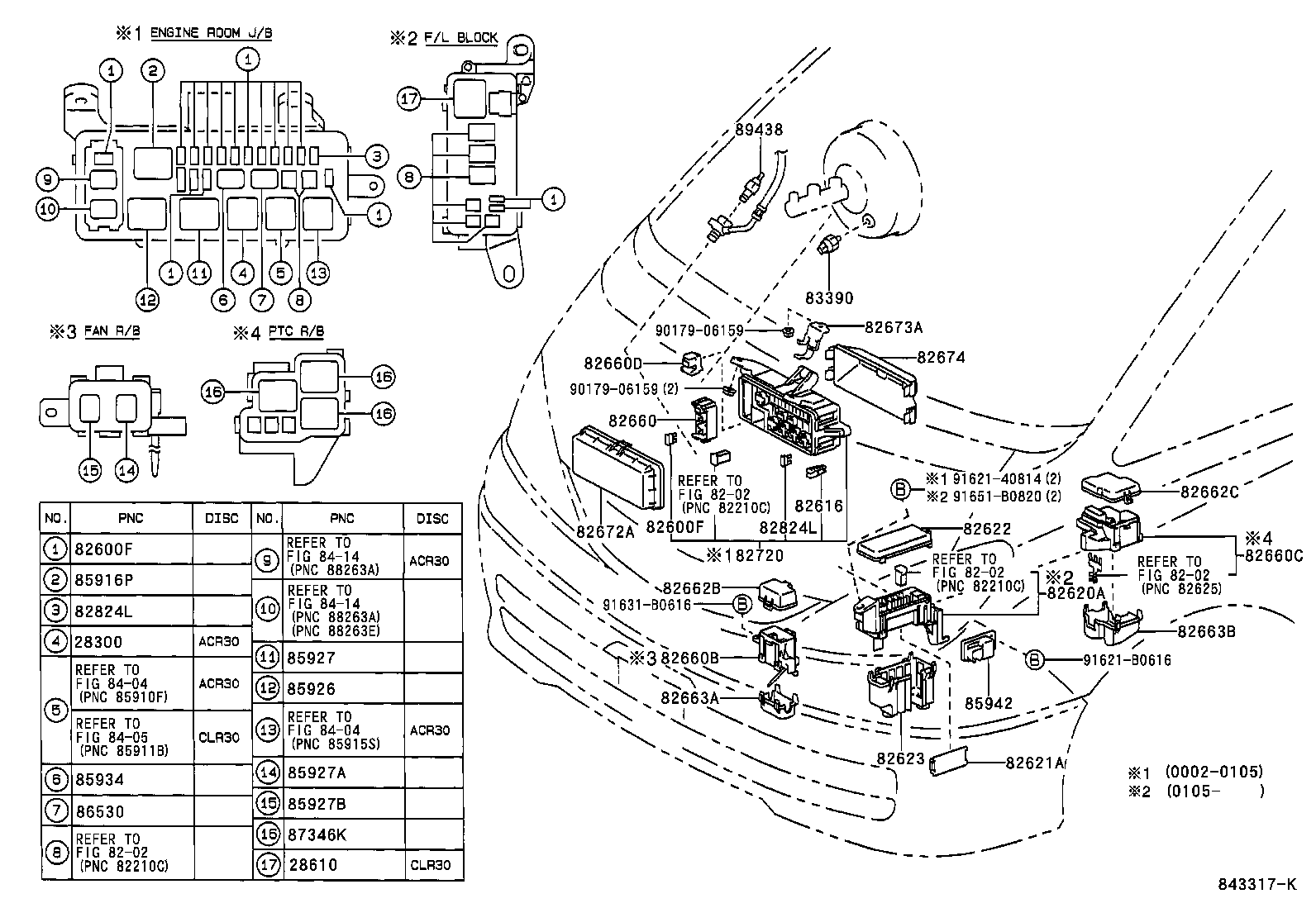

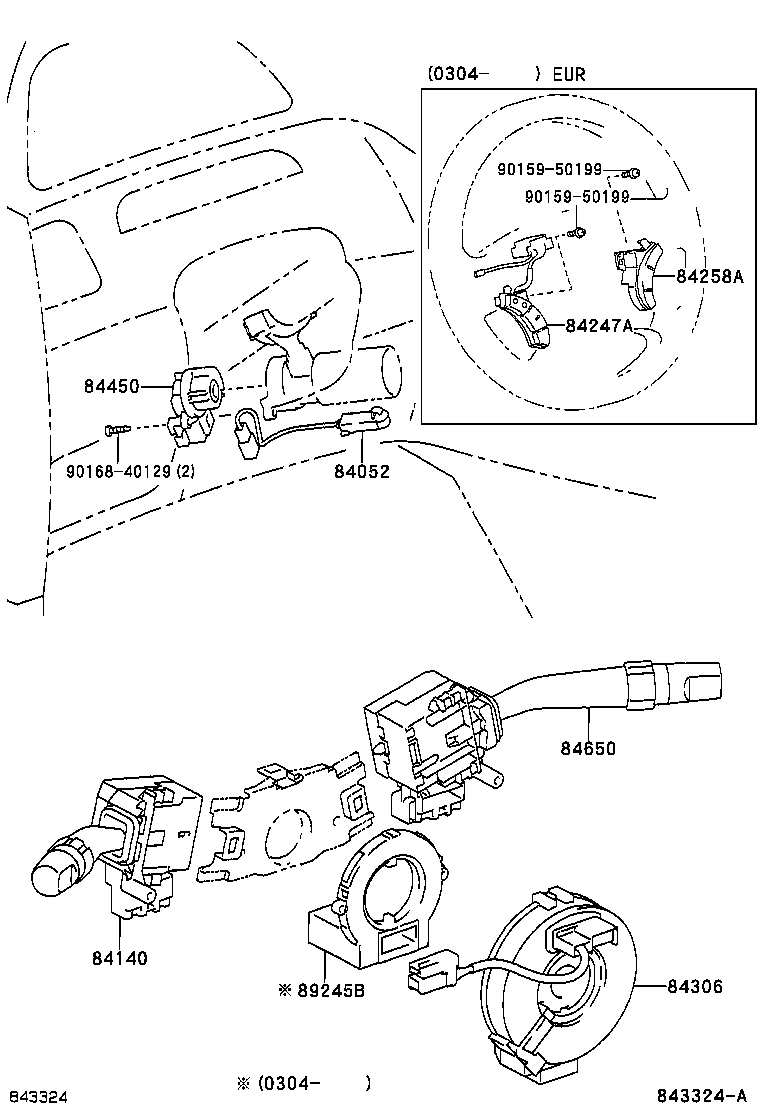

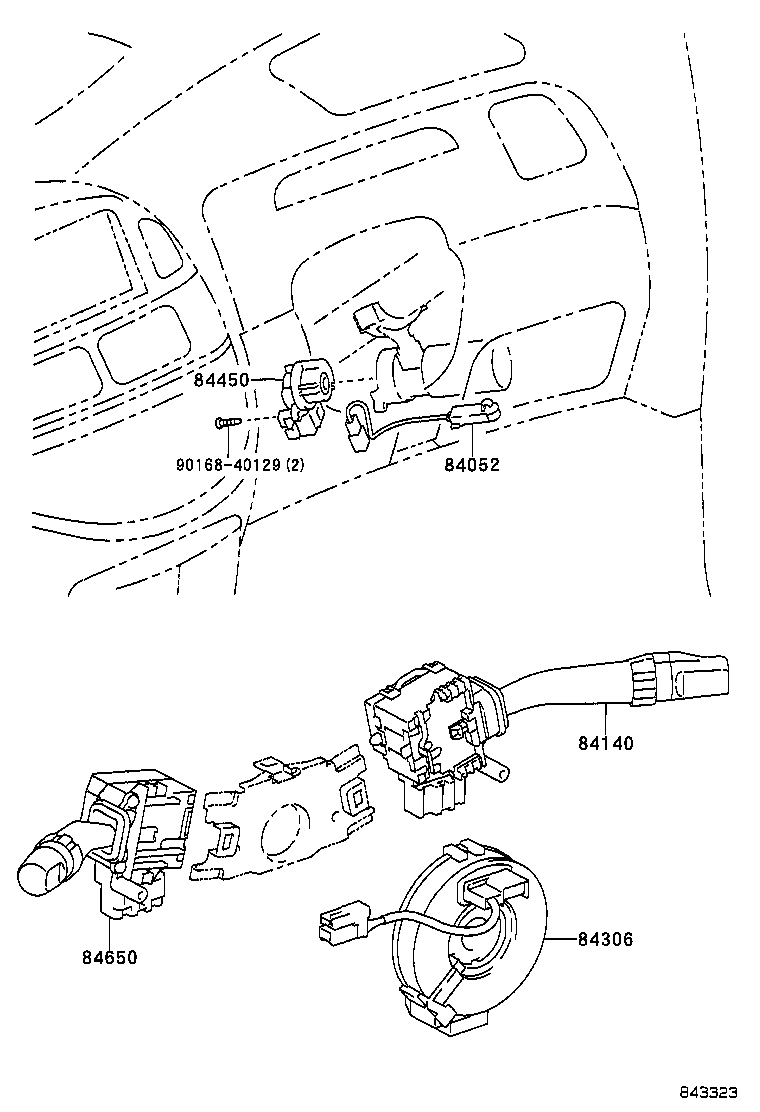

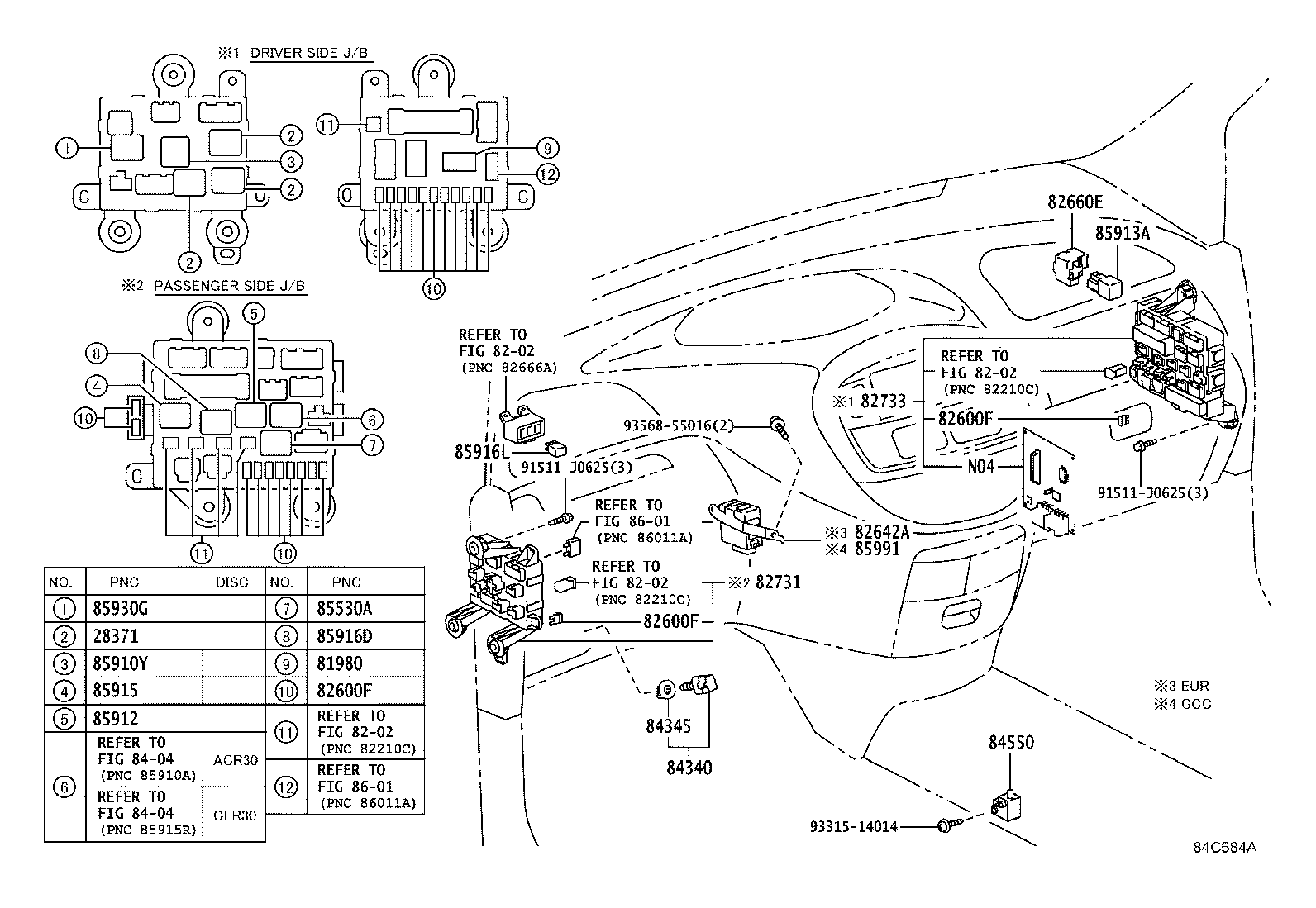

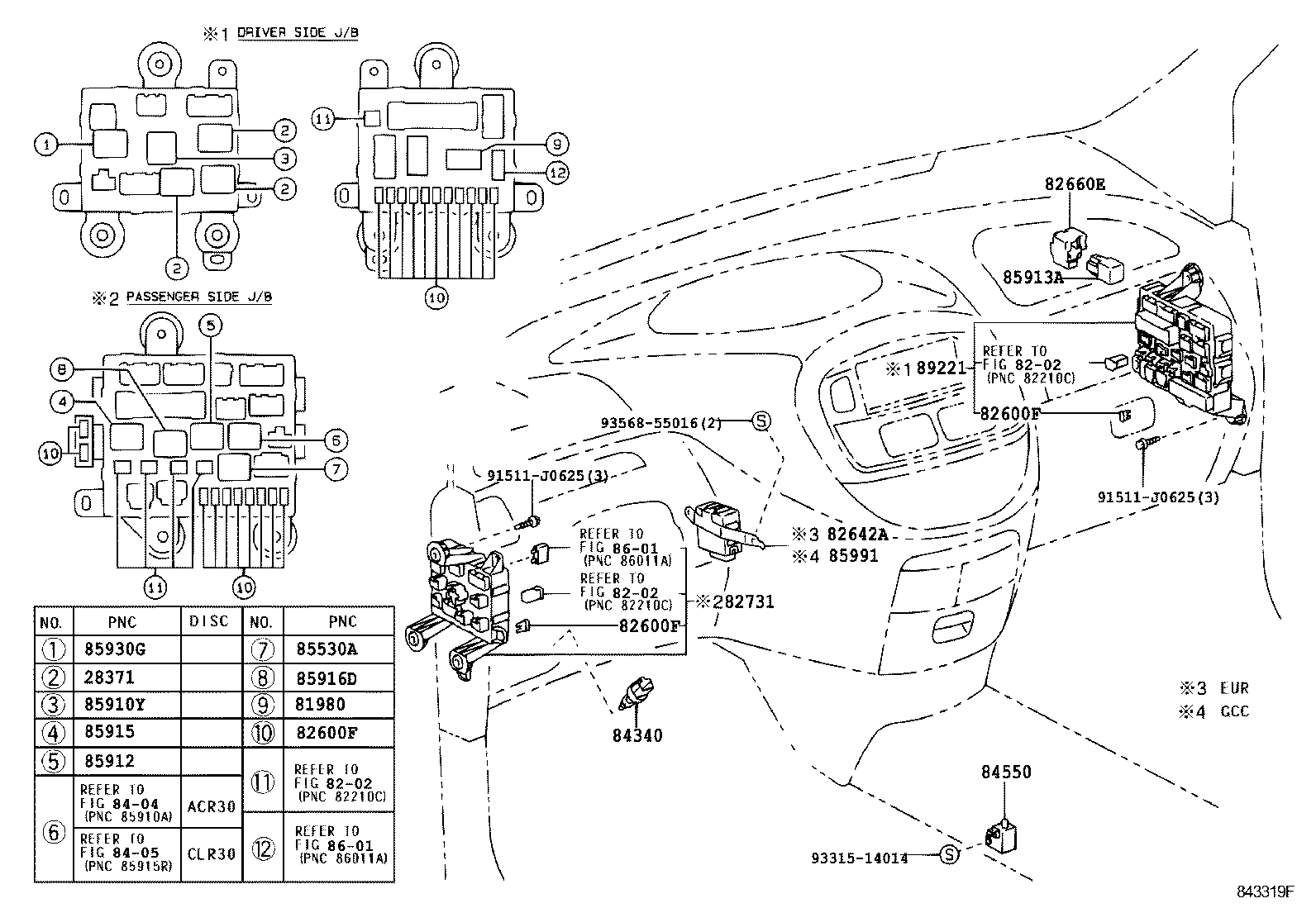

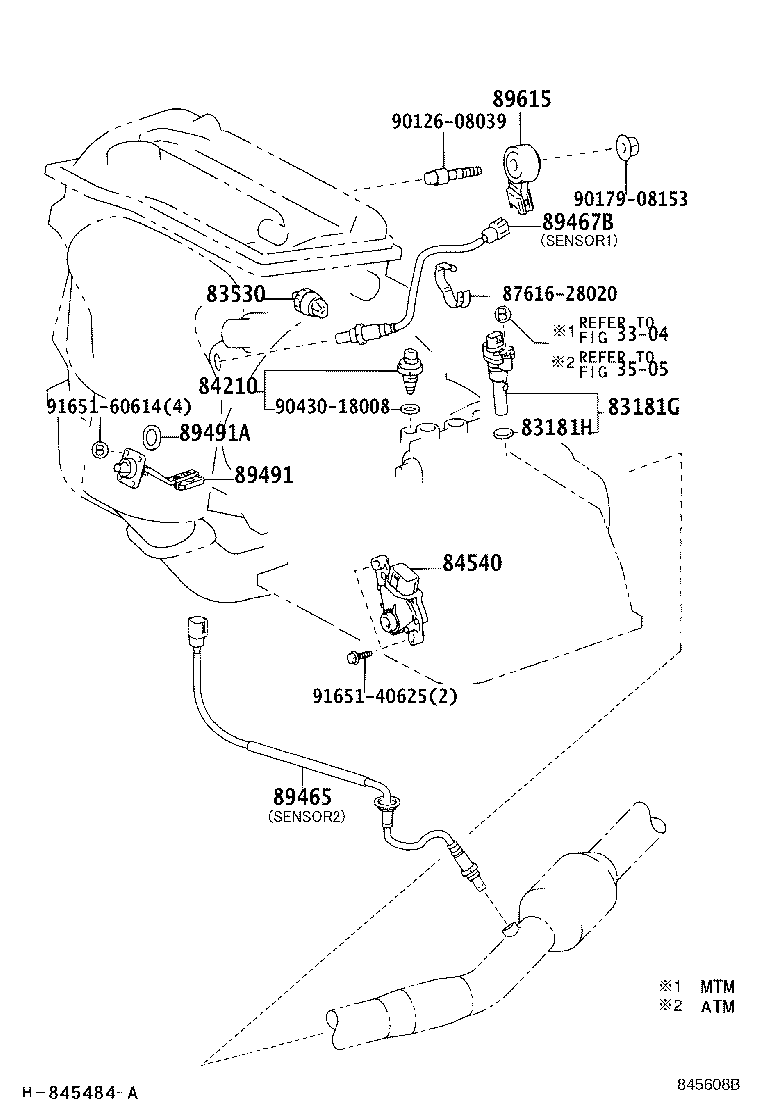

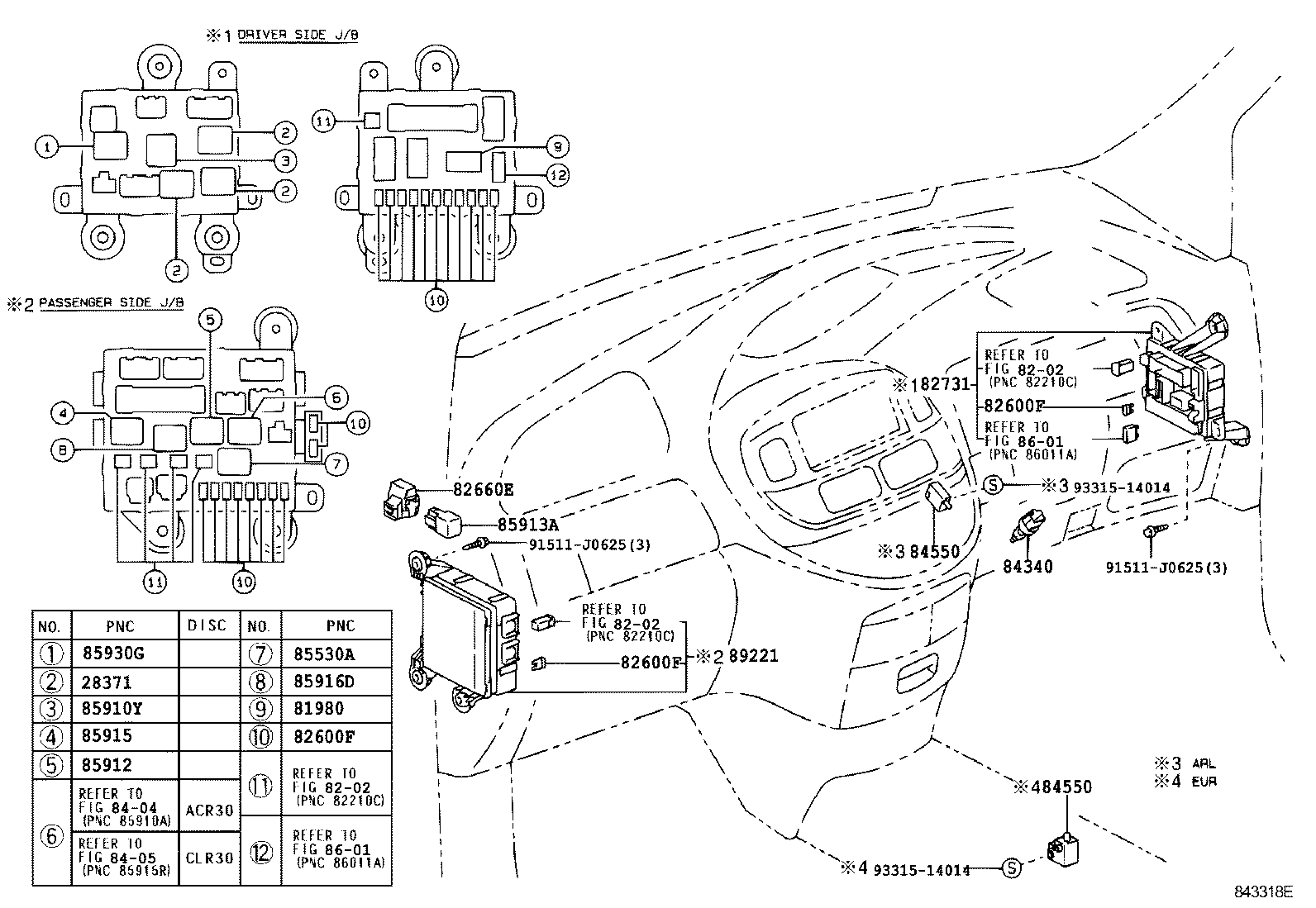

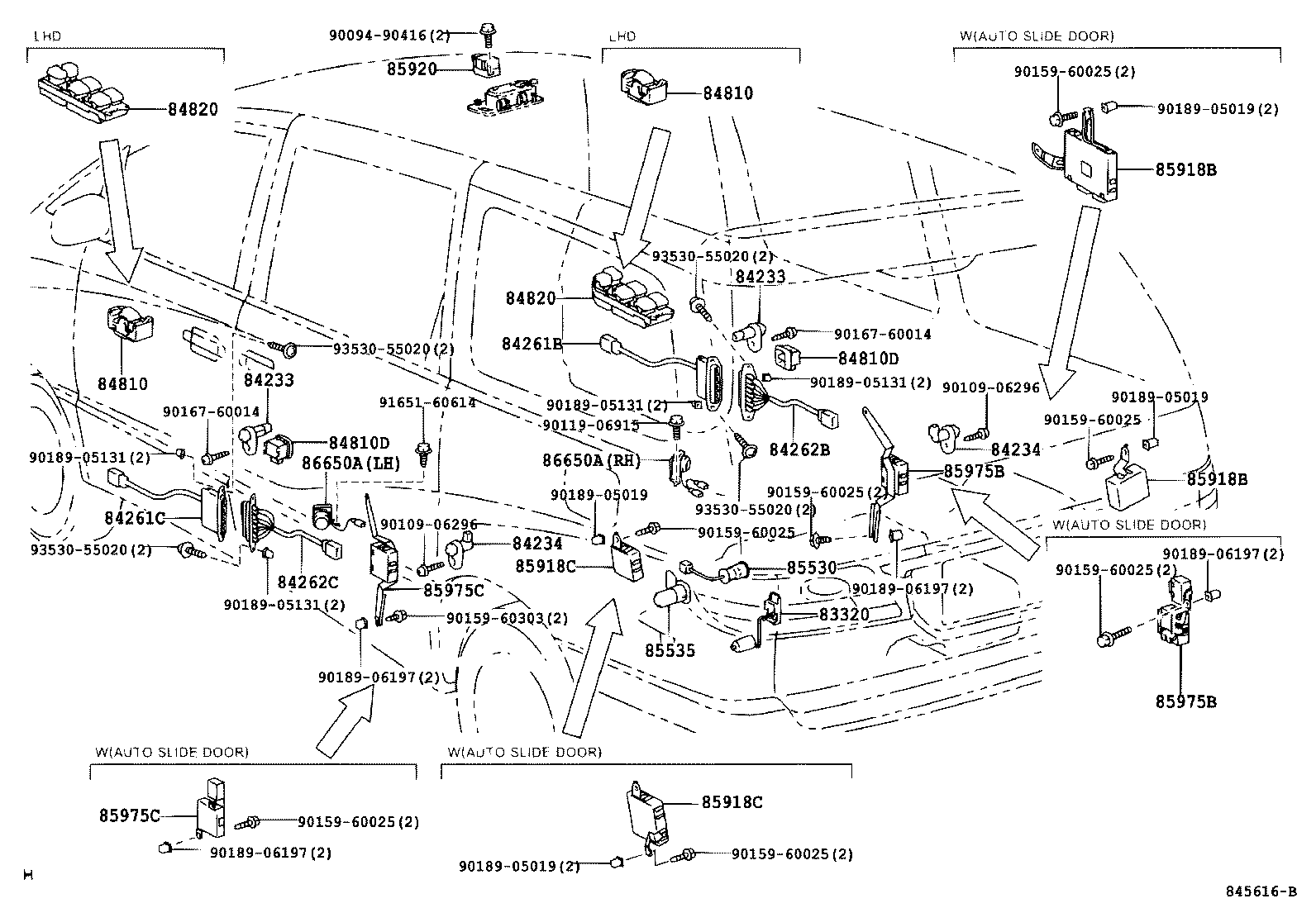

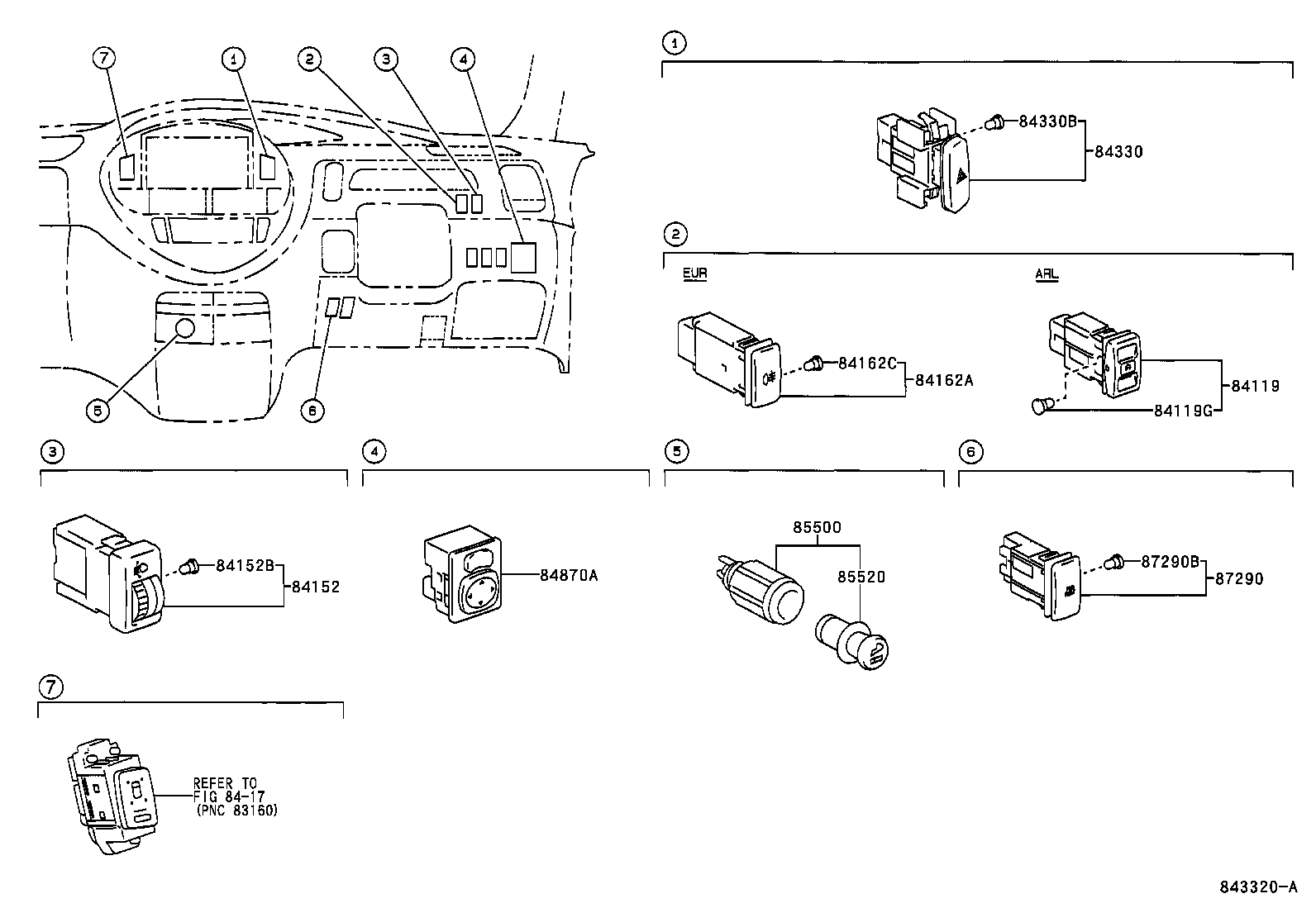

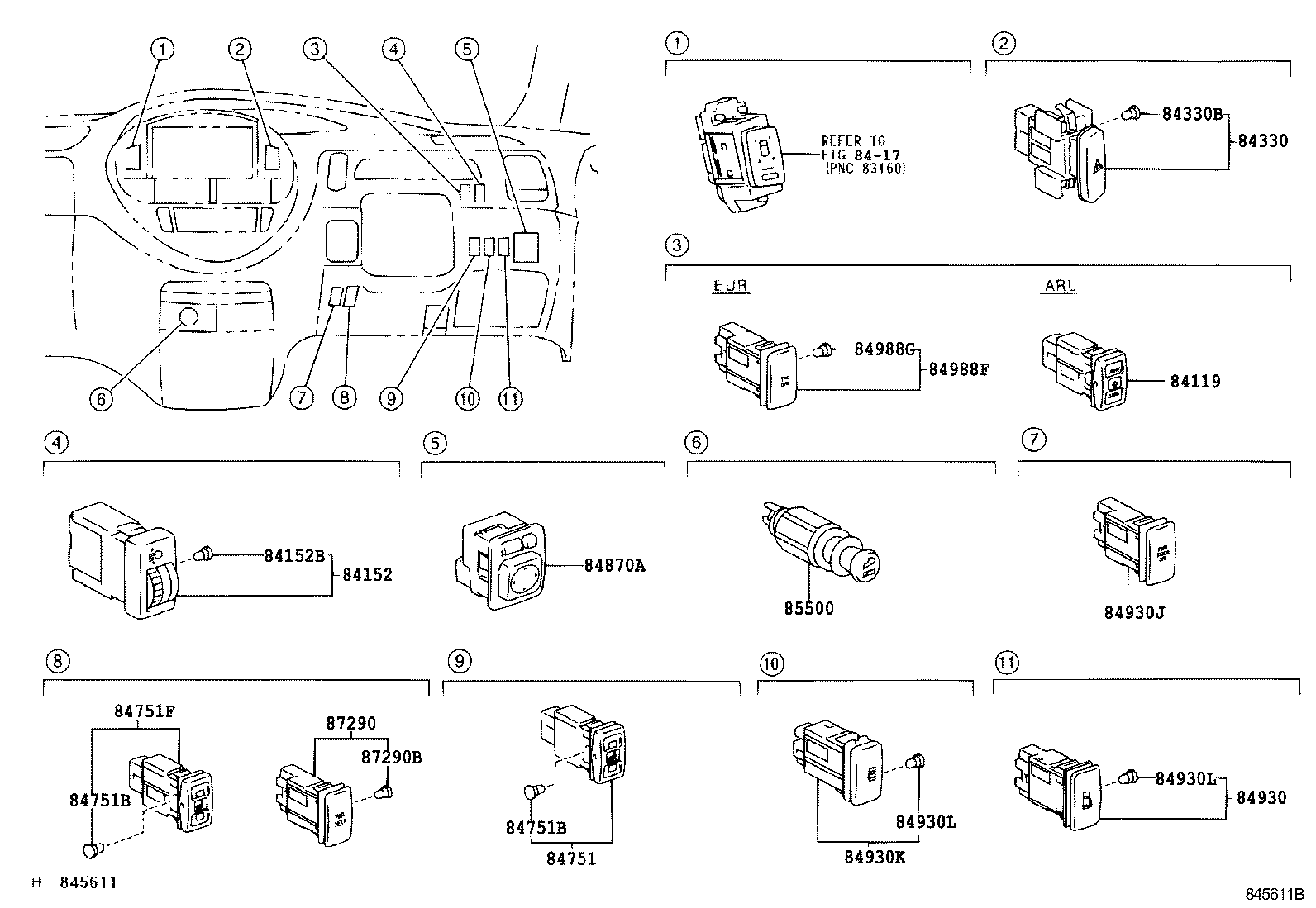

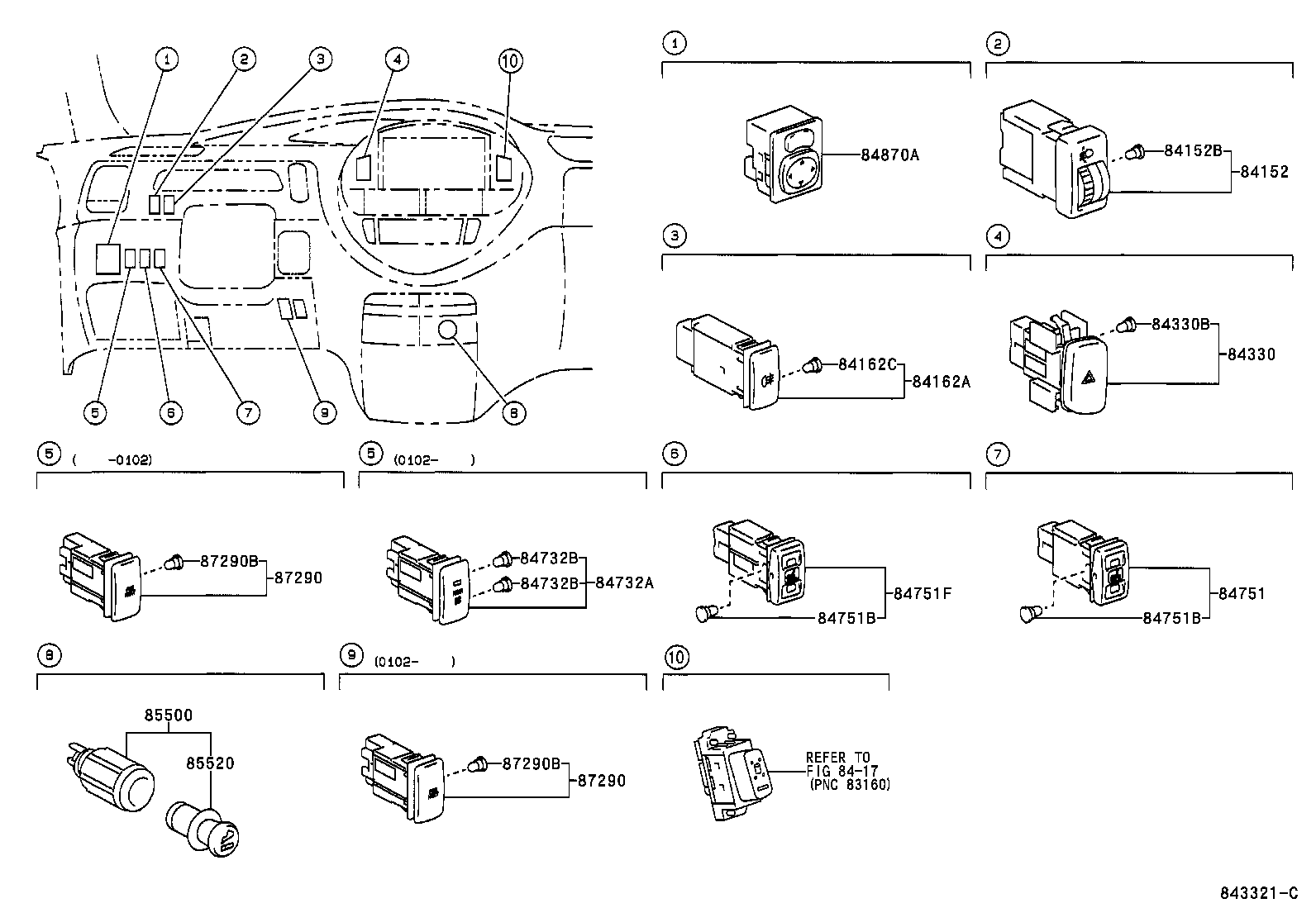

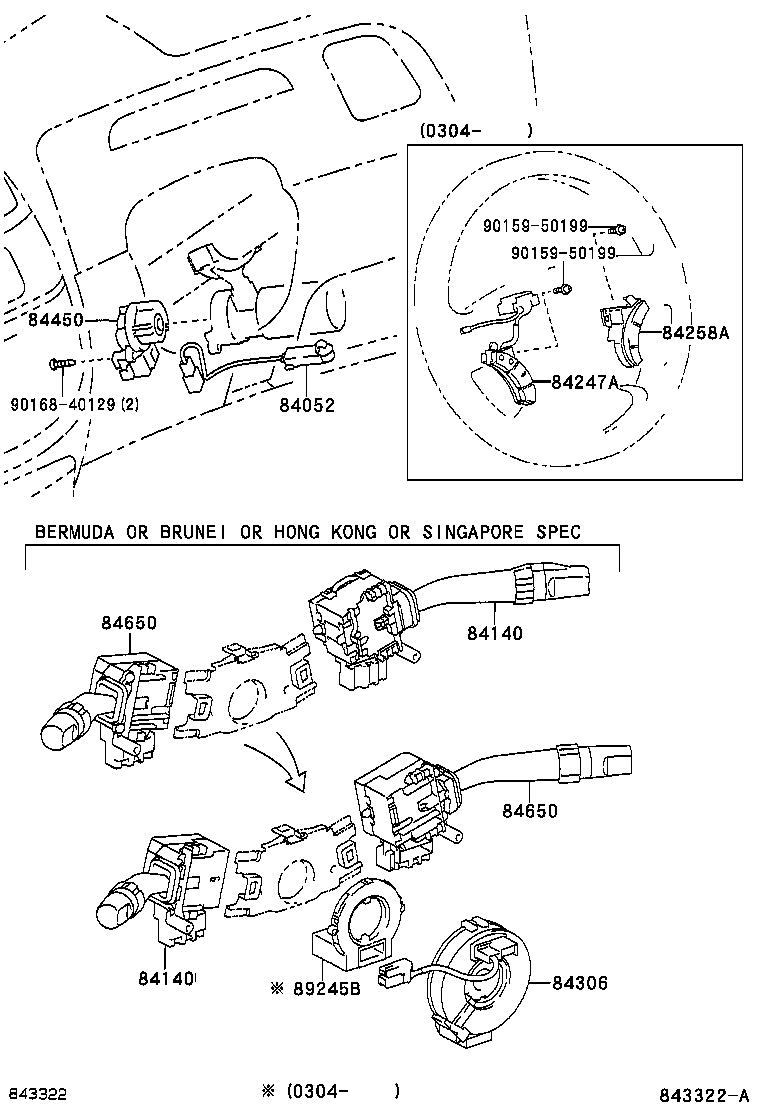

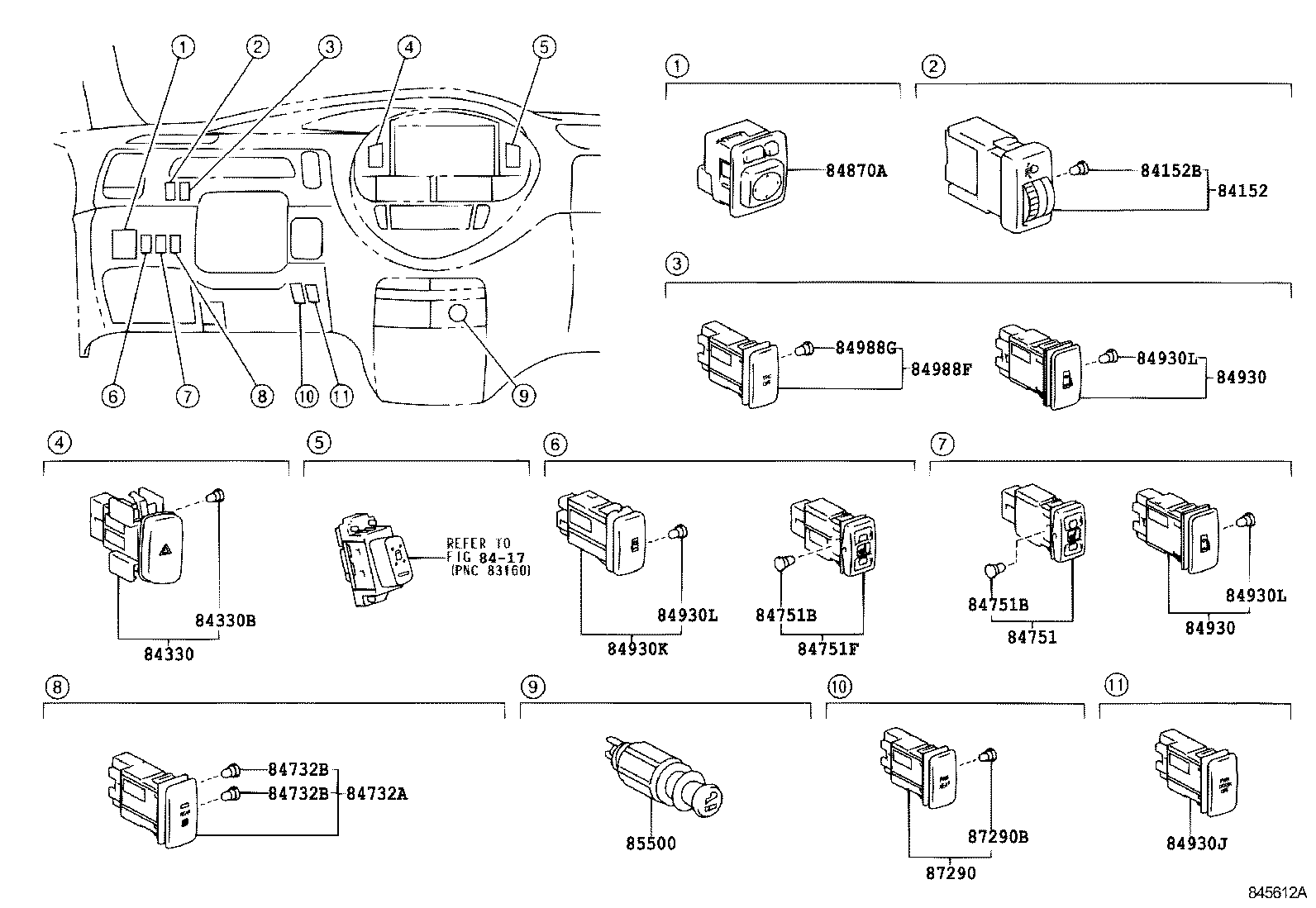

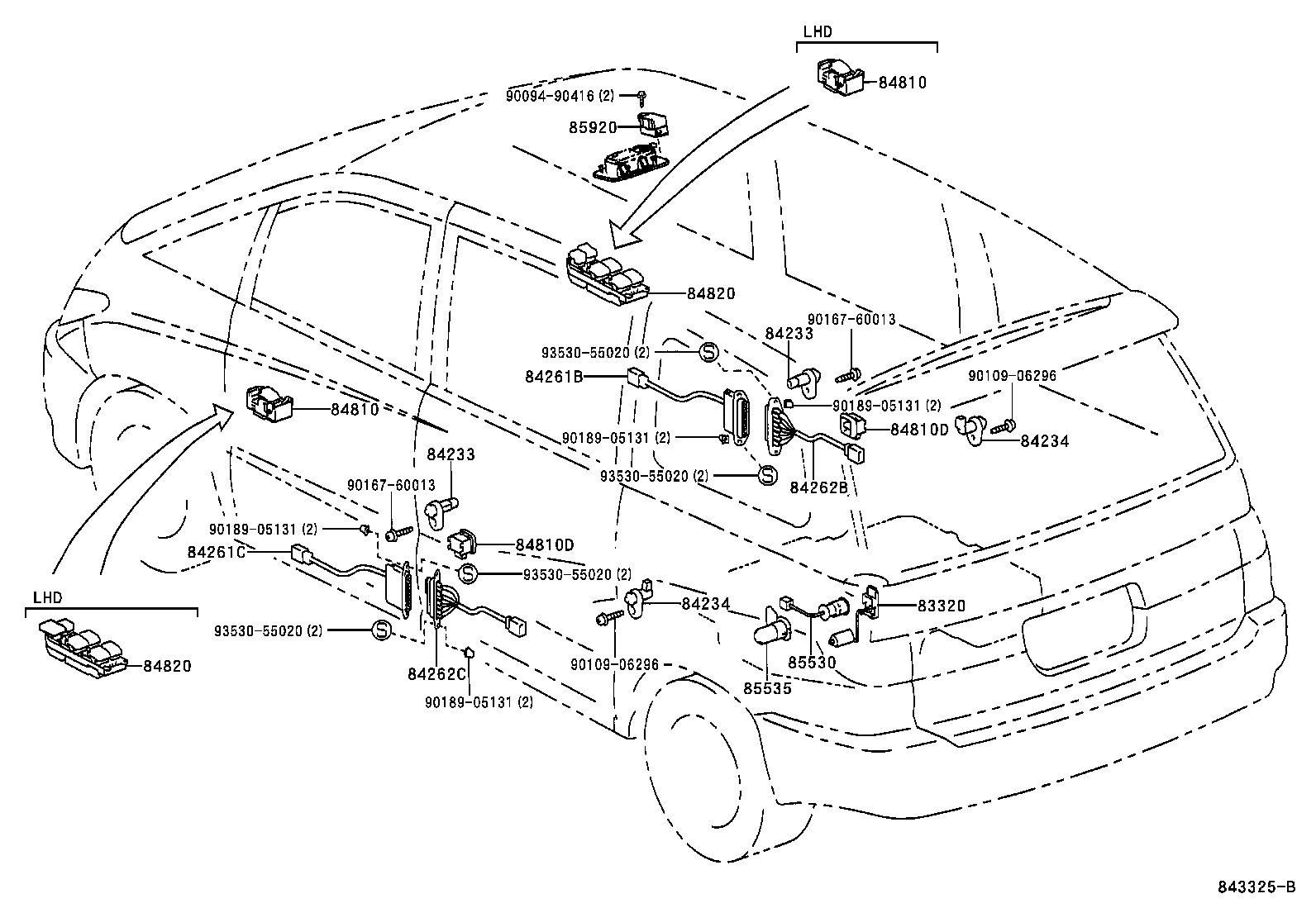

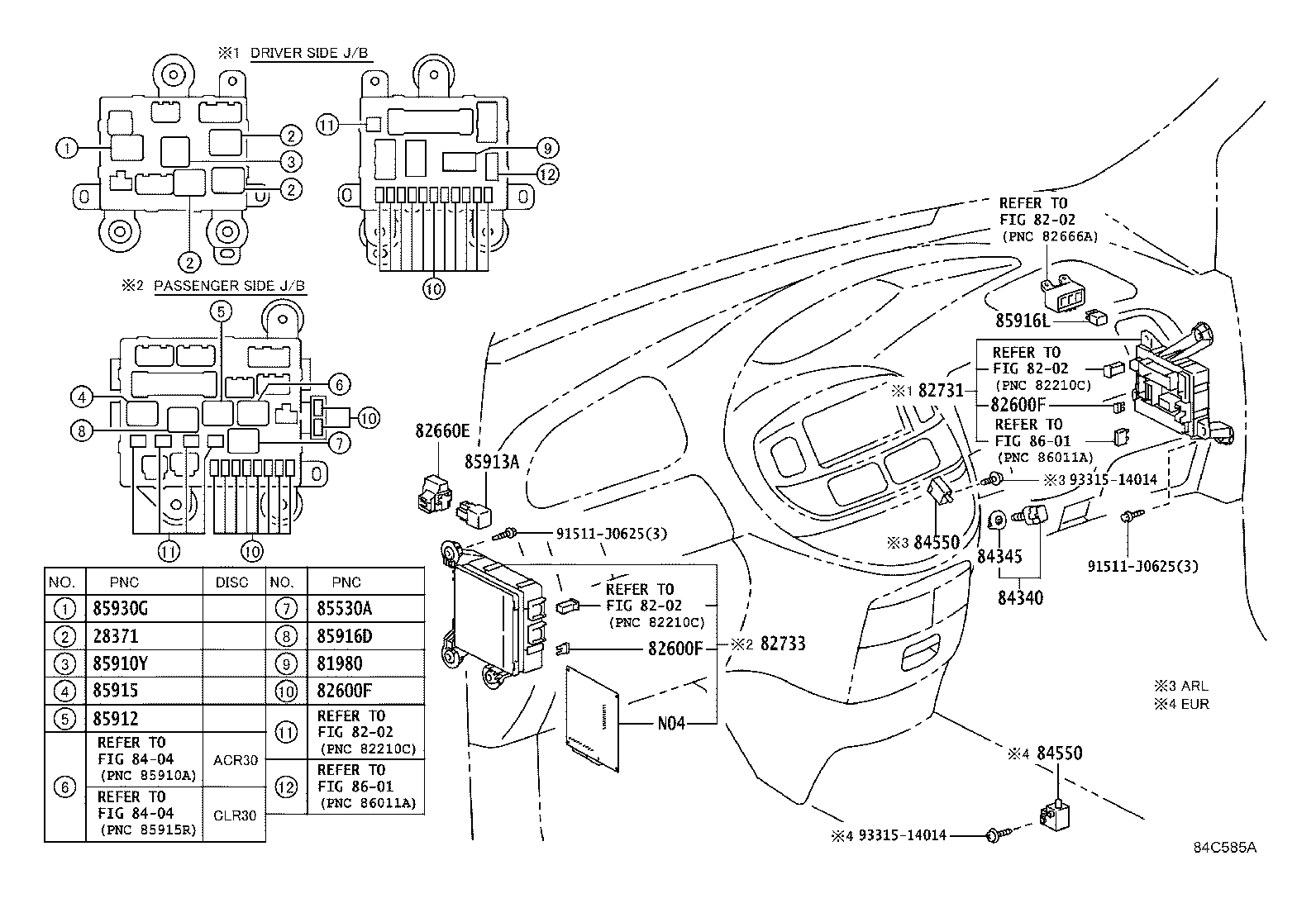

Figure 843962F 843962F 2000-02 → 2003-04 Figure 844042B 844042B 2001-02 → — Figure 845608B 845608B 2003-04 → — Figure 843317K 843317K 2000-02 → — Figure 843318E 843318E 2000-02 → 2003-04 Figure 84C585A 84C585A 2003-04 → — Figure 843319F 843319F 2000-02 → 2003-04 Figure 84C584A 84C584A 2003-04 → — Figure 843320A 843320A 2000-02 → 2003-04 Figure 843321C 843321C 2000-02 → 2003-04 Figure 845611B 845611B 2003-04 → — Figure 845612A 845612A 2003-04 → — Figure 843322A 843322A 2000-02 → — Figure 843323 843323 2000-02 → — Figure 843324A 843324A 2000-02 → — Figure 843325B 843325B 2000-02 → 2003-04 Figure 845616B 845616B 2003-04 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28371 Relay, Ignition, NO.1
28610 Relay Assy, Intake Heater OR Glow Plug
81980 Flasher Assy, Turn Signal
82600F Fuse, Fuse Block
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82621A Cover, Fusible Link
82622 Cover, Fusible Link, Upper
82623 Cover, Fusible Link, Lower
82642A Relay, Running Light
82660 Block Assy, Relay, Engine Room
82660B Block Assy, Relay
82660C Block Assy, Relay
82660D Block Assy, Relay
82660E Block Assy, Relay
82662B Cover, Relay Block, Upper, NO.2
82662C Cover, Relay Block, Upper, NO.3
82663A Cover, Relay Block, Lower, NO.2
82663B Cover, Relay Block, Lower, NO.3
82672A Cover, Junction Block
82673A Bracket, Junction Block, NO.1
82674 Cover, Junction Block Lower
82720 Block Assy, Engine Room Junction
82731 Block, Driver Side Junction
82733 Block, Passenger Side Junction
82824L Pin, Short
83181G Sensor, Speedometer
83181H Ring, O (FOR SPEEDOMETER SENSOR)
83320 Gage Assy, Fuel Sender
83390 Switch Assy, Vacuum Warning
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84052 Switch Assy, Un-lock Warning
84119 Rheostat, Light Control
84119G Blub
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84152B Bulb (FOR HEADLAMP LEVELING SWITCH)
84162A Switch, Rear Fog Lamp
84162C Bulb (FOR REAR FOG LAMP SWITCH)
84210 Switch Assy, Back-up Lamp
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84247A Switch, Steering Pad, LH
84258A Cover, Steering Pad, RH
84261B Junction, Slide Door Control,Male
84261C Junction, Slide Door Control,Male NO.1
84262B Junction, Slide Door Control, Female
84262C Junction, Slide Door Control, Female, NO.1
84306 Cable Sub-assy, Spiral
84330 Switch Assy, Hazard Warning Signal
84330B Bulb, Hazard Warning Signal Switch
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84450 Switch Assy, Ignition OR Starter
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper
84732A Switch, Rear Heater Blower
84732B Bulb, Rear Heater Blower Switch
84751 Switch, Seat Heater
84751B Bulb, Seat Heater Switch
84751F Switch, Seat Heater
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
84930 Switch Assy, Door Control
84930J Switch Assy, Auto Slide Door Main
84930K Switch Assy, Auto Slide Door Control
84930L Bulb, Auto Slide Door Control Switch
84988F Switch, Traction Control
84988G Bulb, Traction Control Switch
85500 Lighter Assy, Cigarette
85520 Knob And Element Assy, Cigarette Lighter
85530 Socket Assy, Power Outlet, NO.1
85530A Relay, Power Outlet Socket
85535 Panel, Cigarette Lighter Heat Diffuse
85910Y Relay, Rear Heater
85912 Relay, Defogger
85913A Relay, Heater Control
85915 Relay, Main
85916D Relay, Fog Lamp
85916L Relay, Rear Fog Lamp
85916P Relay, Headlamp
85918B Relay, Door Control, RH
85918C Relay, Door Control, LH
85920 Relay & Switch Assy, Sliding Roof
85926 Relay, Headlamp Dimmer
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85927B Relay, Cooling Fan, NO.3
85930G Relay, Acc
85934 Relay, Magnet-clutch
85942 Relay, Headlamp Cleaner Control
85975B Relay, Slide Door Closer, RH
85975C Relay, Slide Door Closer, LH
85991 Relay, Seat Belt Warning
86530 Relay Assy, Horn
86650A Buzzer Assy, Door Opening
87290 Switch Assy, Heater
87290B Bulb (FOR HEATER SWITCH)
87346K Relay, Ptc Heater
89221 Computer, Multiplex Network Body
89245B Sensor, Steering
89428 Switch, Temperature Detect, NO.2
89438 Switch, Power Steering Oil Pressure
89465 Sensor, Oxygen
89467B Sensor, Air Fuel Ratio
89491 Sensor, Engine Oil Level
89491A Gasket, Engine Oil Level Sensor
89615 Sensor, Knock Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
