Toyota Previa/Tarago

2006-01 → 2019-10 · chassis ACR50,GSR50 · catalogue 652260 · General

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 12 illustrations

Illustrations

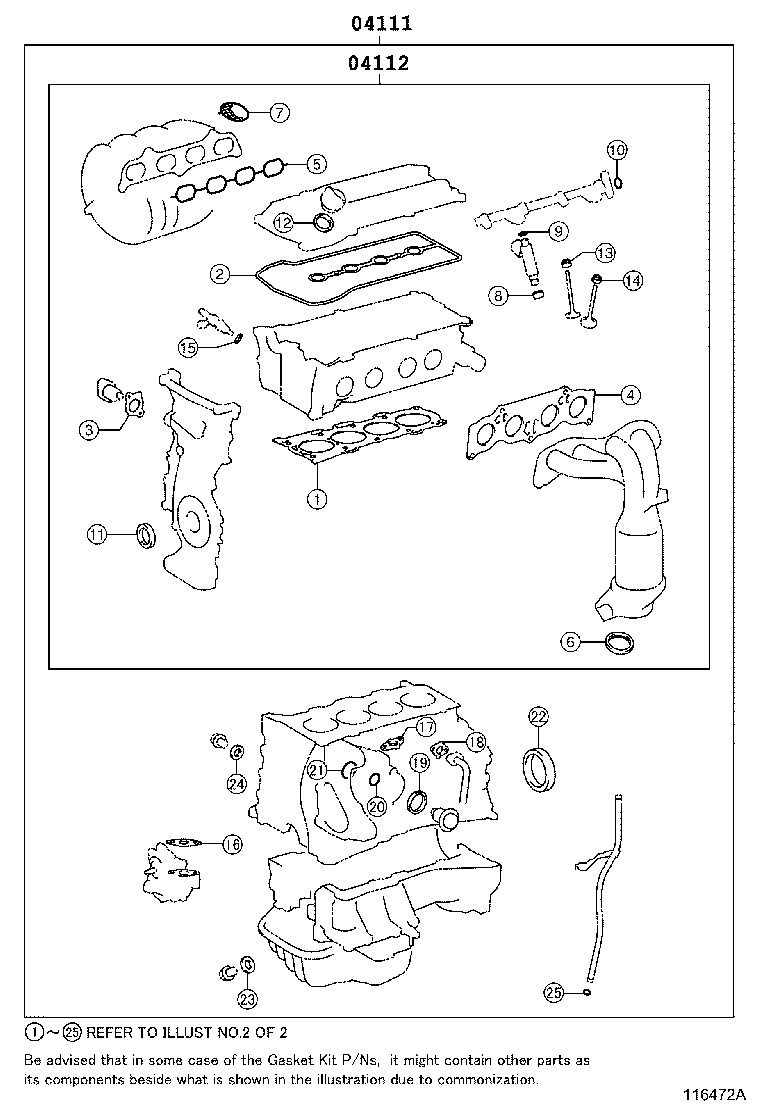

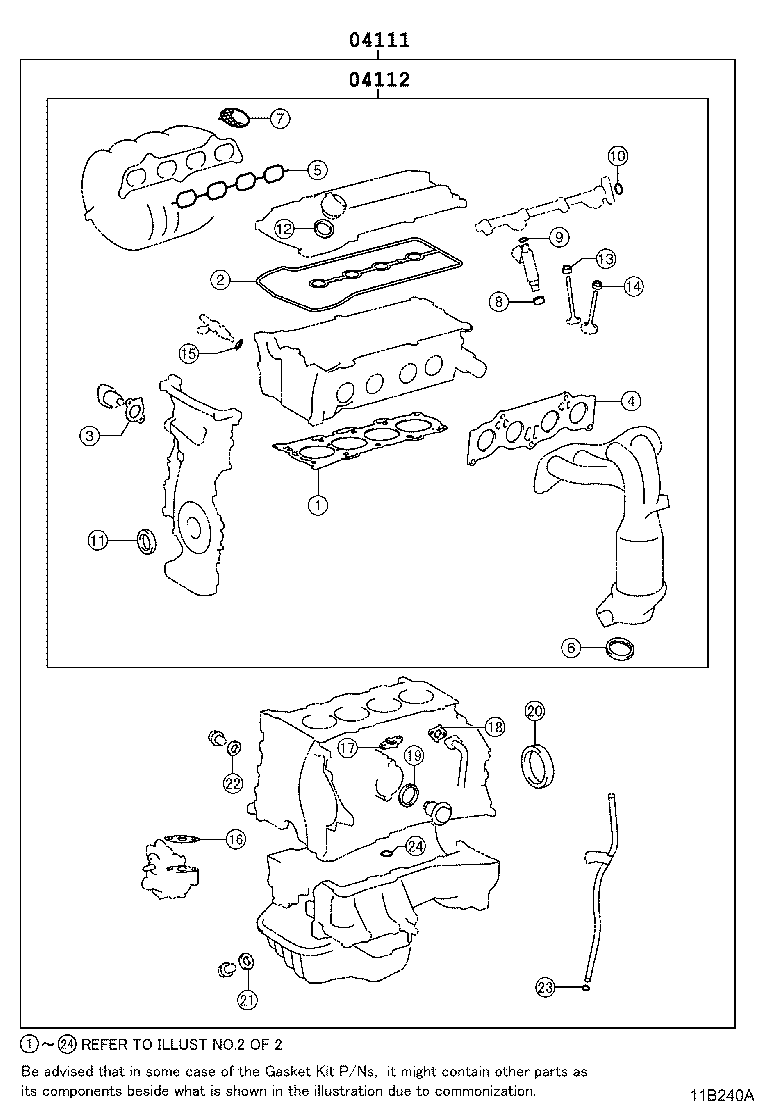

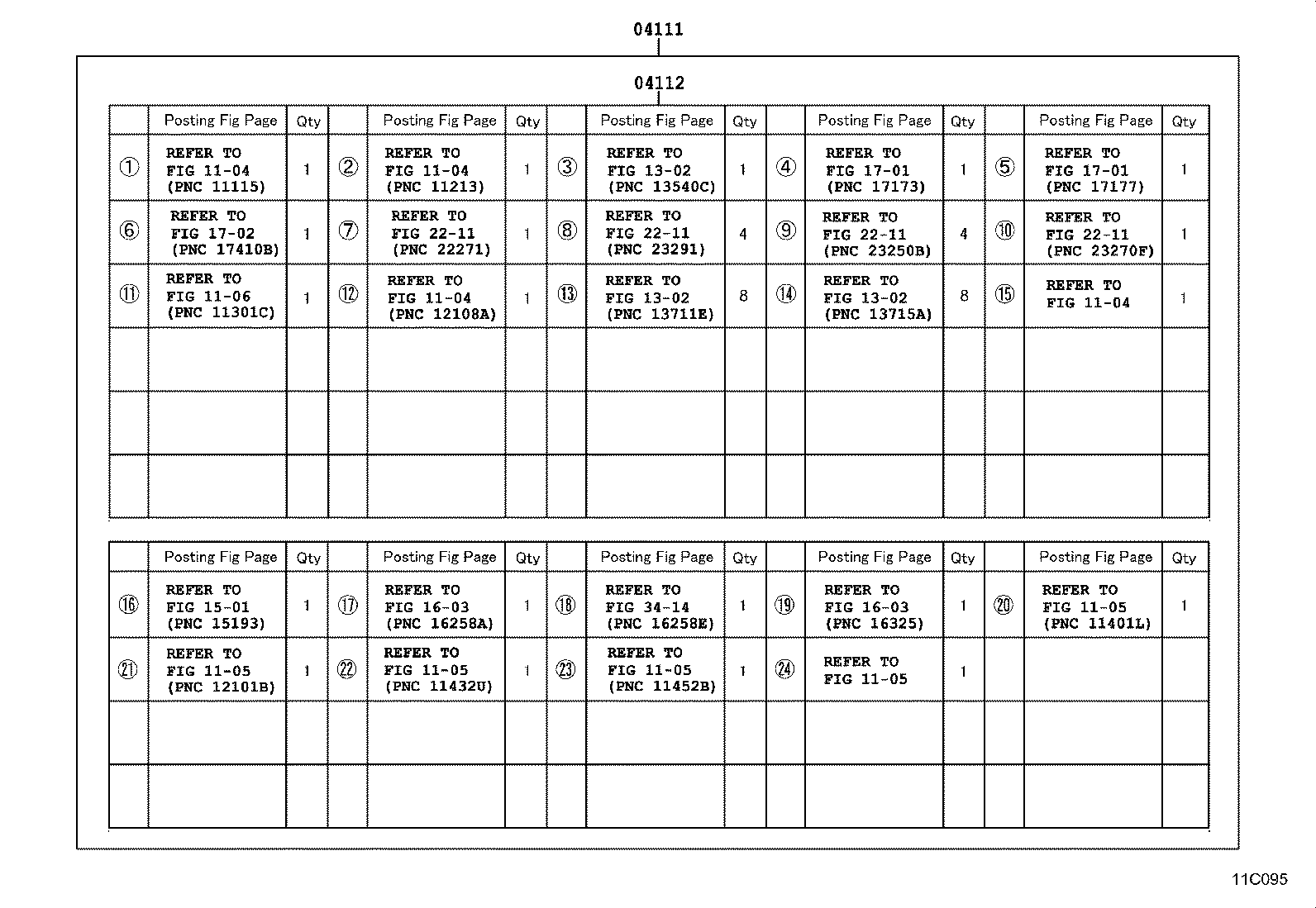

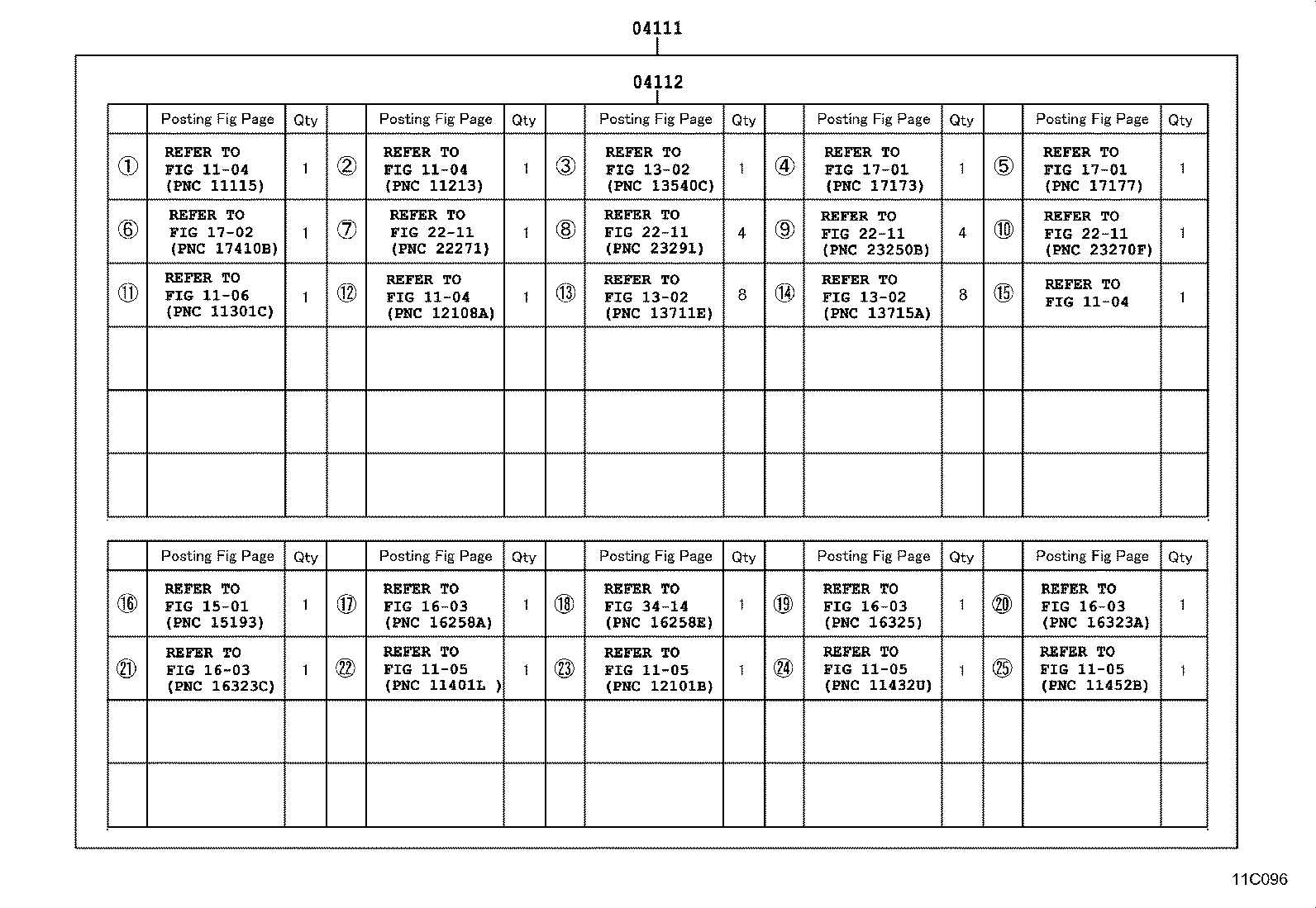

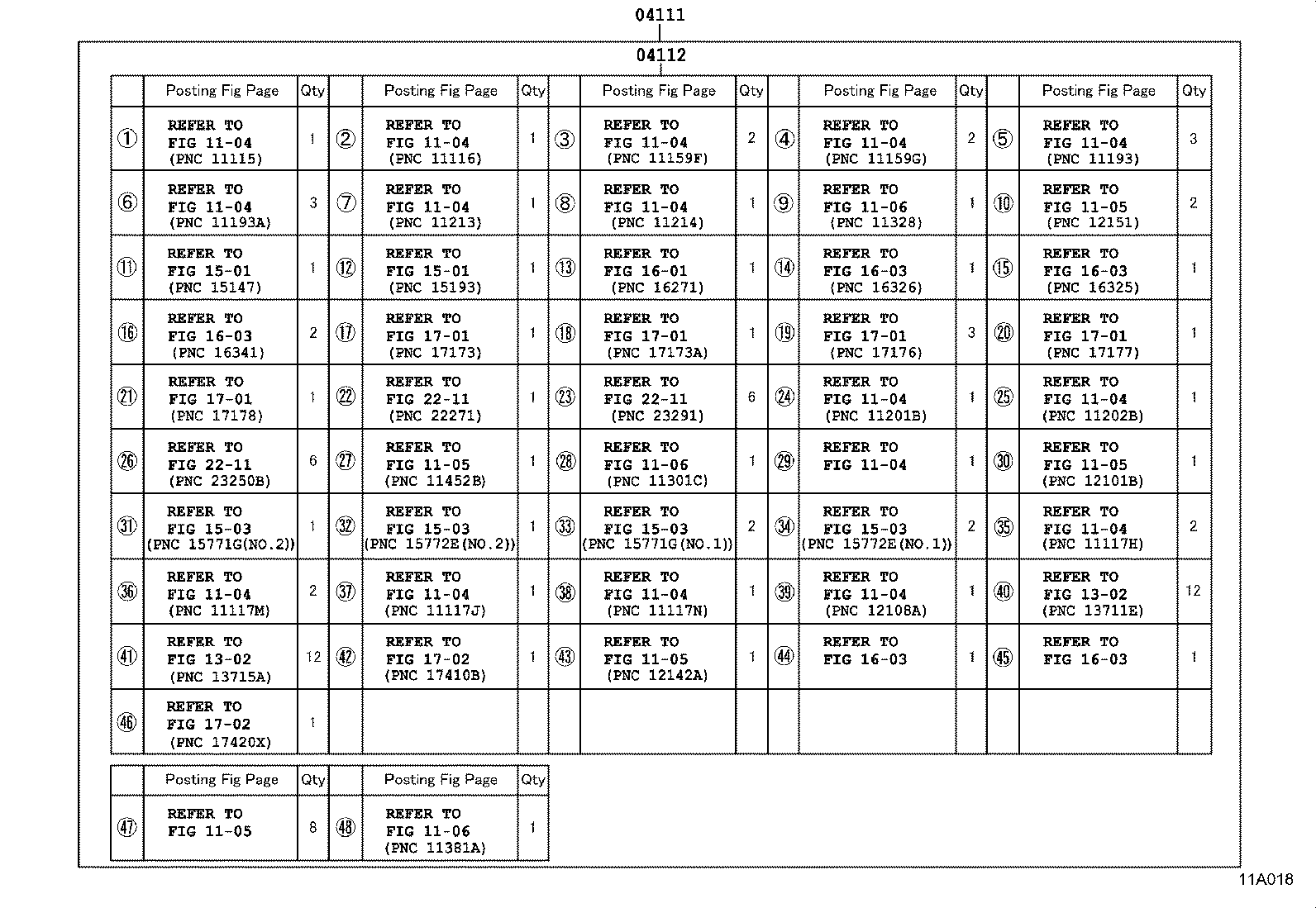

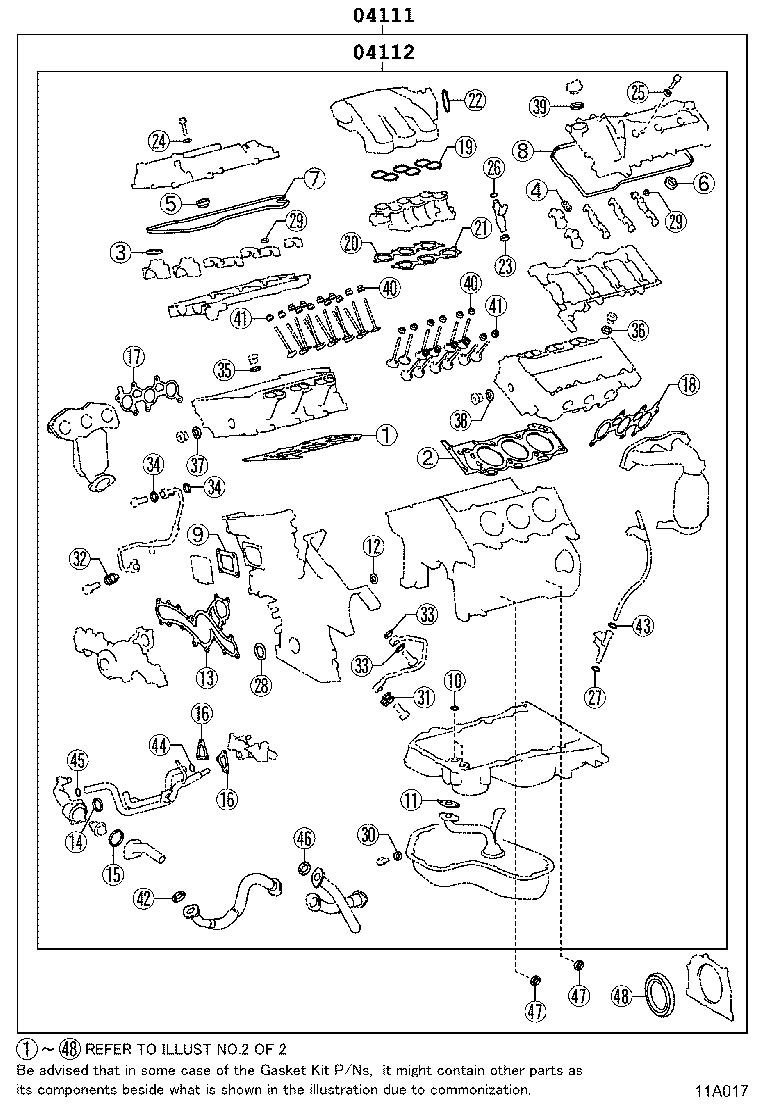

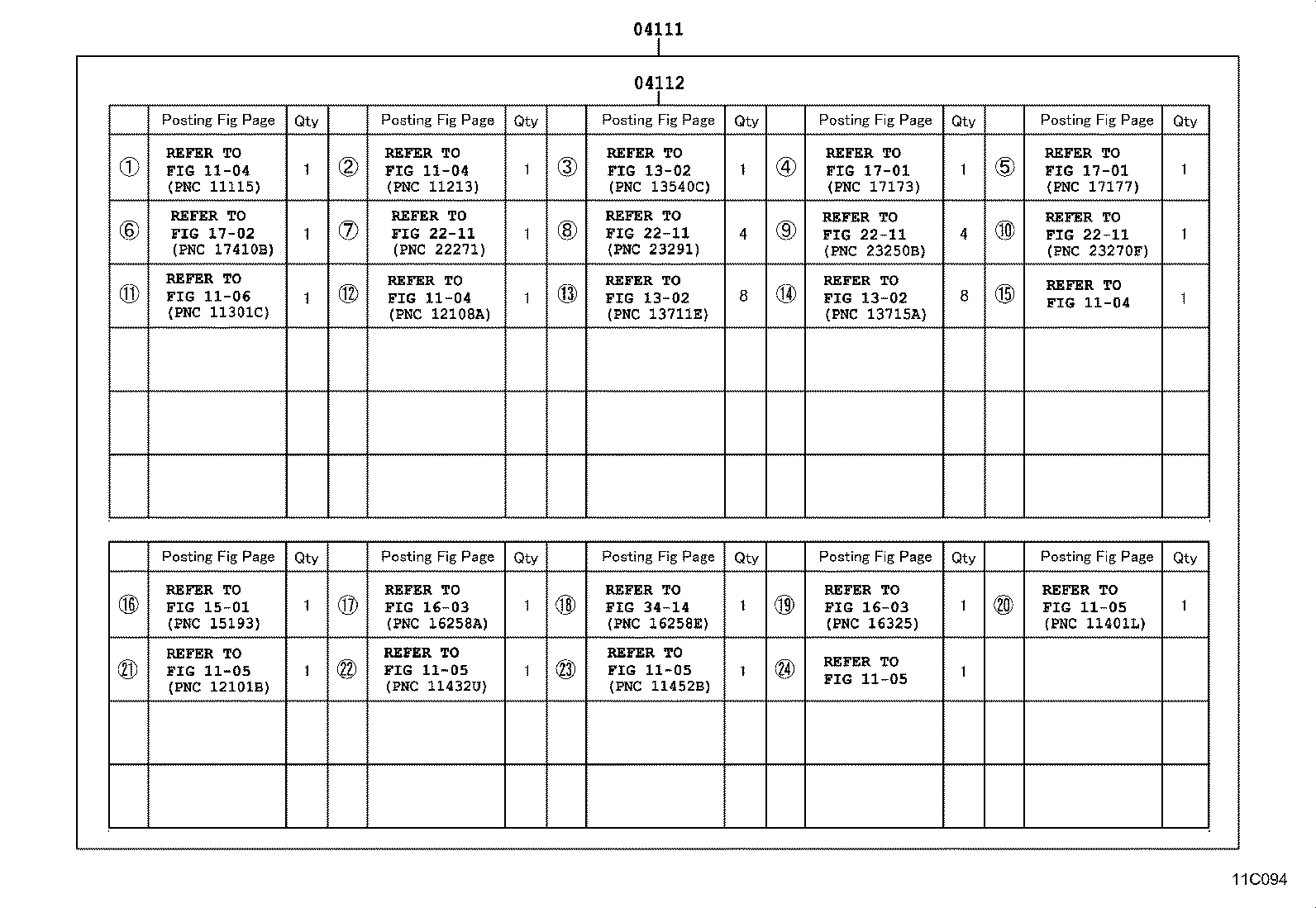

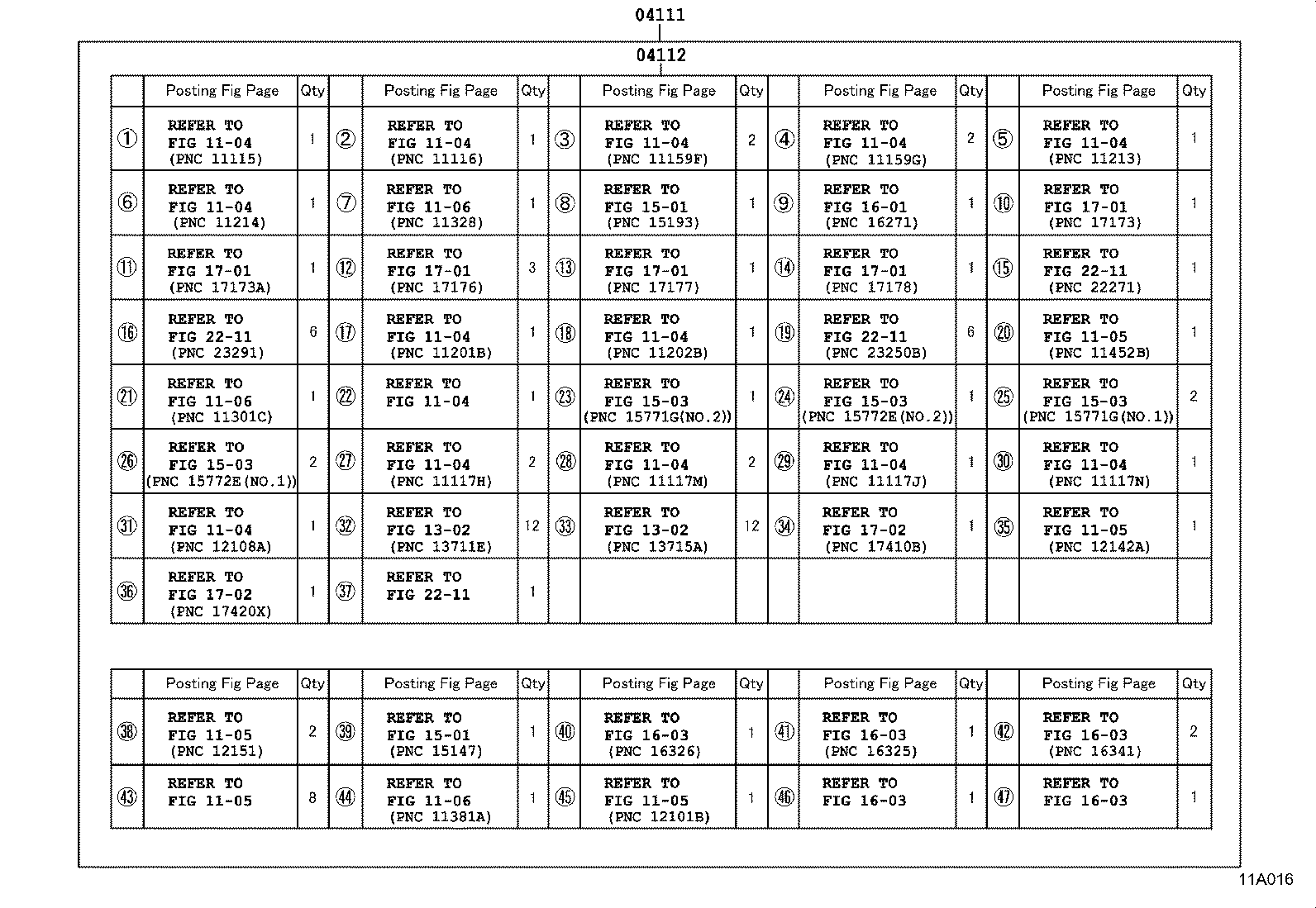

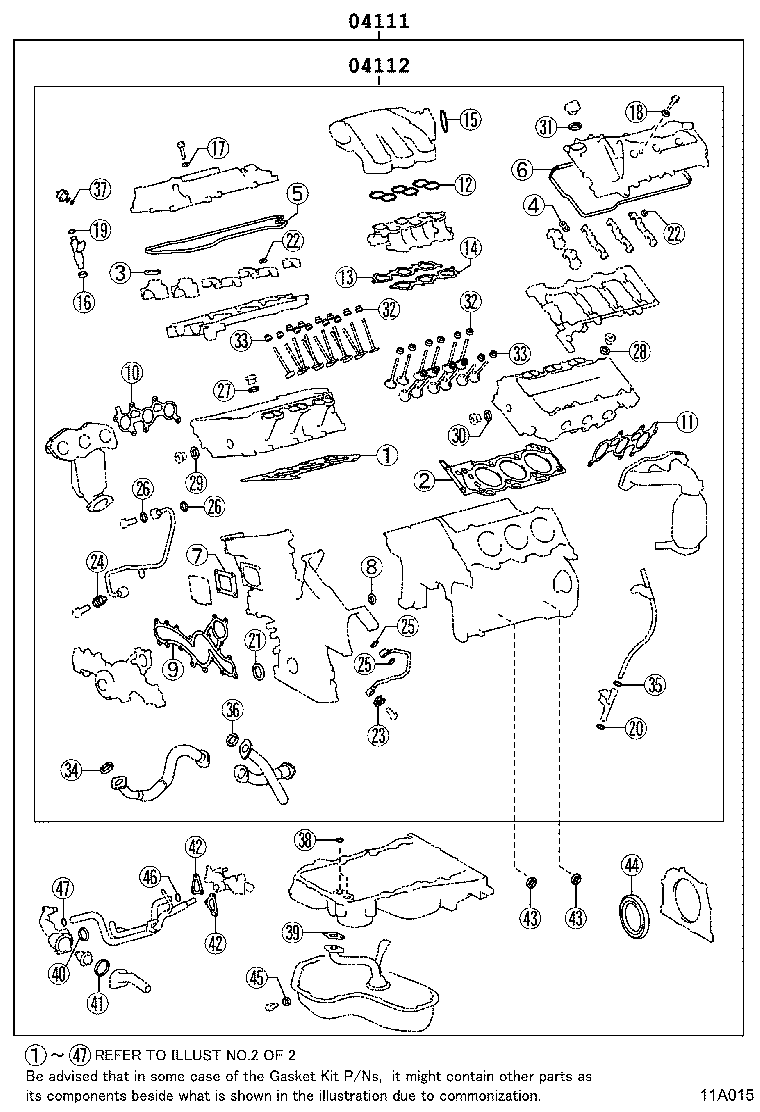

Figure 114095C 114095C 2006-01 → 2016-05 Figure 11C095 11C095 2006-01 → 2016-05 Figure 116472A 116472A 2010-03 → 2012-04 Figure 116472A 116472A 2012-04 → 2016-05 Figure 11C096 11C096 2010-03 → 2012-04 Figure 11C096 11C096 2012-04 → 2016-05 Figure 11B240A 11B240A 2016-05 → — Figure 11C094 11C094 2016-05 → — Figure 11A015 11A015 2006-11 → 2011-08 Figure 11A016 11A016 2006-11 → 2011-08 Figure 11A017 11A017 2011-08 → — Figure 11A018 11A018 2011-08 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
