Toyota Previa/Tarago

2006-01 → 2019-10 · chassis ACR50,GSR50 · catalogue 652260 · General

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube(CVT)

12 part groups · 4 illustrations

Illustrations

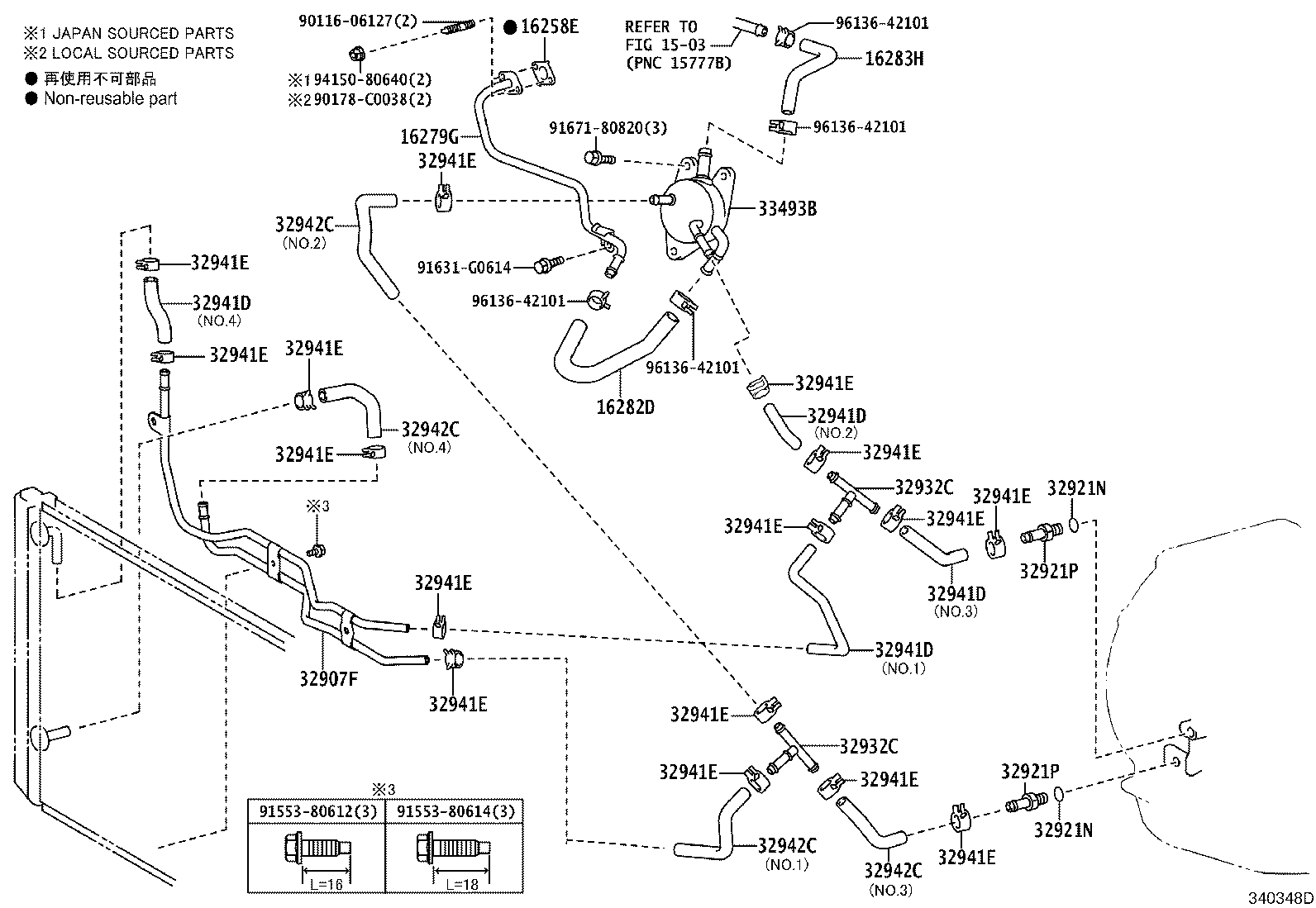

Figure 340254C 340254C 2010-03 → 2012-04 Figure 340254C 340254C 2012-04 → 2016-05 Figure 340348D 340348D 2012-04 → 2016-05 Figure 340348D 340348D 2016-05 → —

Part groups

PNCDescription
16258E Gasket(FOR WATER BY-PASS PIPE)
16279G Pipe, Water By-pass, NO.3
16282D Hose, Water By-pass, NO.5
16283H Hose, Water By-pass, NO.6
32907F Tube Sub-assy, Oil Cooler W/O Hose
32921N Ring, O(FOR OIL COOLER TUBE UNION)
32921P Union(FOR OIL COOLER TUBE)
32932C Tube, Oil Cooler Outlet
32941D Hose, Oil Cooler Inlet
32941E Clip(FOR OIL COOLER TUBE)
32942C Hose, Oil Cooler Outlet, NO.1
33493B Cooler, Oil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
