Toyota Previa/Tarago

2006-01 → 2019-10 · chassis ACR50,GSR50 · catalogue 652260 · General

Supported model Data version 2019-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube (ATM)

17 part groups · 9 illustrations

Illustrations

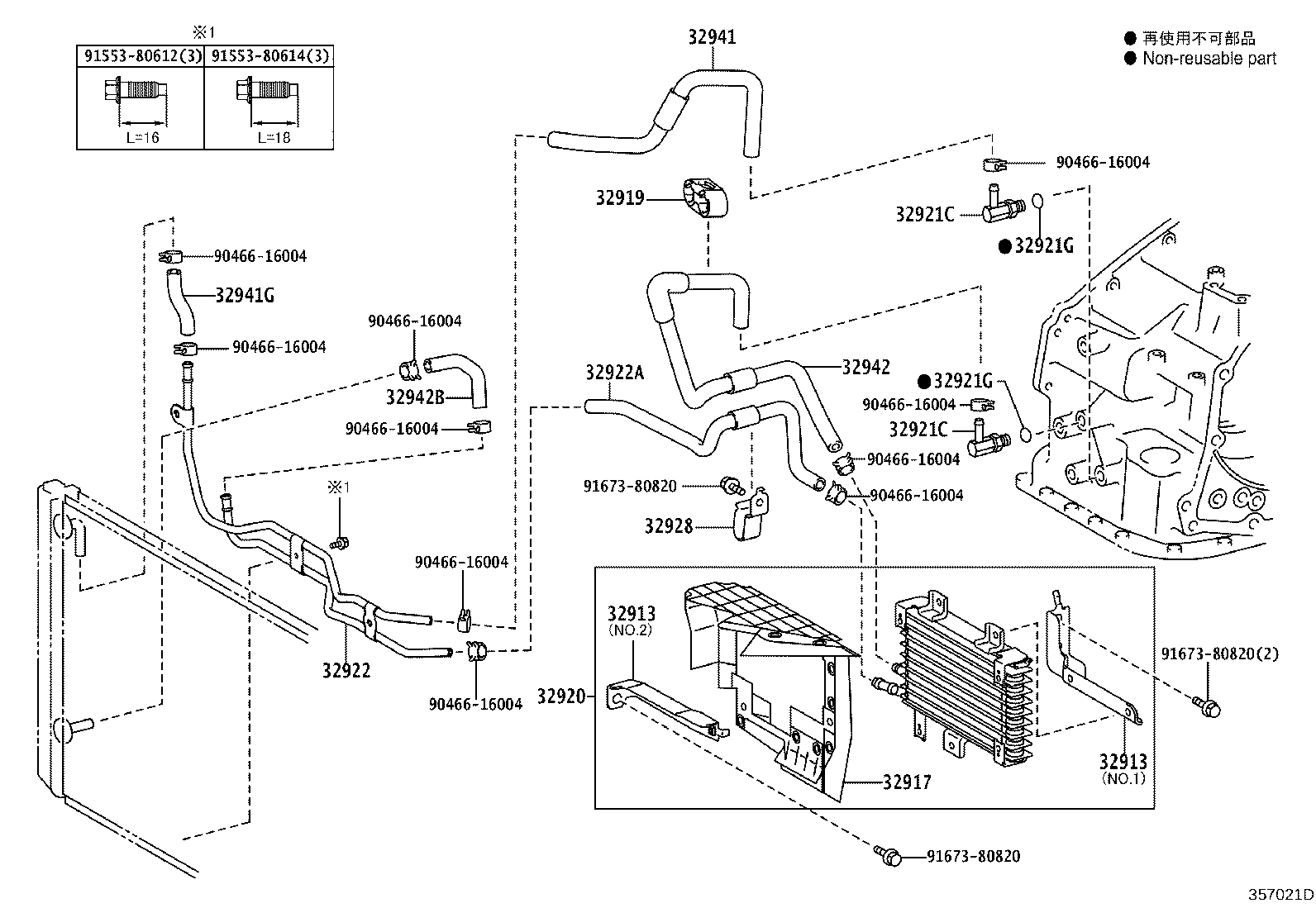

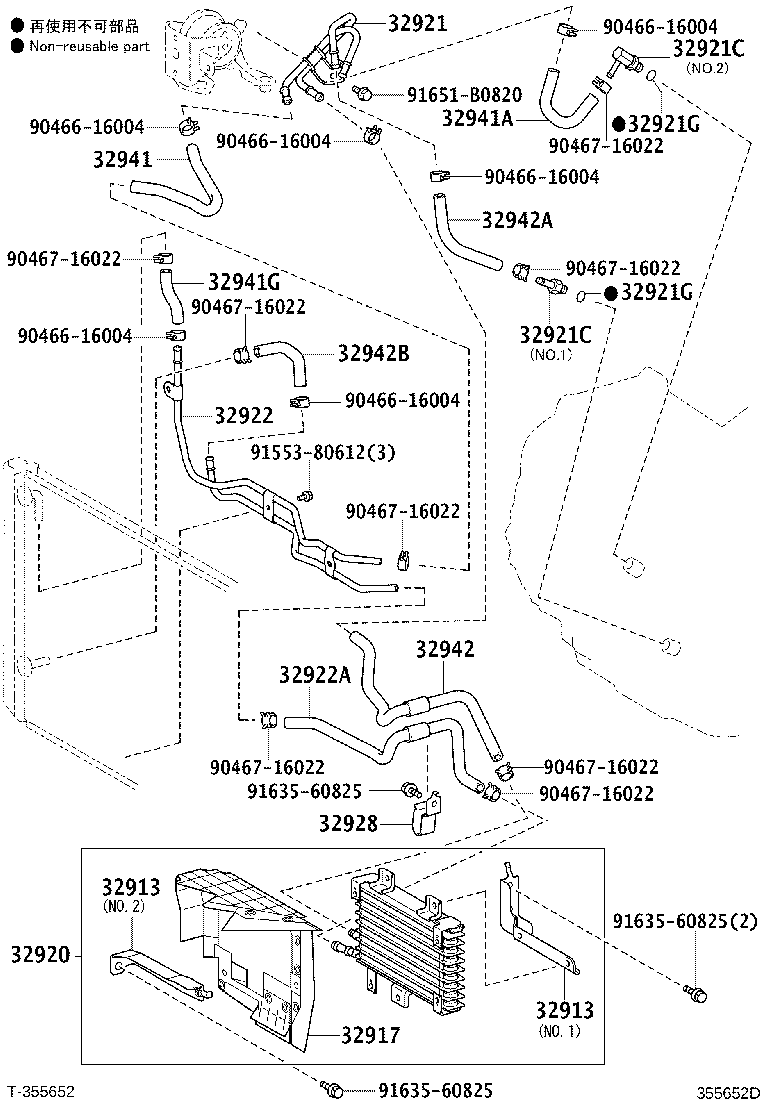

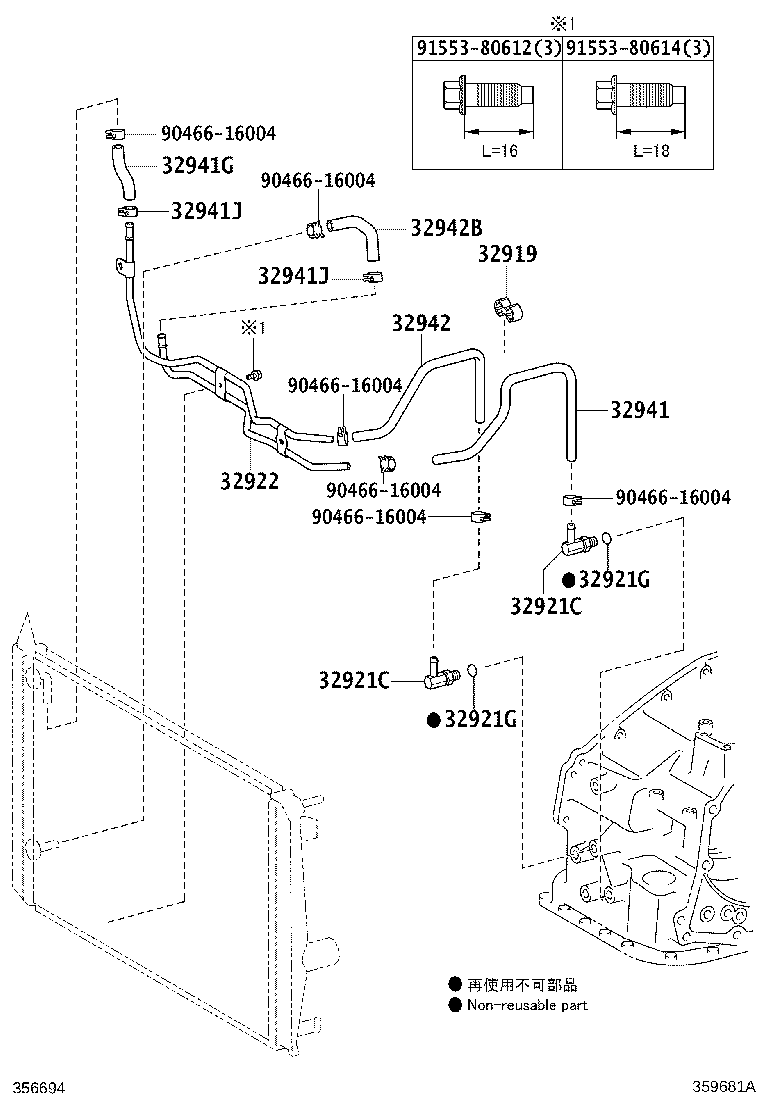

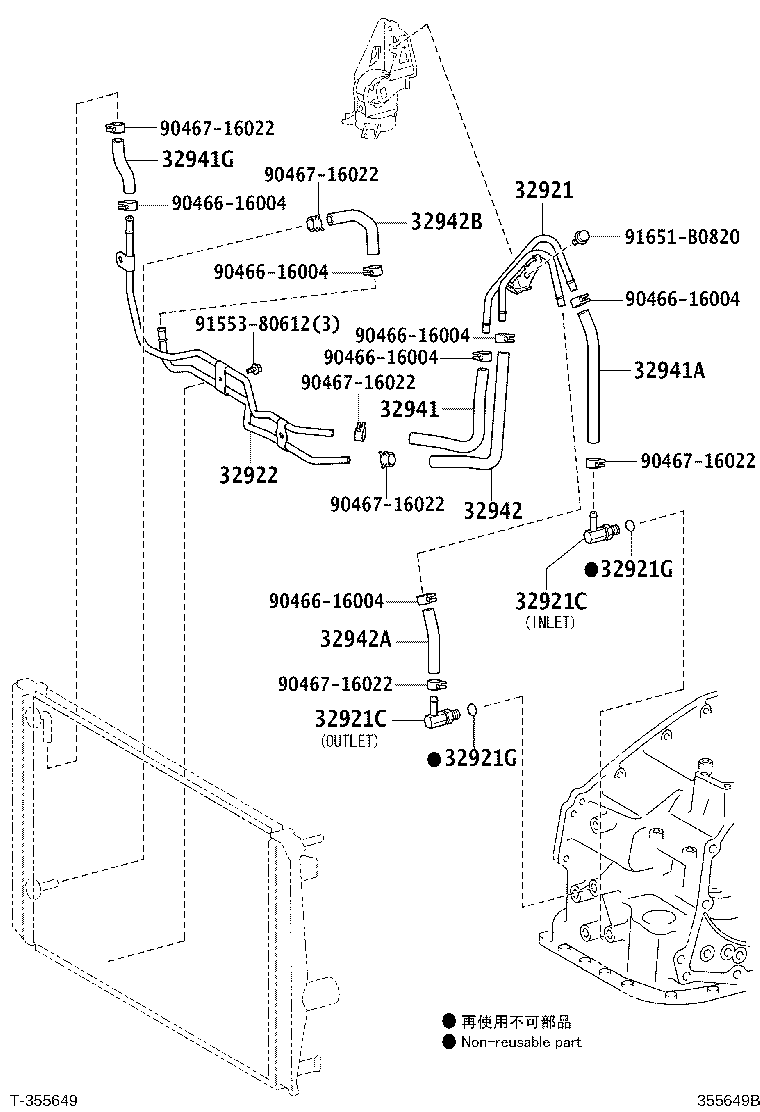

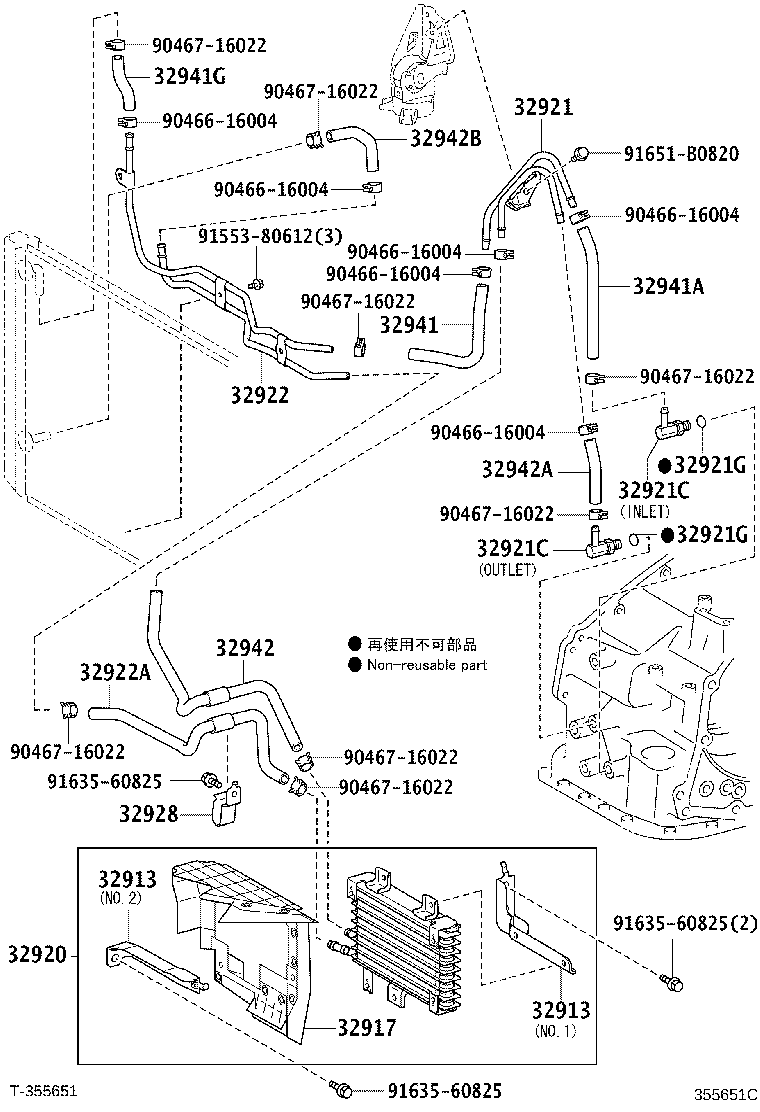

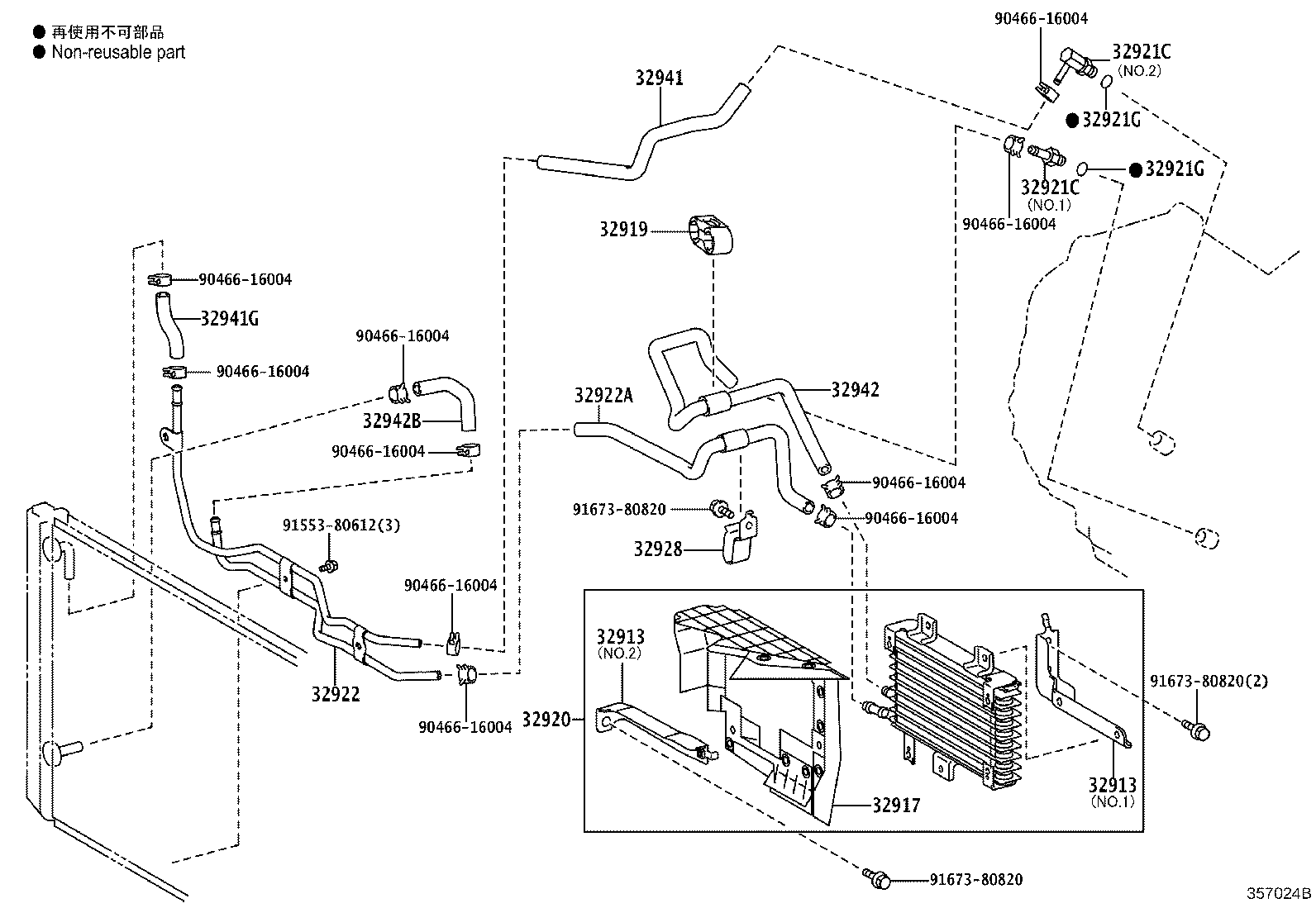

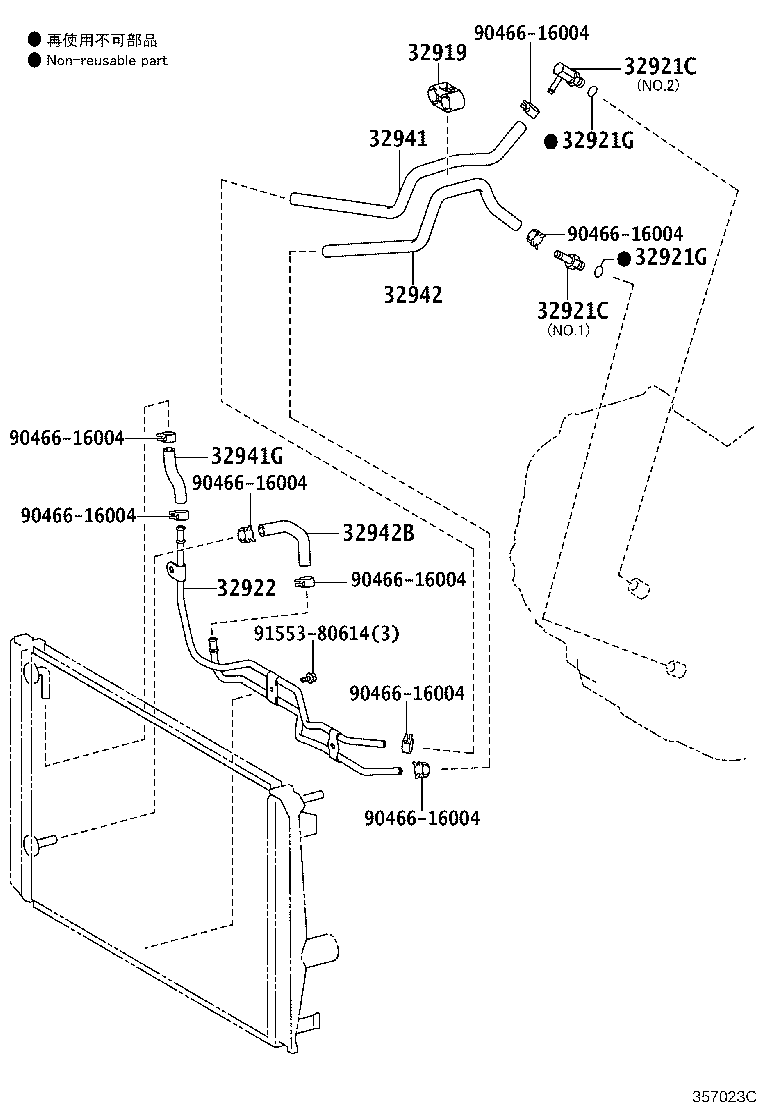

Figure 355650C 355650C 2006-01 → 2008-12 Figure 355652D 355652D 2006-01 → 2008-12 Figure 355649B 355649B 2006-01 → 2008-12 Figure 355651C 355651C 2006-01 → 2008-12 Figure 357023C 357023C 2008-12 → — Figure 357024B 357024B 2008-12 → 2012-04 Figure 359681A 359681A 2008-12 → 2014-08 Figure 359681A 359681A 2008-12 → — Figure 357021D 357021D 2008-12 → —

Part groups

PNCDescription
32913 Bracket, Oil Cooler
32917 Duct, Transmission Oil Cooler Air
32919 Holder, Oil Cooler Tube
32920 Cooler Assy, Oil W/Hose
32921 Tube, Oil Cooler Inlet, NO.1
32921C Union(FOR OIL COOLER TUBE)
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32922 Tube, Oil Cooler Outlet, NO.1
32922A Hose(FOR OIL COOLER OUTLET)
32928 Clamp, Flexible Hose, NO.1
32941 Hose, Oil Cooler Inlet, NO.1
32941A Hose, Oil Cooler Inlet, NO.2
32941G Hose, Oil Cooler Inlet, NO.3
32941J Clip, NO.1(FOR OIL COOLER HOSE)
32942 Hose, Oil Cooler Outlet, NO.1
32942A Hose, Oil Cooler Outlet, NO.2
32942B Hose, Oil Cooler Outlet, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
