Toyota Previa/Tarago
2006-01 → 2019-10 · chassis ACR50,GSR50 · catalogue 652260 · General
Supported model
Data version 2019-10

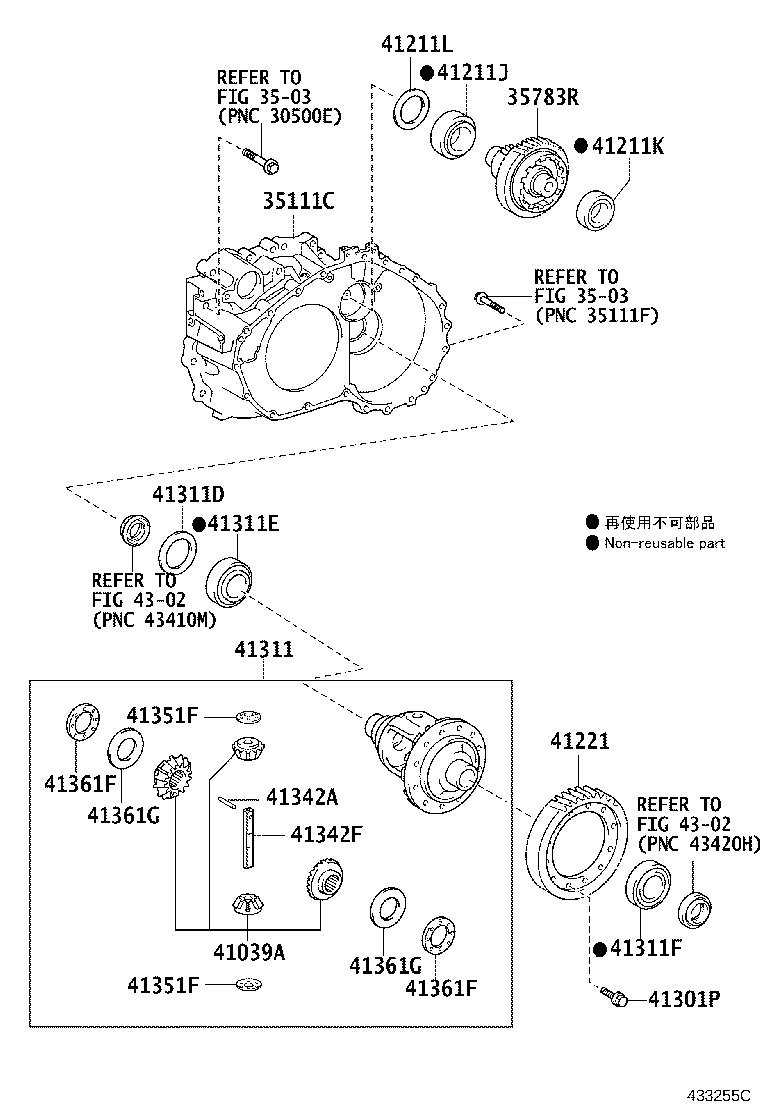

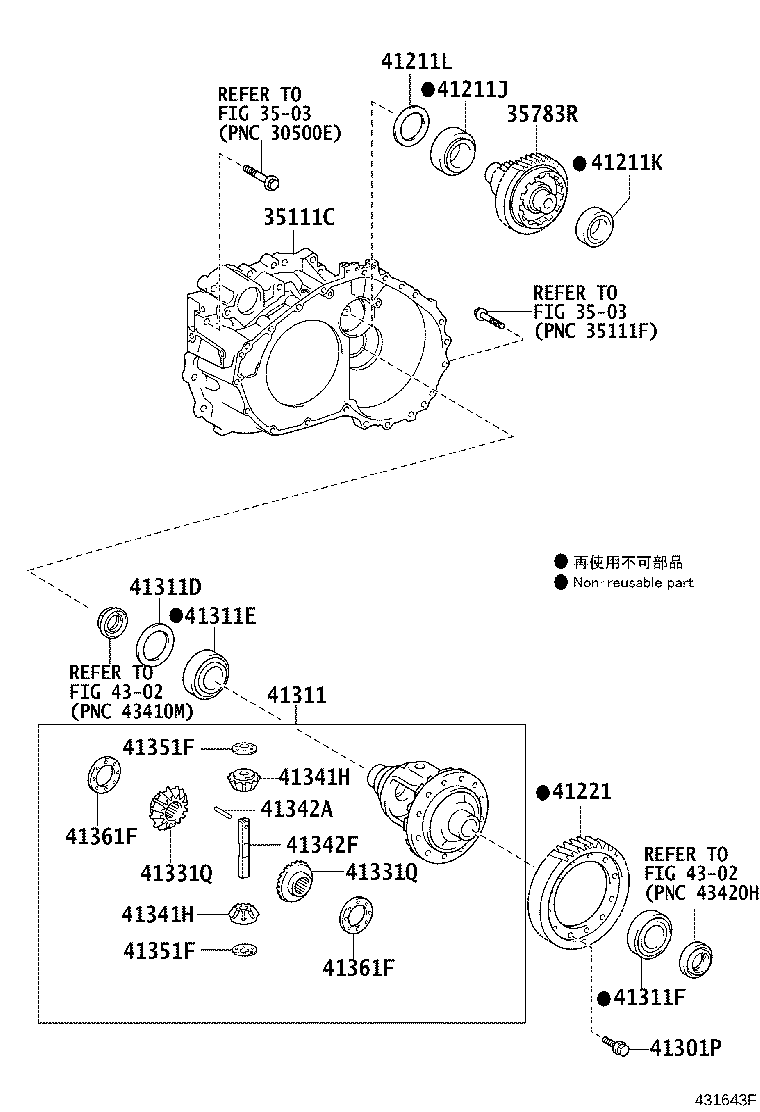

Front Axle Housing & Differential
27 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 33481X | Gear, Speedometer Drive |
| 35111C | Housing, Transaxle |
| 35759A | Gear, Reduction Driven |
| 35783R | Gear, Counter Driven |
| 41039A | Gear Kit, Differential |
| 41211 | Pinion, Differential Drive |
| 41211A | Bearing, Tapered Roller (FOR FRONT DRIVE PINION FRONT) |
| 41211B | Bearing, Tapered Roller (FOR FRONT DRIVE PINION REAR) |
| 41211J | Bearing, Tapered Roller (FOR DIFFERENTIAL DRIVE PINION RH) |
| 41211K | Bearing, Tapered Roller (FOR DIFFERENTIAL DRIVE PINION LH) |
| 41211L | Shim (FOR DIFFERENTIAL DRIVE PINION) |
| 41221 | Gear, Front Differential Ring |
| 41301P | Screw(FOR FRONT DIFFERENTIAL CASE) |
| 41302F | Case Sub-assy, Front Differential |
| 41311 | Case, Front Differential |
| 41311C | Shim (FOR FRONT DIFFERENTIAL CASE REAR) |
| 41311D | Shim (FOR FRONT DIFFERENTIAL CASE FRONT) |
| 41311E | Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT) |
| 41311F | Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR) |
| 41311P | Bolt (FOR FRONT DIFFERENTIAL CASE) |
| 41331Q | Gear, Differential Side |
| 41341H | Pinion, Differential |
| 41342A | Pin, Straight (FOR FRONT DIFFERENTIAL PINION SHAFT) |
| 41342F | Shaft, Front Differential Pinion, NO.1 |
| 41351F | Washer, Front Differential Pinion Thrust |
| 41361F | Washer, Front Differential Side Gear Thrust, NO.1 |
| 41361G | Washer, Conical Spring(FOR CENTER DIFFERENTIAL SIDE GEAR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
